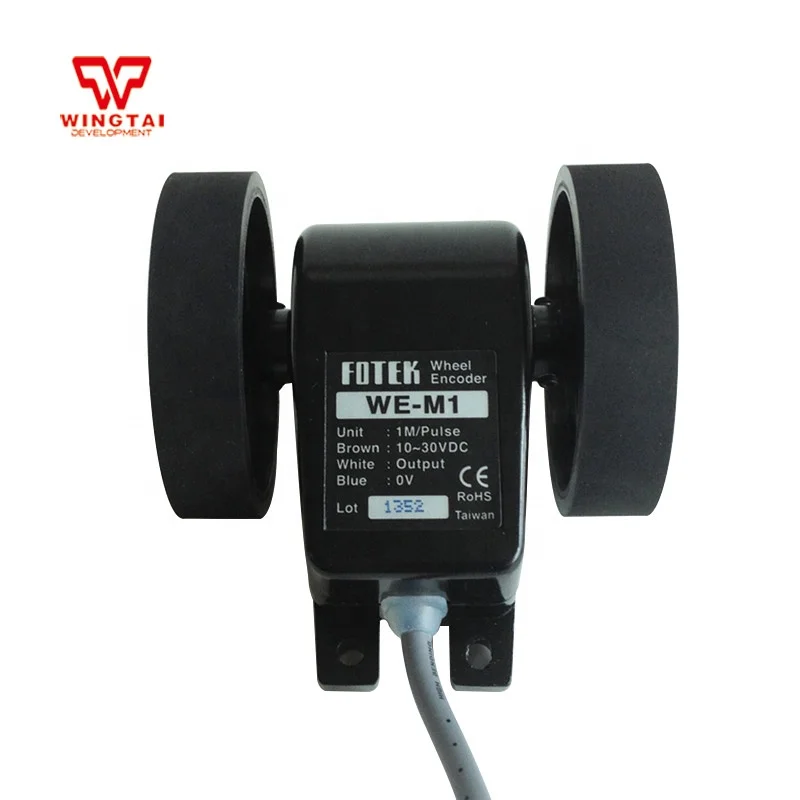

Fotek WE Series Sensors Wheel Length Counter Meter Counter
- Category: >>>
- Supplier: Shantou Wingtai Packing Equipment Co. Ltd.
Share on (60760059909):
Product Overview
Description
Fotek WE Series Sensors Wheel Length Counter Meter Counter
Features
1. High response frequency: 10KHZ
2. Oil-free bearing, ultra-high mechanical speed: 6KRPM
3. Unique voltage and current PNP+PNP double force
4. Short circuit protection and polarity reverse protection circuit
5. Unique center of gravity design, small constitution, installation of space, center of gravity stability, measurement accuracy
Technical Data
Type | length counter | ||||
Model | WE-M1 | WE-M2 | WE-M3 | WE-M4T | |
Unit/pulse | 1m | 0.1m | 0.01m | 1.0mm | |
PPR | 0.2 PPR | 2 PPR | 20 PPR | 200 PPR | |
Output Phase | Single or Two Phase are Available | ||||
Output Mode | NPN+PNP | ||||
Output Current | 150mA max. | ||||
Residual Voltage | 0.1V max. | ||||
Leakage Current | 0.1 mA max. | ||||
Protected Mode | Polarity Reversed & Over Load Protection | ||||
Connection Type | 2m Cable | ||||
Answer Frequency | 2K HZ | 10K HZ | |||
RPM max. | 6K RPM | 3K RPM | |||
Iusulation Resistance | Over 50MΩ/500VDC | ||||
Dielectric strength | Over 2.5KV | ||||
Work Environment | -20°C ~ +60 °C ; 35 % ~ 85%RH | ||||
Protection Class | IP-65 | ||||
Weight | Appr.525g | ||||
Product Display
