Rear rack 48v 30ah lithium ion battery pack for electric bike motor 1500w
- Category: Electric Bicycle Battery >>>
- Supplier: Shenzhen Delong Energy Technology Co. Ltd.
Share on (60760096774):
Product Overview
Description
Product Description
Rear rack design 48v 30ah lithium ion battery pack for electric bike motor 1200w 1500w
Features:

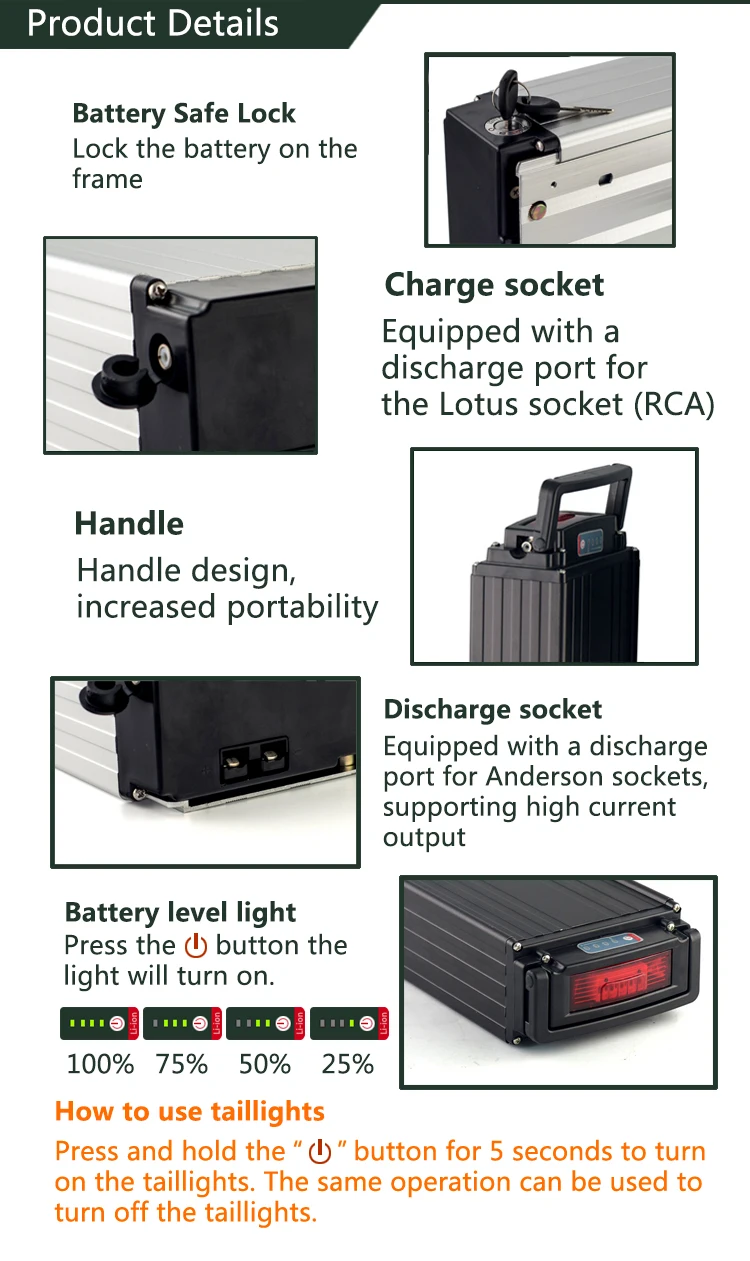

1. Lotus charging ports on top and bottom sides
2. Bottom ADS discharging port
3. Wit handle on the top
4. working indicators led light
5. with Long tail led light battery & without long tail led light battery options
6. Dimenssion:
Normally 13S10P with 3000mAh cell length is 495-500mm;
With 2500mAh cell in 13S12P lenght is 560mm.
7. with mountail rail 1 pcs
8. with ADS discharging port 1 pcs
| Battery Type | Rear Rack Battey | ||||
| Battery Pack Model | 48V30Ah | 48V10Ah | 36V15Ah | 48V12Ah | 48V20Ah |
| Outer Packing Material | PVC, Plastic shell, Plastic and Aluminum Shell, Steel Sheel | ||||
| Nominal Voltage | 48V | 48V | 36V | 48V | 48V |
| Rated Capacity | 30Ah | 10Ah | 15Ah | 12Ah | 20AH |
| Max. Charge Voltage | 42V | 54.6V | 42V | 54.6V | 54.6V |
| Normal Charge Current | 5A | 2A | 2-3A | 2A | 2A |
| Cut-Off Discharge Voltage | 30V | 30V | 30V | 39V | 39V |
| Max.ConstantDischarge Current | 30-35A | 20-25A | 20-25A | 20-25A | 20-25A |
| Max.Discharge Current (pulse) | 65A | 65A | 65A | 65A | 65A |
| Charging Model | CC/CV | CC/CV | CC/CV | CC/CV | CC/CV |
| Cycle Life(80%DOD) | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | 500Cycles |
| Charge Temperature | 0-45°C | 0-45°C | 0-45°C | 0-45°C | 0-45°C |
| Discharge Temperature | -20-55°C | -20-55°C | -20-55°C | -20-55°C | -20-55°C |
| Motor Range | 48V1000-1500W | 48V350-1000W | 36V350-500W | 48V350-1000W | 48V750-1000W |
Product Views

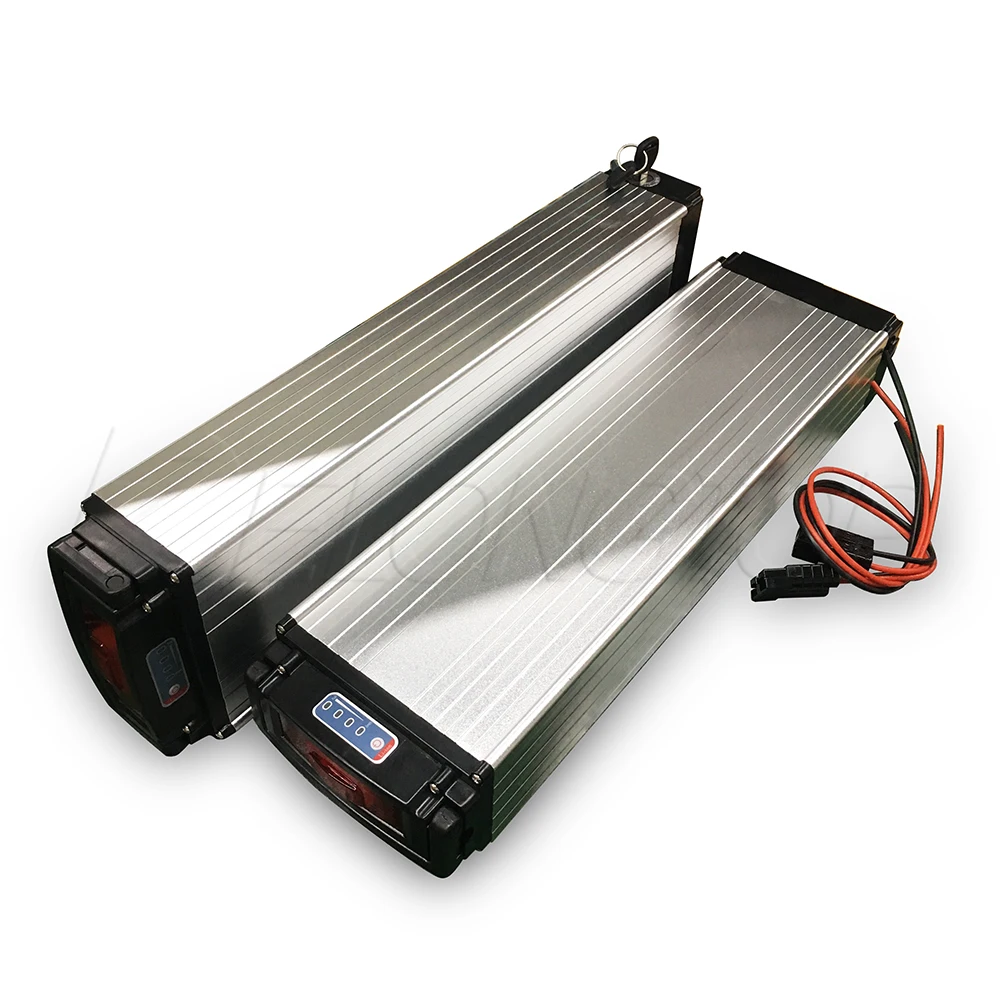

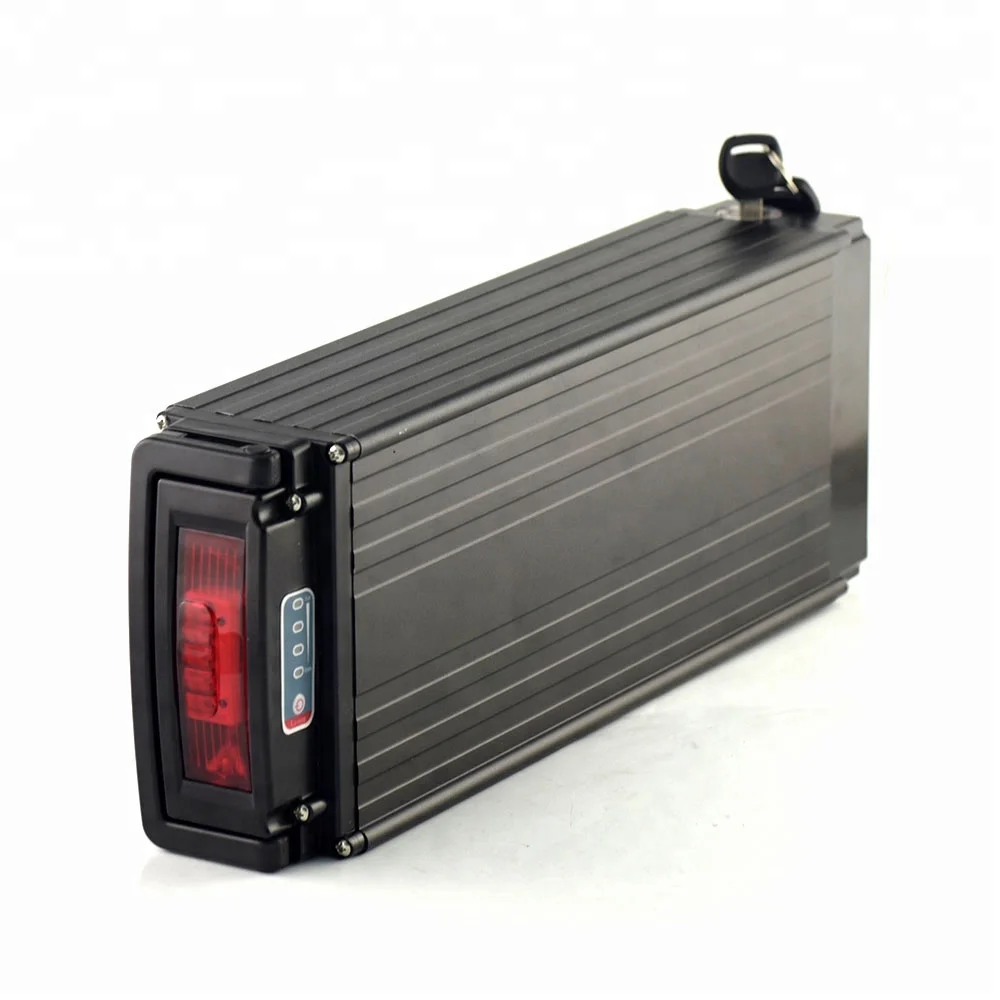

48v 30ah lithium ion battery pack for electric bike motor 1500w
1000W to 1200W motorcycle electric scooters battery use range
Two models : with tail led light design & without tail long led light
Battery dimenssion: 480*150*80mm (13s10p) or 560*150*80mm (13s12p)

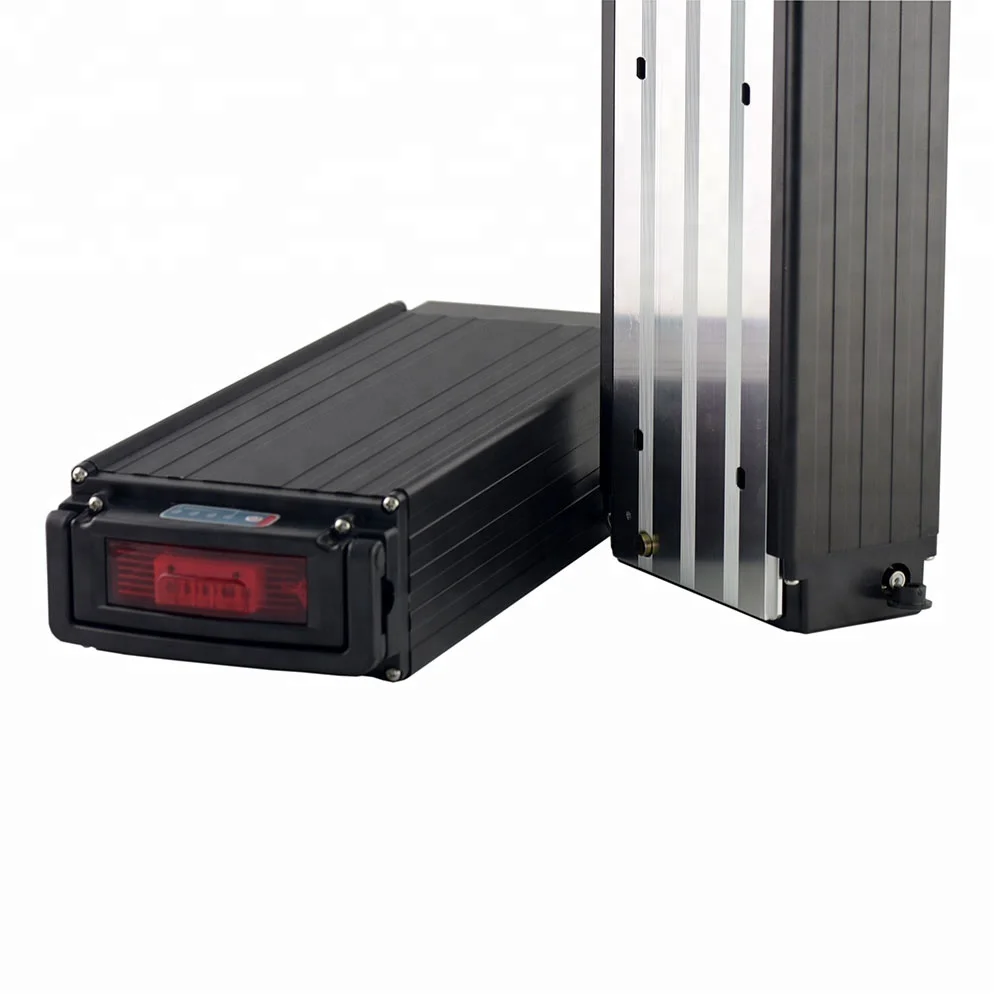

With Long tail led light model rear rack 48v 20ah lithium ion ebike bicycles battery design as below:
Customers' Feedback
Inner Circuit Board
The inner circuit board, provides protection against over-charge, over-discharge and short circuit, through monitoring
single string of cells. Also it enables every battery pack to obtain independent balancing function
Warranty Instructions
1.All battery we provide 1 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warray.
3.Goods should be returned in original condition to qualify for a replacement or repair.
Advantages
1.OEM&ODM manufacturer with various designs.
2.Reliable quality, competitive price, fast delivery, excellent service.
3.Solid package, stable shipment, 100% testing and inspection before shipping to ensure the quality.
4. Meets CE, ROHS, UN38.3, MSDS etc certification standard.
Certifications

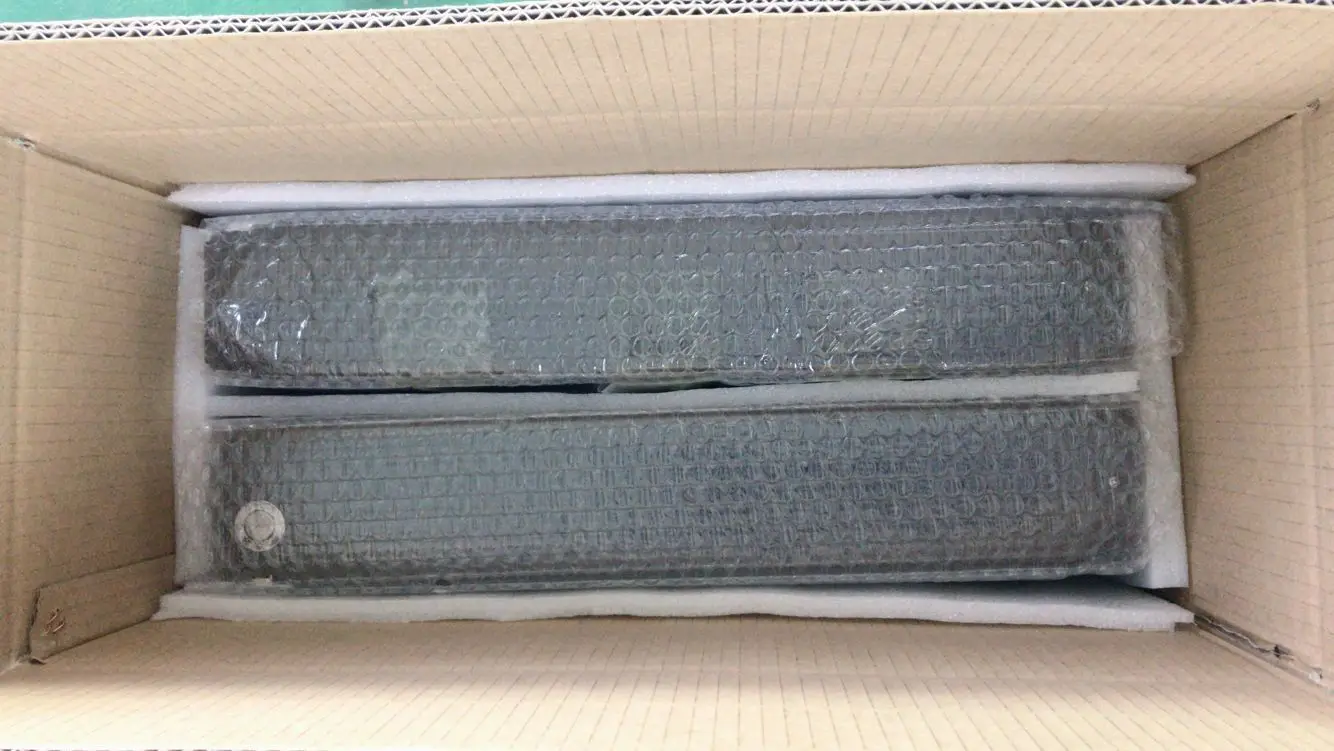

Payment & Shipping
FAQ
Q: What are there included for a battery or pack , may i buy charger from you?
A: Battery case, BMS, battery pack, can buy customzied connector, charger
Q: How long does it take to recharge the battery?
A: usually it takes 10-12 hours with 2A standard charger.
Q: How long I can get it?
A:If small quantity, delivery date about 5-7 days after payement, shipping delivery depends on the agents flights schedules.
Q:What's the warranty?
A: 12 months warranty from the delivery date. Man-made problems not in warranty.
Q: Can i customize the size of battery?
A: Of course yes if yourquantity MOQ workable.
