5 axis waterjet utter mainly for marble cutting

Product Overview

Description

Company Profile

TEENKING CNC Machinery CO., LTD was established in 2004, specializing in manufacturing high efficiency CNC cutting machines.  TeenKing Waterjet is commonly used to cut steel, metal, marble, stone and glass, etc.  By becoming the preferred choice of the high end customers at home and abroad, we are dedicated in producing quality products with our know how and innovations, in order to give good service and fulfill our customers’ requirements. By making our customers as our partners, we work together to achieve their needs, maximum economical benefits and produce easy to use machines.

With the development and enlargement of the company, we strive for perfection through our motto “Innovations, Practice, Diligence”.  We insist on “better quality and service” to serve our customer’s needs.  We appreciate your opinions and feedbacks which will help us improve and be closer to perfection.  We are making “Teen King” a worldwide brand and at the same time satisfy all our customer needs.

Product decription

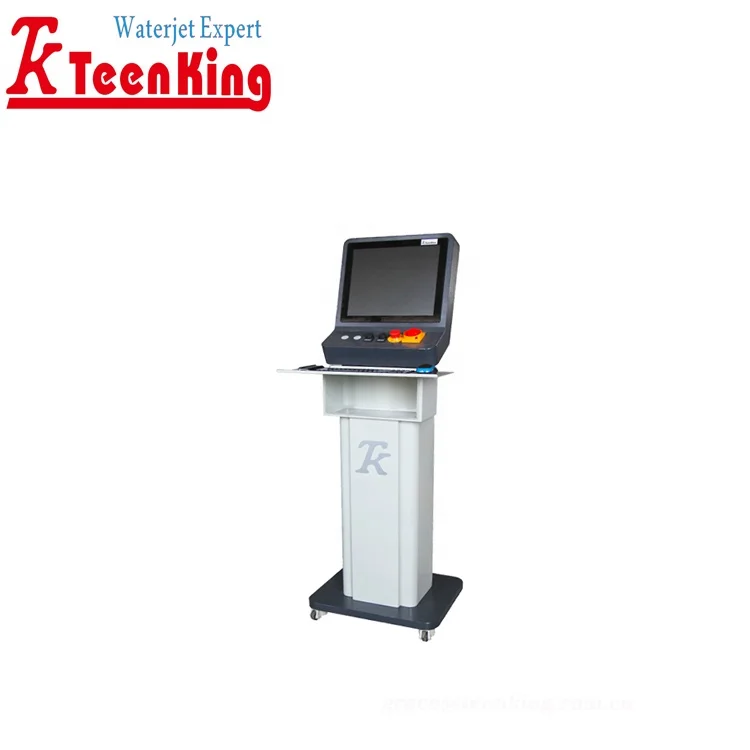

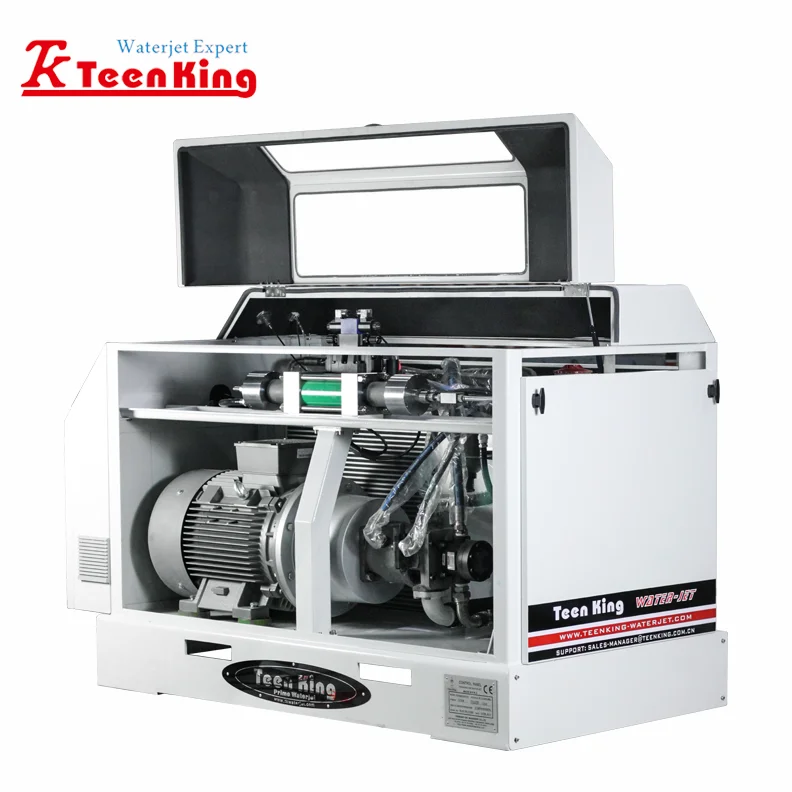

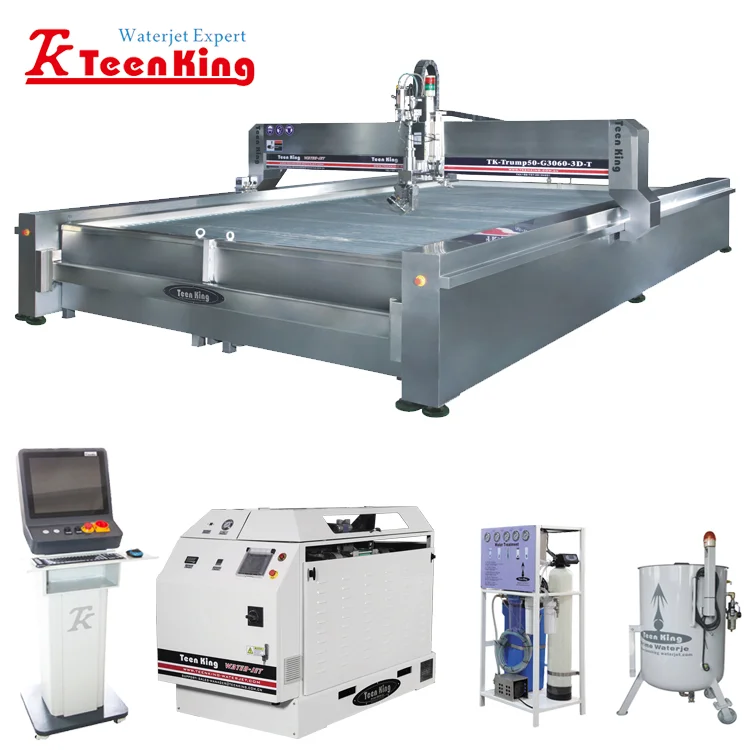

A full set of abrasive waterjet cutting machine includes work table, CNC controller, High pressure system with cooling system, Auto abrasive feeder, Water treatment and Sludge Removal System, etc.

Waterjet can cut almost every thing, including: stainless steel, hard tool steel, mild steel, aluminium, brass, bronze, titanium, tungsten steel, zirconia, glass, plexiglass, rubber, ceramic,marble, granite, etc.

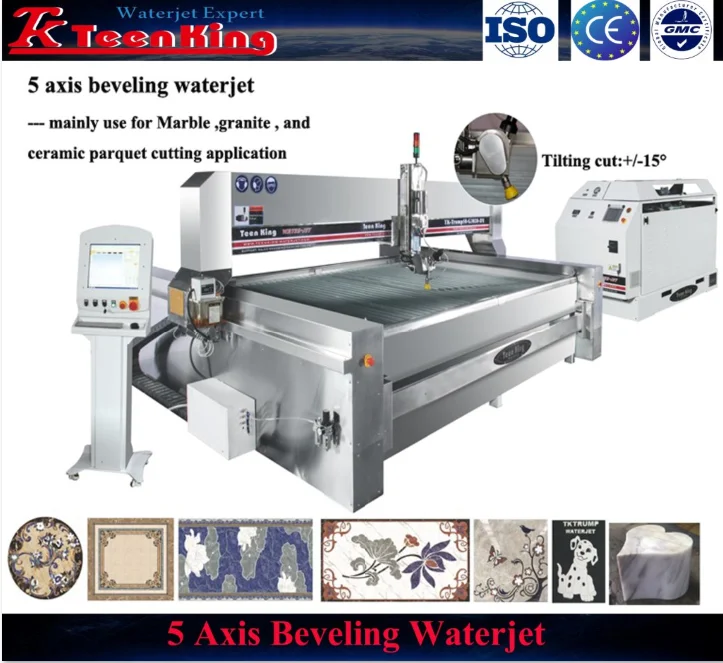

Teenking 5 Axis Waterjet mainly for marble cutting

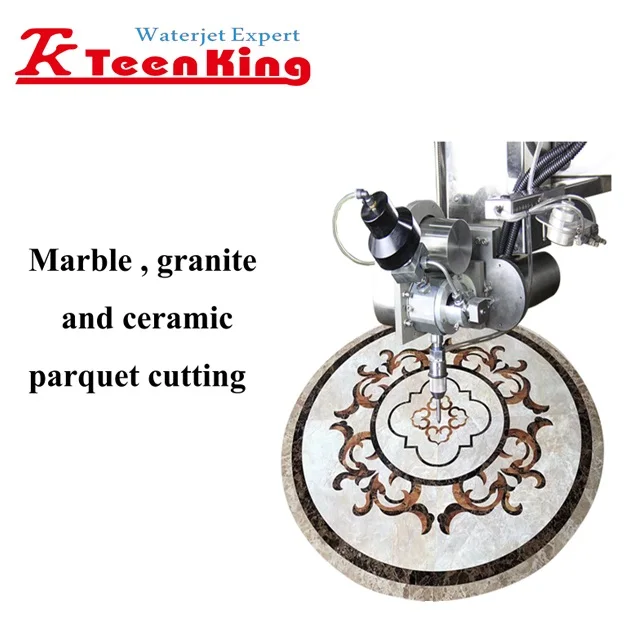

DYB beveling head DYB head can cut at a fixed tilting angle on the plane of worksheet, following internal or external contour line. It can also cut at varying angles, max tilting up to +/-14 degree. It’s mainly applied in ceramic and stone parquet cutting. The head can tilt +/-15 degree, cutting sharp corner without arc. Cutting bottom is minimized to leave space for parquet glue, and surface is seamless. It’s the best choice for parquet cutting, cutting with full speed but to keep perfect workpiece surface.   Main functions a)Dynamic vertical cut compensating b)Tilting cut within +/-15 degree

Recommended Units

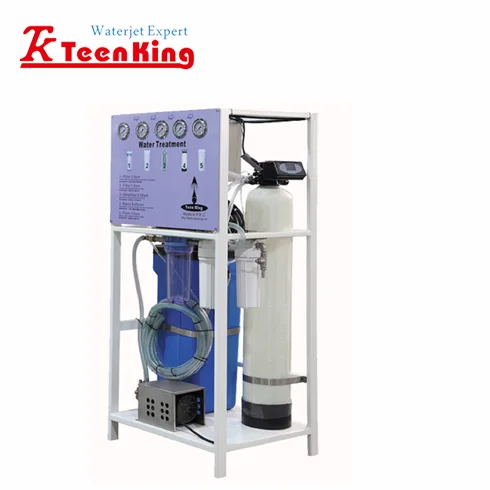

Water Treatment Precise filtration up to  0.1 micron and auto softened	Auto Cycling Fan Cooling System         Mantain the oil temperature    within 20 degrees higher       than environment  temperature	Auto Abrasive Feeder      Deliver the abrasive automatically by pressed          air (2.5 bars) , volume controlled by the level  of the hopper.	Sludge removal system Automatically clean up and collect sludge from water tank
Refrigerant chiller Cooling inlet water and extend high pressure pump lift	5 hp oil cooler  Cooling down hydraulic oil, suitable for high temperature areas	Auto abrasive delivery system 1000kg jumble bag non-stop abrasive feeding system	Sludge removal system Dual pumps removal system
Independent dual cutting heads Can choose single or dual    head(s) work together, distance between heads   is adjustable.	Auto height tracking system Track height of material before and during cutting	Laser locator Help for locating nozzle	Engraving head Help to do engraving work when needed
