Лесная техника катенарная подвеска Монорельсовая воздушная дробеструйная машина

Product Overview

Description

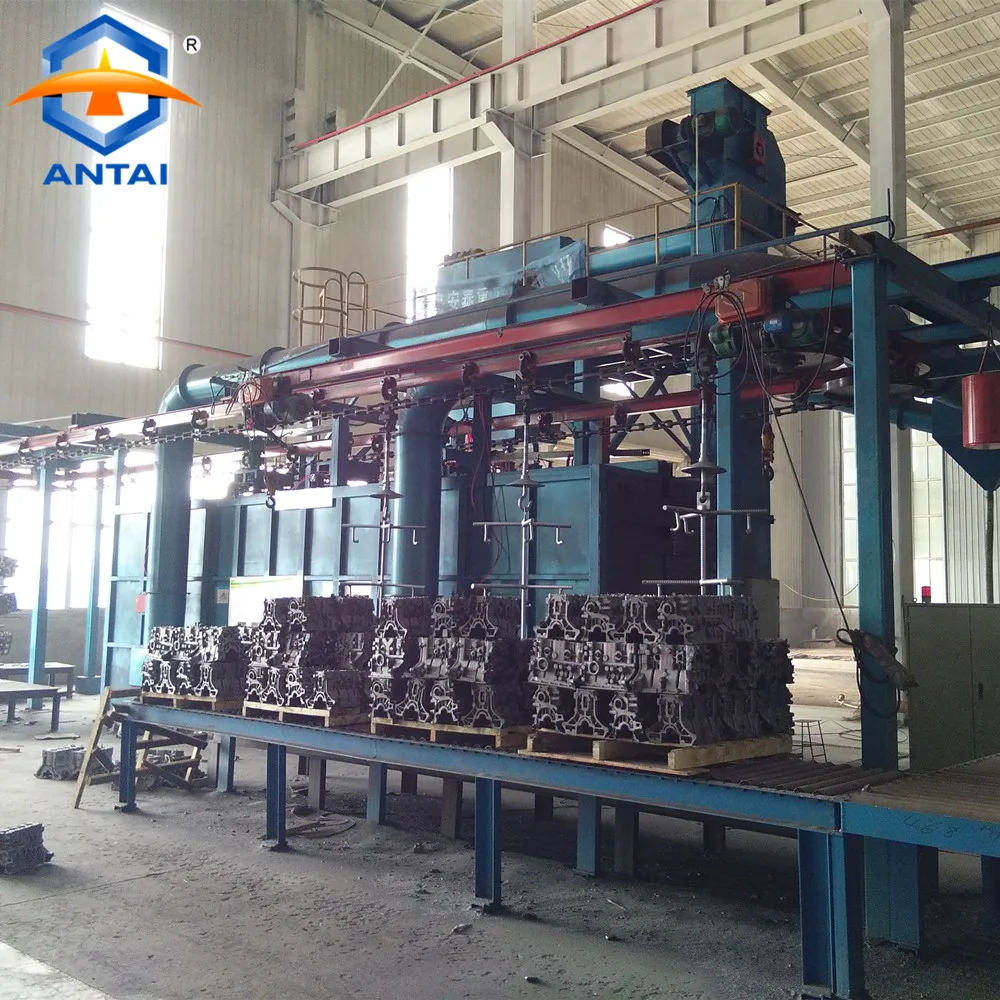

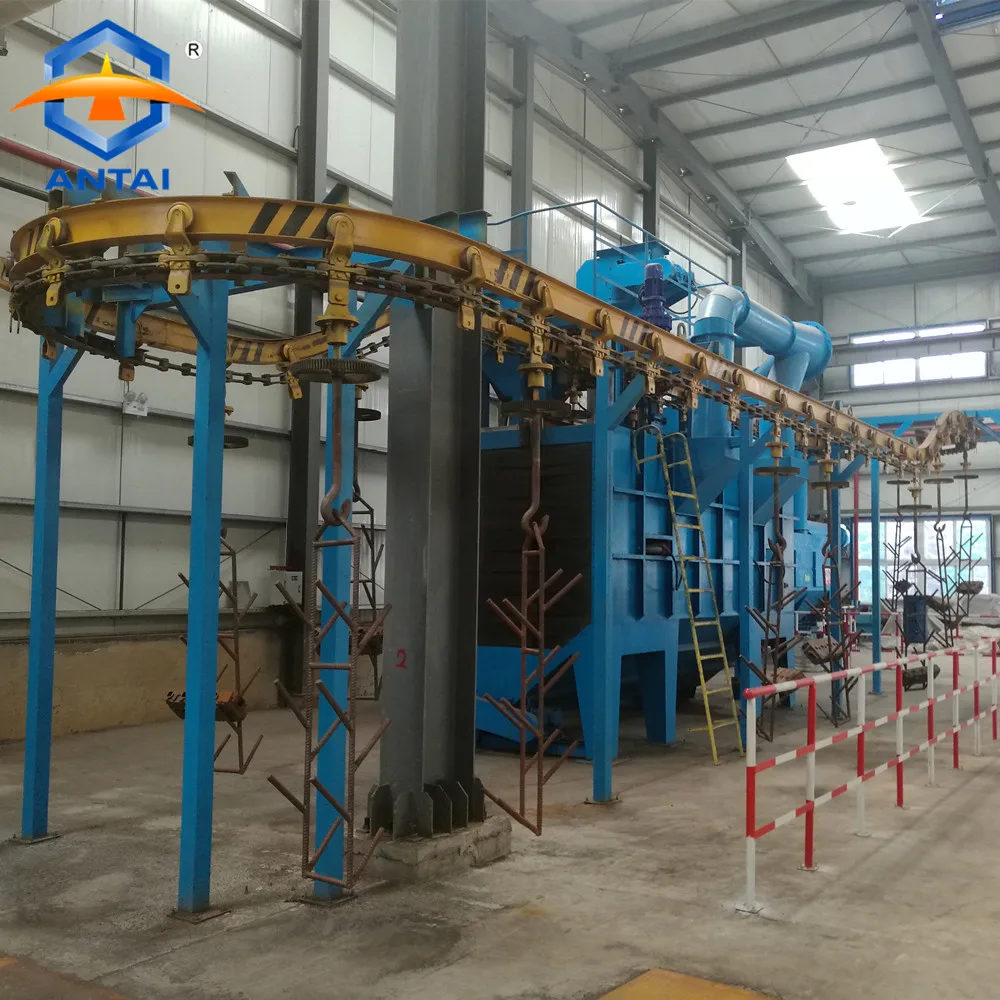

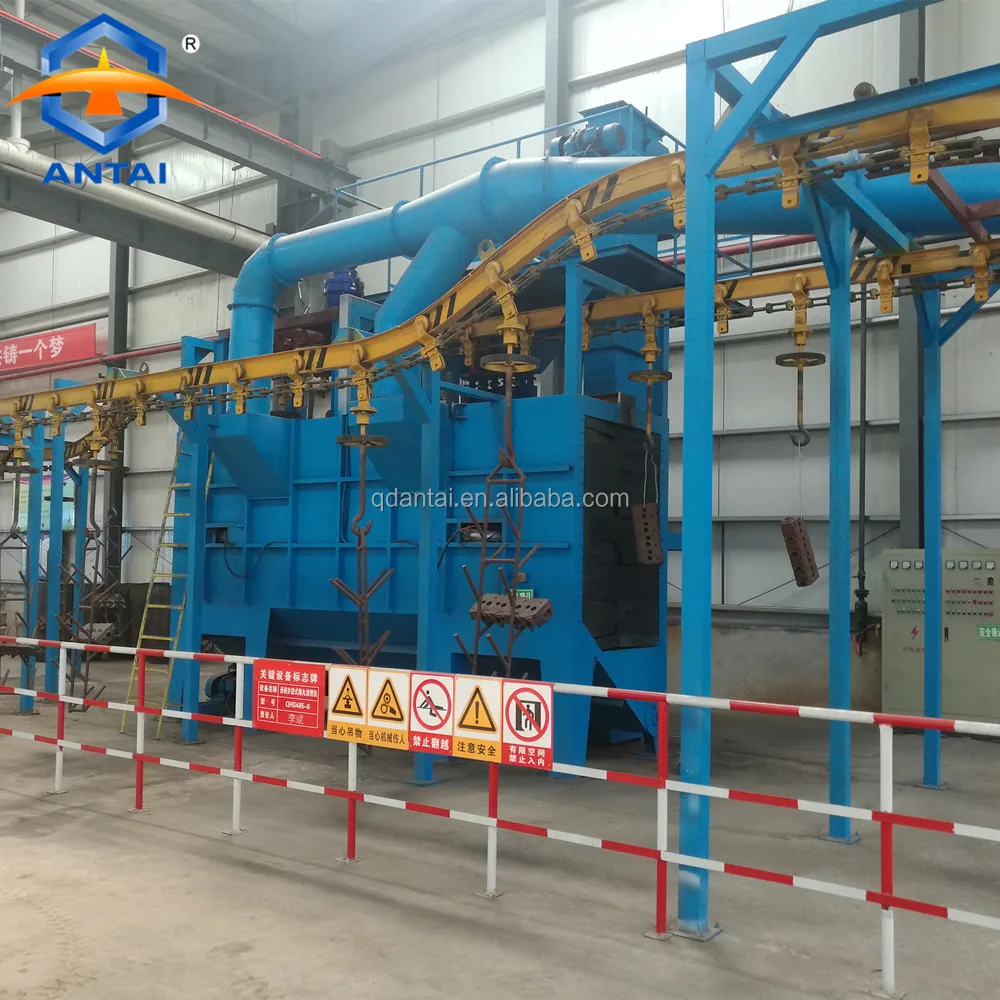

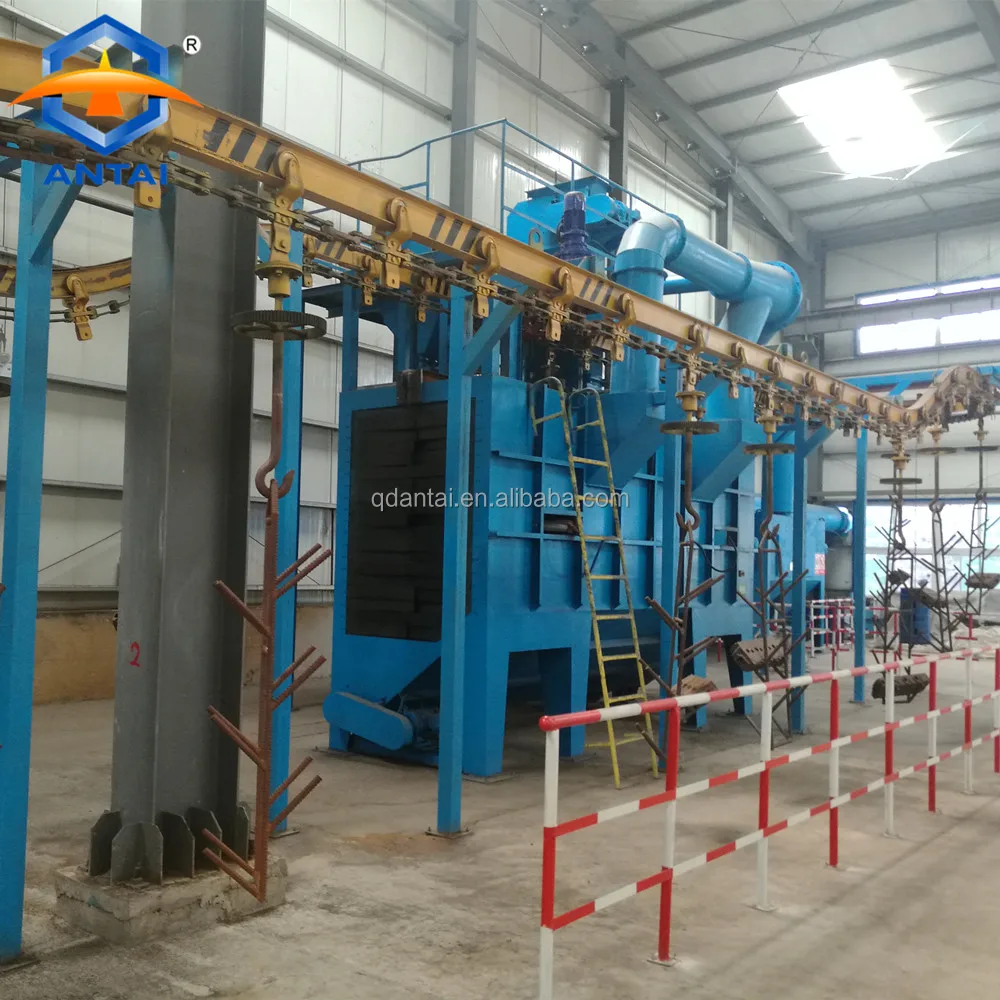

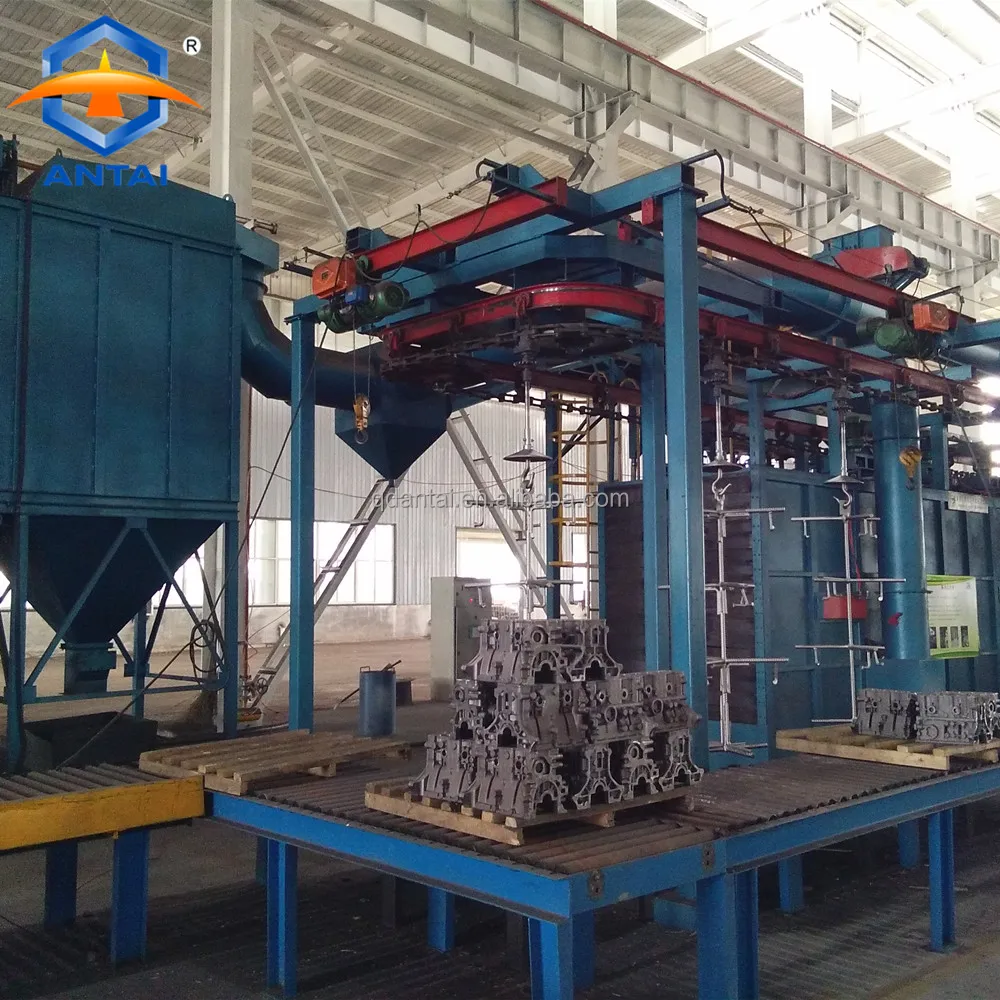

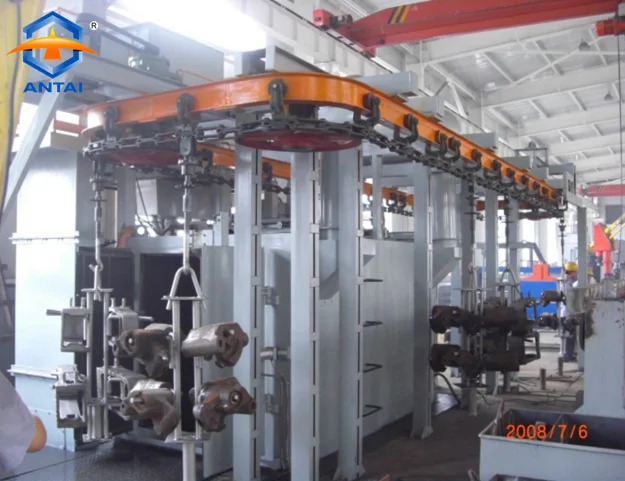

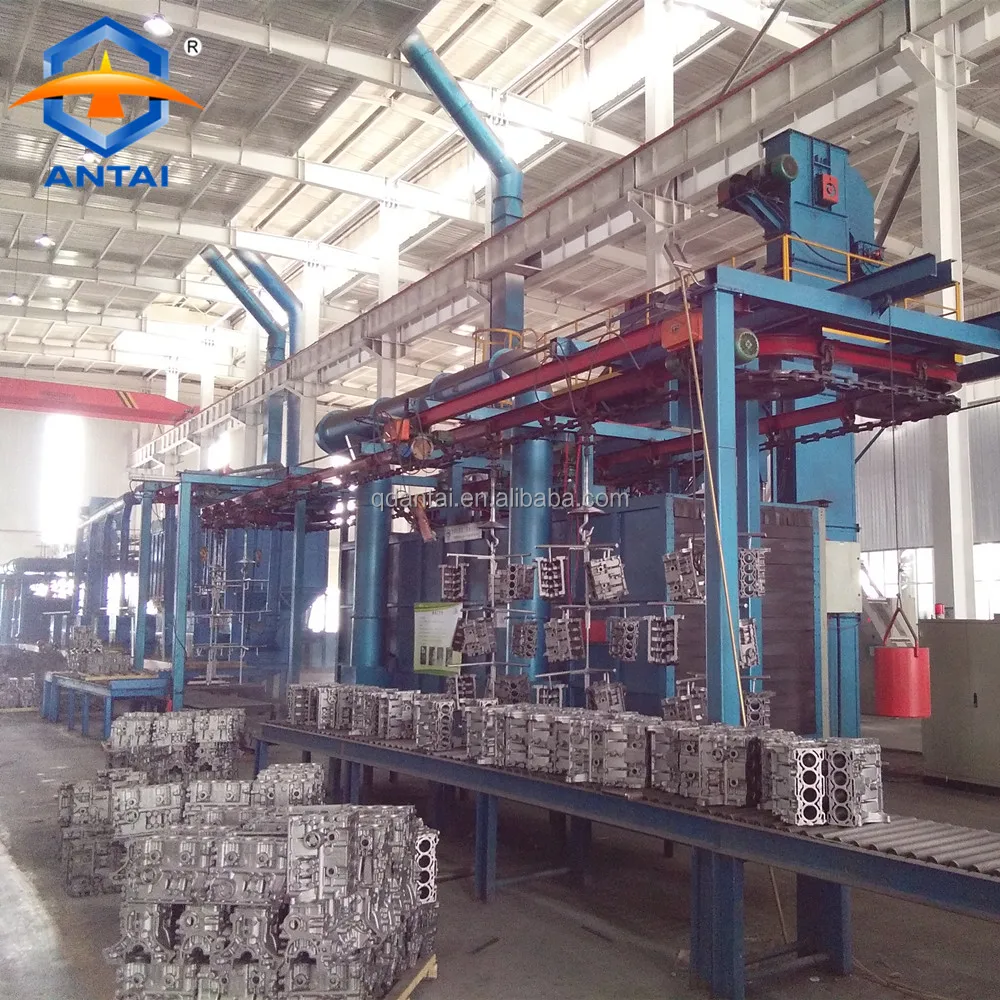

Forestry Machinery Catenary Suspension Monorail Overhead Shot Blasting Machine

This machine is not only suitable for surface treatment and strengthening of small and medium castings, forgings and heat treated parts, but also mass-produced steel tructures, auto parts, tractor parts, forestry machinery, diesel engine shell, motor shell, valves, engine cylinder block, engine cylinder cover,and so on,which greatly improves abrasives utilization and production efficiency.

Item	AT383	AT384	AT385	AT483	AT485	AT4810	AT583	AT5810
Max weight of work piece(kg)	250	400	500	300	500	800	300	1000
Size of work piece(mm)	Φ500*1000 Φ700*1200	Φ700*1500	Φ700*1500	Φ1000*1400	Φ1200*1700	Φ700*2400	Φ1000*1500	Φ750*2400
Blasting capacity(kg/min)	4*250	6*250	5*250	2*250	3*250	6*360	4*250	6*360
Productivity (hook/h)	50,65,38,49	70,80	75	10	10	10	30-60	50
Speed of hanging chain(m/min)	0.5,0.65	0.8,0.93	0.65	2.44	7.34	2.44	frequency converter
Distance of hanging chain(mm)	600,800	800	800	2560	2560	2560	1000
Total ventilation capacity(m3/h)	18000	26500	23700	6000	10000	25000	18000	25000
Power(without dedusting)	75.3	122.6	106.75	38.75	58.43	85	127.25	160
Overall dimesion(mm)	6000*2800 *4200	6000*3200 *4600	7000*3600 *4000	8450*5350 *5003	12235*5410 *9411	4500*5350 *5003	18000*5960 *6440	17700*9615 *10000
Machine weight(kg)	7500	8200	8800	11150	18365	11300	32000	32500







 If the machine is not suitable for your workpiece, please tell us the following infromation:
1) What kind of workpiece will you clean?
2) The size of workpieces(length, width and height of maximum workpiece,Length, width and height of minimum workpiece?)
3) How many the weight of maximum and minimum workpiece?
4) Please tell us your requirement cleaning efficiency?
According to your infomation, the most suitable machines will be designed for your workpieces.
