Hospital ICU Medical ECG1201 Digital 12 Channel 10 inch Portable ECG Machine Price

Share on (60760145281):


Price:$1,100.00 - $1,300.00

Quantity:


Product Overview

Description



Product Description

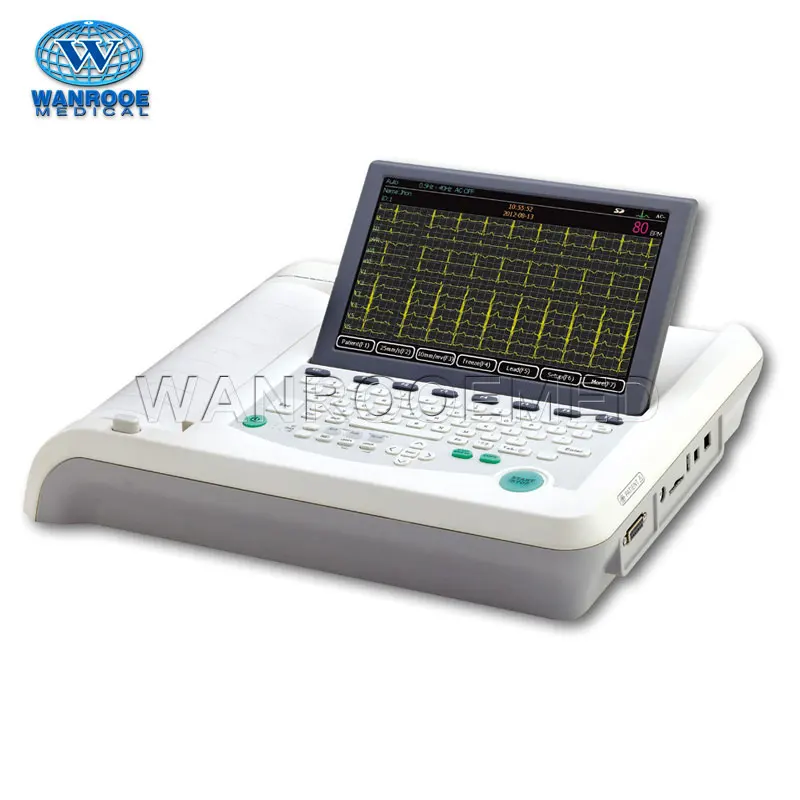

Hospital ICU Medical ECG1201  Digital 12 Channel 10 inch Portable ECG Machine Price





Hospital ICU Medical ECG1201  Digital 12 Channel 10 inch Portable ECG Machine Price .jpg


Simultaneous 12 leads ECG data acquisition and display
 Simultaneous 12 leads ECG printing with 210mm/216mm thermal paper (Roll or Z-fold)
10 inch 800 x 480 TFT color LCD
 Alphanumeric keyboard
 Built-in rechargeable lithium battery, print up to 360 ECG reports (optional)
 Built-in 4GB SD card, save up to 10,000 ECG reports in XML format (optional)
 Pacemaker detection
 Precise ECG auto-interpretation program
USB SLAVE port can be connected to PC-ECG software (optional)
 Connect to an external USB printer supporting PCL6 language by USB MASTER port to print12 leads ECG report on A4 paper
 Network transmission (optional)
 Software upgrade automatically via SD card





2 .jpg


 .jpg













































































































































LeadStandard 12 leads
Input CircuitBuilt-in defibrillator protection
Acquisition ModeSimultaneous12 leads acquisition
Measurement Range±5mVpp
Time Constant≥3.2s
Frequency Response0.05Hz~150Hz (-3dB)
Sensitivity2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV
Input Impedance≥50MΩ
Input Circuit Current<0.05µA
Noise Level<15µVp-p
Anti Baseline DriftAutomatic
Patient Current Leakage<10µA (220V-240V)
FilterEMG Filter:25 Hz/ 30 Hz/ 40Hz
Low Pass Filter:75 Hz/ 100 Hz/ 150Hz
DFT Filter:0.05 Hz/ 0.15 Hz/ 0.25 Hz/ 0.32 Hz/ 0.5 Hz/ 0.67Hz/ ADS
AC Filter : 50 Hz / 60Hz
CMRR98dB
 Automatic: 12CH×1, 6CH×2, 6CH×2+1R, 3CH×4+1R 3CH×4, 3CH×4+3R
Recording ModeManual: 12CH, 6CH, 3CH, 2CH, 1CH
 Rhythm: Any lead selectable
Recording SystemThermal matrix printing
Recording PaperRoll: 216mm×30m, 210mm×30m
Z-fold:210mm×295mm×200 sheets
Paper Speed5 mm/s, 6.25 mm/s, 10 mm/s, 25 mm/s, 50 mm/s
Display800×480 pixel TFT LCD
InterfaceNetwork interface, USB Master/Slave, SD card
Safety StandardIEC I/CF
Sample RateNormal: 1000sps/channel
Pacemaker: 10,000sps/channel
Pacemaker Detection≥± 2 mV  ≥± 0.1 ms
Dimension435mm×335mm×98mm
Weight4Kg(include battery)
 AC: 100~240V, 50/60Hz, 70VA~100VA
Power SupplyDC: 14.8V/4400mAh, built-in lithium battery

.jpg
