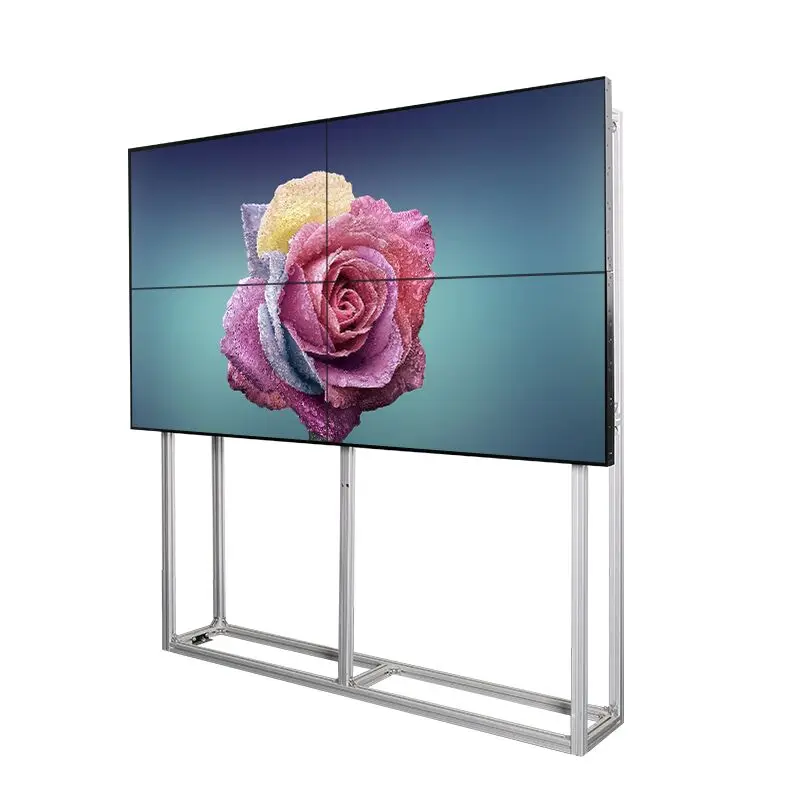

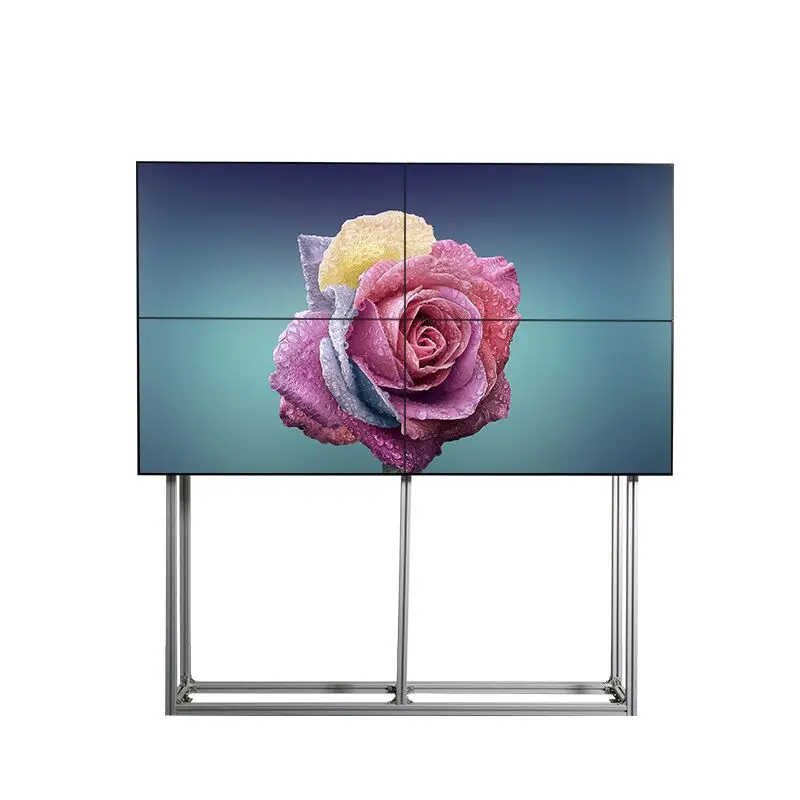

55 Inch 3.5mm Narrow Bezel LCD Wall Mounted Digital Signage advertising Kiosk Video Wall

4123






Model No.OM-55V
Panel Size55"Samsung/LG DID LCD Screen(with narrow bezel 3.5mm,with LED Backlight)
Display area(mm)/mode1214.2(W) × 685.0(H)mm
Max Resolution Support1920x1080
Color16.7M
Brightness (nits)500cd/m2
Contrast1100:01:00
Visual Angle (H/V)178°
Response Time8ms
Life(hrs)>60,000(hrs)
Input and output
DVI1
HD1
VGA1
YPbPr1(BNCx3)
S-video1(BNCx2)
Composite Video Input/(AV)3(BNCx3)
Composite Video Output2(BNCx2)
Control signal input and loop outRS232(RJ45-8)
Split ScreenSupport Picture in Picture(PIP/POP)
Power
Power SupplyAC100V~240V
Maximum Power Consumption250W
Standby Power Consumption<=3W
Temperature
Working Temperature0°C~50°C
Working Humidity20%-80%

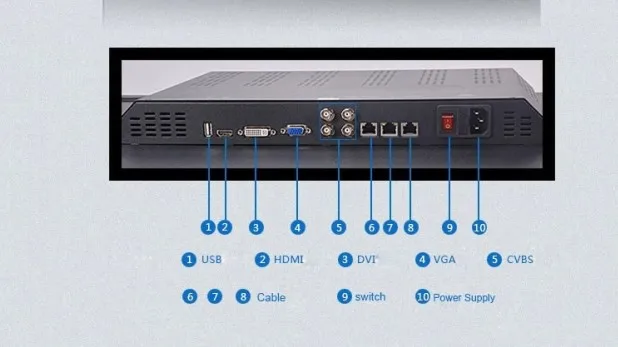

Video Wall Controller(Built-in each Screen)
InputCVBS3*BNC inputs, support PAL/NTSC all formats, 2*BNC loop outputs
VGA1*D15 port, support SVGA/XGA/WXGA
Y/C2*BNC inputs, support PAL/NTSC all formats
OutputLVDSSupport signal or double LVDS output, and WUXGA (1920*1080) display
Operate modePanel key operation(needs customization)
Standard RS232 port( provide free control software)
Infrared Remote Control Operation
Engineering softwareCustomized
Working temperature 0~70 °C
working humidity5~95 %RH
AC voltage power supply100-240V/50, 60Hz
power consumptionMax 300W,according to different Screen models

Popular Size: 46", 47", 49", 55",



Configurations:



* LG/Samsung panel;

* Bezel: 3.5mm, 1.8mm

* Brightness: 500cd/m2, 700cd/m2

* Video Wall processor

* Ports: HDMI, VGA, DVI, RJ45, USB





Installation:



Support wall-mounted or floor-standing with stand bracket.



Popular used for shopping mall, buildings, university, Government agency, Hospital etc.



Please contact us for more details.

 QQ201805241452555            kljhkhj

Company Information

 -4_01-4_02_03_04cases

Packaging & Shipping



Packaging Details
1. Product packaged in one carton box with foam inside to protect the kiosk panel screen;
2.Inner Foam,outer export standard carton,wooden case,flight case availableInner Foam,outer export standard
3. Wooden box can be carried by forklift, and professional for international market and shipped by sea or by air.
Delivery Time
7 working days

Our Services



1. Reply your inquiry in 24 working hours .

2. Experienced staffs answer all your questions in fluent English .

3. Customized requirment is available , OEM&ODM are welcome.

4. One Year warranty.
