1.The machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.
2.Besides using photo-electronic detectors to detect the running of every important sub-process, it employs PLC from OMRON for automatic control of the whole process and new type air-channel for bottle-loading featuring speediness and damage-free of bottle. The handing-over of bottles between two linking structures is fulfilled by applying clamping-bottle-neck method. For bottle of different shape only a few parts need to be changed and the substituting is simple, which shows the machine is of good adaptability.
Flow chart:
PET bottle production line : PET preform(Injection moulding machine) --Bottle blowing machine

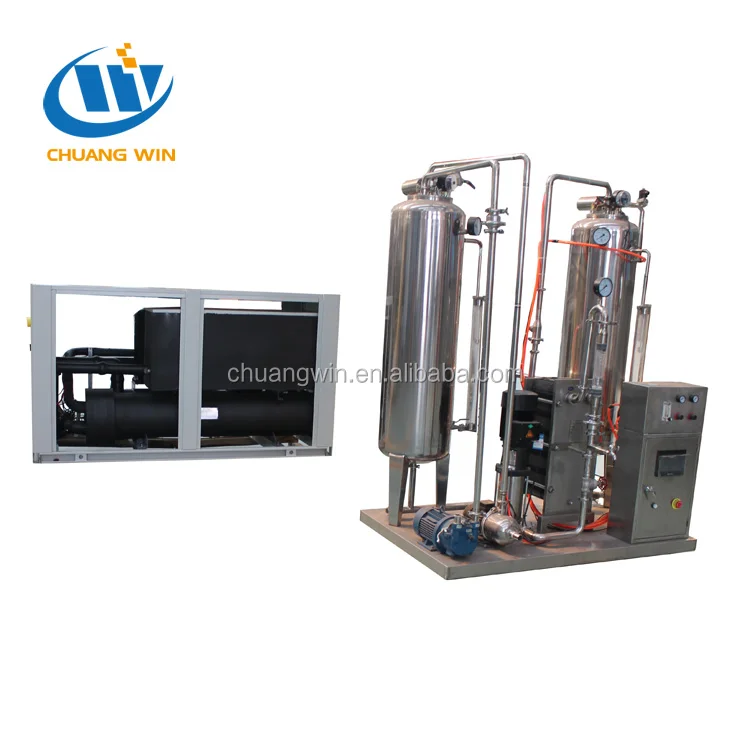

Syrup melting and mixing: Sugar melting pot → syrup filter→ syrup chiller→ mixing tank → water chilling units→CO2 filter→Drink mixer→Filling machine
Filling line :Water treatment system--Washing,filling,capping machine--Light checker--Sleeve labeling machine--Code sprayer--PE film Packing machine-Pallet stretch wrapper --stock
Detailed Images
Images of CSD filling machine

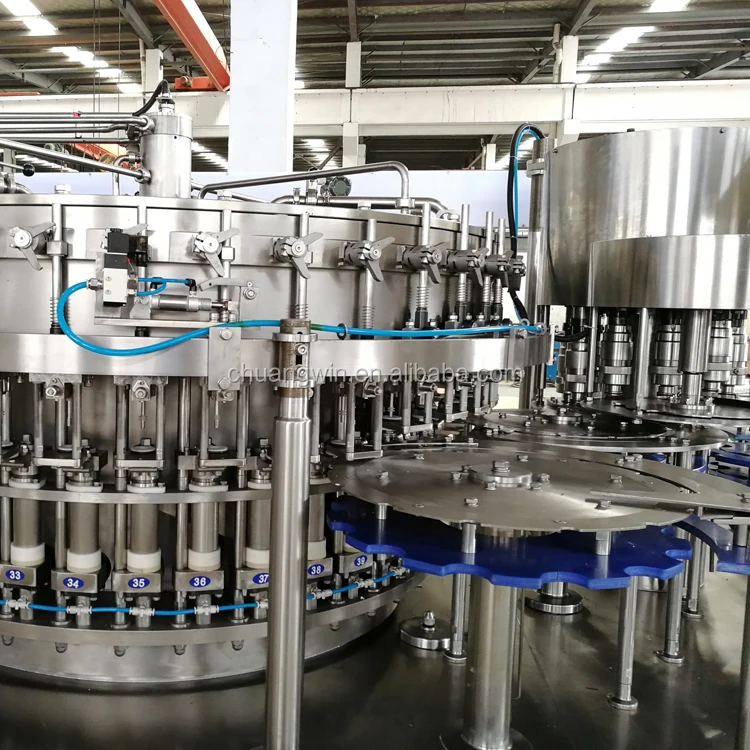

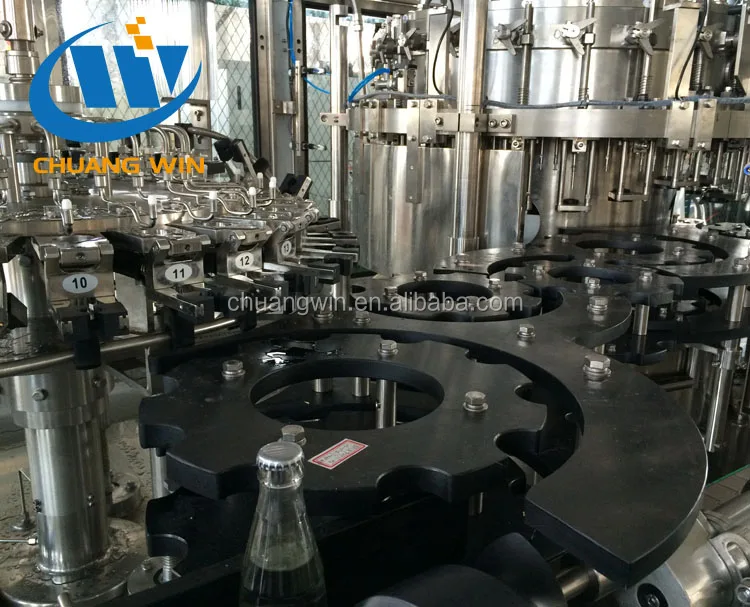

The filling machine combines washing,filling,capping into one working table.The production rate of this machine could reach to 24000 bottles per hour.

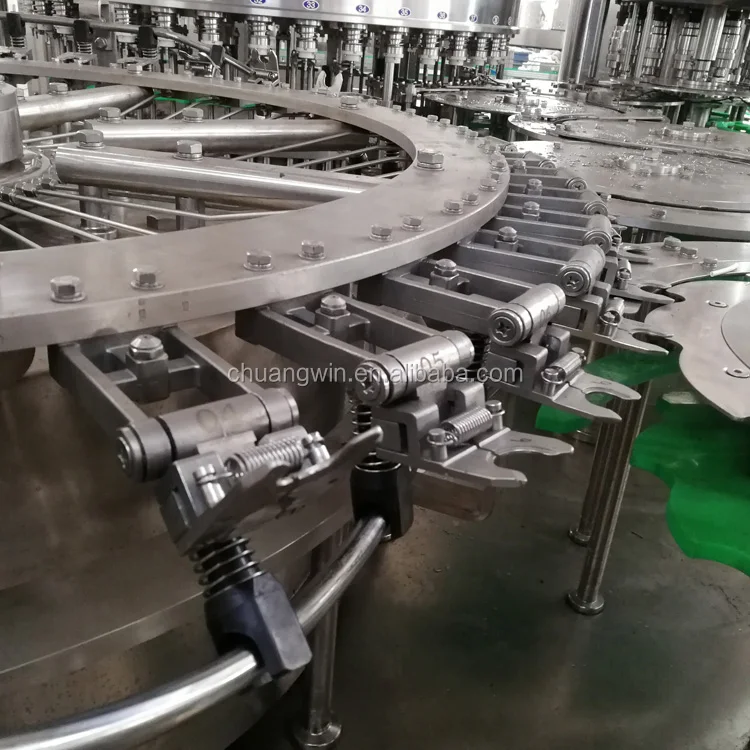

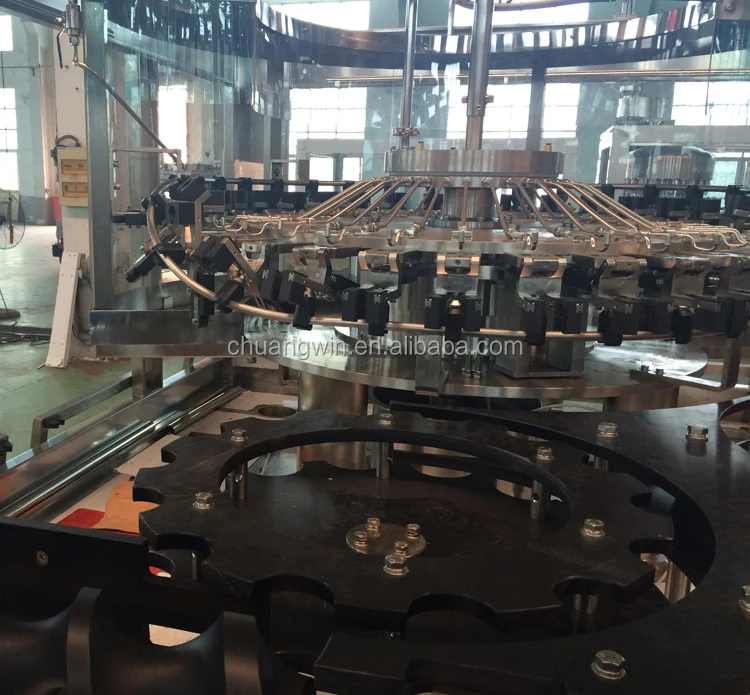

Washing part:The rotary disk is fully made of SUS304 stainless steel.

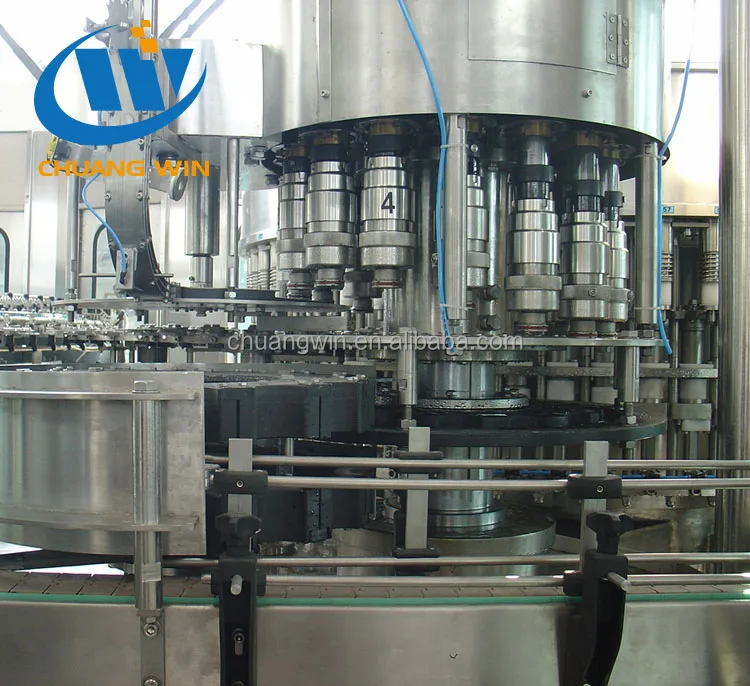

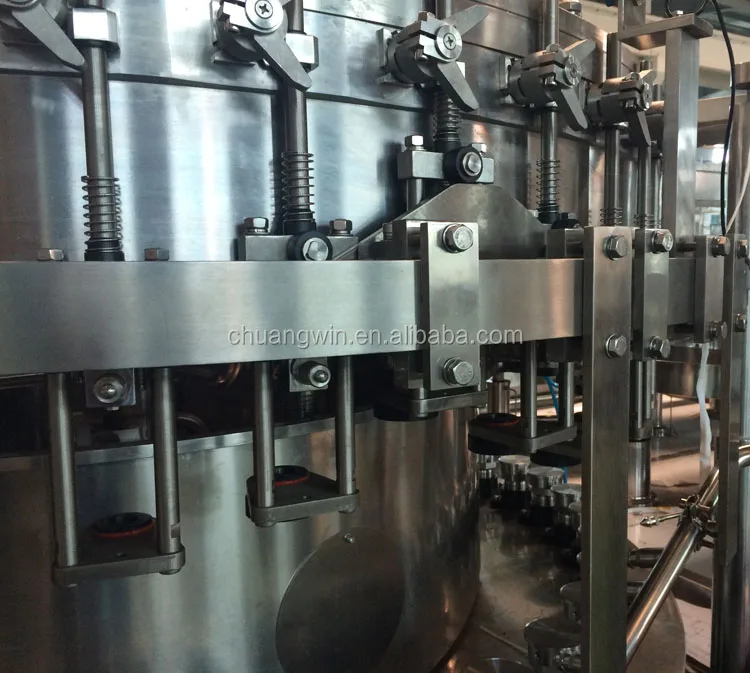

Filling part: The filling valve structure design is reasonable, the filling quantity is accurate.

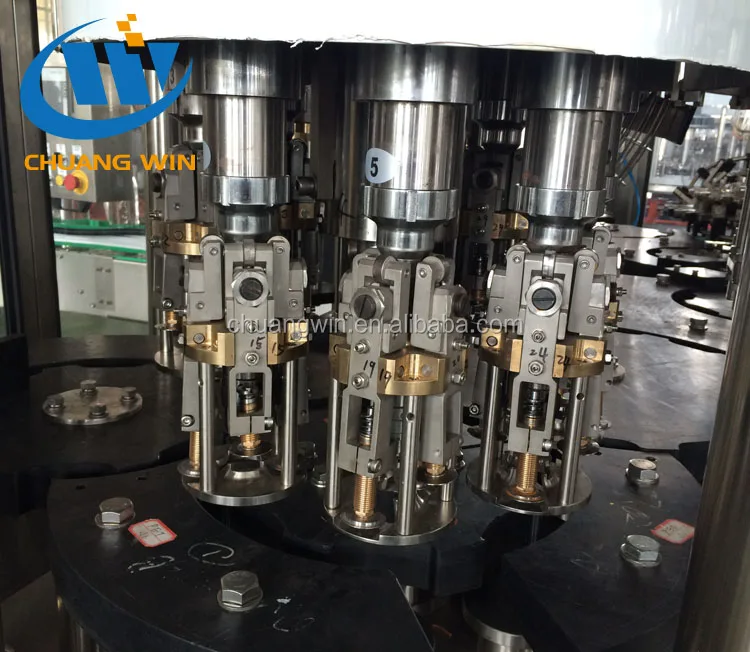

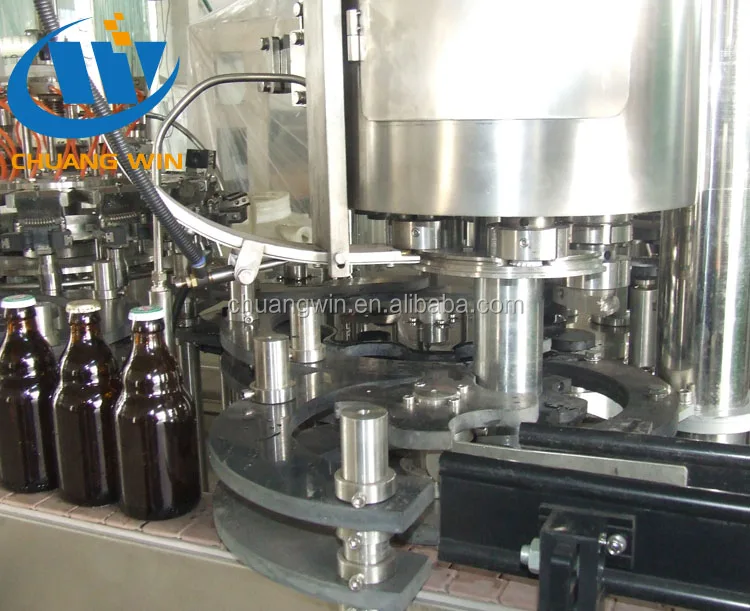

Capping part:The capping machine is the highest precision in 3-in-1 unit machine, on the reliability of equipment operation, has enormous influence on the defective rate of the product.
Pre-process system.
1 High-shear emulsifying tank + Plate heat exchanger 2 Mixing 3 Hot water system + Hot water tank 4 CIP cleaning system

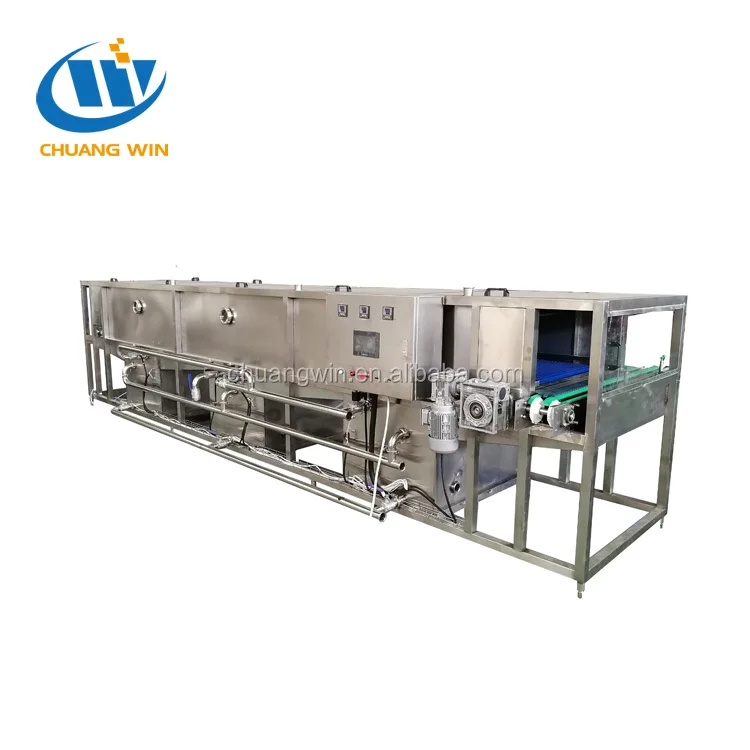

Shower Warming Machine.
1/Mainly for Warming 2/The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation 3/Nozzles are manufactured using U.S. technology and spray water evenly 4/Conveyor belt adopts Rexnor technology, flat surface with small wear 5/Smooth and reliable operation with low energy consumption

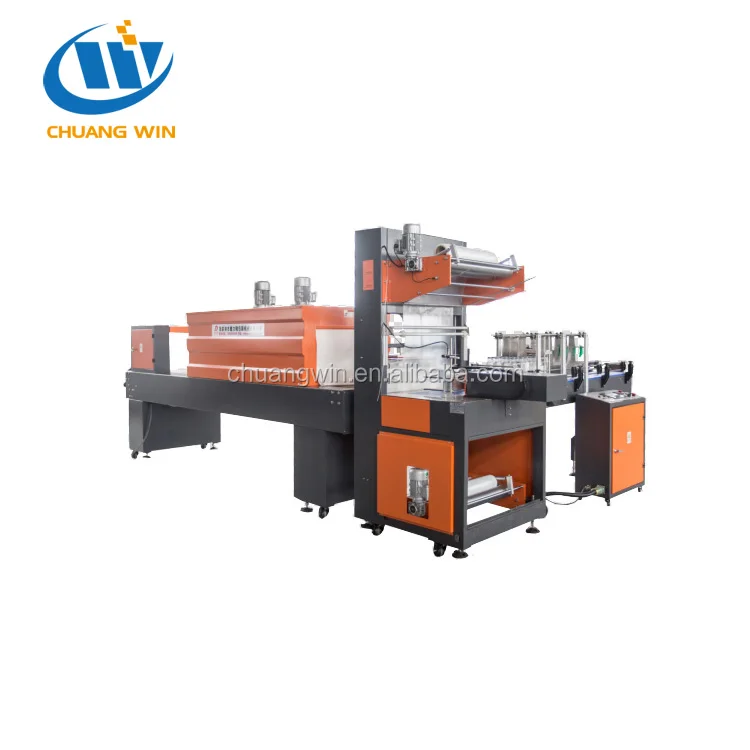

Once your beverage product has been filled and the bottle has been labelled, the primary package is gently transferred using conveyors to its secondary packaging process. The final result is the package the customer sees at the point of sale, so it needs to grab their attention. These packs ensure protection from elements such as weather, pressure and temperature changes.
Whether you choose shrink-printed film, nested packs or wraparound cartons, Machine packers gently feed bottles to ensure durable and cost-effective packs.
Company Information
Packaging & Shipping
Our Services
1.Find our products through websit .
2.One year warranty for the whole system.
3.Free equipment installation and debugging.
4.After one Year,we can help you to maintain the machine and the accessories are provided olny one the cost price.
5.Every 3 years,we can help to overhaul the machine freely(Labor).
6.We can provide internship servise and help you train the operator and mechanic.
7.Free production technology and process configuration.
8.We can help you to design the production line,workshop and provide turn-key project.
FAQ
Q: How to get an appropriate offer from your company?
A: Please inform us:
1, production capacity per hour/per day/per month ... ...
3, bottle type: plastic bottle, glass bottle, can or ... ...
4, cap type: screw cap, crown cap, can lid or ... ...
5, for water treatment, it's better offer us the raw water quality report ... ...
Q: This is the first time I cooperate with your factory. How can I trust you about the machien quality?
A: Before ordering the machine, we will make the offer very clear. For example, the material thickness, the brand etc. We can have the video call and I will show what we have in the factory
Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 years guarantee . we will give u spare part free in 1 years
Q:When can I get my machine after I paid?
A:We will deliver the machines on time as the date we agreed both side.
Q: Can I run the machines in your factory if I buy the complete line in your factory?
A: Sure, why not. We will have the line connected and tested in our factory before shipping even you didn't mention; We will make it working before arriving at your factory;
Q:How about the spare parts?
A:After we deal down all the things , we will offer you a spare parts list for your reference.
Q: How can I install the machine and commissioning? Do you have the technician to my factory?
A: We have the technician available to your factory for machine installation and commissioning; BUT client should be responsible for the round-way flight tickets, technicians' daily salary, local transportation, local hotel and eating.
