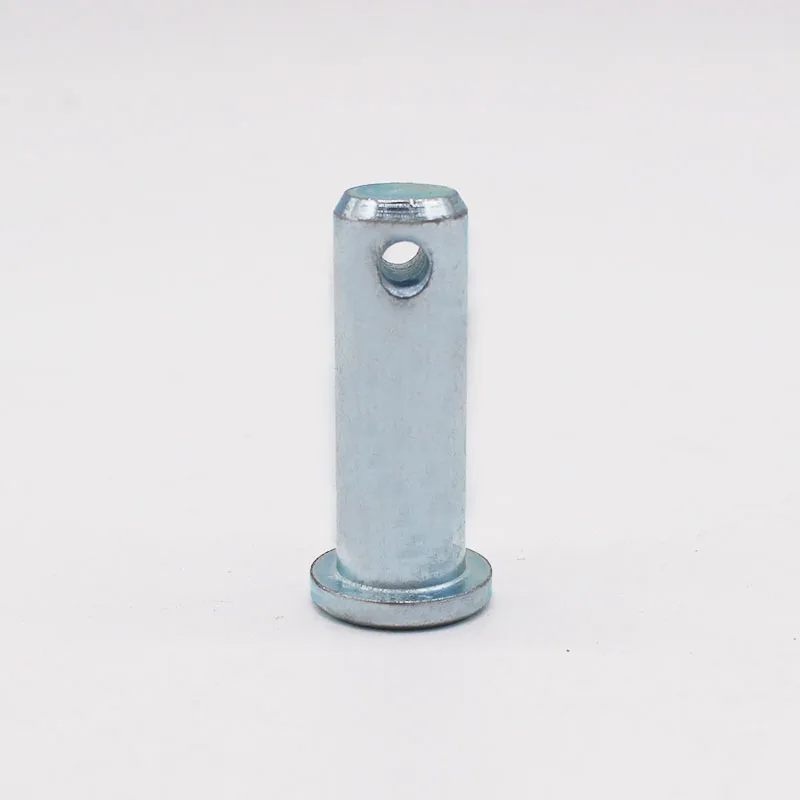

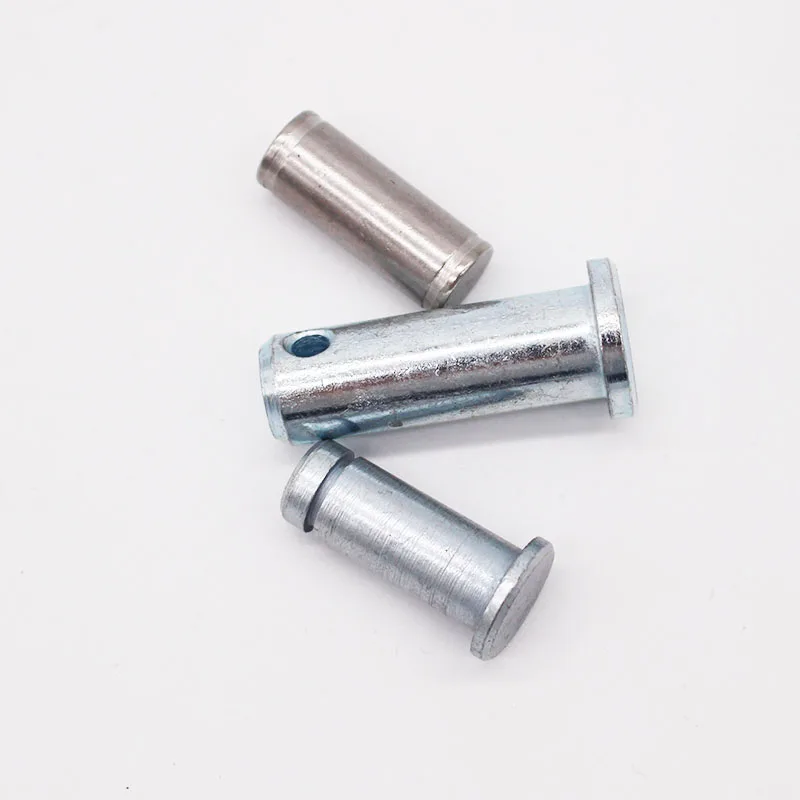

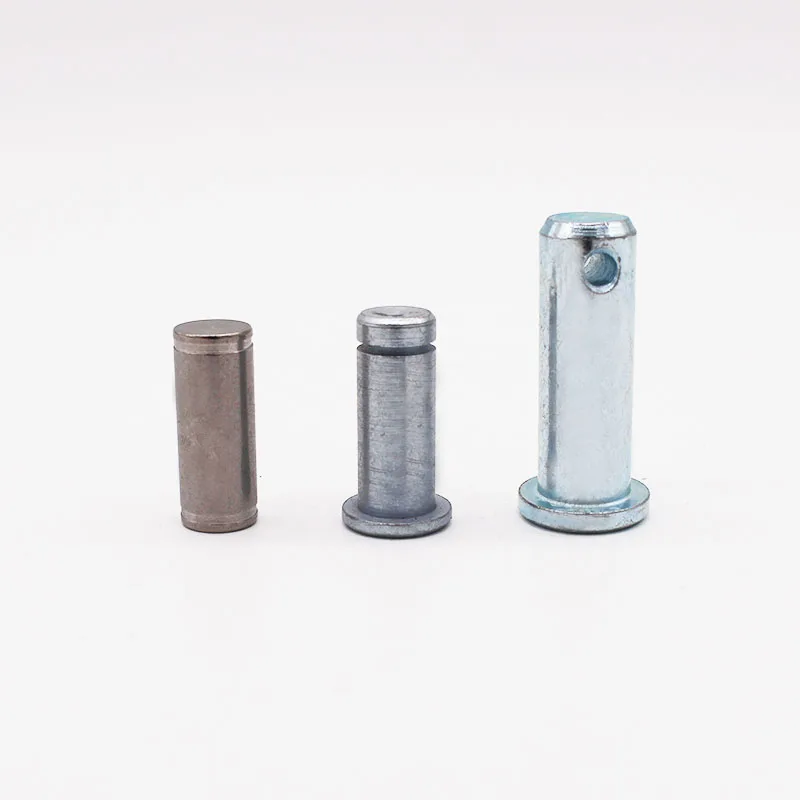

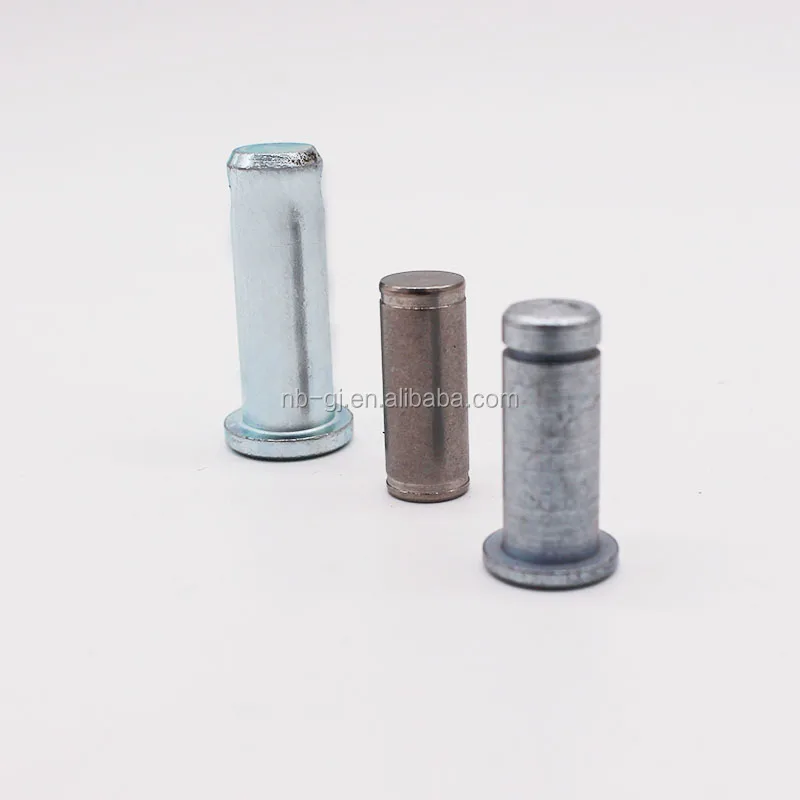

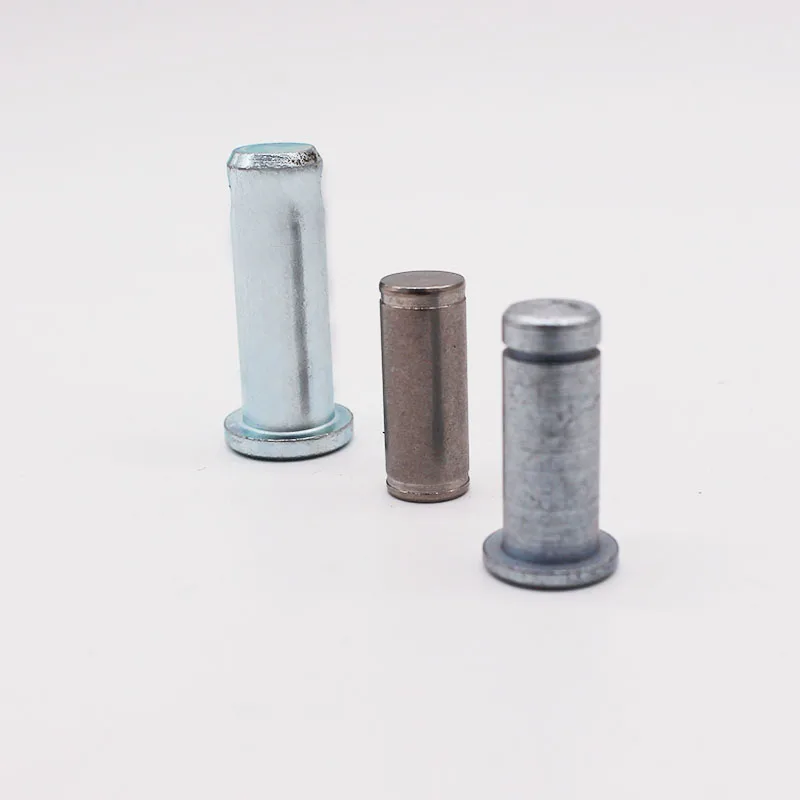

ISO2341 DIN1444 WH8 clevis pin with head
- Category: Motorcycles & Scooters >>>
- Supplier: Ningbo Yinzhou Crown Strength Machinery Accessories Factory [Zhejiang China]Ningbo
Share on (60760183390):
Product Overview
Description
Product detail

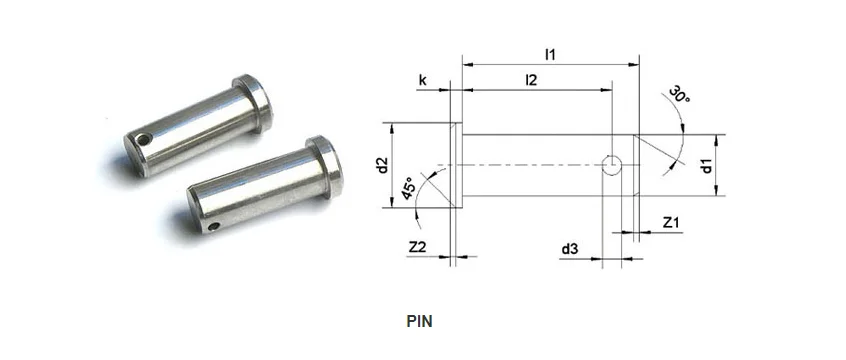

| Item | d1 h11 | d2 h14 | d3 +0.2 +0.1 | l1 js 15 | l2 +0.5 | k js 14 | z1 | z2 | Weight (kg) 100 pcs |
| WH 4 | 4 | 6 | 1 | 12 | 10 | 1 | 1 | 0.5 | 0.13 |
| WH 5 | 5 | 8 | 1 | 15 | 12.3 | 1.5 | 1 | 0.5 | 0.26 |
| WH 6 | 6 | 9 | 1.6 | 18 | 15.3 | 1.5 | 1.5 | 0.5 | 0.46 |
| WH 8 | 8 | 12 | 2 | 23 | 19.5 | 2 | 2 | 1 | 1 |
| WH 10 | 10 | 14 | 3.2 | 29 | 24.5 | 2 | 2 | 1 | 1.9 |
| WH 12 | 12 | 17 | 4 | 35 | 29.5 | 3 | 2.5 | 1.5 | 3.4 |
| WH 14 | 14 | 19 | 4 | 40 | 32.5 | 3 | 2.5 | 1.5 | 5.3 |
-Similar to DIN1434
- Material : Low carbon steel 1020 Optional: Stainless steel 304
- Surface : galvanized,passivated in zinc/yellow or zinc/clear
