Photo Beam Sensor Digital Twin Beam Infrared Photobeam Sensor
- Category: >>>
- Supplier: Shenzhen Homelux Intelligent Technology Co. Ltd.
Share on (60760187827):
Product Overview
Description

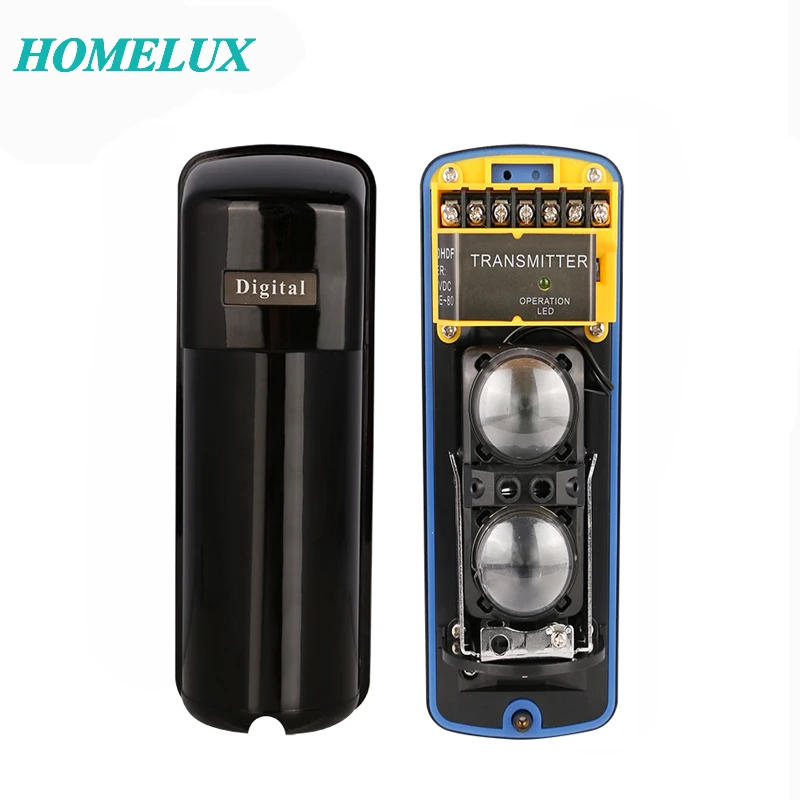

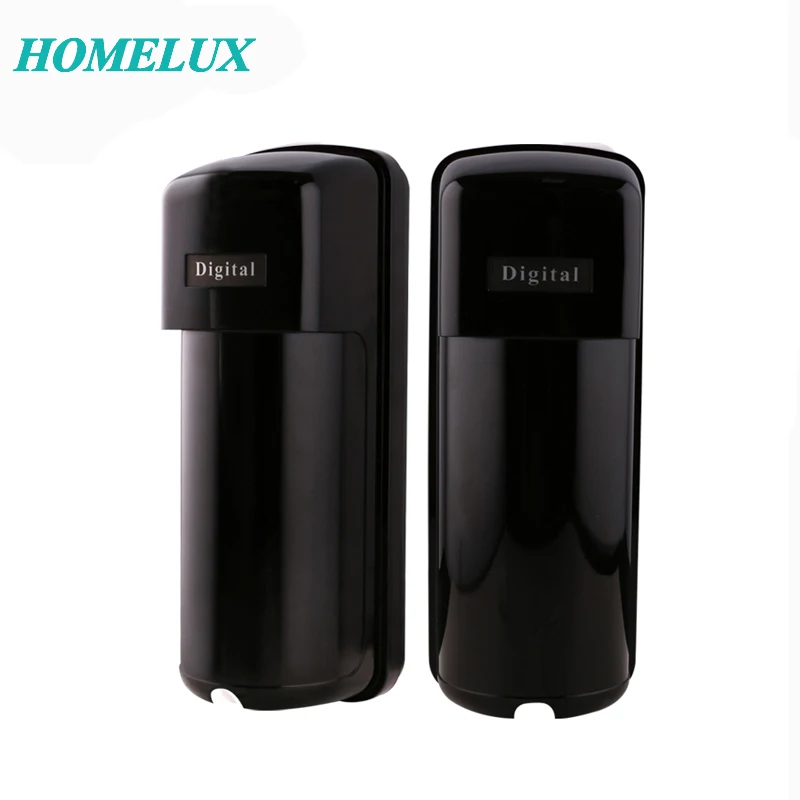

HX-40HDF
Product Description
Feature
HX-25HD, HX-40HD, HX-60HD, HX-80HD(Outdoor 25m, 50m,60m,80m)
1.Detection range: outdoor 25m, 40m, 60m & 80m . With selectable 8-channel beam frequencies .
2.Powerful and reliable twin beam detector .
3.Easy optical alignment with LED indication .
4.Adjustable beam interruption period(50~700msec) .
5.Form C relay providing more applications .
6.Up to 8-sets for multiple installation .
7. Anti-Forest design
8,Lighting & surge protection, Automantic gain control circuit.
9.Target yellow color, tuned to the peak wavelength of human vision, to be easily targeted in the beam alignment
Specification
| Model | HX-40HDF | HX-80HDF |
| outdoor use range | 40m | 80m |
| Selectable beam frequency | CH1~CH8, totally 8 chennels | |
| Interruption period | 50~700 msec(variable) | |
| Power input | 11~30VDC(no polarity) | |
| Power Consumption (at 12VDC input) | 50mA | 70mA |
| Indication LED | Power LED: green LED (transmitter) Alarm LED: red LED (receiver) Beam alignment level LED: 3 red LED (receiver) | |
| Alarm duration | 1 ± 0.5 Sec (norminal) | |
| Relay output | From C relay, dry contact 1A/120VAC, 2A/24VDC(resistor load) | |
| Tamper | Opens when cover is removed (1A/120VAC) | |
| IP rating | IP66 | |
| Alignment angle | Vertical 20° (±10°), Horizontal 180° (±90°) | |
| Operation Tamperature | 25℃ ~+55℃ | |
