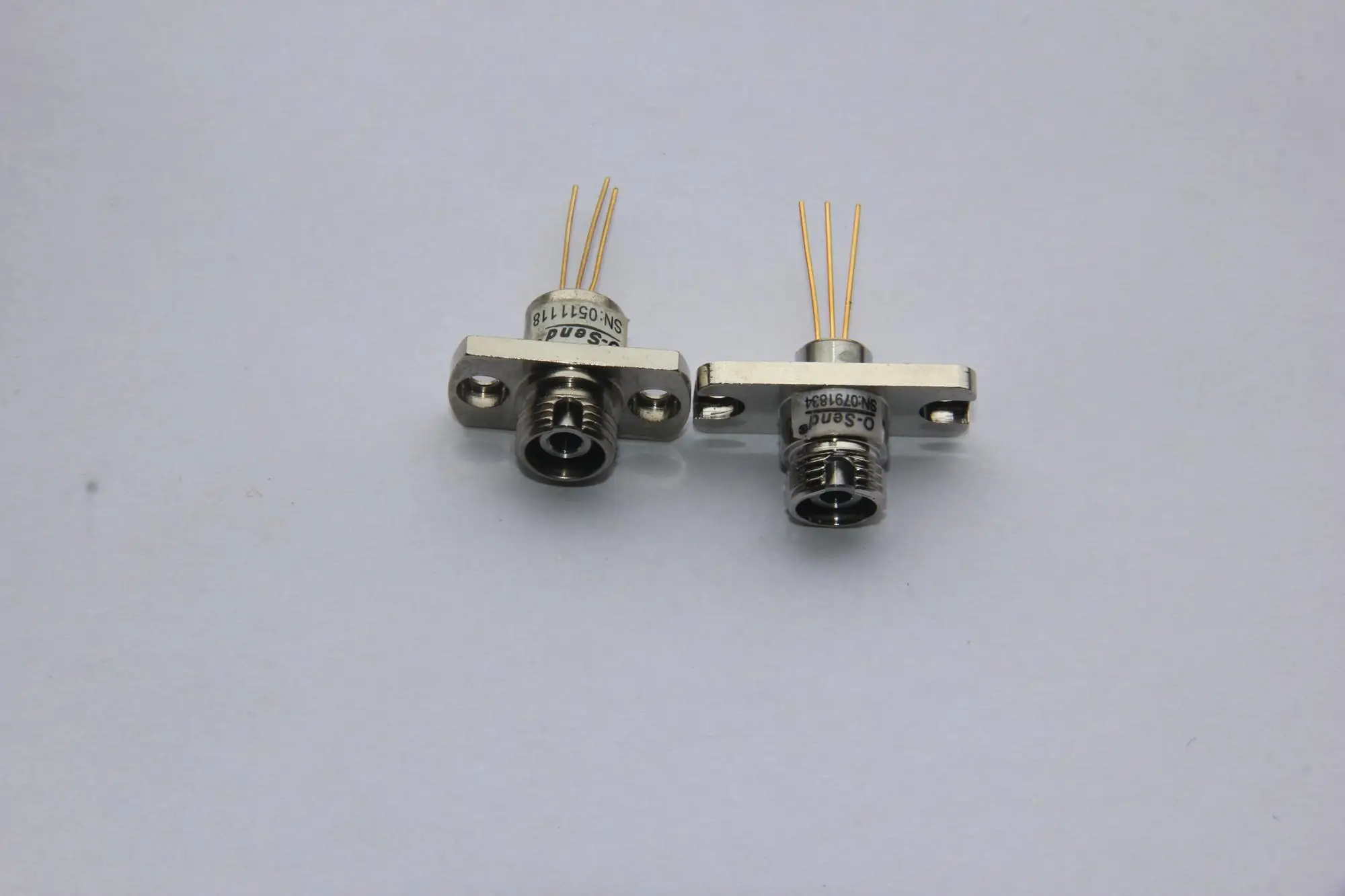

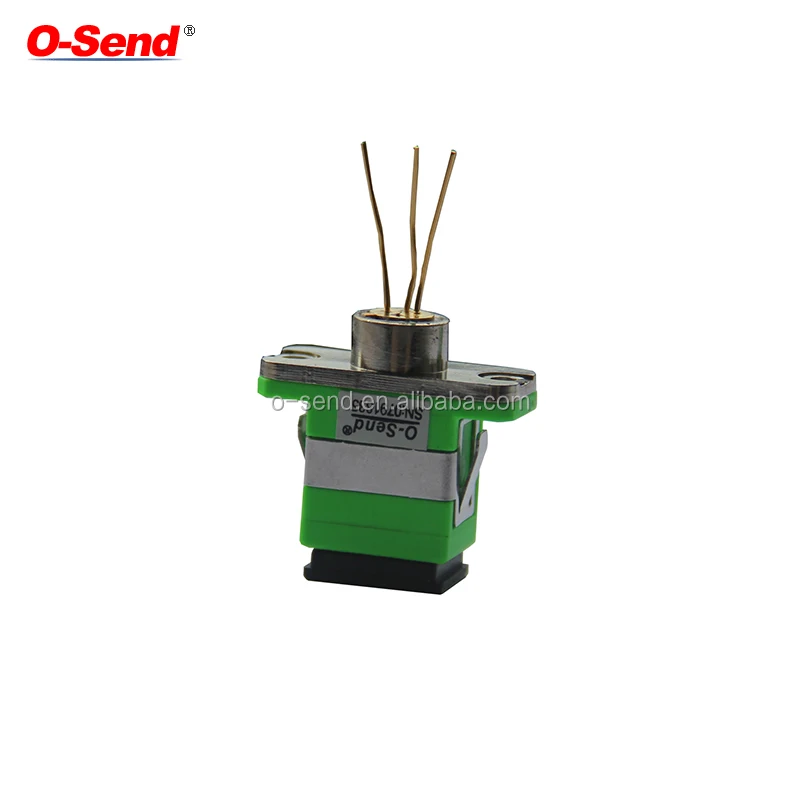

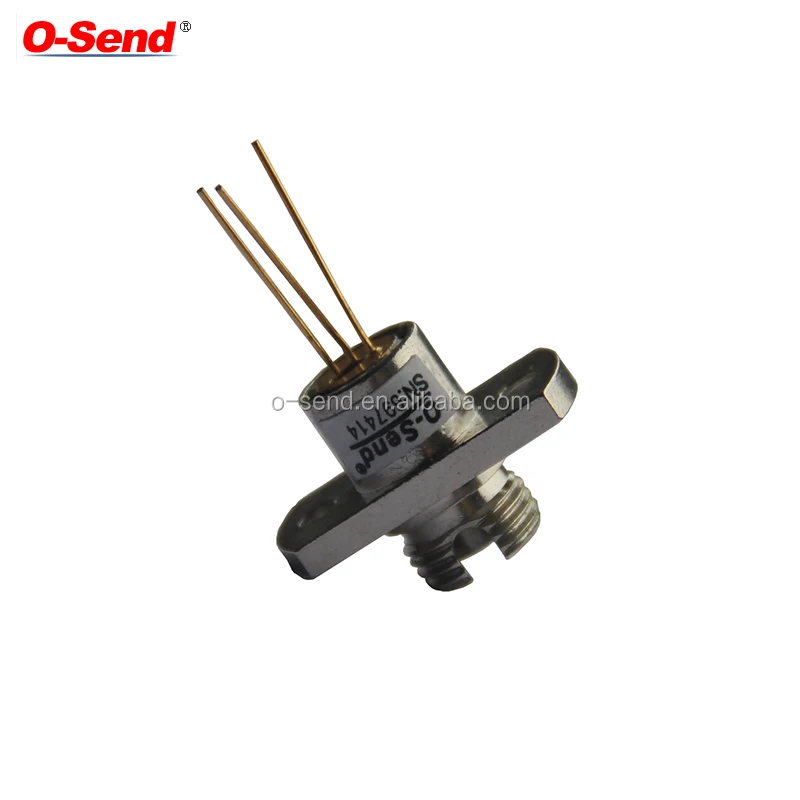

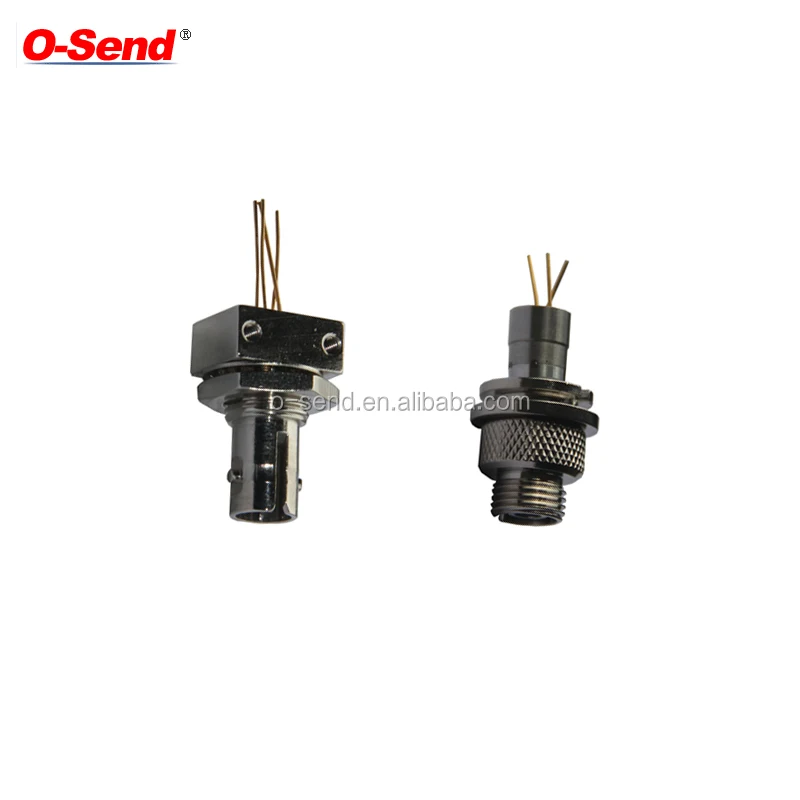

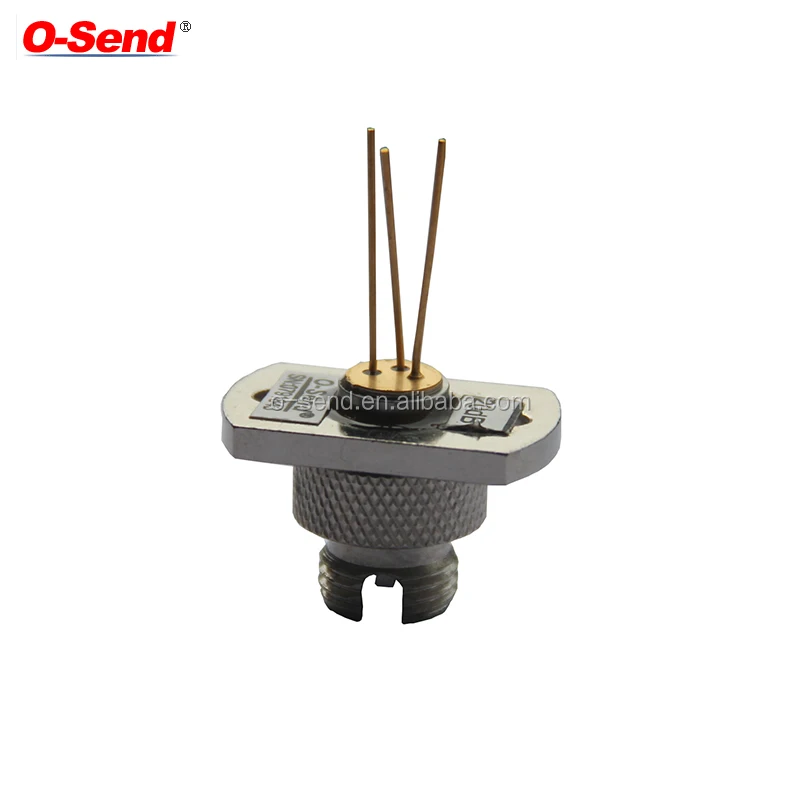

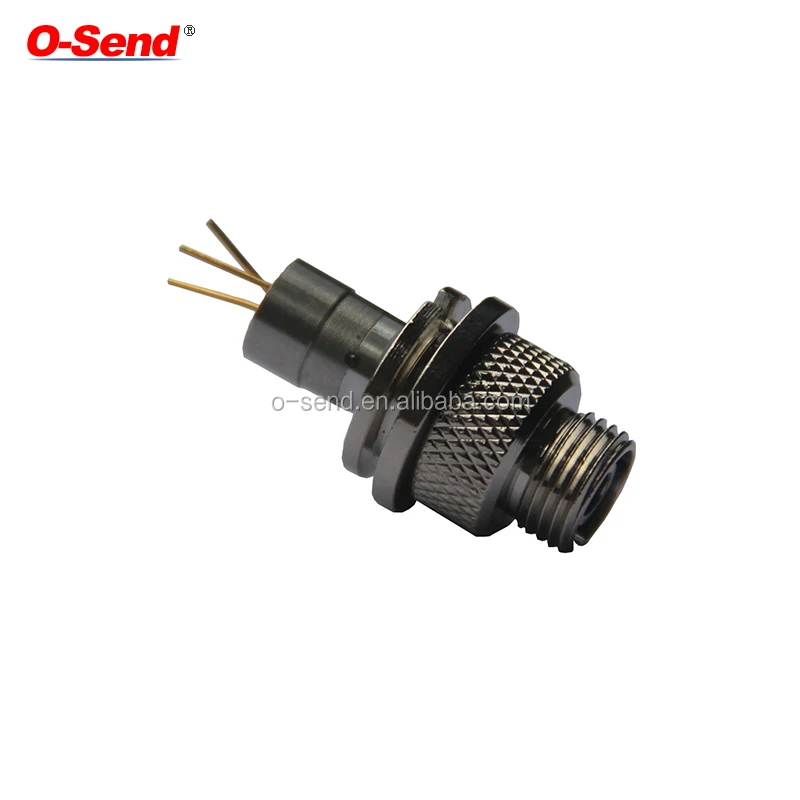

O Send/Senset 1550nm ingaas photodiode
- Category: >>>
- Supplier: O-Send Opto-Electronics (Chongqing) Co. Ltd.
Share on (60760235823):
Product Overview
Description
Product Description
It offers a low cost solution for linear fiber optic links, which is packaged in a compact hermetic assembly for flexible integration into various transmitter configurations.
Product Detail
Features
Active diameter 50µm
Small dark current
High reliability
Applications
CATV Optical Receiver
Absolute maximum ratings
| Parameter | Symbol | Condition | Ratings | Unit |
| Storage temperature | Tst | - | -40~+100 | ℃ |
| Operating temperature | Top | - | -40~+85 | ℃ |
| Reverse voltage | VR | CW | 30 | V |
| Soldering time | - | - | 10 | S |
| Soldering Temp | - | - | 260 | ℃ |
Optical&electrical characteristics
| Parameter | Symbol | Min | Typ | Max | Unit | Test condition |
| Detection range | λ | 1100 | - | 1650 | nm | - |
| Dark current | ld | - | 0.1 | 1 | nA | VR=5V,25℃ |
| Quantum efficiency | R | - | 0.80 | - | A/W | VR=5V,λ=1310nm |
| Saturation power | P | 6 | - | - | dBm | VR=5V,25℃ |
| Rise and Fall time | T/T | - | 0.1 | - | ns | RL=50Ω |
| Reverse Voltage | VR | - | - | 15 | V | - |
| Capacitance | Ct | - | - | 0.35 | pF | VR=5V |
| Return Loss | RL | - | - | -45 | dB | - |
| Bandwidth | Bth | - | - | 10 | GHz |
