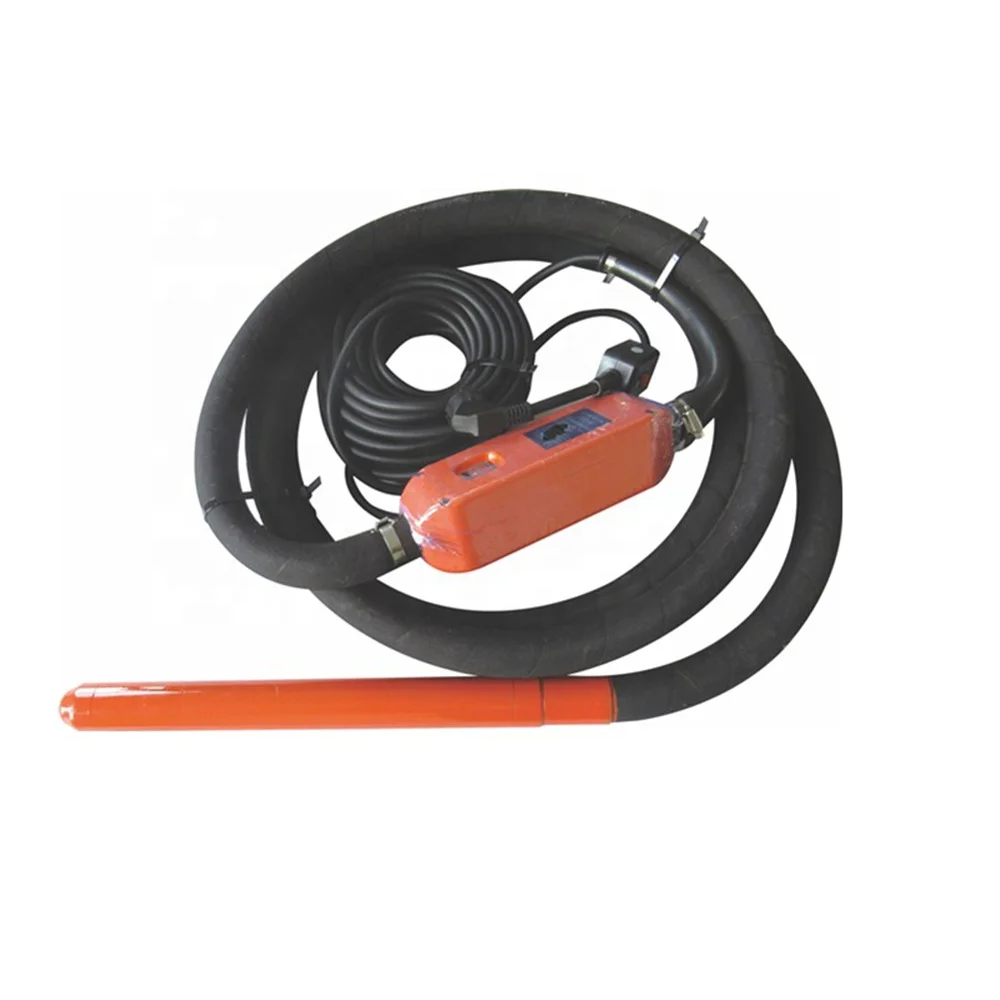

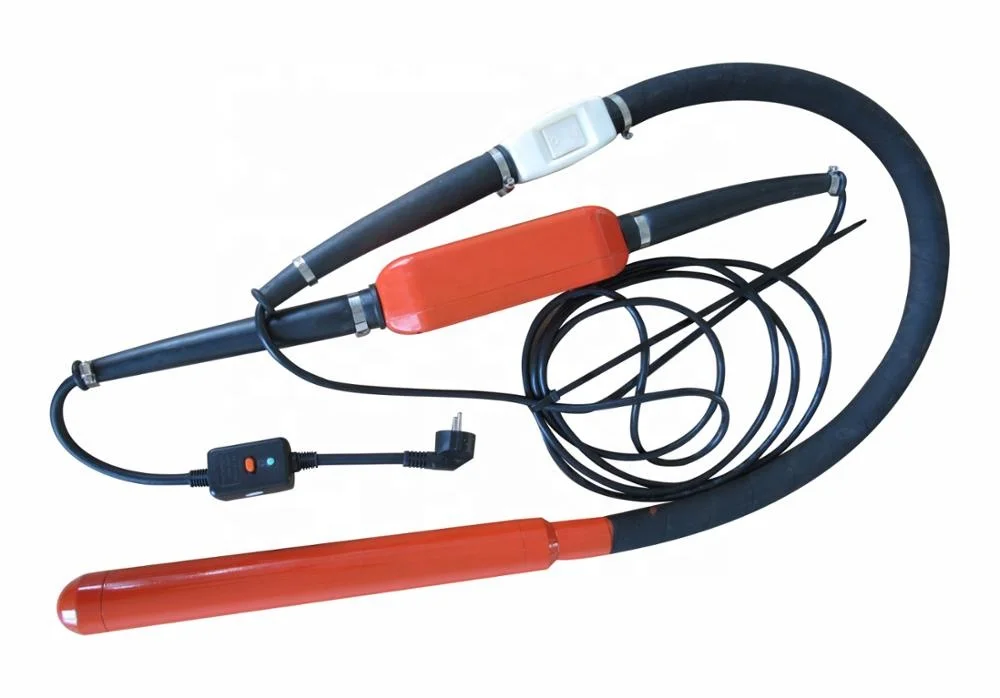

CONGFA High frequency Concrete Vibrator parts, Concrete Hand Vibrator
- Category: Concrete Vibrator >>>
- Supplier: Zhuji Huihuang Hardware Co. Ltd.
Share on (60760248687):
Product Overview
Description
Detail
Technical Parameters | ||

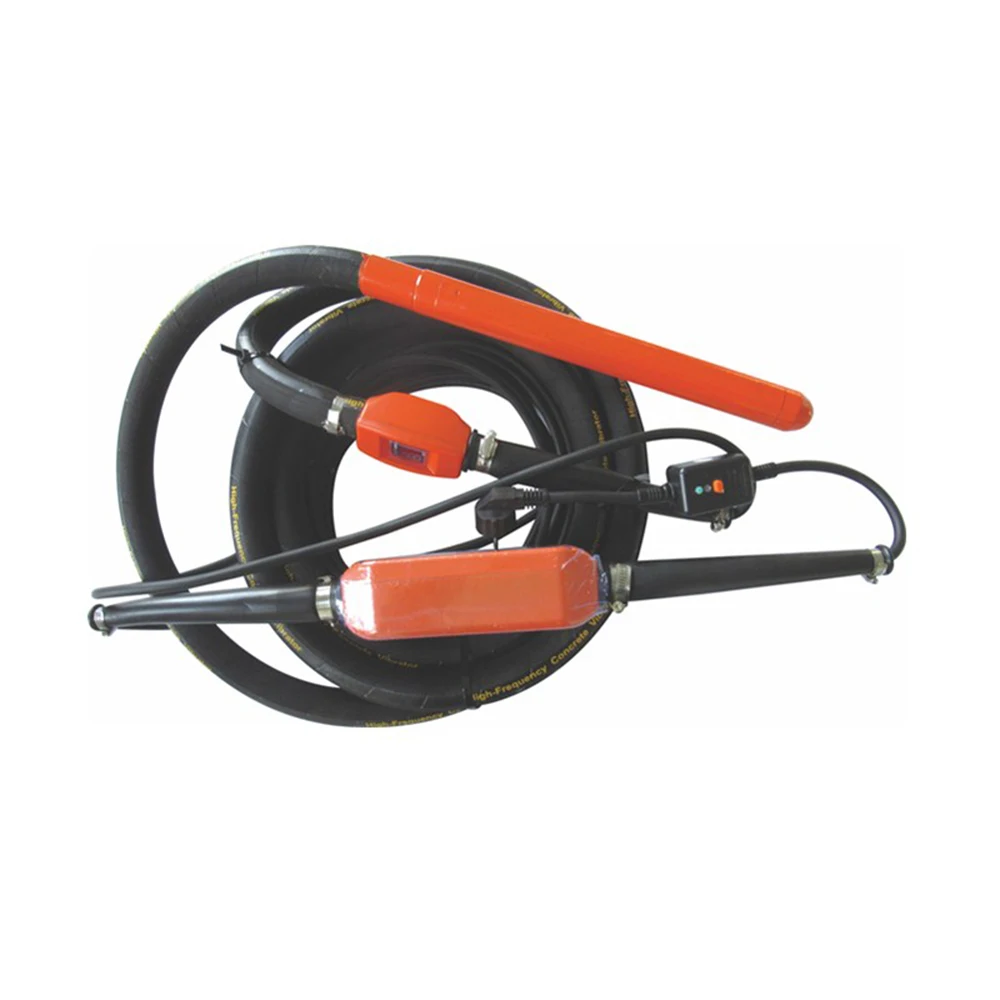

| Parameters | CFZ-50 | CFZ-50B |
| Vibrator Diameter<mm> | 50 | 50 |
| Metal Head Length<m> | 345 | 345 |
The Hose Length<m> | 5 | 5 |
The Wire Length | 15 | 15 |
Metal Head Weight<Kg> | 3 | 4 |
Efficient vibrating Diameter<cm> | 55 | 75 |
| Frequency <rad/min> | 12000 | 12000 |
| Power<KW> | 1.5 | 1.5 |
| Voltage<V> | 200~240 | |
| Electric Frequency<HZ> | 50~60 | |
| Input Current<A> | 2.7 | 3.6 |
| Driver Motor | Electronic frequency converter in switch shell High-frequency permanent magnet synchronous motor for the use of 200 240v, 50 60 HZ per line main power supply directly | |
Our advantages:
Portable
Light weight, <13kg but traditional vibrators need 2 people, only 1 person can operation it now, it can save a new vibrator money in a few days.
Low noise
Applicable at night
tunnel and other construction, the noise <75 db
Durable
our service, life is 3-5 times of traditional vibrators but our product can be usded for 1000-1500 hours.
Easy to operate
No need of flexible shaft, hand-held vibration sense is light.
Strong adaptability
Use single-phase electric AC 220V, no need ot industrial power AC 380V
More safe and reliable, health
The traditional vibrators hose strong jitter, harming the construction personnel nerve greatly, a little time result in hand paralysis. Use high-frequency vibrator, hose in hand are not jitter, healthier
Pouring concrete more firm
The traditional vibrators revolutions in commonly 2000 rad/min, result in more honeycomb, using 12000rad/min high- frequency vibrator pouring concrete, the frequency is same as the cement resonance.
greatly reduce cellular in building. increase the building reliability
Main Products
Company Profile
Certifications
FAQ
Q1: Are you manufacturer or trading company?
A: We are Manufacturer with more than 10 years foreign trade experience. We have our own factory.
Q2: Can you produce based on our drawing & sample? We may also need our logo on it.
A: Yes, of course. We do OEM & ODM services. And definitely you can have logo on it.
Q3: What is the delivery time for bulk production?
A: About 35 days.
Q4: What about payment?
A: Usually we may ask for 30% T/T deposit and 70% T/T balance at the sight of B/L copy.
Q5: How do you control quality?
A: Under management of ISO9001 system, we check every process of production.
