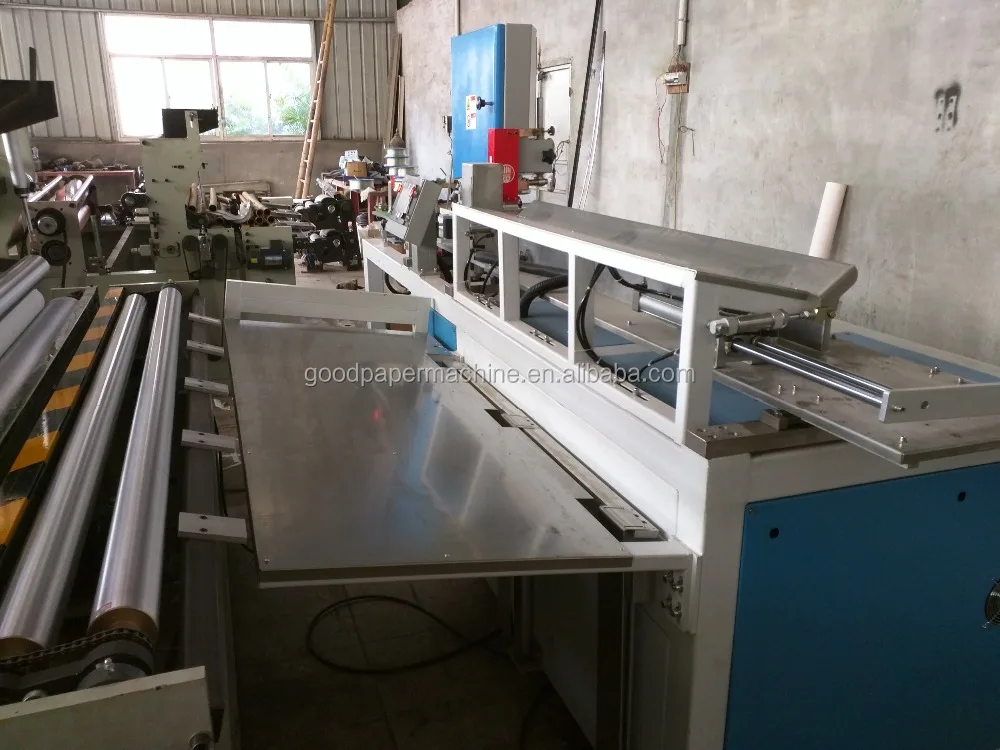

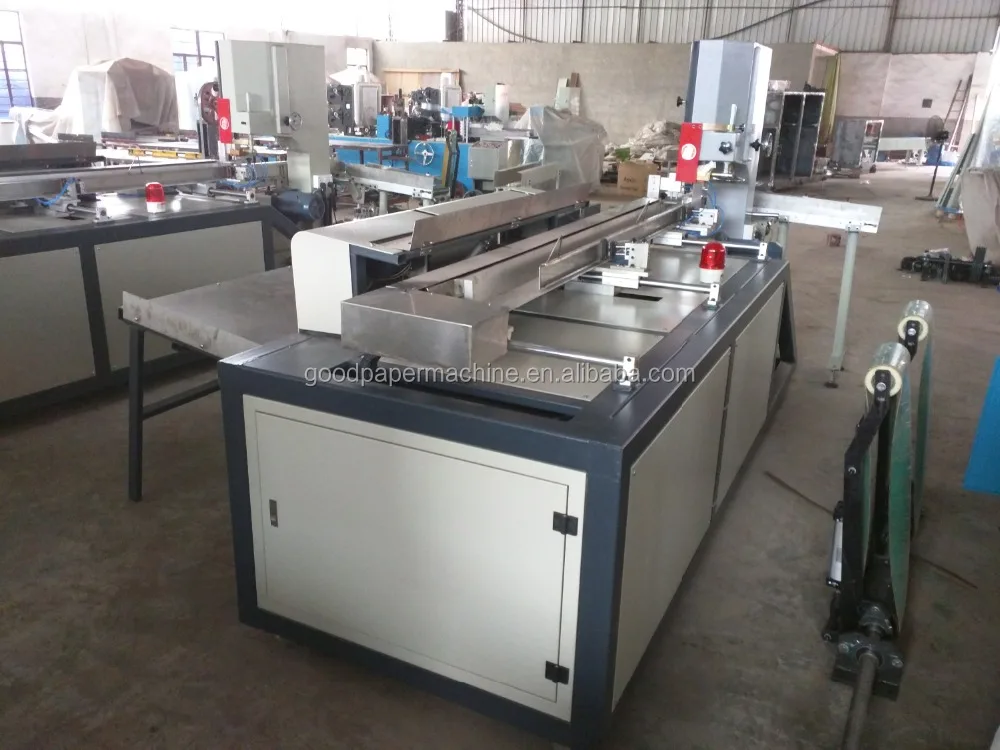

Automatic bathroom paper cutting equipment band saw toilet paper cutting machine

The equipment is operated by using PLC program control,big screen true color human computer interface. Theprecise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action,has good fault information prompt system, make the whole production line achieving the best working state.

1. The transducer independent driver is used in the main motor;
2. The cutting knife automatically stops and gives an alarm;
3. When the paper can not be cut down,the equipment will
4. The high precision servo system is used in the feed motor servo system,to ensure the quality of the finished product;
5. The equipment automatically calculate the quantity of the finished product being cut;according to the raw material and the length of the finished product;
6. When data input is incorrect,the equipment breaks off and prompts to adjust on the interface;
7. The cut paper head and paper end can be automatically sorted;
8. Cut with knife is used in the equipment,which reduce the use cost of the user;
9. The automatic sharpening knife system is used in the equipment,can adjust the sharpening knife system according the requirement of paper being cut,which increase the cutting life;
10. The sharp steel wheel is used in the sharpening knife system, which increase the sharpening knife efficiency

Parameter:
1. Cutting log channel: single channel
2. Cutting speed: 80-100cuts/minute
3. Cutting blade: band saw blade(Size 3850*40*0.6)
4. Toilet log length: ≤ 2850mm(it can be made according to customer request)
5. Finished toilet roll length: ≤ 300mm
6. Finished toilet roll diameter: 70-150mm
7. Cutting tolerance: ±1.5mm
8. Power supply: 5kw 380V 50H3 phase 4line
9. Overall size: 2800x1500x2100mm
10. Machine weight: 1100KG
