Токарный станок с переменной скоростью Sieg, мини-токарный станок SP2102, цена

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


Products description

SP2102 mini bench lathe machine is HOT SELLING all over the world, specially HOT in USA and European countries. As manufacturer of this hobby lathe, this manual lathe machine is for hobby and home usage. Features are as below:



1.A miniature lathe used for all types of cutting. Can be used to turning cylindrical, face, drilling, boring and turning thread. Processing of precision parts, the sample processing and processing of the model can also be used.
2.Widely used, simple to operate, and a wide range of processing. After high frequency quenching process and precision grinding of high-quality cast iron bed.
3.Chuck guard is with automatic power off. Customized enhanced chuck guard is also available.

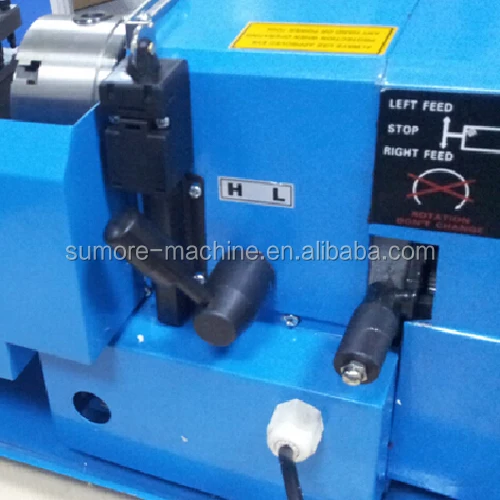

4.Carriage can be auto feed.

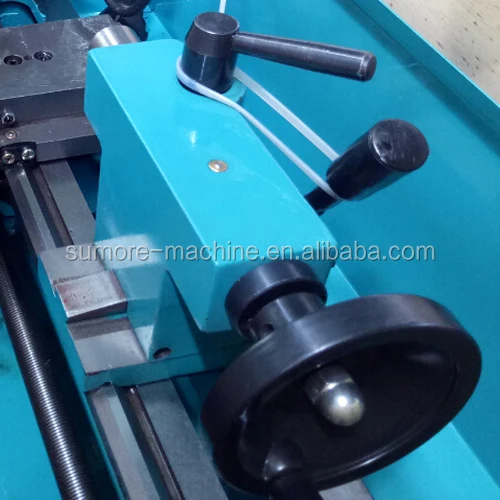

5.Tailstock with quick fix function is available.

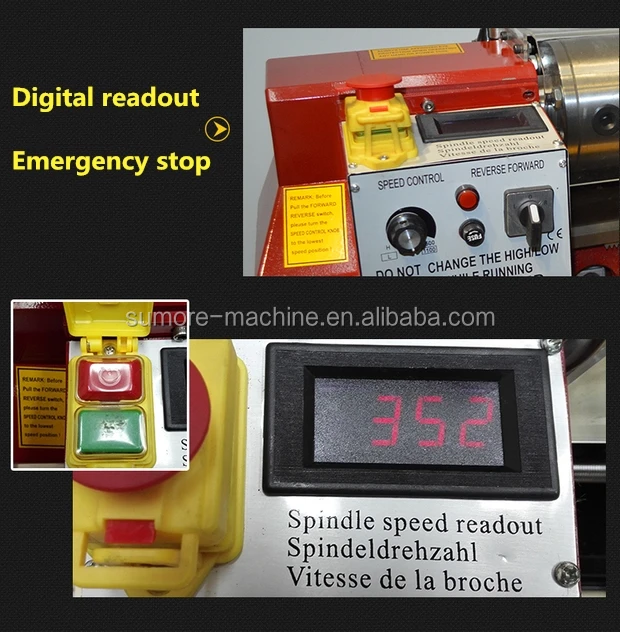

6.Spindle speed is with high quality digital readout.
7.Chuck could be 80mm and 100mm 3 jaw chuck and 4 jaw chuck is also available.
8.Brushless motor is available.
9.Metal handwheel is available.
10.Metal and plastic gears are available.

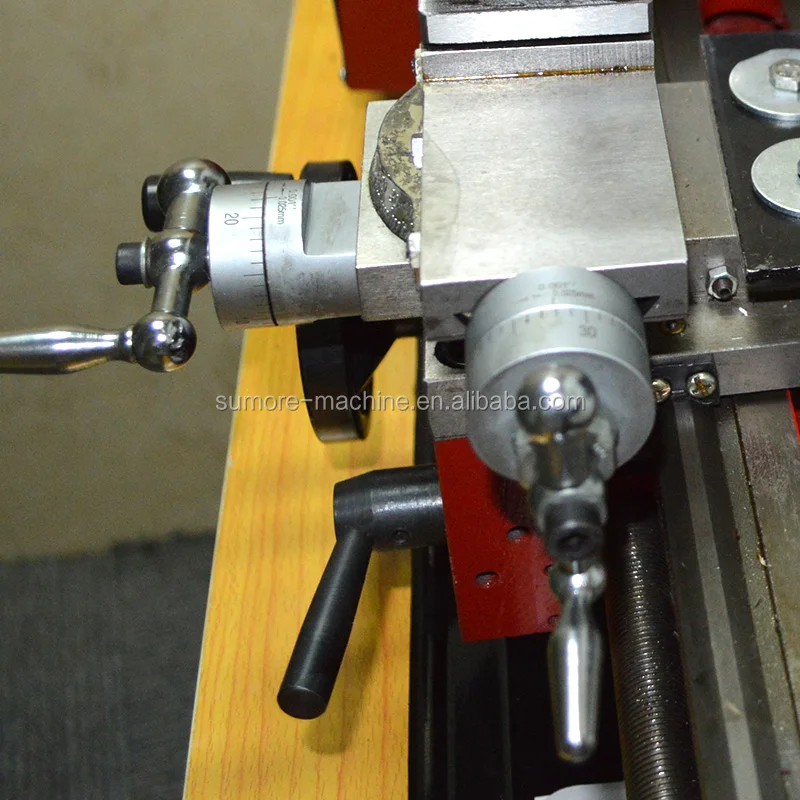

11.Travel scale on carriage and tailstock are available.
12.Ball screw is available.
13.Power supply could be customized 220v/110V.
14.All machines have to pass the checklist of the machine precision before shipment

SP2102 1.pngSP2102...pngSP2102..png



Technical Data



Model

SP2102

Swing over Bed

180 mm

Swing over Cross Slide

110 mm

Distance Between Centers

200 / 300 / 350 mm

Spindle Bore

20 mm

Headstock Spindle Taper

MT 3

Range of Spindle Speeds

50 - 2,500 rpm

Compound Slide Travel

35 mm

Cross Slide Travel

65 mm

Tailstock Quill Taper

MT 2

Range of Inch Threads

12 - 52 TPI

Range of Metric Threads

0.5 - 2.5 mm

Motor Power

400 / 550 w

Power Supply

120 / 230 v

Net Weight

35 / 38 / 40 kg

Packing Size (LxWxH)

660 / 760 / 810 x 310 x 320 mm

Gross Weight

38 / 42 / 45 kg


Accessories



Standard Accessories

Optional Accessories

3-jaw chuck

4-jaw Chuck

Dead Center

Face Plate

Cutting Tools

Face Plate Clamping Kit

Change Gear Set

TiN Coated Cutting Tools & Replaceable Tips

Splash Guard

Steady Rest

Chuck Safety Guard

Follow Rest

Stand

Drill Chuck and Drill Arbor

Oil Tray

Live Center

Oil Gun

Quick Change Tool Post

Manual & Parts List

Clutch for Feed Rod



Lead Screw Guard

 Digital Readout Cutting Depth
 Coolant System
 Work Light

 tips banner 2.jpg


Packaging & Shipping



Package

1 set/polywood case  (aluminum strips strengthen)

Minimum Order Quantity (MOQ)1 sets
Full Container Loading Quantity (FCL)340-390 sets/20’GP  (unitary; customerized packing available)
Delivery Time25 calendar days after receiving of advance / full payment




Certificates


Company Information

Shanghai Sumore Industrial Co., Ltd. (Sumore Machinery) was established back into year

2001. The core business of Sumore Machinery was focused on full machinery business chain,

which involves research and development, fabrication and production, foreign trading and

domestic sales on a wild range of products, such as power tools, woodworking equipments,

metal-processing machines and all related accessories.
