Product Overview
Description
Fast plug and unplug Terminal Block Connector Ip67 Waterproof Industrial Power Connector
Anen Industrial Round Connector Industrial Connector,Fast plug and unplug connector,Terminal Block Connector
Anen Power Industrial Connector Series are specially formed, resilient strips of copper alloy which are silver or gold plated according to their application. By its constant spring pressure the connector maintains continuous contact with the contact surface, resulting in a low constant contact resistance.
Anen technology of the industrial connector allows us to meet a very broad range of requirements and to find solutions to the most severe constraints, including electrical (up to several kA), thermal(up to 350 degree), and mechanical, with contact durability of up to 1 million mating cycles.
Industrial Connector Features Industrial Connector,Fast plug and unplug connector,Terminal Block Connector
· With bayonet locking
· Adopt special shrapnel
·Touch protected in unplugged condition
·Clearly visible color marking on the insulation
·Can be equipped with a micro-switch as locking status indication
Technical Parameters Industrial Connector,Fast plug and unplug connector,Terminal Block Connector
| Item | Value |
| Rated Current(Amperes) | 1000A |
| Rated Voltage(Volts) | 1000V |
| Contact Barrel Wire Size (AWG) | 240~400mm² |
| Contact Materal | Copper, Plated With Silver |
| Insulation Material | PA |
| Flammability | UL94 V-0 |
| Without Load, Contact/Disconnect Cycles | To 5,000 |
| With Load (Hot Plug 250 Cycles & 120V) | N0 |
| Average Contact Resistance (Micro - Ohms) | 8 |
| Insulation Resistance | 5000MΩ |
| Average Connection/ Disconnect (N) | 260N |
| Environment Temperatures | -20℃···+75℃ |
| Insulation Withstanding Test Voltage | 3000 |

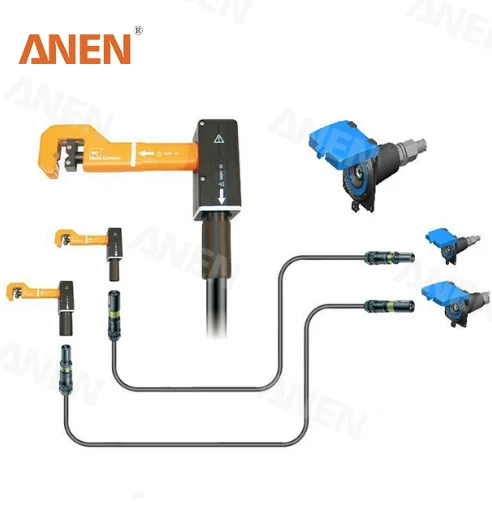

Board /Wire interface Industrial connectors Industrial Connector,Fast plug and unplug connector,Terminal Block Connector

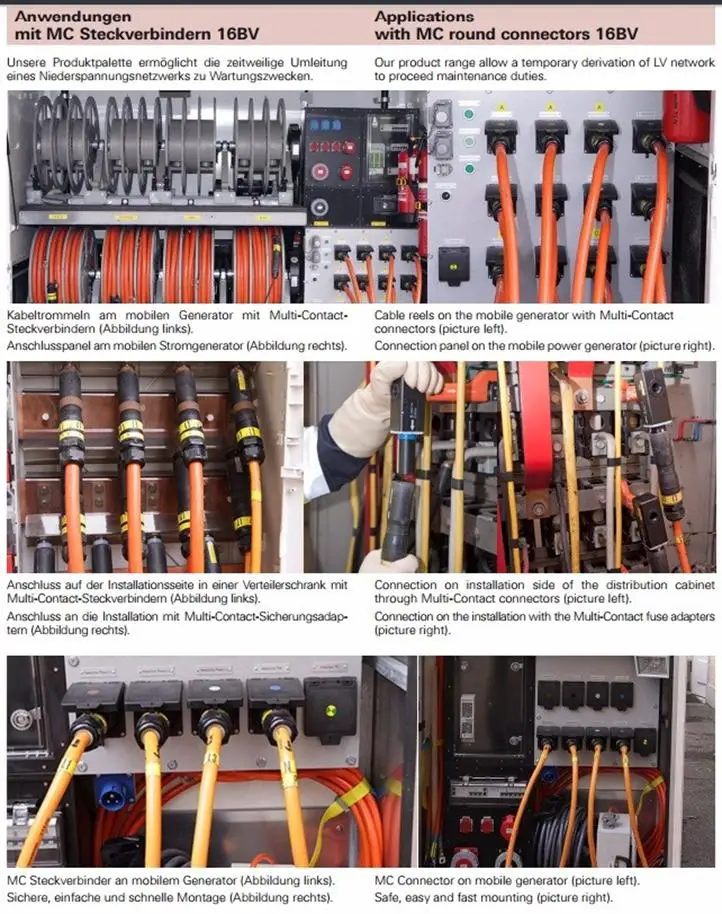

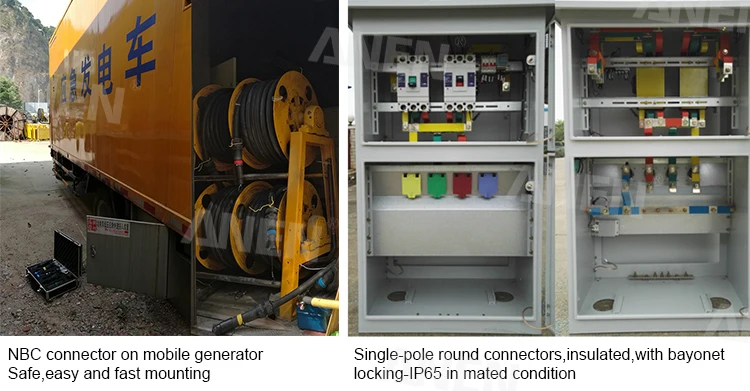

Industrial round connectors Applications Industrial Connector,Fast plug and unplug connector,Terminal Block Connector
------
