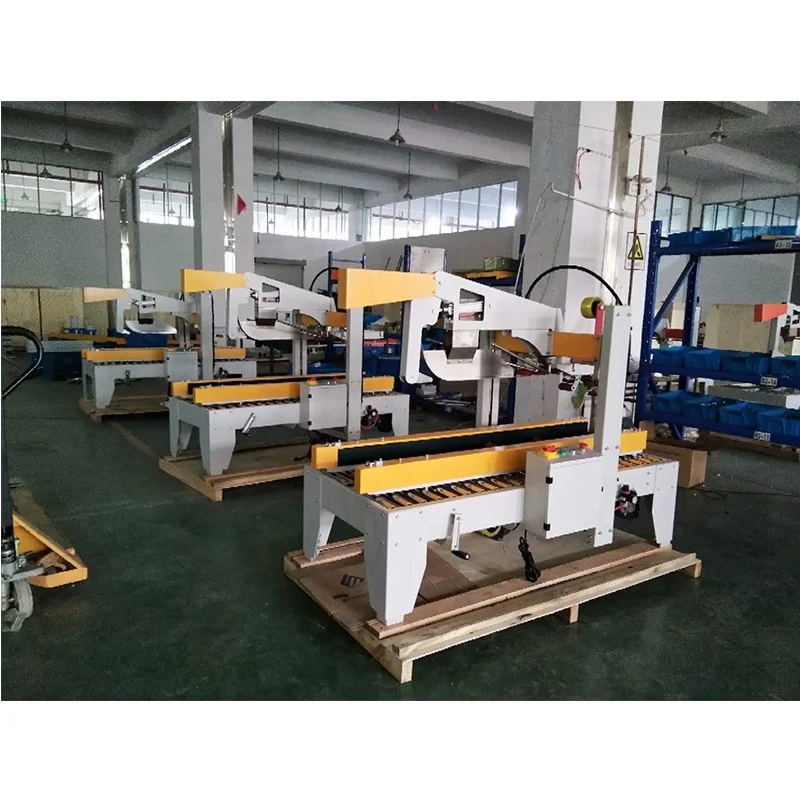

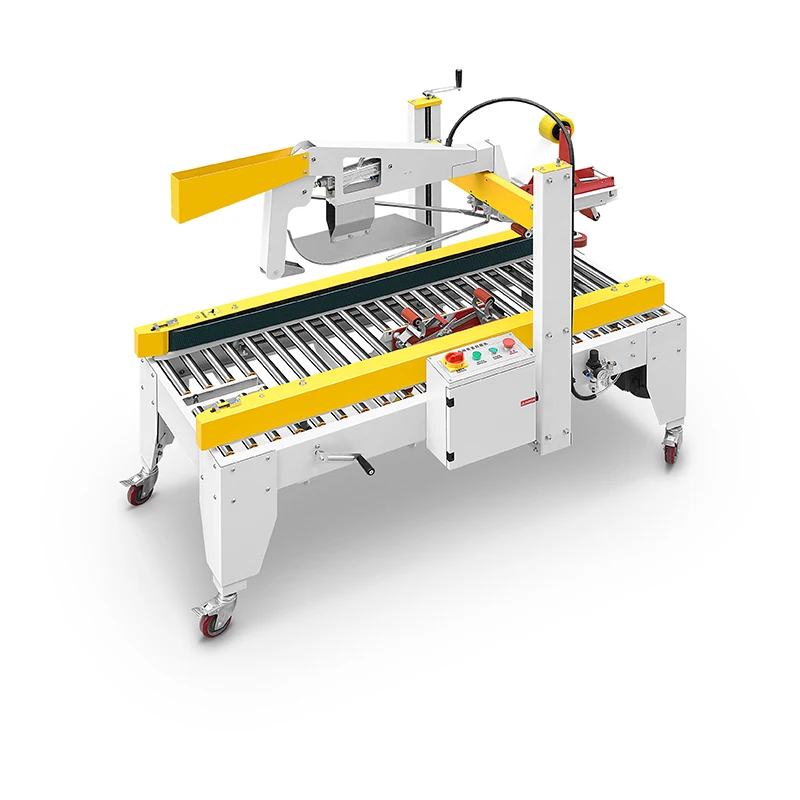

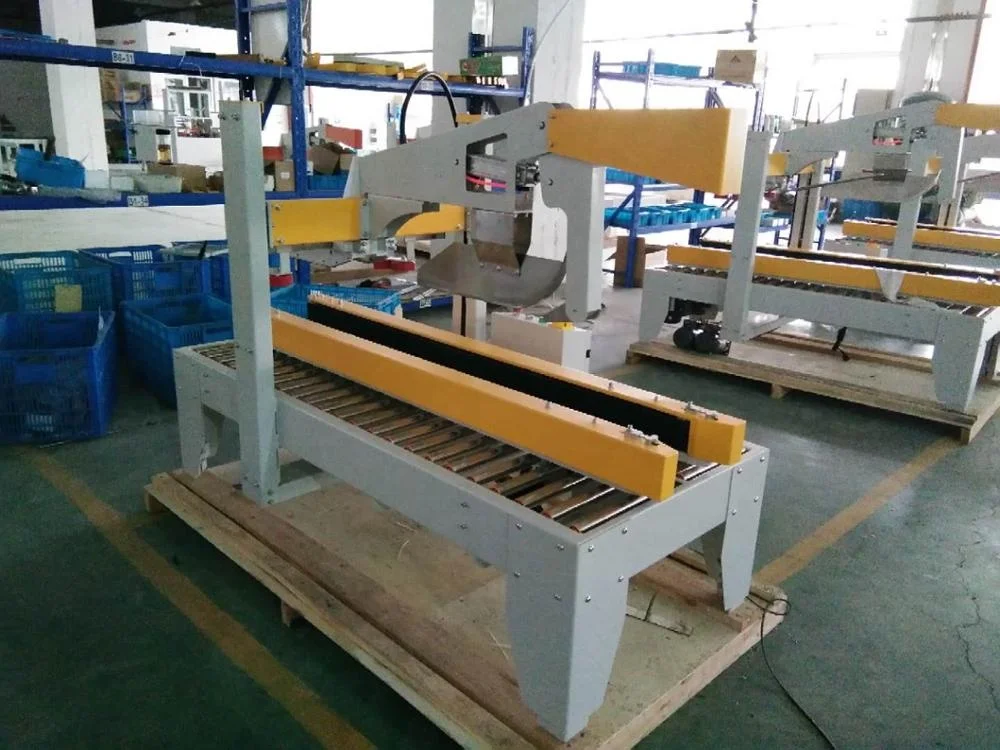

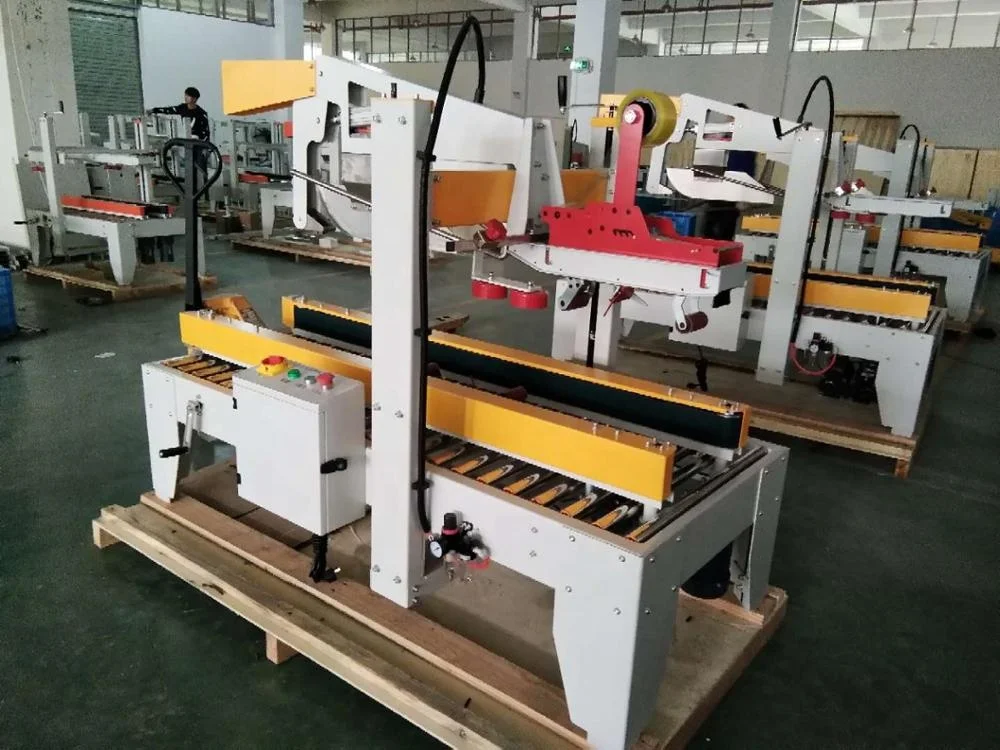

FM 500A Factory Manufacturer Side Drive Auto Folding AdhesiveTape Carton Sealing Machine

Share on (60760329845):


Price:RUB 94,035.84

Quantity:


Product Overview

Description

Product Description

 FM-Z500A Factory Manufacturer  Side Drive Auto Folding AdhesiveTape Carton Sealing Machine

Features: automatic folding cover, to receive adjust the width, height. Carton suitable for pipeline operations, a complete sealing lid off the box, without human intervention operation, automation strong, at around two conveyor drive

CONFIGURATION



1.This equipment line or stand-alone operation, automatic folding cover, along with the upper and lower intermediate rubber sealing, once completed

2.Precision fit with another solid performance, smooth operation, long life and good stability

3.Standard equipment specifications, according to the need for equipment to widen, heightening custom

4.Standard table height is 570 mm (other requirements can be customized)

5.The use of advanced technology manufacturing, durable structure



Applicable carton size

150-500mm(L)*120-500mm(W)*130-500mm(H)

Conveying speed

20 m / min

Equipment size

1800mm(L)*980mm(W)*1420mm(H)

Power supply

220/380V 50Hz(Alternative use)

Maximum power consumption

0.4kw

Apply pressure

6kgf/cm²

Tape width

48/60/75mm(Alternative use)

Equipment weight

236kg

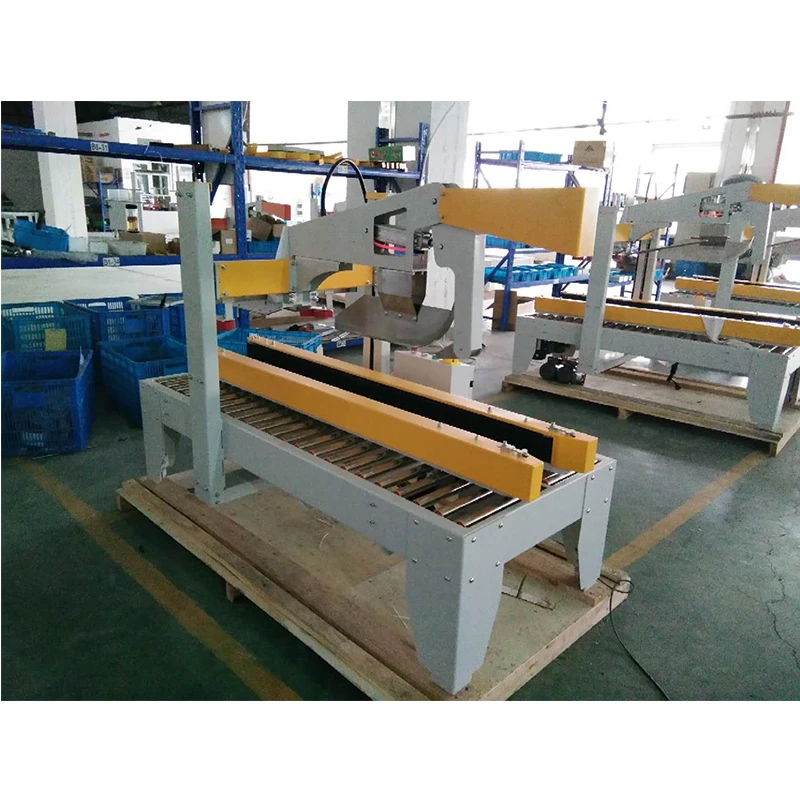

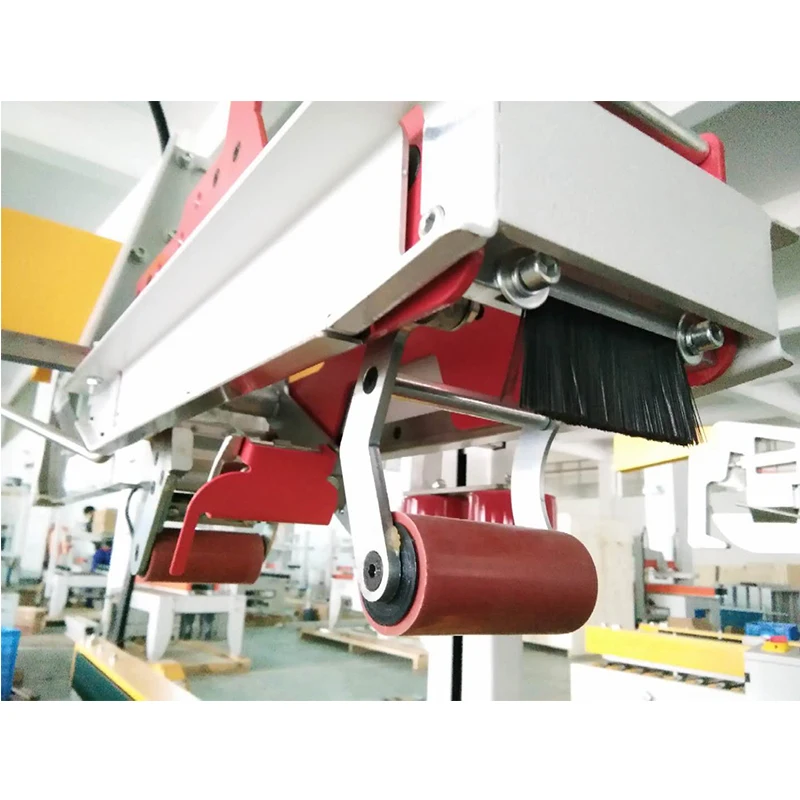

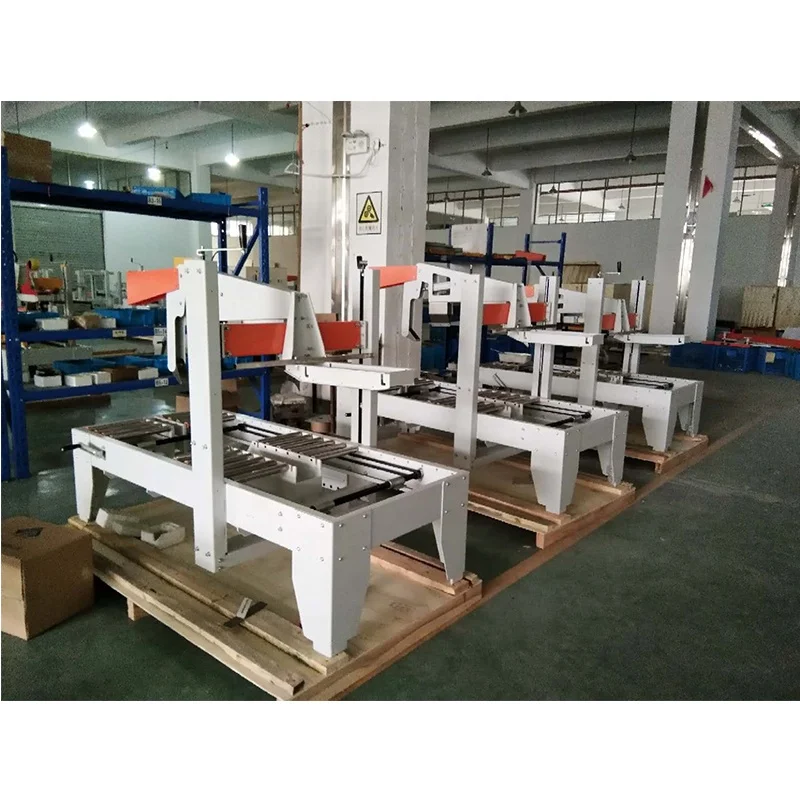

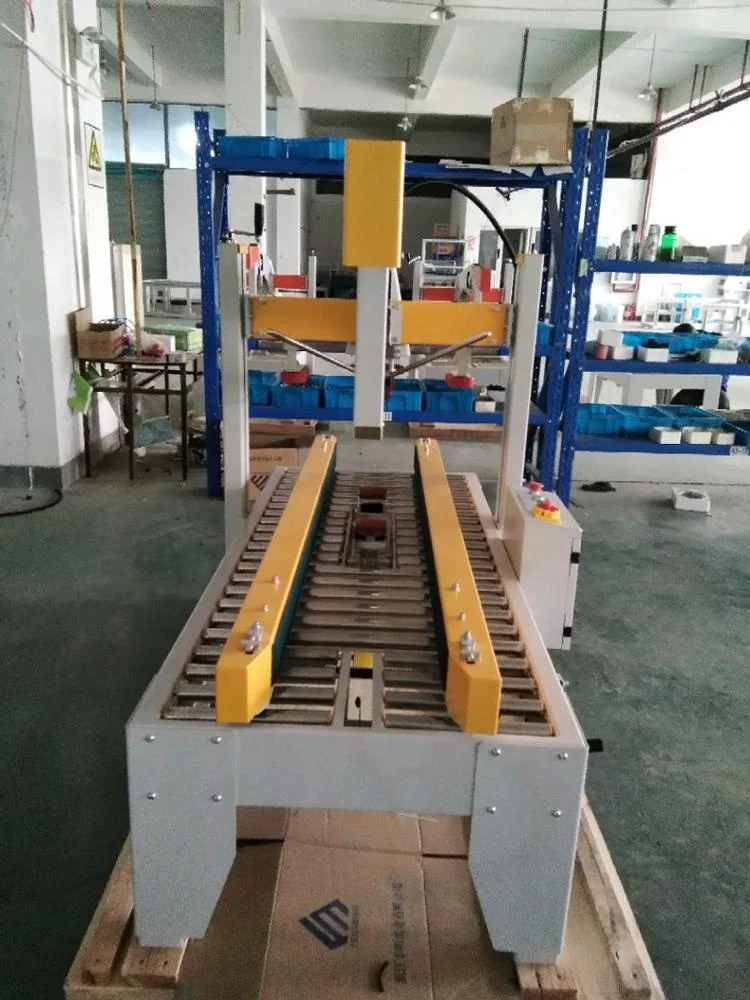

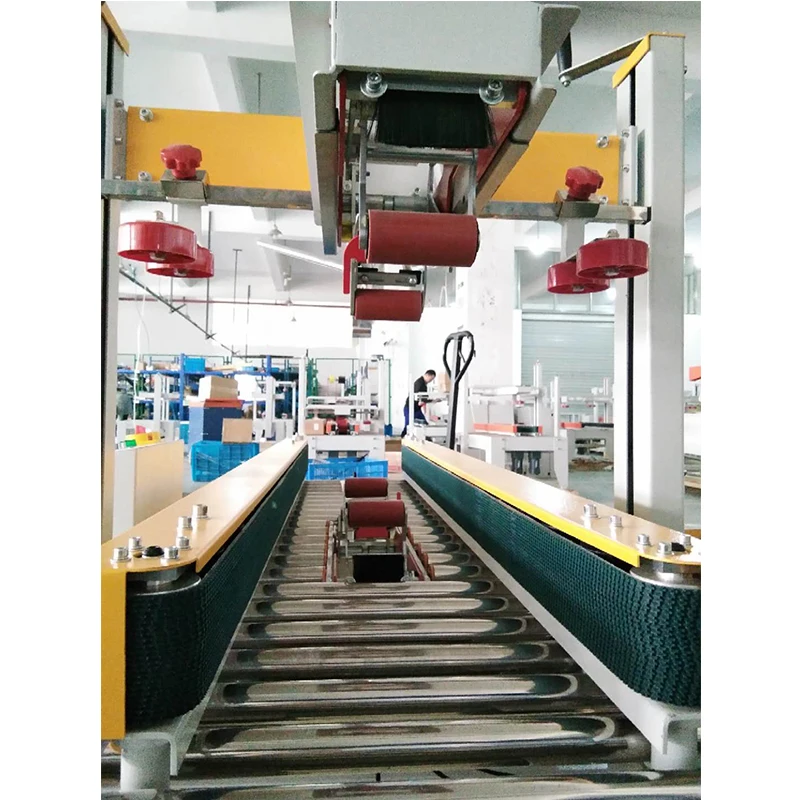

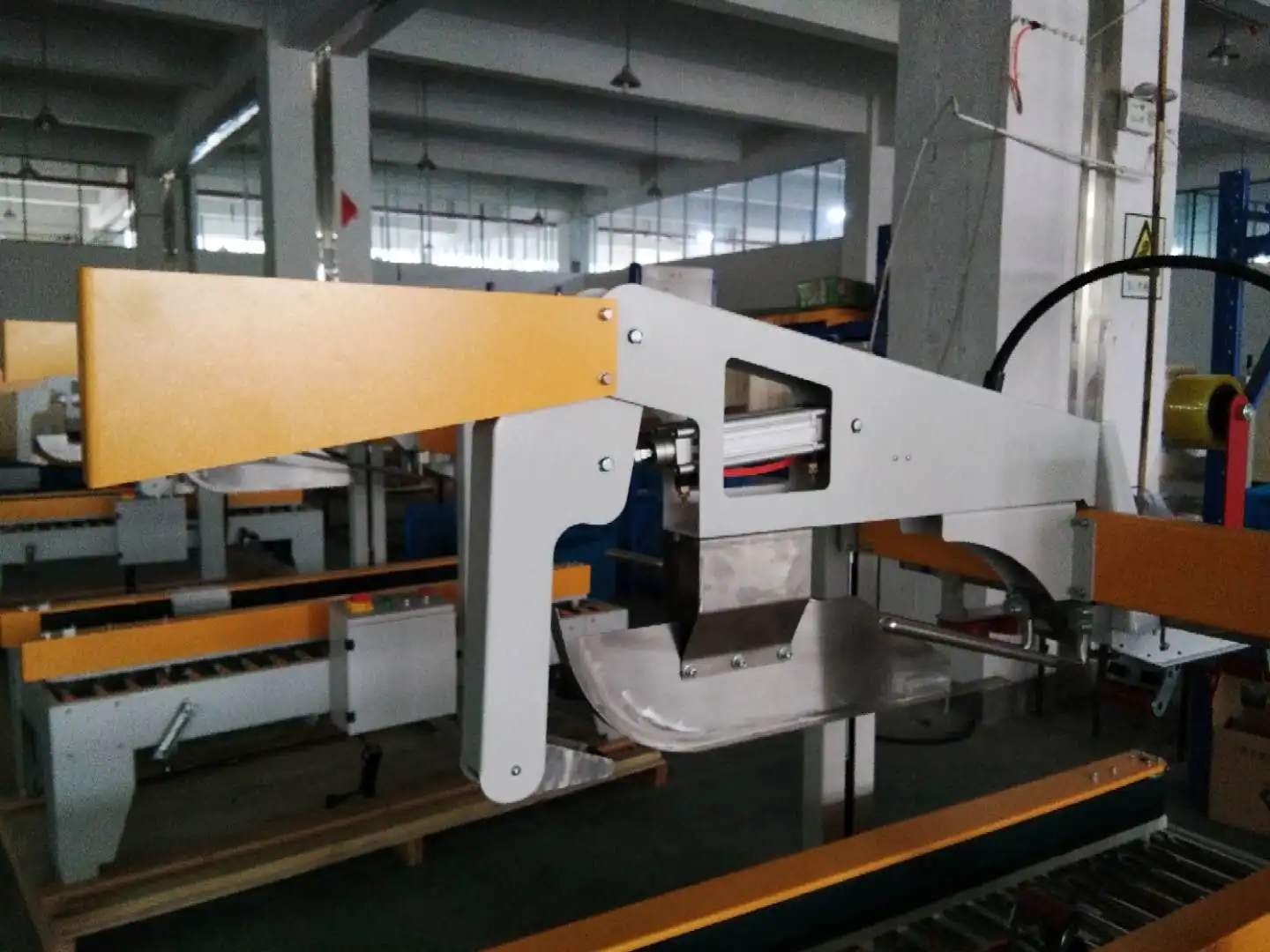

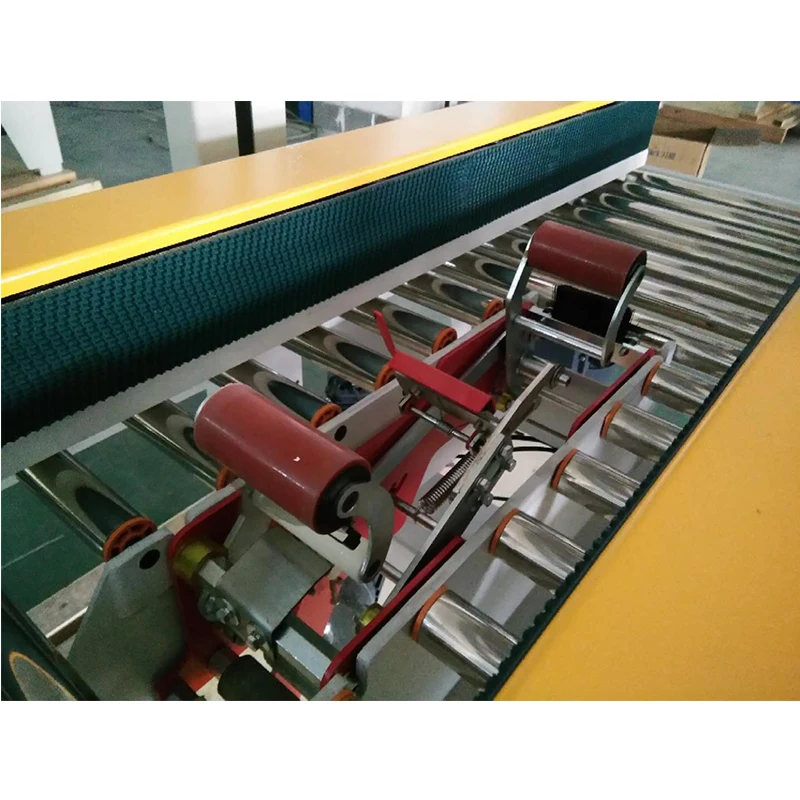

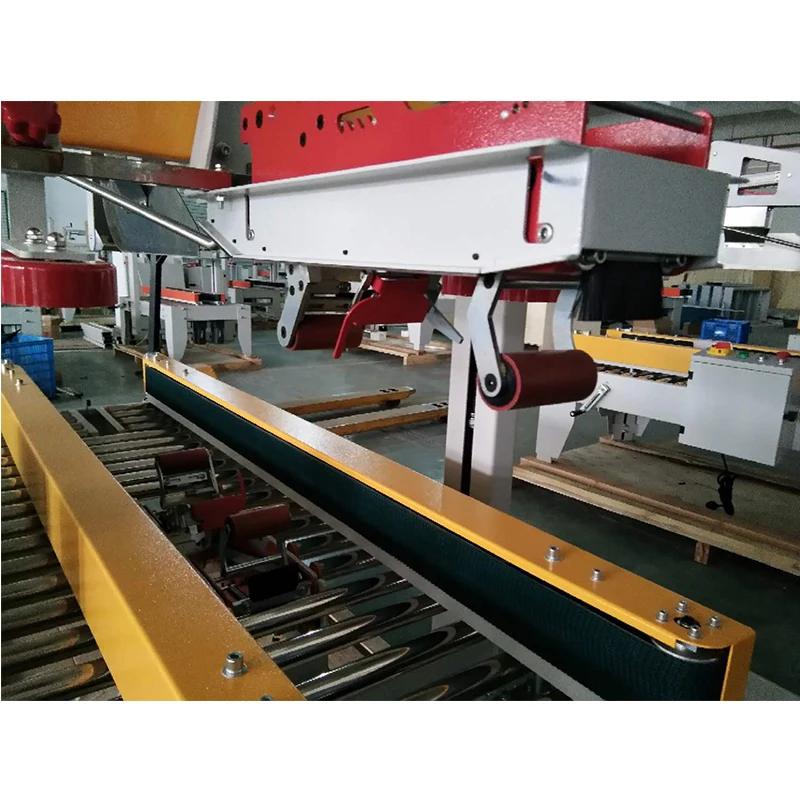

Detailed Images


Market

 .png

Exhibition

 .jpg
