Two Color 3D Model Printer / Large desktop 3d Printing Machine
- Category: >>>
- Supplier: Shenzhen Mingda Technology Co. Ltd.Shenzhen Ltd.
Share on (60760334527):
Product Overview
Description
\t\t\t\t\t\t\t\t\tApplication \t\t\t\t\t\t\t
Product Description

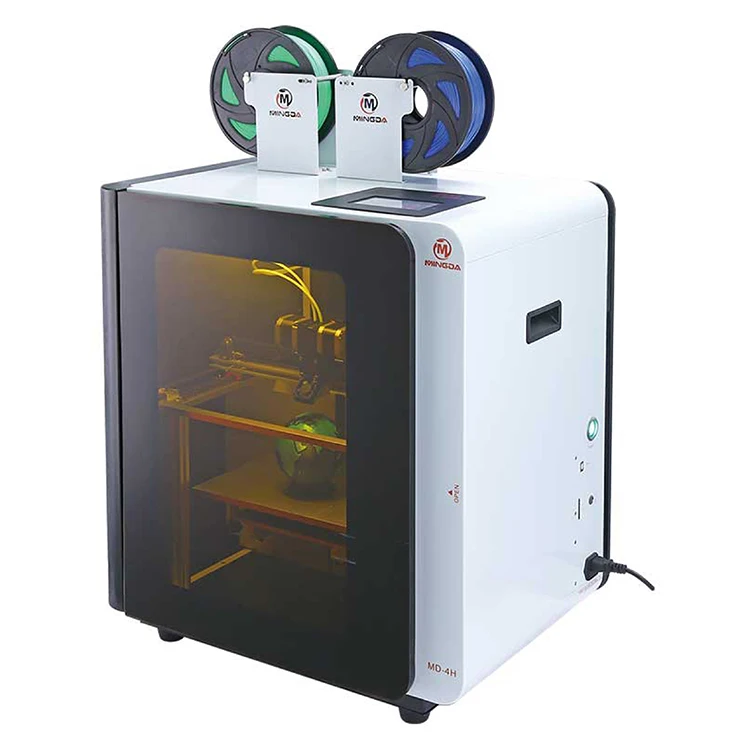

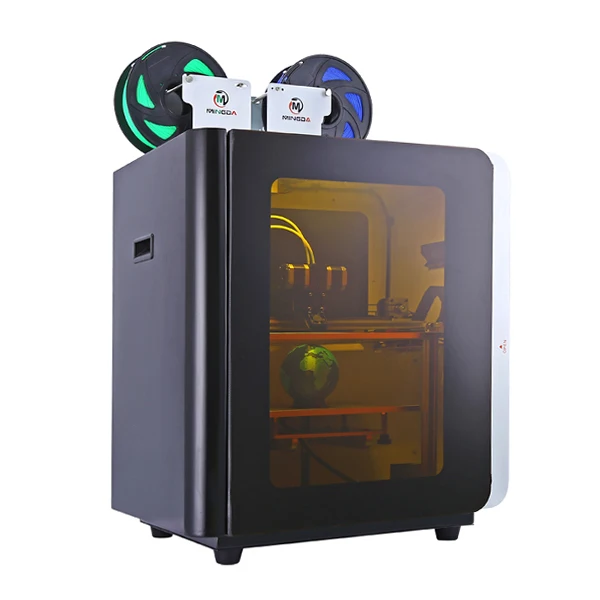

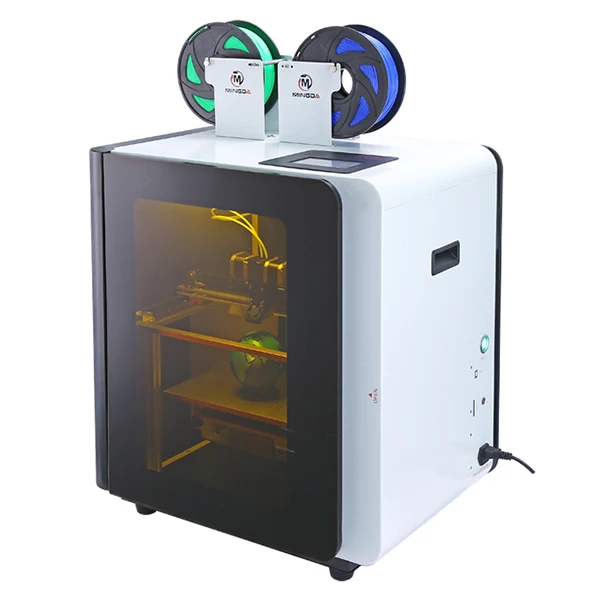

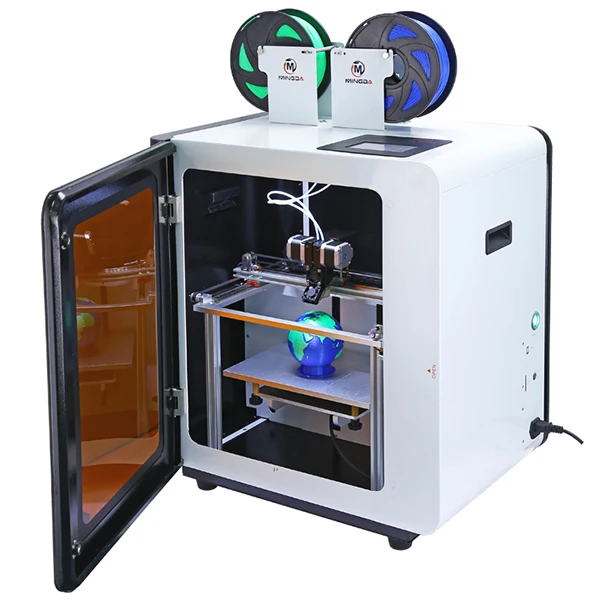

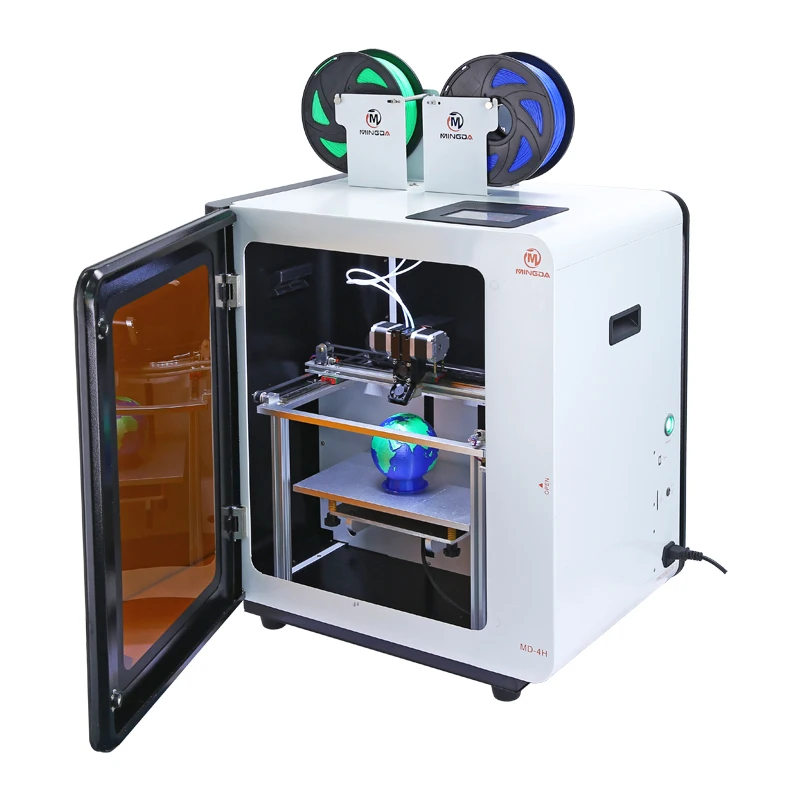

High Quality Customized Dual Extruders Two Colors 3D printer MD-4D
Printing Size 300*200*200mm
No screws and sharp corner, safe usage
Fully enclosed metal frame design
Steady 3D printer without shake
Details Images
TECHNICAL SPECIFICATIONS
1)MD-4D X,Y,Z axis adopt full linear guide rails , make our 3D PRINTER machine more stable than screw structure.
2)3D printer Printing speed 0-200mm adjustable.
3)It has 5.0 inch colorful touch LCD screen, very easy to operate.
4)10mm thickness aluminum heated bed, it max temperature can heat 110 degree. Will be easy to print strong filaments like ABS and Nylon.
5)0.4mm nozzle (easily changeable) for 1.75 mm filament. Self-patent nozzle max temperature 275 degree, no blocking and drawing.
6) We accepted OEM service for wholesalers.
7) All metal stainless steel fully enclosed structure
8) 0.05mm layer thickness, matching with it's full enclosed structure and stable full linear guide rails, to promise best stability and precision.
9) UPS (Uninterruptible Power System), when power off, our machine will stop working and keep memory for 24 hours. Which is very important for the big size model..
10) Filament sensor, 3d printer machine will stop working if no 3D printer filament, and will work if reinsert new materials.
11) Auto Power-off, the machine can be auto power-off after finishing printing model. So, if you want to go out or do anything which take longer time, you don't worry the question of power-off.
PRINTING | ||||||
Print Technology | Fused Deposition Modeling | |||||
Build Volume | 300*200*200mm | |||||
Number of Extruder | Dual (Single optional) | |||||
Weight | N.W.40KG/ G.W. 55KG | |||||
Layer Resolution | 0.05 mm | |||||
Filament Diameter | 1.75 mm | |||||
Filament Compatibility | PLA, Carbon Fiber, Wood, Flexible, TPU, Aluminum PLA etc. | |||||
Nozzle Diameter | 0.4mm ( 0.6, 0.8, 1.0mm) | |||||
TEMPERATURE | ||||||
Max. Nozzle Temp. | 275°C | |||||
Max. Bed Temp. | 110°C | |||||
SPEED | ||||||
Best Printing Speed | 50 mm/s | |||||
Max Printing Speed | 200 mm/s | |||||
MECHANICAL | ||||||
Construction | Power-Coated Steel, Aluminum Casting for Motion Components | |||||
Platform | 10mm thickness aluminum hot bed | |||||
Levelling | Factory Leveled, Adjust Manually | |||||
X Y Position Precision | 0.006 mm | |||||
Z Position Precision | 0.0015 mm | |||||
ELECTRICAL | ||||||
Power Requirements | 95-265V, 50-60HZ | |||||
Max. Power | 700W | |||||
Screen | 5.0 inch Color Touch Screen | |||||
Connectivity | USB,SD card | |||||
SOFTWARE | ||||||
Software Bundle | Muti-Language | |||||
Support Software | Simplify3d, Cura, Slic3r, etc. | |||||
Supported File Types | STL,g-code | |||||
Operating Systems | Windows (7,8,10) Mac OS X | |||||
SPECIAL FUNCTION | ||||||
Uninterruptible Power System | Save data when power is off | |||||
Filament Detection | Pause printing when filament run out | |||||
Automatic Shutdown | Turn off the power automatically when printing is complete | |||||
Open filaments
Open Filament – you can use the filament from any vendor.PLA is the most recommended filaments
HIGH PRECISION
We exclusively research and develop the extruder feeding system support high-speed printing, and accuracy can reach high to 0.05mm, it allows to extrude filament steady without block.
Precision up to:0.05mm Speed up to: 200mm/s
STABILITY
The whole-steel body not only ensure the stability when printing but alst greatly extend the usage period. The optimization and cooperation of overall structure ensure the sustainable and efficient operation. The first batch of MINGDA 3D printers have been working for 10 years and more than 13000 hours.

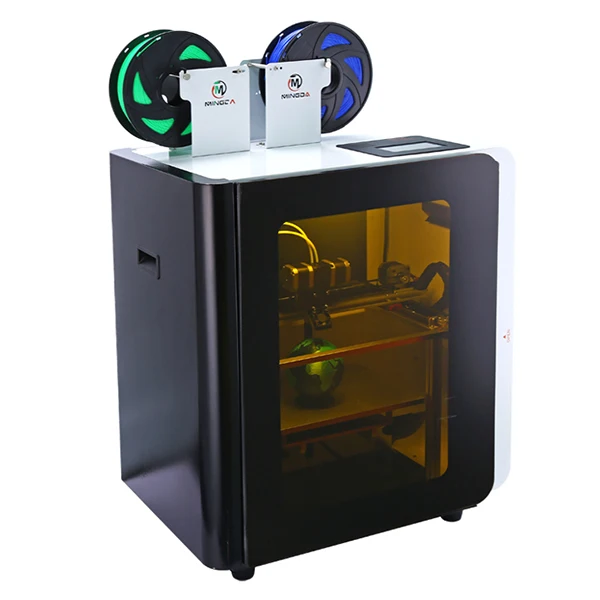

FULLY ENCLOSED CHAMBER

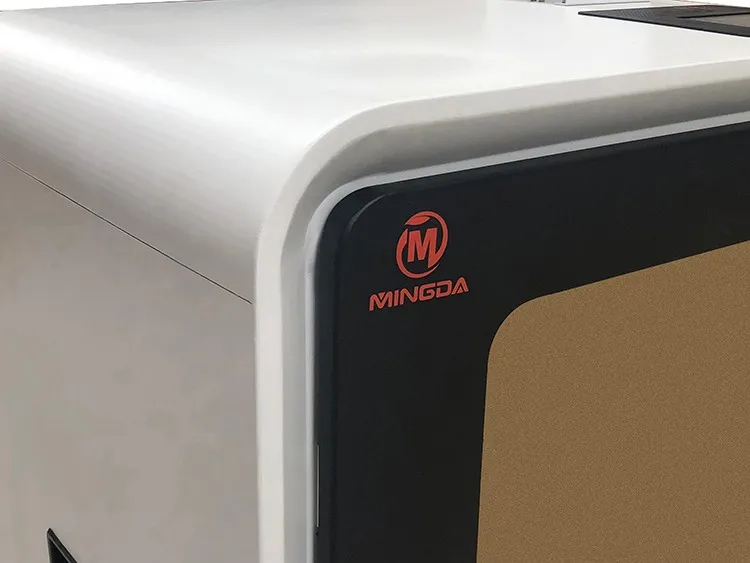

The fully enclosed chamber can block all external interference. Also this frame can reduce noises, at the same time to provide constant temperature, so that the model won't deform. Mingda 3D Printer Round corner design, compared to straight triangles, this design more safer to prevent scratched both children and adult.

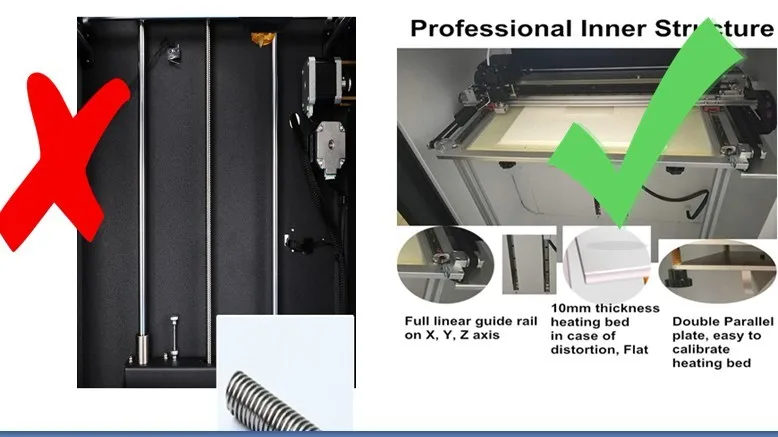

ACCURATE LINEAR GUIDE RAIL
The accurate linear rail structure can print models in accuracy high reach to 50 times higher than the other ordinary optical axis printers in mass market. This structure offers accurate filament feeding, so that can print large model fast and perfectly.
UPS & FILAMENT DETECTION
The printer will automatically memorize the current position and save the print data, lower the working platform and withdraw filament when the power off suddenly.

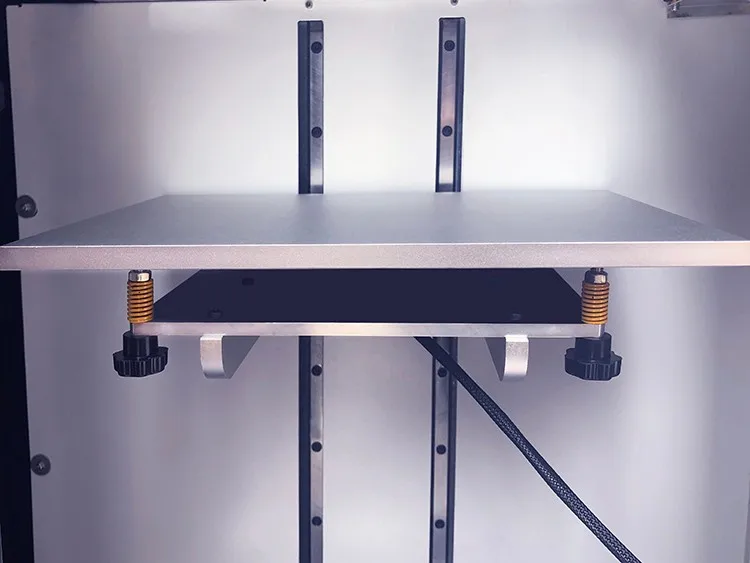

EFFICIENT PLATFORM
The platform surface is attached with the 3D printing special stickers, and the printer has vertical thermal conductivity so that can support high thermal efficiency. You can set the parameters to turn off the hot bed automatically after the specified number of layers.

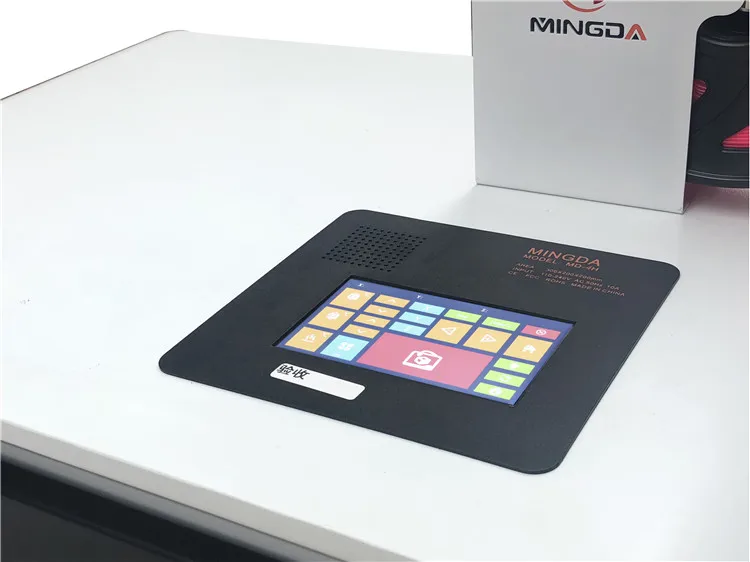

EASY TOUCH SCREEN
MD-4H/4D 3D Printer adopt user friendly 5.0 inch LCD touch screen, easier to understand and operate.

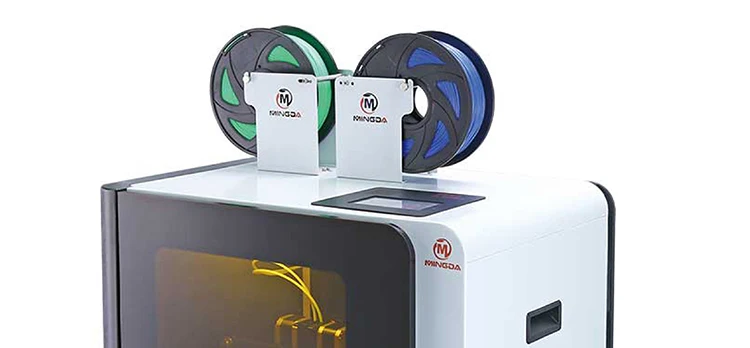

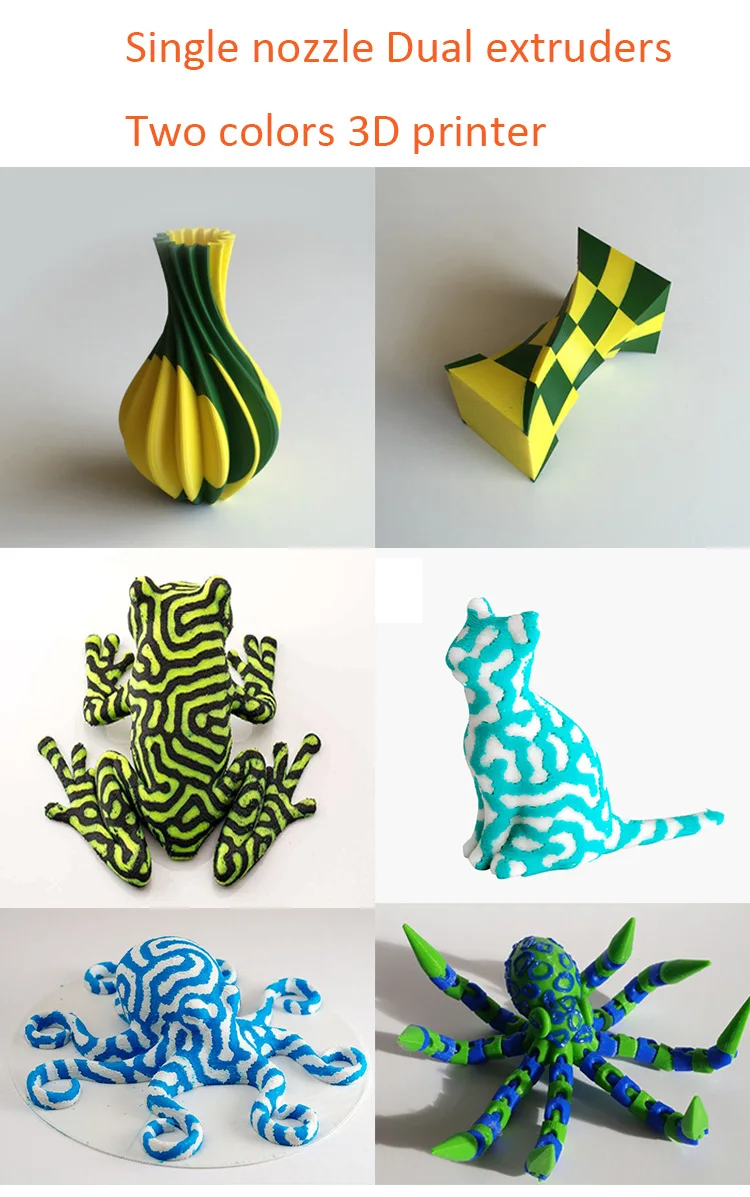

Dual Extruders Optional
MINGDA 4H/4D have single or Dual extruders, single color or two color options.

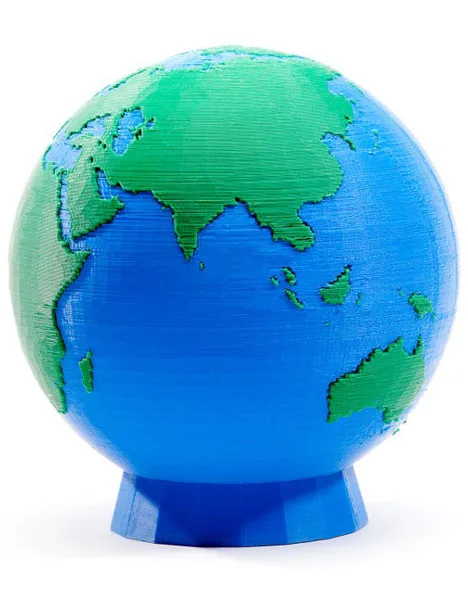

For two colors versions MD-4D, you can print any model with two colors at the same time with high performance, no block and drawing.
Filament Run-Out Sensor – The filament run-out detection sensor will pause print job when filament is finished.There're two filament run-out sensors.
Packing & Shipping
How to pack MINGDA 3D printer?
1. One set 3D printer machine
2. One roll filament , one masking tape
3. Power plug and USB cable
4. SD card with manual, software and some model samples
5. One maintenance kit (spare nozzles, tubes, Tweezers, Tape, Knife, pliers, screwdrivers etc)
6. Standard international strong wooden package , suitable to long-distance transportation
How will you shipping MINGDA 3D printer to my destination?
Our 3D printer shipped by different transportation,you can choose the most convenient method. Generally, MINGDA always ship 3D printers by air and sea. In the mean time, MINGDA has cooperated with international express such as DHL, UPS, TNT to enable our customers get the 3D printer rapidly.
Company Information
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
1.What is the application of MINGDA 3D printer?
For personal design, as personal collections, gift for friends. Model sample for testing and showing. The finished object could be used for one person workshop, industry, school, design department, hospital, school, etc.
2. Is the 3D printer easy to handle and maintain?
Yes, very easy to use 3d printer for PLA and ABS. Just three steps to use. Maintain just need the simple lubricating grease or oil.
3. How about the after-sale service?
Anything about the 3d printer please call, email, or chat with us. We are 24 hours available.
4. Can I print water soluble support by MD-4D?
MD-4D is only for 2 colors models.It can print two colors material in same material at the same time not water soluble supports.
5. What type of software can I use in MINGDA 3D printer?
MINGDA 3D printers are designed for compatibility with many open-source and commercially available software. For more help in choosing the software that's right for you, see our Software Guide.
6. What type of filament is compatible with MINGDA 3D printer?
For MD-4H, it can print PLA, ABS,NYLON, TPU, PETG,WOOD,etc..
But for MD-4D two colors version, PLA is the best choice, or wood/aluminum PLA, carbon fiber,TPU.
7.Do your machines have automatic leveling function?
Only DIY 3d printer need auto leveling,as their platform is very thin and easy to have problems for the leveling.
8. Can you put my brand name (logo) on these 3D printer OEM service?
Of course. In order to explore the market better and provide more convenient services to global customers,MINGDA sincerely invites overseas agent to create bright future together.
9. What is the build size of MINGDA 3D printer machines?
MINGDA newest MD series 3D printers have some different sizes including
600x600x600mm MD-666, 400x300x500mm MD-6H, 300x200x200mm MD-4H, 160x160x160mm MD-16.
