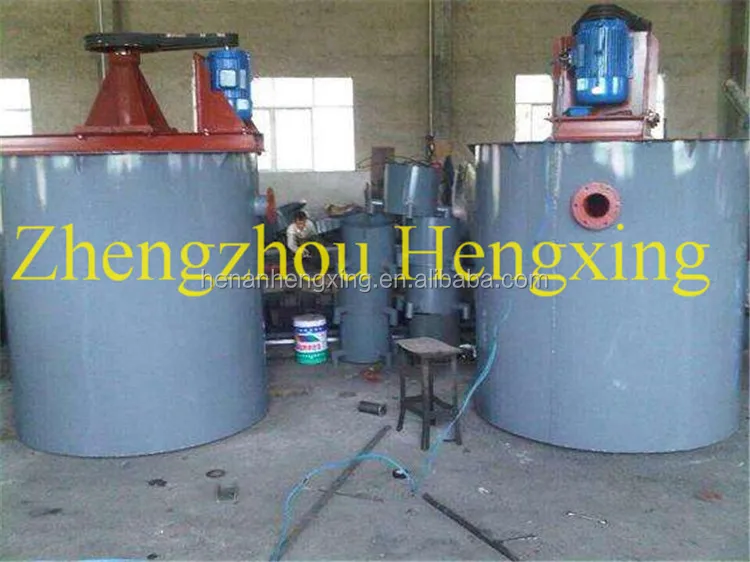

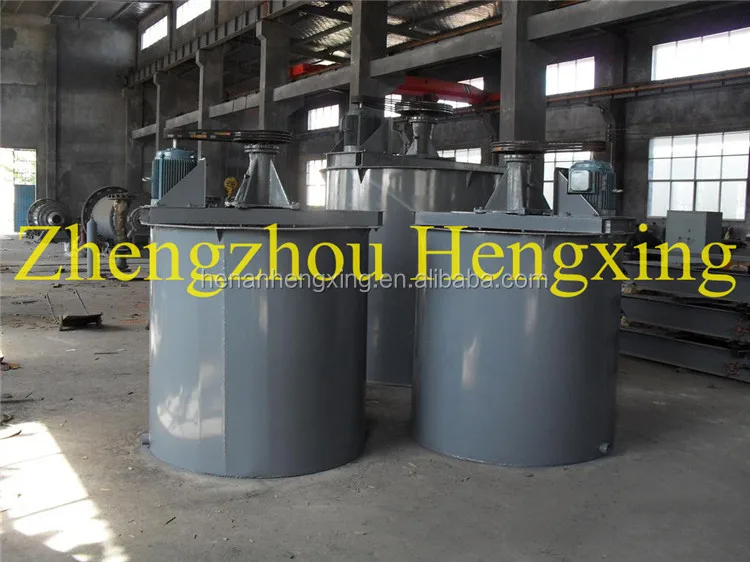

Stainless Steel Agitator Slurry Tank, Mixing Machine, Agitation Tank Equipment For Mixing Mining

Product Overview

Description

Stainless Steel Agitator Slurry Tank,

Mixing Machine, Agitation Tank Equipment For Mixing Mining

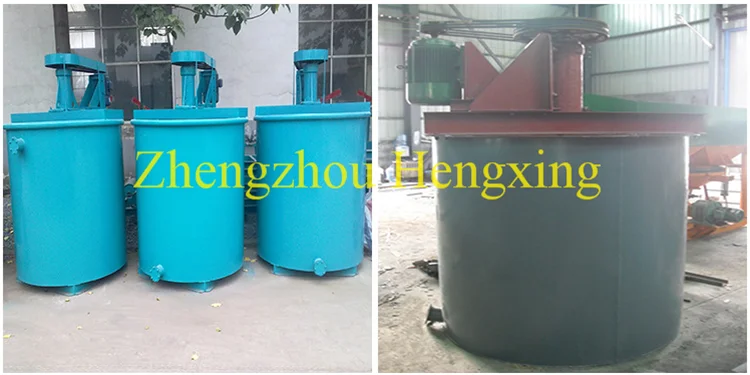

Introduction Of China Mining Mixing Agitatortank Gold Leaching Barrel

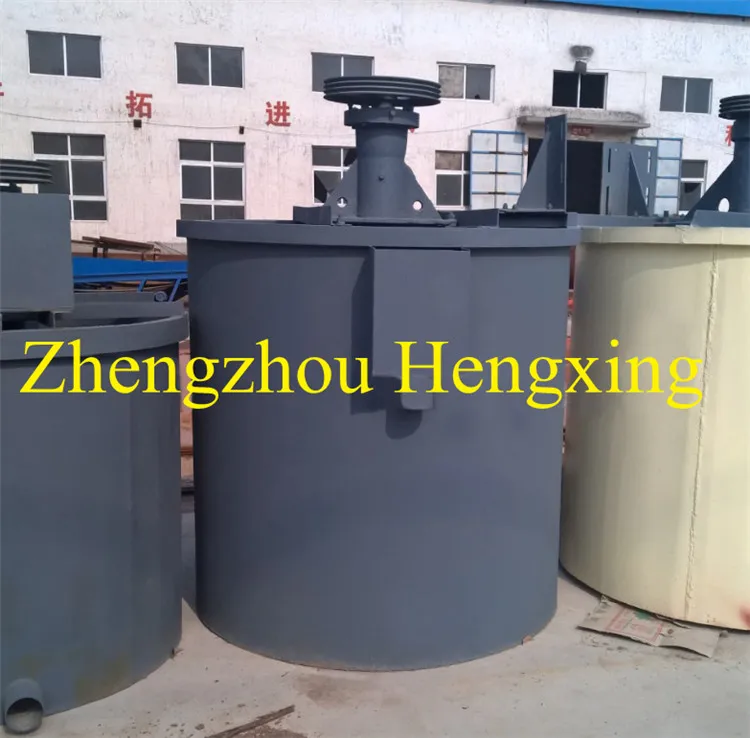

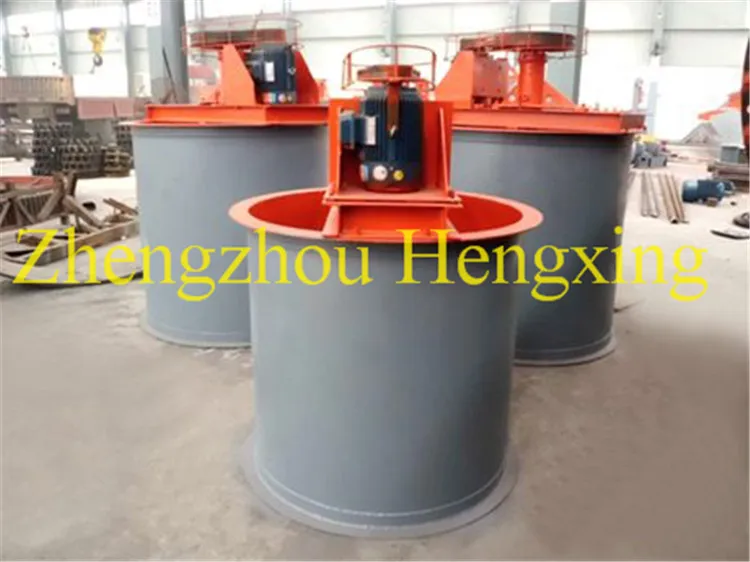

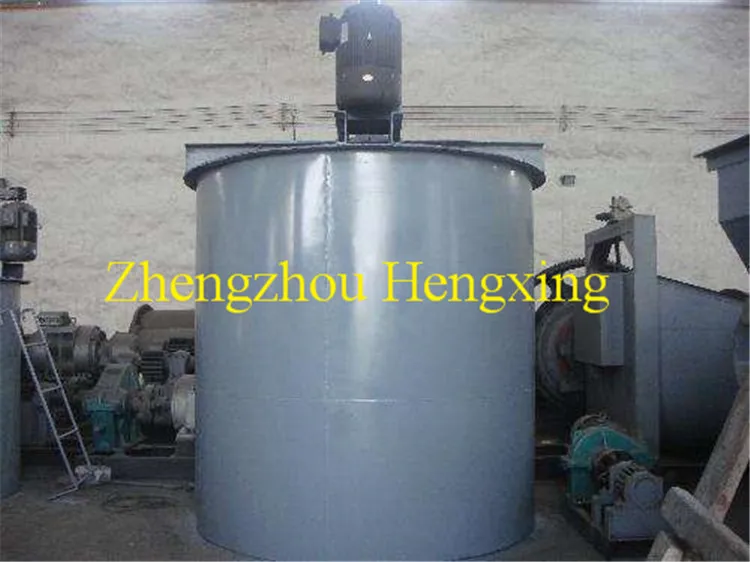

The stirring tank, also named stirring tub, is indispensable equipment in flotation process. According to utility, there are pulp mixing tank, elevating mixing tank and medicament stirring tank respectively.

The stirring tank is mainly used for pulp stirring before the flotation process. It makes ore grains suspend and fully contact and mix with medicament, creating conditions for flotation.

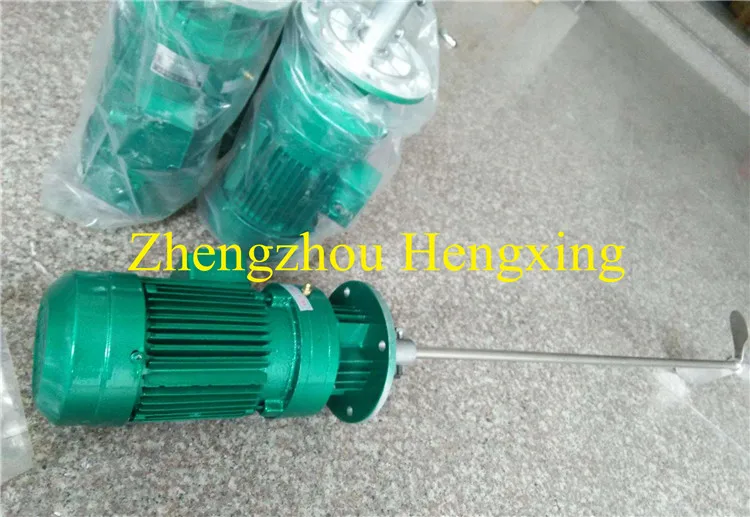

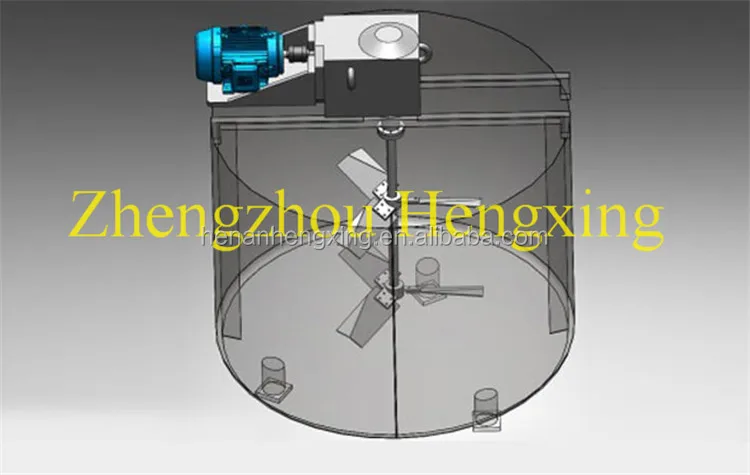

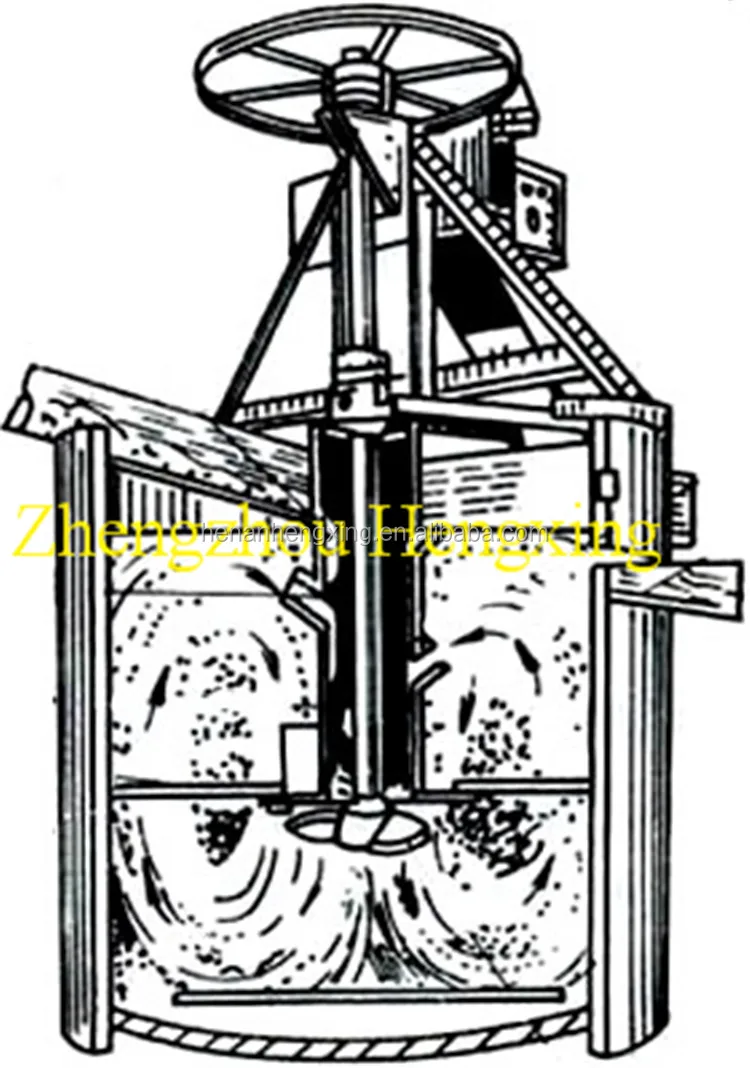

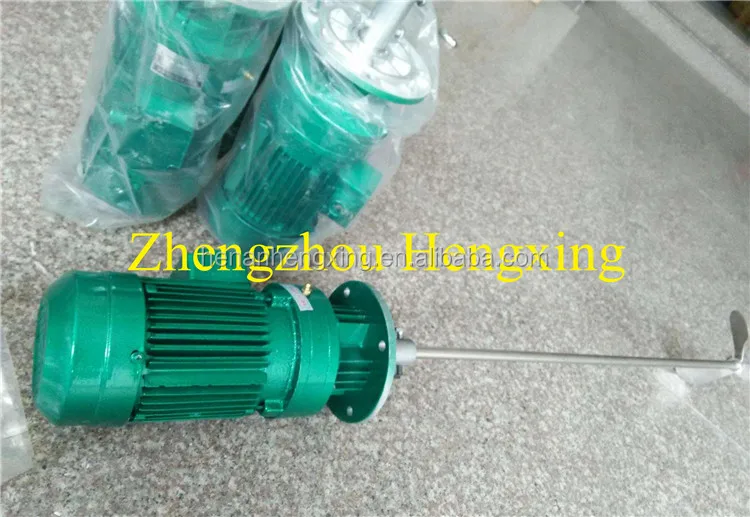

The main components: mixing trough, shaft, the motor, transmission device, support and baffle. The stirring tank rotates with the mixing wheel to realize material mixing in the slot.





Application of China Mining Mixing Agitatortank Gold Leaching Barrel

This kind of equipment is used in dissolution of the medication and the pretreatment of the mixing of the ore slurry. It can be also used in some industrial department such as the chemistry, slurry in the construction, cyanogens factory and waste-water factory and coal dressing factory.





Features of China Mining Mixing Agitatortank Gold Leaching Barrel

This kind of equipment is used in dissolution of the medication and the pretreatment of the mixing of the ore slurry. It can be also used in some industrial department such as the chemistry, slurry in the construction, cyanogens factory and waste-water factory and coal dressing factory. The leaching tank mainly uses charcoal immersing method and ore slurry resin method to produce gold. We can put active charcoal or resin into the mixer to get the immersed gold by mixing the whole materials.

This machine rotate by the V-belt drives the impeller; make medicine and mash mix even enough, increase the medicine effect time, strength the medicine effect quality, necessary set. It fits concentrating, and every chemical industry mixing.





Instruction Of China Mining Mixing Agitatortank Gold Leaching Barrel

1. Tighten the pump body bolts, check whether the rotating shaft is flexible and then start running mixer and flotation machine;

2. Wearing parts: impeller, the stator;

3. Mixer and automatic feeder must be clean, especially in winter, which can extend the service life.





Parameters Of China Mining Mixing Agitatortank Gold Leaching Barrel

Model	Internal  diameter  (mm)	Height  (mm)	Volume  (m3)	Impeller  speed  (r/min)	Impeller  diameter  (mm)	Weight  (t)	Power  (kw)	Dimension  (mm)
XB-500	500	500	0.098	600	200	0.15	1.1	600×566×954
XB-750	750	750	0.26	530	240	0.23	1.5	1131×880×1241
XB-1000	1000	1000	0.58	530	240	0.44	1.5	1131×1130×1492
XB-1200	1200	1200	1.14	320	400	0.76	3	1500×1480×1800
XB-1500	1500	1500	2.2	320	400	1.1	3	1750×1640×2190
XB-2000	2000	2000	5.46	230	550	1.67	5.5	2380×2162×2850
XB-2500	2500	2500	11.2	200	650	3.44	11	3036×2716×3543
XB-3000	3000	3000	19.1	210	700	4.61	18.5	3604×3216×4250
XB-3500	3500	3500	30	230	850	7.11	22	3940×3766×5386
