Product Overview
Description
Product Description

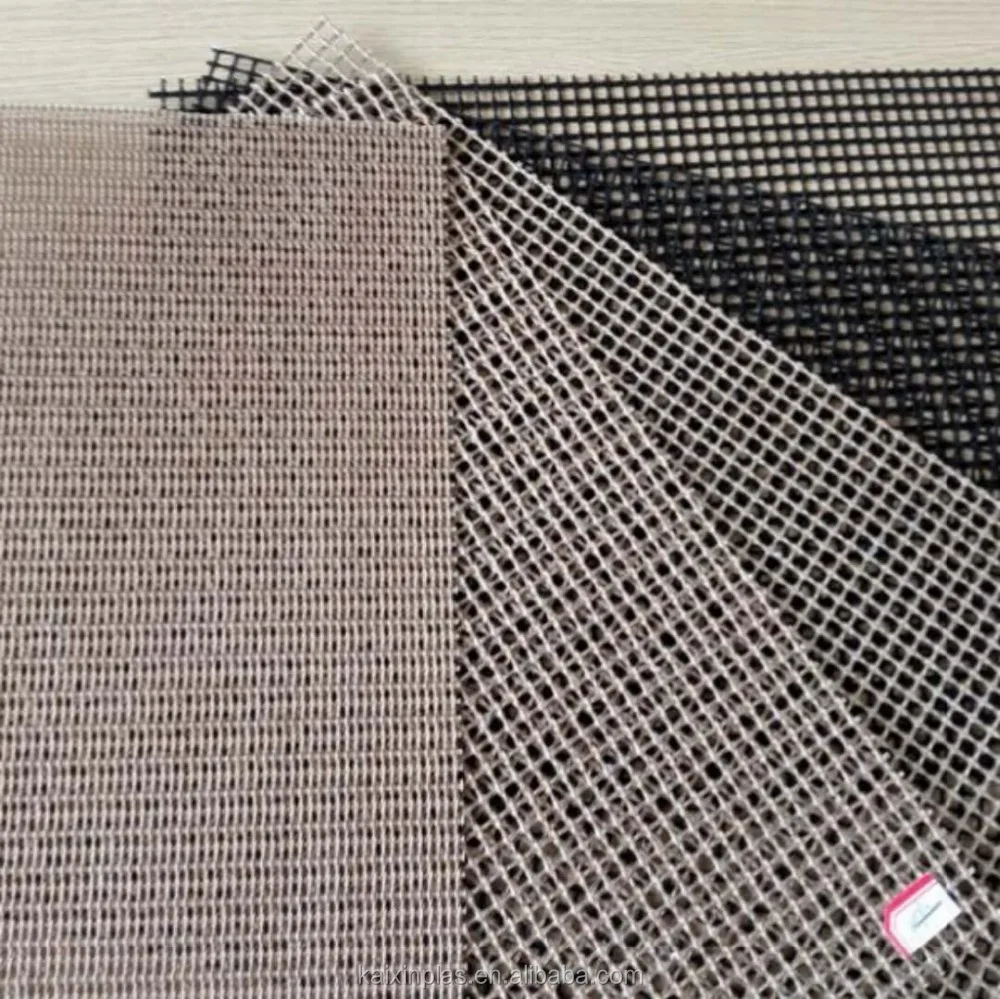

PTFE fiberglass open mesh conveyor belt
Open mesh belts are constructedwith PTFE impreganated coated fiberglass, aramid(or both) and polyester mesh materials that are both durable and food safe. A wide selection of splice, edge and tracking options ensures that belts are constructed in the best way of their intended purpose.
Belts are available in any length , and widths of up to 4000mm.
Features
1. Non-stick surface;
2.Chemical resistance, anti corrion for the resins on the surface;
3.Exceptional strength and dimensional stability;
4. high temperature resistance -70 to 260℃ (-100 ℉ to +550 ℉) perfect for many drying application.
Application
1.Silk screen dryer;shrink tunner; UV dryer; rotary printing machine;
2.Drying textiles and non-woven materials;
3.Side and base sealing auto pack machines;
4.Re-soldering and ink drying cable braiding;
5.Food drying and so on
To enhance belt strngth and performance for different application and machinery , belts are fabricated based on end-user and OEM specification with various Edge, Joint and Guiding(tracking) options

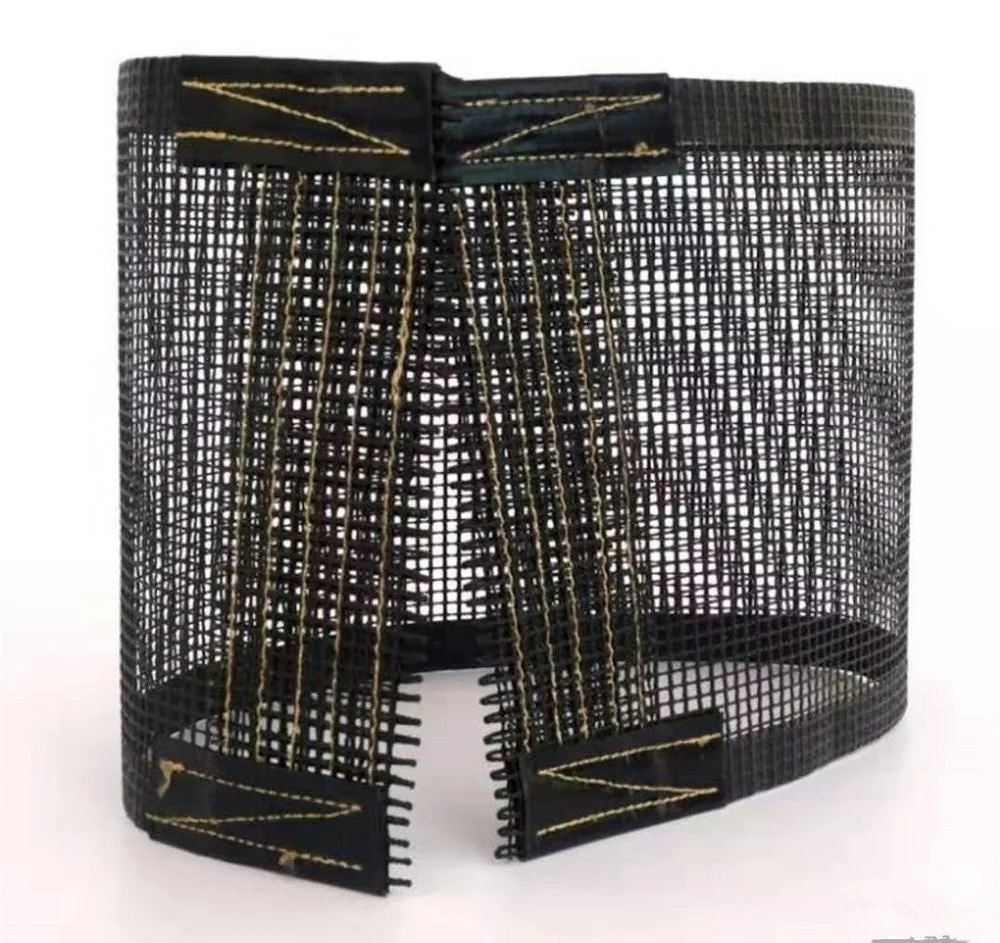

PTFE WITH KEVLAR FABRIC SEWN
PTFE FILM - HEAT SEALED ;SEWN

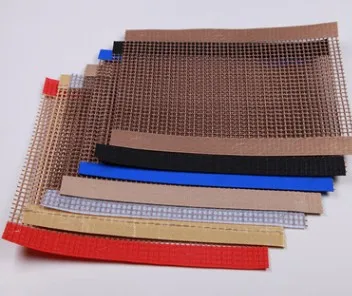

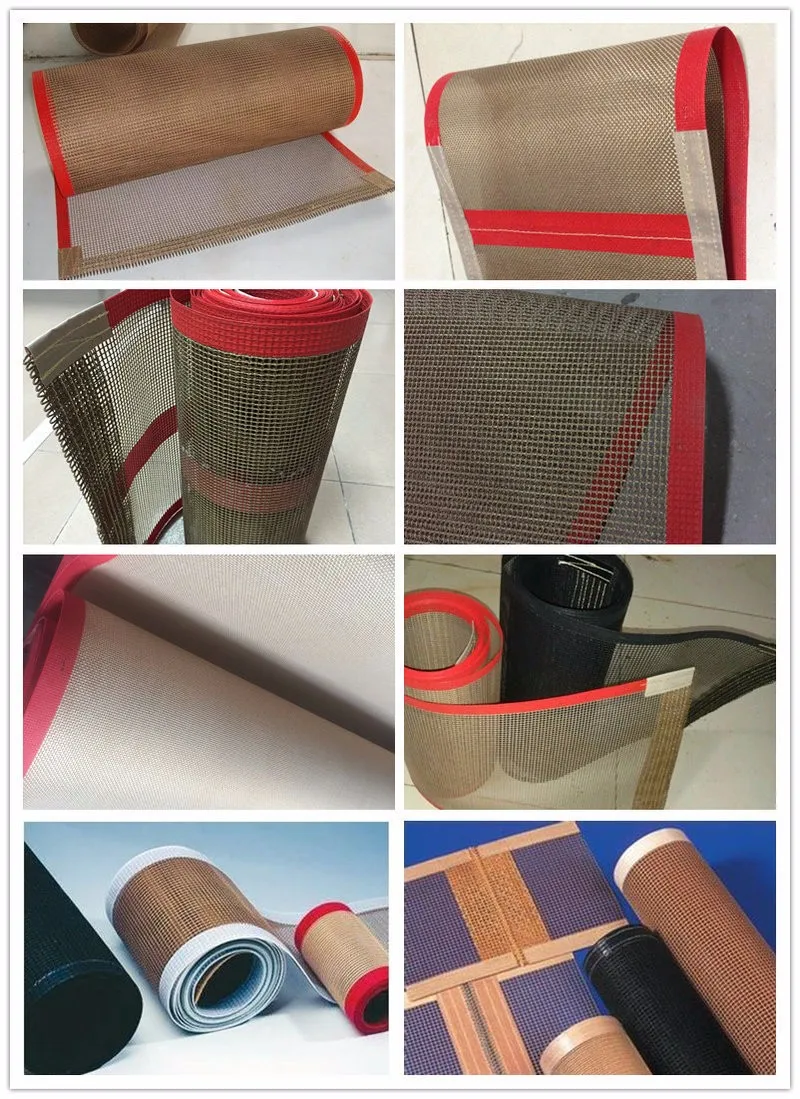

Different belt ede, glass fabric and different color of film
Belt joint options
Alligator(metallic) joint(splice)
Fabric pin jonit
Bullnose joint which very popular use in all the word.
Except the joint which we mentioned above, we also have the peek spiral joint and clipper (Metallic) joint.
Belt guiding( tracking ) options

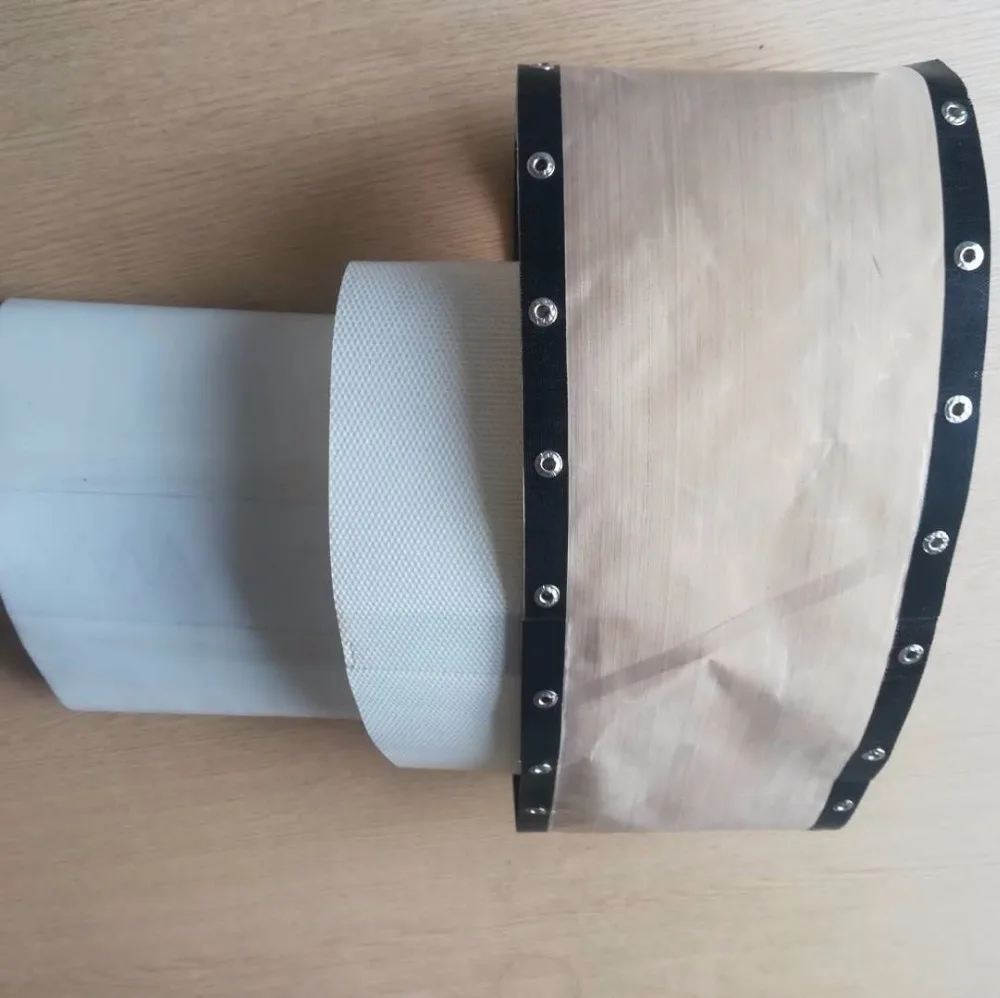

1.Grommets/Buttons/metal eyelets
2.Domes;
3.Silicone bead & flange;
4. Kevlar guide
Detailed Images
PTFE open mesh conveyor belt | ||||||||||||
Item No. | Mesh size | Max width | Nominal weight | Tensile Strength | Temperature Resistance | Basic materials | ||||||
KW001 | 1*1mm | 3000mm | 410g/㎡ | 1600/1500N/5cm | -70 to 260℃ | PTFE+glass | ||||||
KW001B | 1*1mm | 3000mm | 410g/㎡ | 1600/1500N/5cm | -70 to 260℃ | PTFE+glass | ||||||
KW004 | 4*4mm | 4000mm | 485g/㎡ | 2100/1500N/5cm | -70 to 260℃ | PTFE+glass | ||||||
K004B | 4*4mm | 4000mm | 485g/㎡ | 2100/1500N/5cm | -70 to 260℃ | PTFE+glass | ||||||
KW004D | 4*4mm | 4000mm | 580g/㎡ | 2800/1580N/5cm | -70 to 260℃ | PTFE+glass | ||||||
KW004DB | 4*4mm | 4000mm | 580g/㎡ | 2800/1580N/5cm | -70 to 260℃ | PTFE+glass | ||||||
KW004FK | 4*4mm | 4000mm | 550g/㎡ | 3500/3300N/5cm | -70 to 260℃ | PTFE+glass /kelvar | ||||||
KW010 | 10*10mm | 3000mm | 570g/㎡ | 1100/1000N/5cm | -70 to 260℃ | PTFE+glass | ||||||
KW005 | 0.5*1mm | 3000mm | 460g/㎡ | 2200/1500N/5cm | -70 to 260℃ | PTFE+glass | ||||||
KW225 | 2*2.5mm | 3000mm | 590g/㎡ | 2200/1500N/5cm | -70 to 260℃ | PTFE+glass | ||||||
