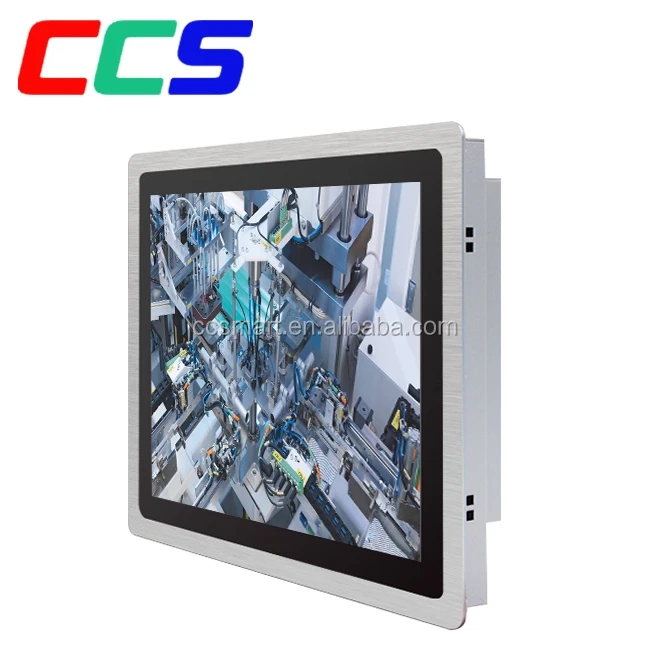

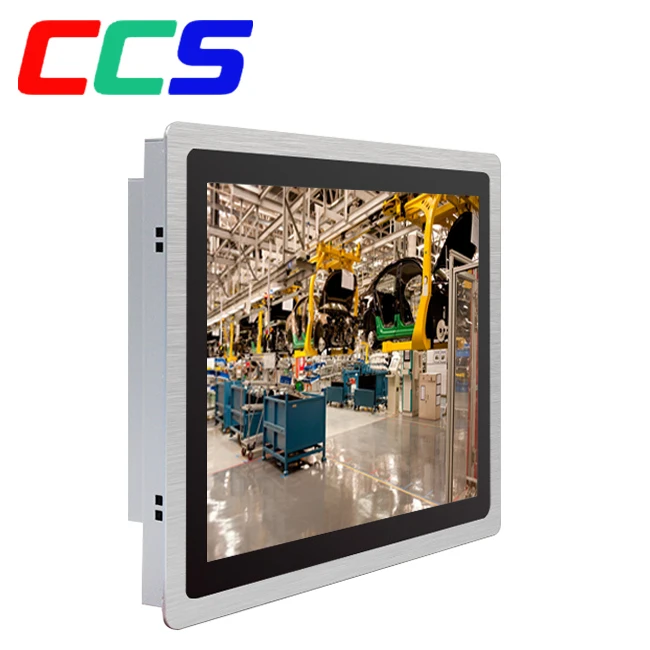

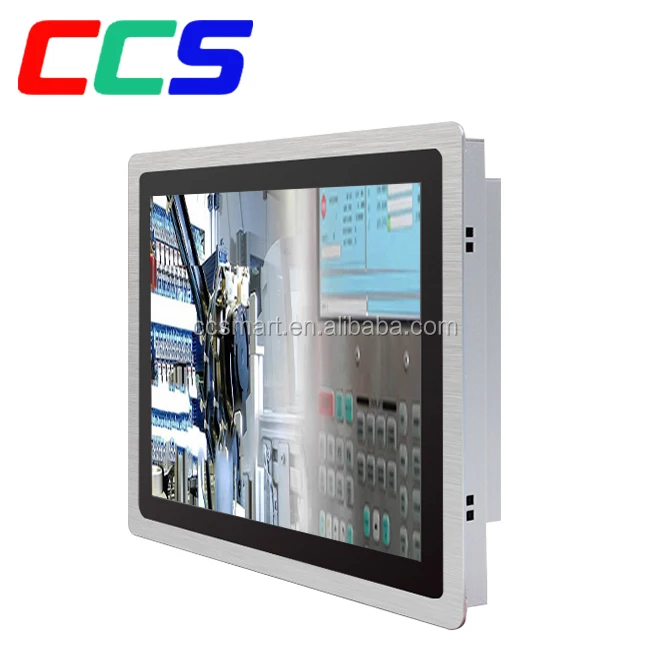

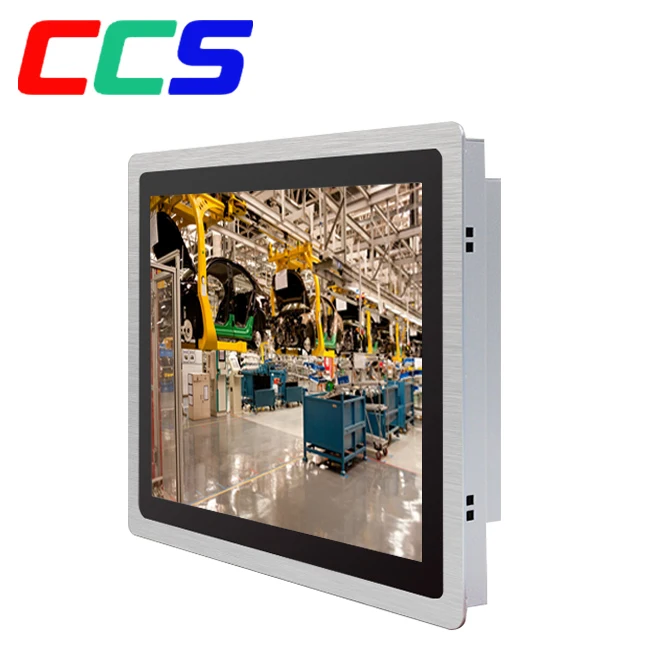

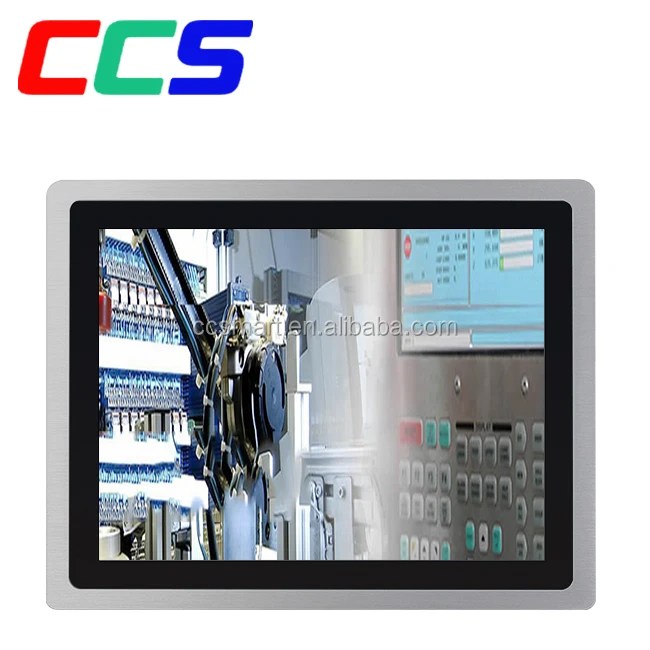

17 inch Industrial Touch Screen Panel PC for CNC Control Panel

Product Overview

Description

Why CCS?

Leading Touch Panel Computing Solutions
CCS CEO is experienced specialist on computer, touch and electromagnetism technology. The professional leadership always provide the most suitable solutions for tailor-made and standard product,CCS combined with best electronic and mechanical design for our customers.



Quality Control
From components incoming quality control, assembly process,burn-in test and pre-shipment inspection.Our QC system throughout the whole leadtime and manage to let our customers enjoy the perfect operation.

Fast Response on Service
CCS konw the anxious mood when computer in malfunction.Our professional engineer would take action once receiving complaint in 3 hours. It's our basic responbility to keep customers and ownership enjoy the best service experience.

For more information, please contact with sales(at)cc-s.cn

17 inch Industrial Touch Screen Panel PC for CNC Control Panel Product Parameter
Model Feature
Modularization Design
Efficient Energy
Flexible Mounting
IP Grade: IP65 on Front
sales(at)cc-s.cn
Effective Cooling Material
1-Aluminum Alloy Front Bezel, Anodized & Brushed Process with Metallic Lustre.

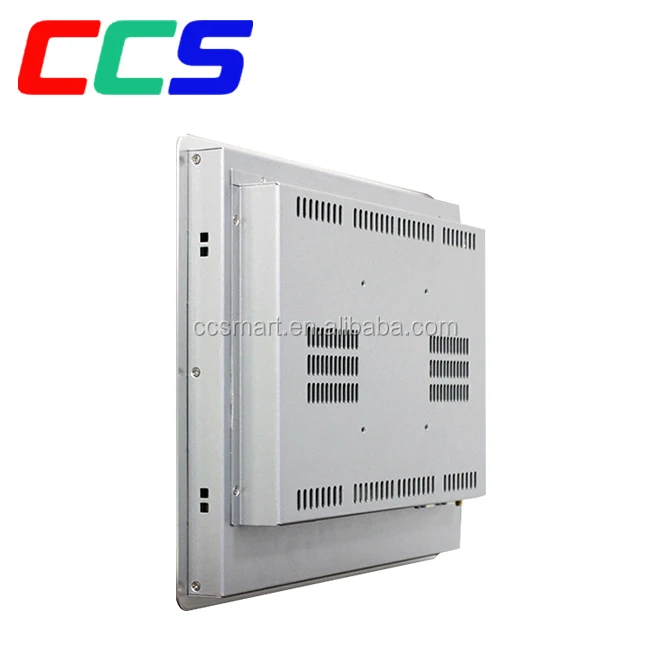

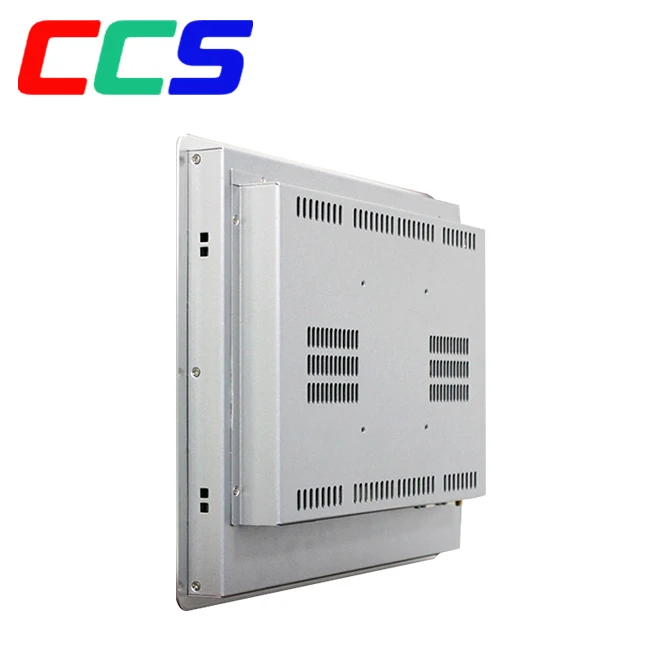

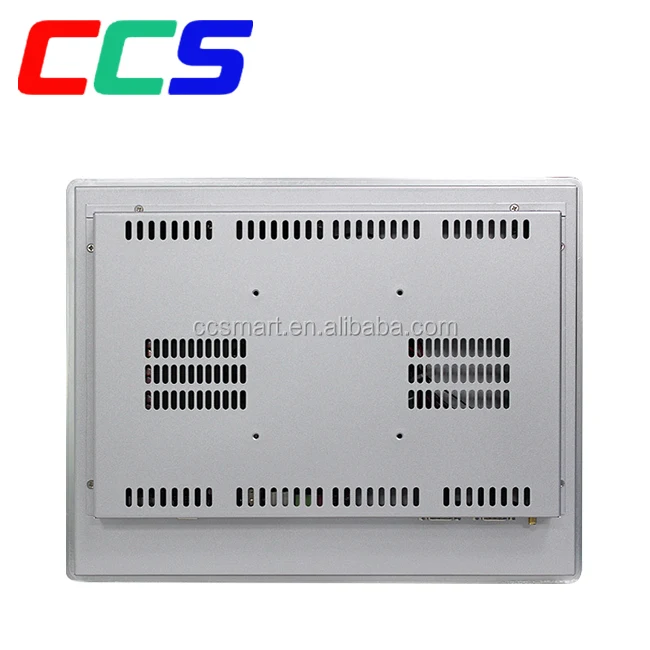

2-High Strength Alu Sheet for Backplate

Display
Branded New High Quality A+ Grade LCD Panel with LED backlight
Singal:LVDS
Aspect Ratio: 4:3 Square
Resolution: 1280x1024
Contrast:1000:1
Brightness: 300cd/m2
(Optional to 1000cd/m2, outdoor sunlight readable,sales(at)cc-s.cn)
Active Area(mm):337.9x270.3
Viewing Angle: Horizonal -75~80 Vertical -80~60
(Optional IPS 170°~170°,sales(at)cc-s.cn)
Display Colors: 16.7M

PC Configuration
Processor Intel J1900 2.0GHz, fanless
Core:Celeron Quad
Memorry: 2gb DDR3L(8gb maximum)
sales(at)cc-s.cn
Storage: 32gb SSD(msata) (256gb maximum)
Ethernet Card:RTL8111F
3G/4G Optional (sales(at)cc-s.cn)

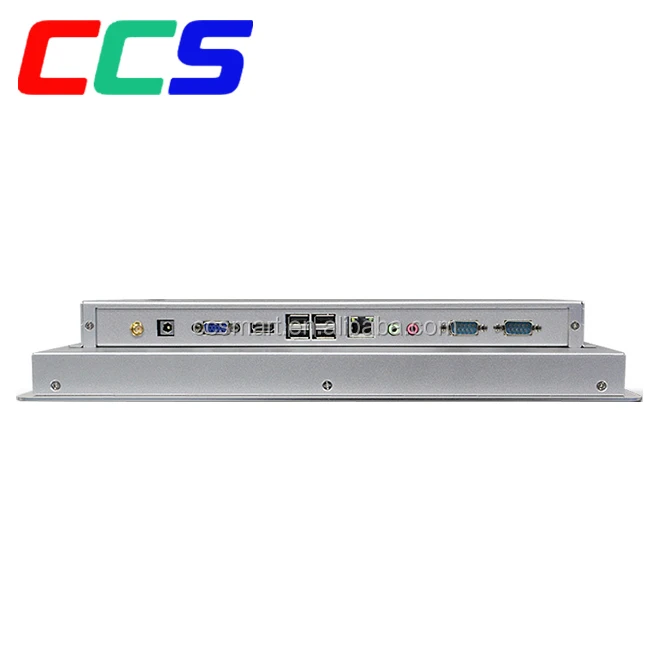

Rear Ports
USB2.0x3
USB3.0x1
RS232x2
RS485/
VGAx1
HMIx1
RJ45x1
MIC-in & Line-Out 1/1
WiFi 802.11a/b/g/n

Touchscreen Technology
Projected Capacitive Multi Touch
Working Life: More than 50 Million Times
5 Wire Resistive Singal Touch
Working Life: More than 35 Million Times
Touch Driver: eeti
Optional: Antiglare Coating, Reflective Coating

Others:
Voltage: 100~240V 50-60Hz to DC12V5A by External Power Adapter
(Optional 9-36V,sales(at)cc-s.cn)
Power Output: Less than 60W
Speaker: 8Ω4W x 2
Operating Temperature:-10°~ 60°
Operating Humidity: 80%<
Mount Method: VESA, Wall Mount, Panel Mount,Flush Mount
Package Type: Thick Foam and Hard Carton
Accessory: AC Cable, Power Adapter, Panel Mount Fasteners

If you have any other request parameter to be customizable, cotact with CCS today for immediate response:sales(at)cc-s.cn
