Suspension Electro Magnet Separator for Conveyor
- Category: >>>
- Supplier: Yueyang Dalishen Electromagnetic Machinery Co. Ltd.
Share on (60760448483):
Product Overview
Description

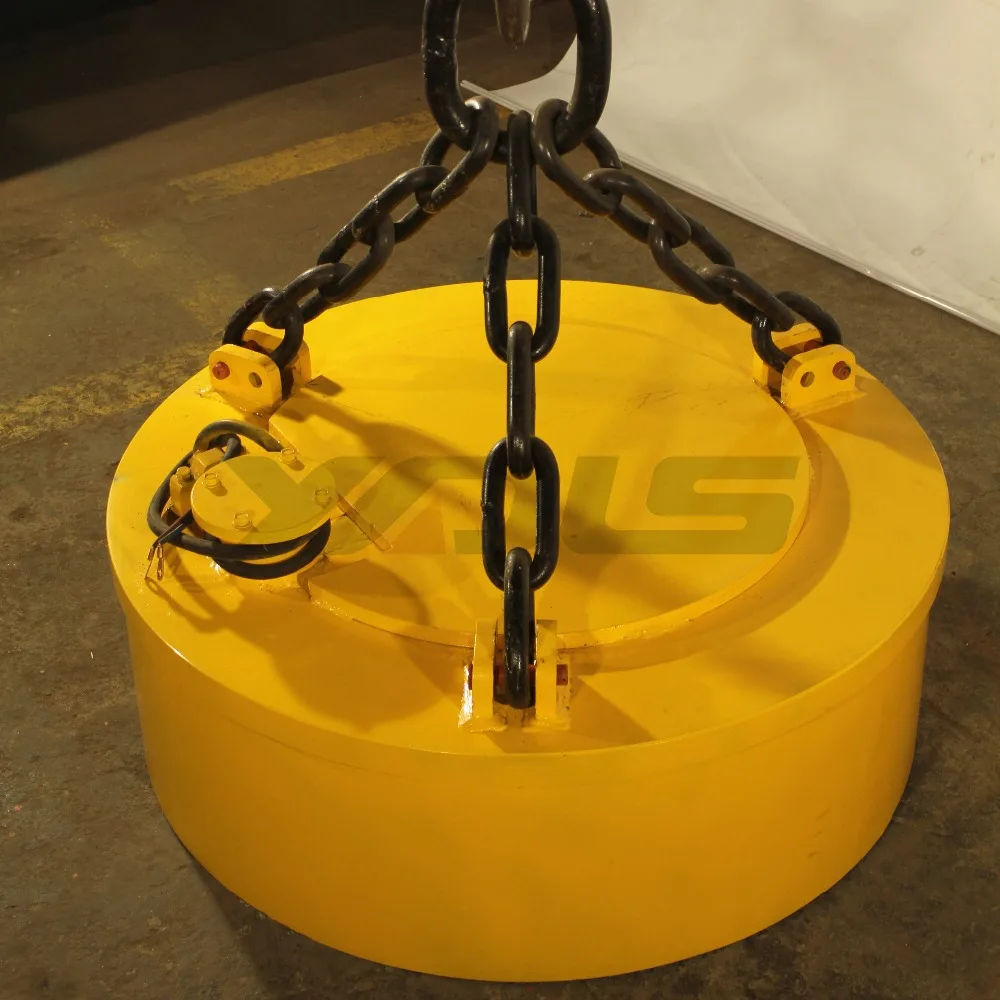

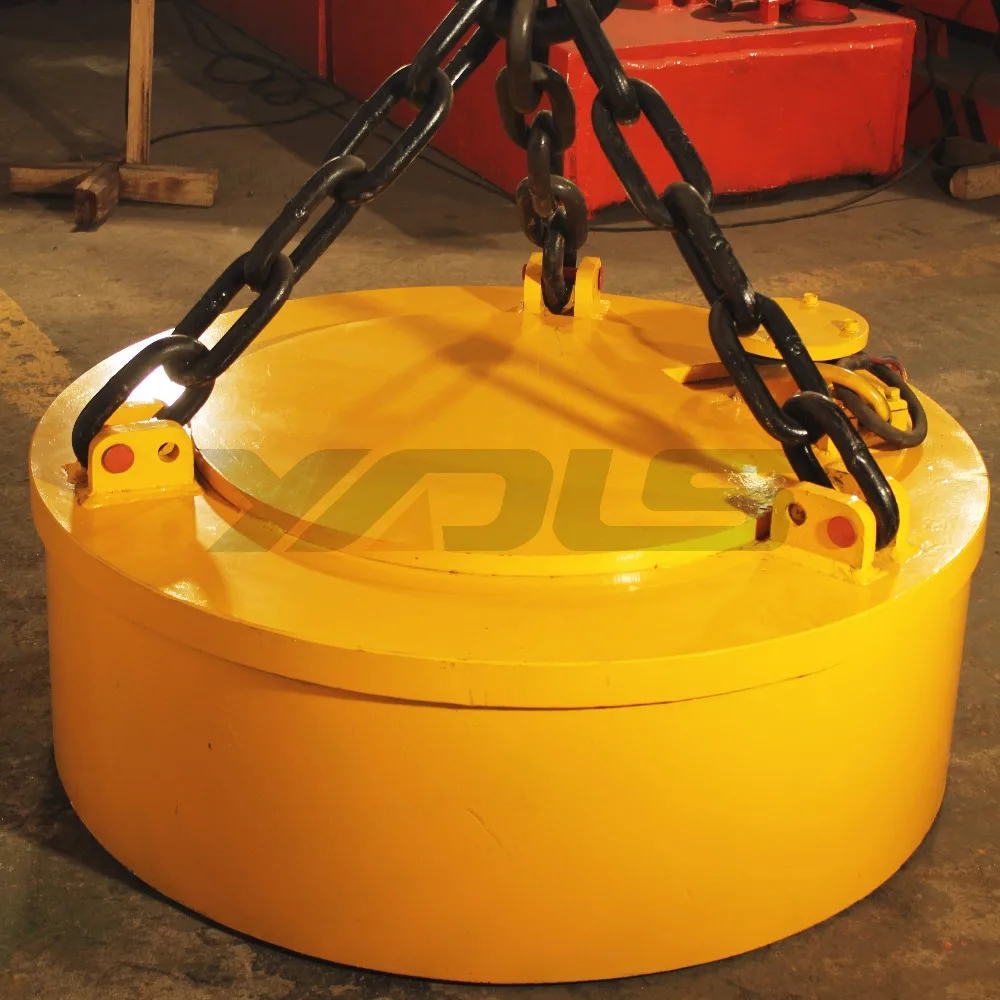

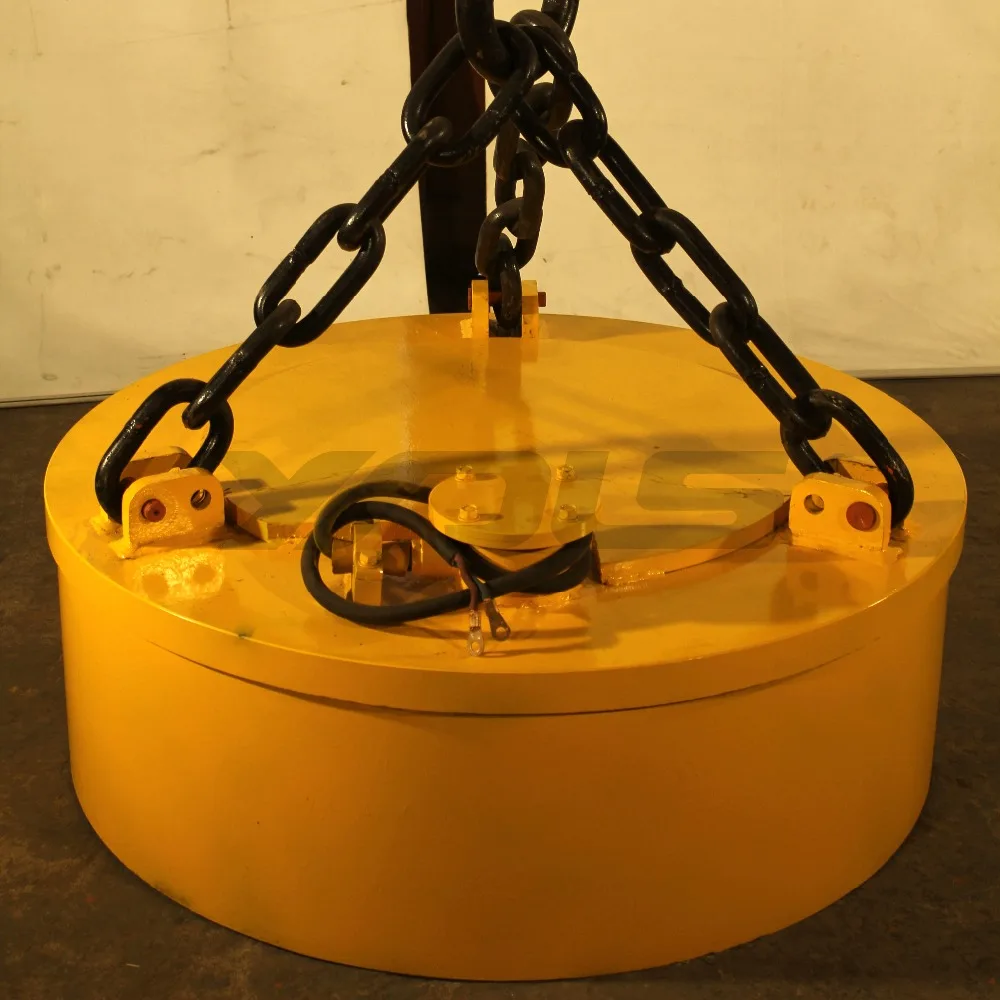

Suspension Electro Magnet Separator for Conveyor
Suspension Electro Magnet Separator (RCDB) provides the most effective removal of the magnetic tramp iron from thicker materials bed and coal. hard coke, ores, limestone, spall, corns and wooden shavings under bigger granularity.
Main technical data

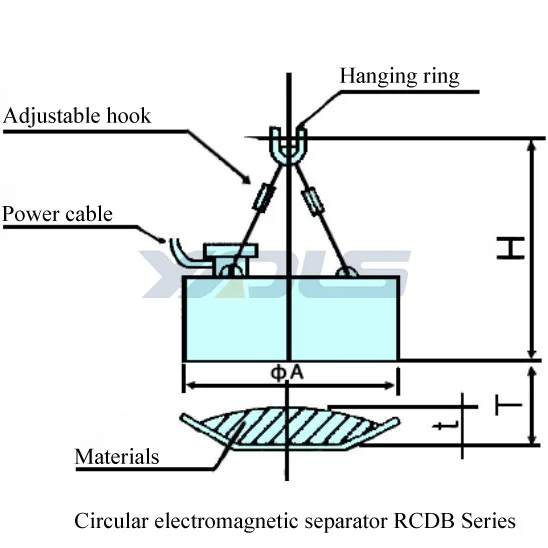

Model | Erection height (mm) | Belt width (mm) | Dimensions | Voltage (V) | Power (KW) | Mass (kg) |

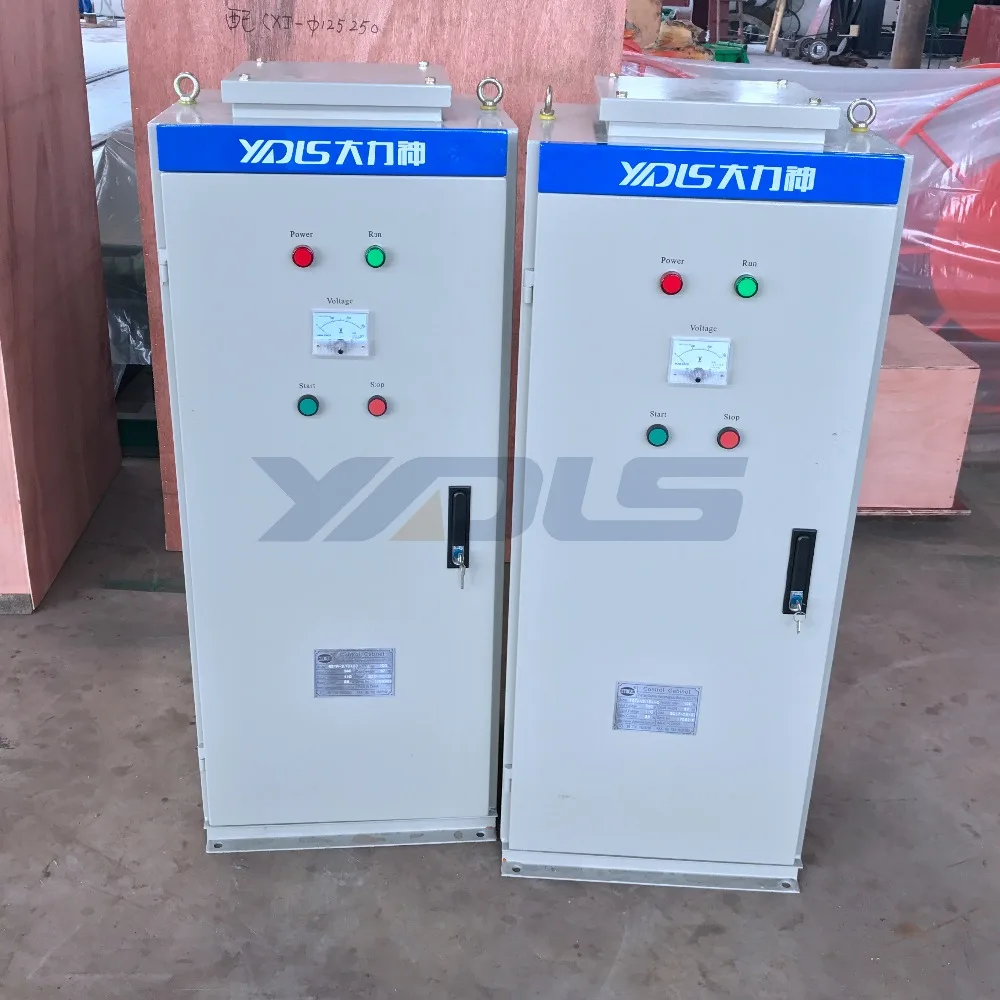

| Commutation Controlling unit | |
ΦA | H | ||||||||
MC03-30T(RCDB-3) | 100 | 300 | 300 | 600 | DC-48 | 0.18 | 77.5 | SSTM-0.5D-D | |
MC03-40L(RCDB-3A) | 120 | 350 | 400 | 740 | DC-50 | 0.48 | 120 | ||
MC03-50L(RCDB-4) | 150 | 400 | 500 | 700 | DC-75 | 0.8 | 198 | SSTM-1.5D-D | |
MC03-60L(RCDB-5) | 180 | 500 | 600 | 1000 | DC-110 | 1.15 | 318 | ||
MC03-70L(RCDB-6A) | 210 | 600 | 700 | 860 | 1.89 | 500 | SSTM-3.1D-D | ||
MC03-80L(RCDB-6) | 250 | 650 | 800 | 900 | 2.36 | 640 | |||
MC03-90L(RCDB-8A) | 260 | 750 | 900 | 1140 | 2.48 | 968 | |||
MC03-100L(RCDB-8) | 290 | 800 | 1000 | 890 | 3.94 | 1070 | SSTM-4.2D-D | ||
MC03-110L(RCDB-9) | 320 | 900 | 1100 | 1450 | DC-220 | 4.1 | 1079 | SSTQ-6.2D-D | |
MC03-130L(RCDB-10) | 400 | 1000 | 1300 | 1200 | 6.18 | 2036 | SSTQ-9.3D-D | ||
MC03-150L(RCDB-12) | 420 | 1200 | 1500 | 1350 | 8.58 | 3100 | SSTQ-12D-D | ||
MC03-160L(RCDB-13) | 440 | 1300 | 1600 | 1400 | 9.5 | 3600 | SSTQ-12D-D | ||
MC03-165L(RCDB-14) | 460 | 1400 | 1650 | 1500 | 10.5 | 4028 | SSTQ-12D-D | ||
MC03-180L(RCDB-16) | 500 | 1600 | 1800 | 1640 | 11.1 | 4882 | SSTQ-12D-D | ||
