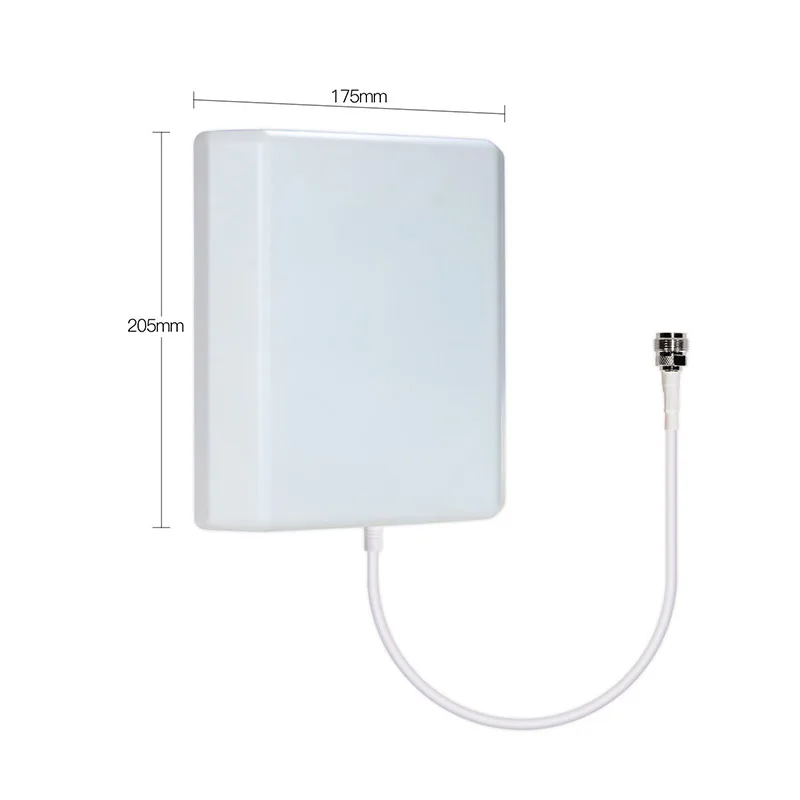

RF Directional 2G 3G 4G LTE outdoor panel antenna Multi band 698 2700MHz gsm wall mount bracket antenna
- Category: >>>
- Supplier: Shenzhen Qifan Communication Equipment Co. Ltd.
Share on (60760471425):
Product Overview
Description

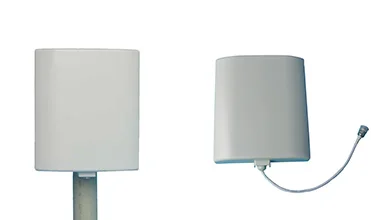

Product exhibition

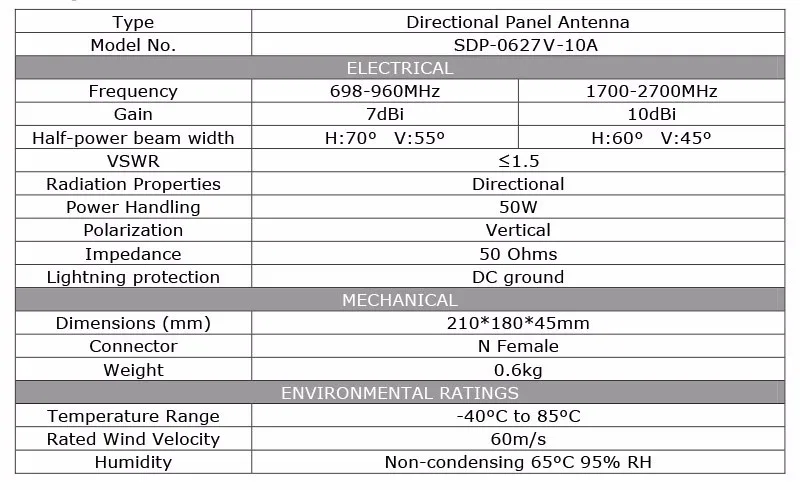

Specifications
Products Details

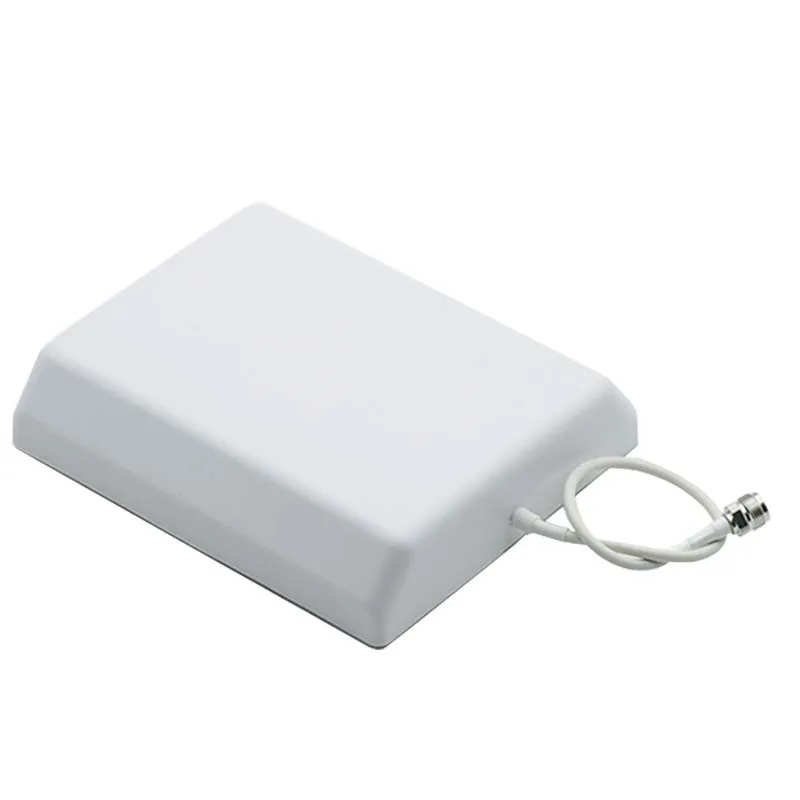

Exquisite appearance
High gain, low standingwave, strong anti-interference ability.
Customized
We can provide two kinds of connector practice.
A: The connector is fixed at the bottom of the antenna.
B: A cable with a connector at the bottom of the antenna.
A: The connector is fixed at the bottom of the antenna.
B: A cable with a connector at the bottom of the antenna.
Accessories
A:Provide adjustable angle mounting accessories, with strong wind resistance,easy installation.
B:Provide mounting accessories that can be fixed to the wall

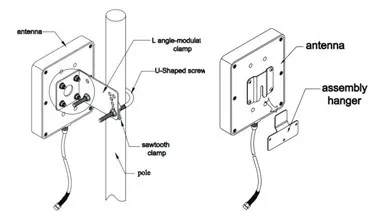

Installation Steps
Installation Steps

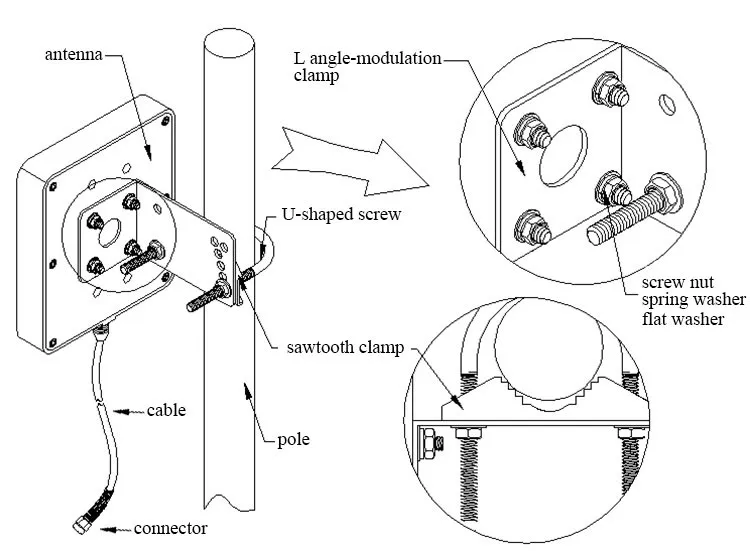

Please following the steps below: place the antenna on the pole, and adjust the inclination of the antenna, then fasten the screw to the screw nut. The final structure is just like the pictures above.
1.Place the four studs of the antenna through the holes on the shorter part of the L-shape clamp, then put on the flat washer,the spring washer and screw nuts successively.Then twist the nuts tightly.
2.Put the end of the antenna with connectors downwards,and place the M6 U-shape screw through the pole whose outer diameter is ￠30~￠50mm ,the sawtooth clamp and L-shape clamp.Then put on the flat washers and screw nuts.Lastly,twist the nuts.
3.Adjust the inclination of the antenna to the proper position to receive the best signal by switching the holes on the longer part of the L-shape clamp.Finally seal all the connections and twist all the nuts tightly.
Our Company
Factory
We have our own research and development team and building,which have exprienced engineers.
Production Workshop
All our employees are well trained before beginning work and many of them are skilled and exprienced.
Office
We have about 30 responsible salemen,who focus on domestic and global bussiness.
Team
We have energic colleague relationship and prefessional working ability.
Sample room
More than 500 antenna types are available for customers.
Warehouse
Adequate finished antenna storage space.And all products are well packaged before shipping.
Our Certifications
Packing & Delivery
Packing Details : well packaged and safety coverage.
Delivery Details : 6-15 days after payment
Special EPE protection
Suitable carton size
Customized packaging box
The products can be sent to you by International Express:DHL; UPS, TNT, EMS, FEDEX etc / Air transport .
FAQ
Q: How is your product quality?
A: All our products have strict QC process and will be 100% tested before shipping. And Our antennas engineers have more than 10 years experience.
Q: Do you accept customized ?
A: Sure! We have own professional researching team and we do produce as customer requirement .OEM&ODM are welcome.
Q: Could you offer free sample to test ?
A:In general , for new customer you pay the sample fee first, but when you order required amount we refund the sample cost back to you.
Q: When can you ship the items ?
A:Usually , we take about 6-15 days to prepare your bulk order.
Q: What is your payment term?
A: 50% payment should be paid when you make the order and the 50% should be paid when the products are ready for shipping.
