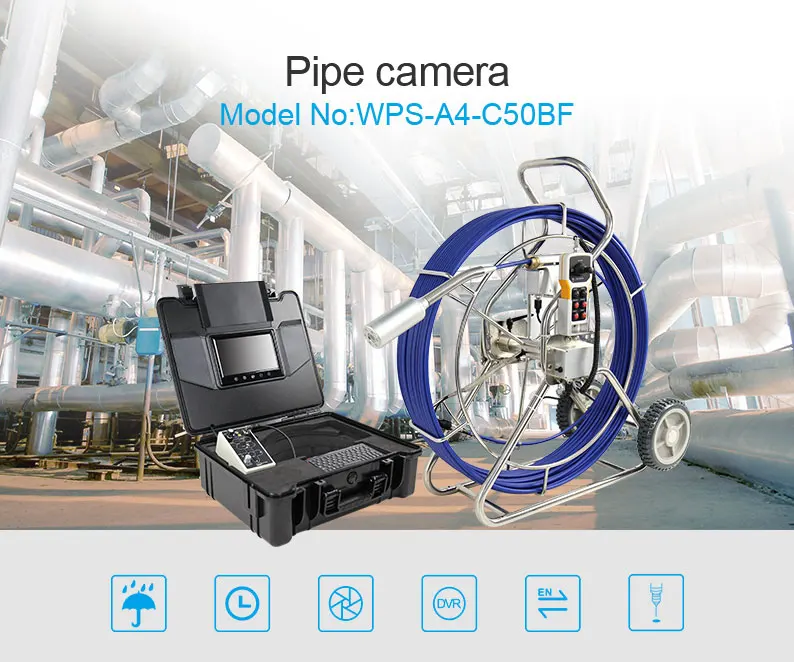

Video image inspection system for home Aircraft drilling wall cavity Inspection and Video Recording Endoscope with Infrared

Product Overview

Description



Specification

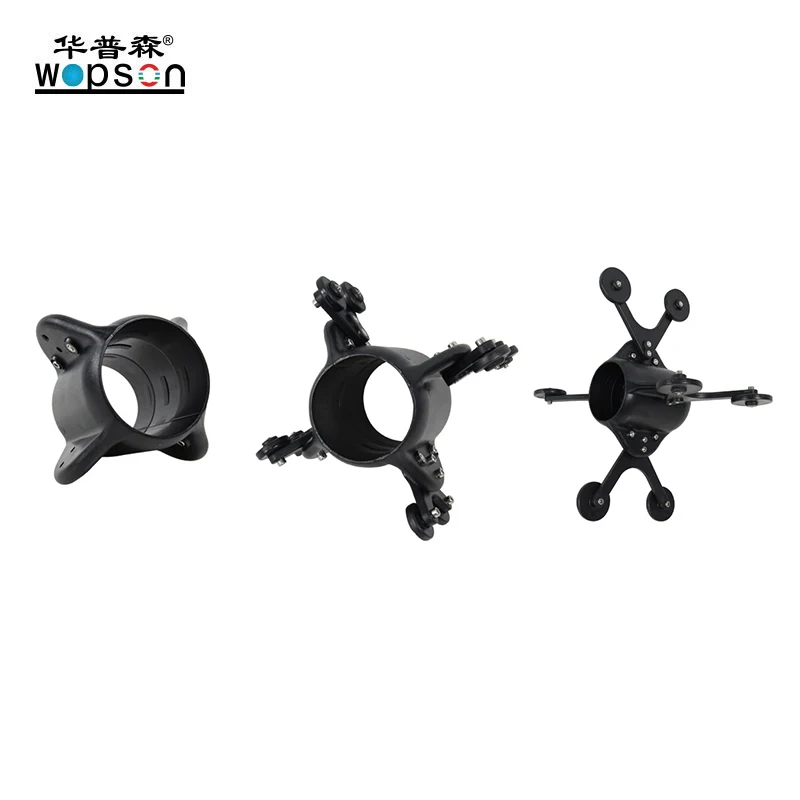

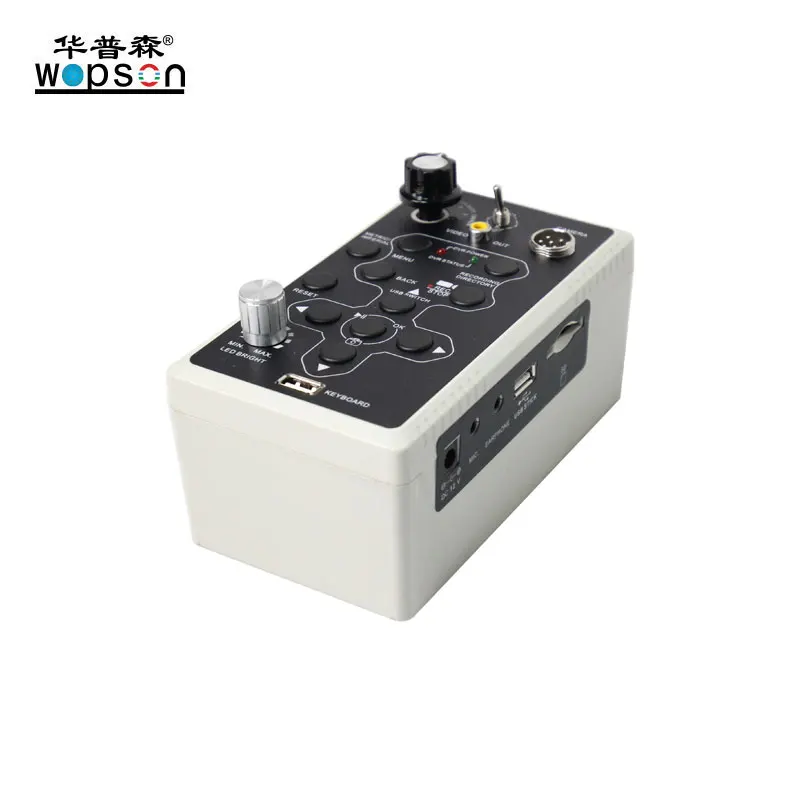

Camera & skid: Camera size: ø50mm*107mm Total pixels: 960TV line Leds: 6pcs View angle: 90° Waterproof: IP68     Skids: 110/150/220mm Suitable pipe diameter: 60-400mm	Control box: Storage medium: 8G SD card (max 256G) &USB stick DVR pixels: 720*576 Movie format: MP4 10 levels digital zoom Charger time: 5 hours Running time: ≥4 hours

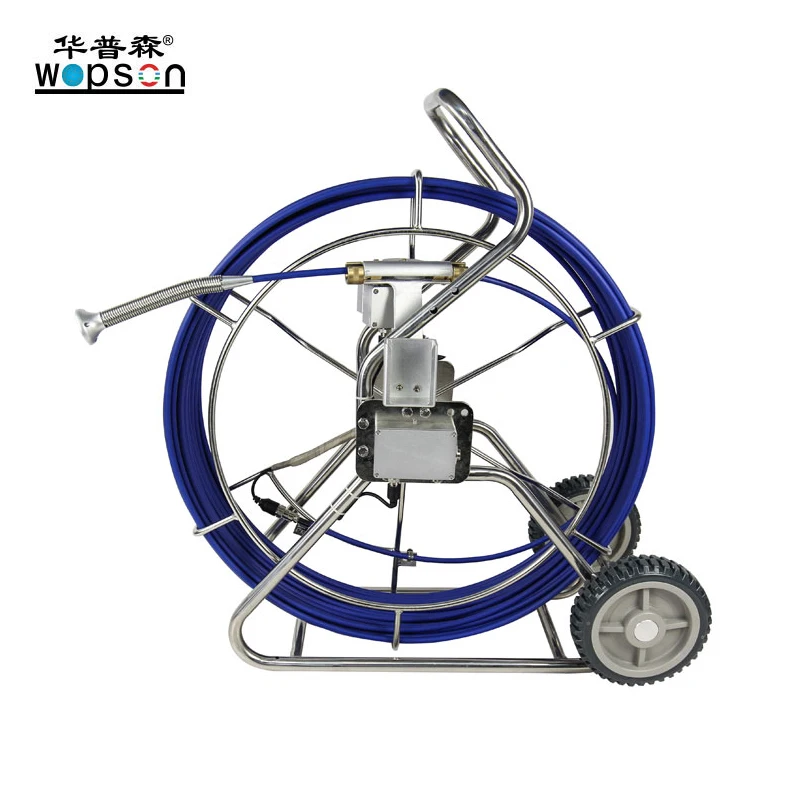

Cable reel: Cable size: ø768L*369W*820Hmm Counter Cable length: 60m Cable diameter: ø9.5mm Max length: 120m 512Hz transmitter	Display screen: Screen size: 9 inch TFT color Screen pixels: 800*480 Mode: 16:9 & 4:3
	Case: Size: L520*W435*H200mm Case material: Engineering plastic

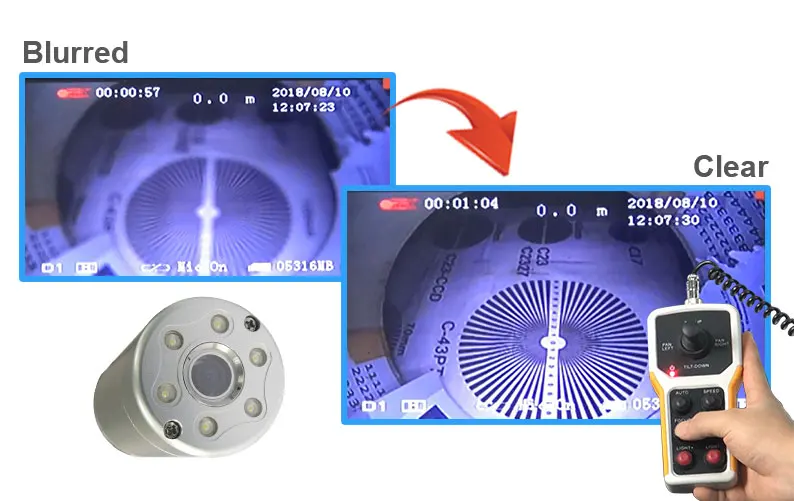

Manual focus

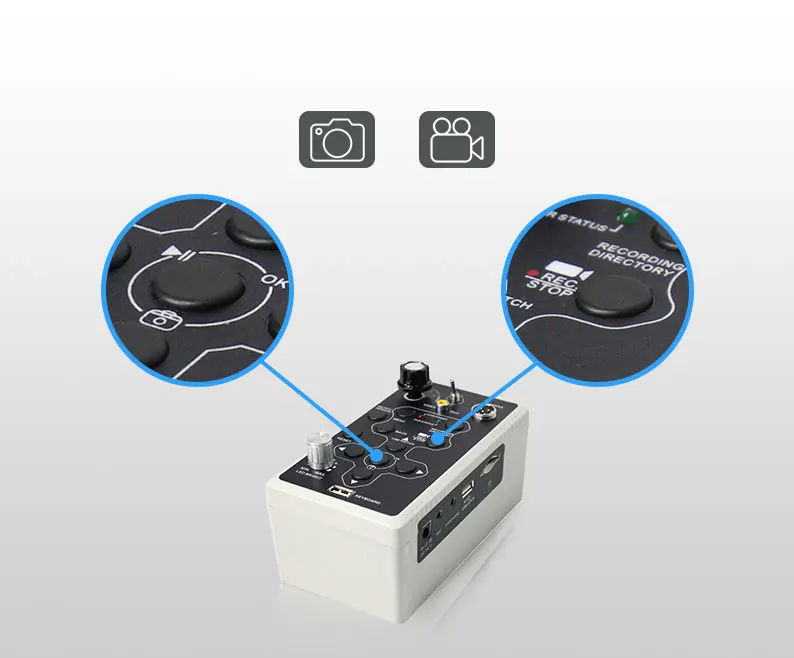

One-touching

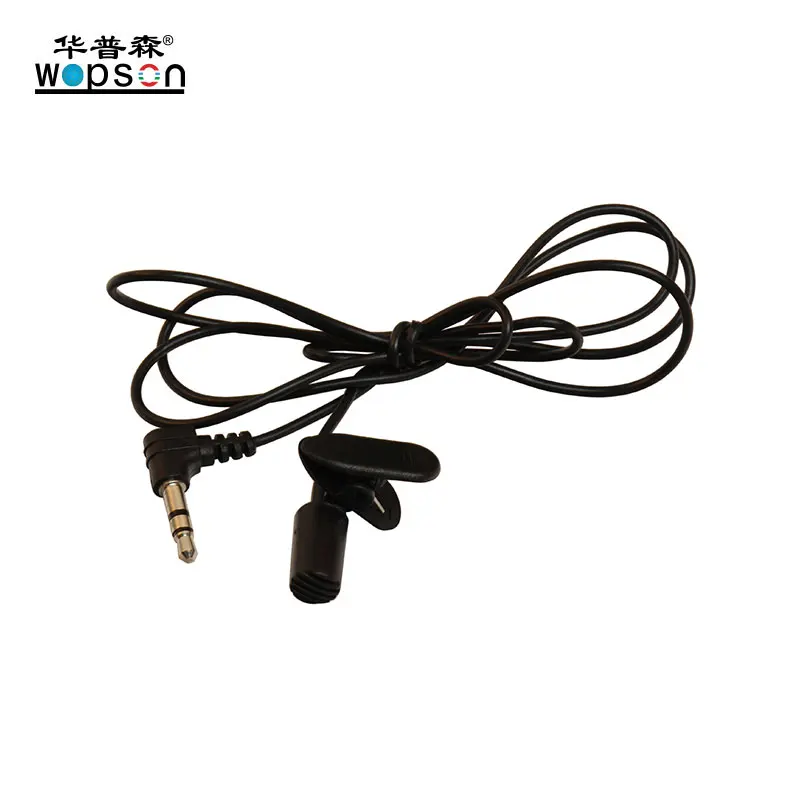

video / audio recording and image capture

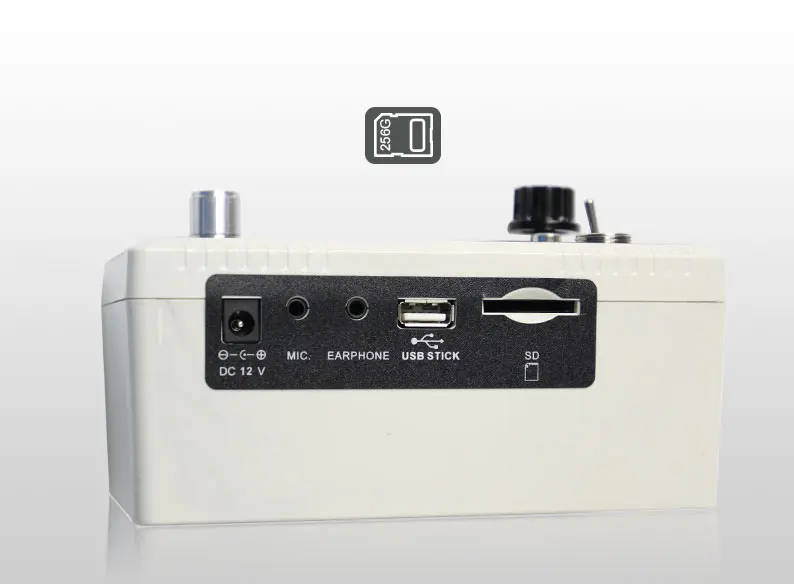

Supporting max 256G SD card or USB stick

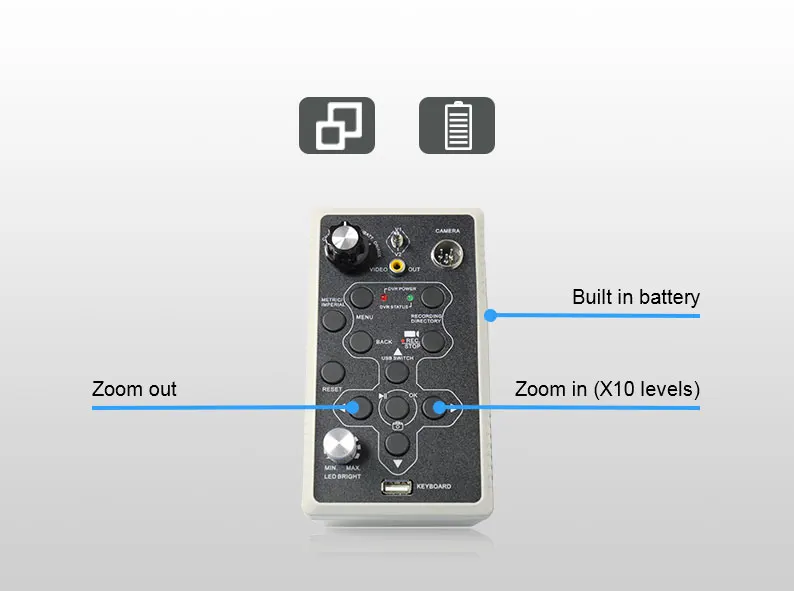

Zoom function (x10 levels) & 7-hour battery life

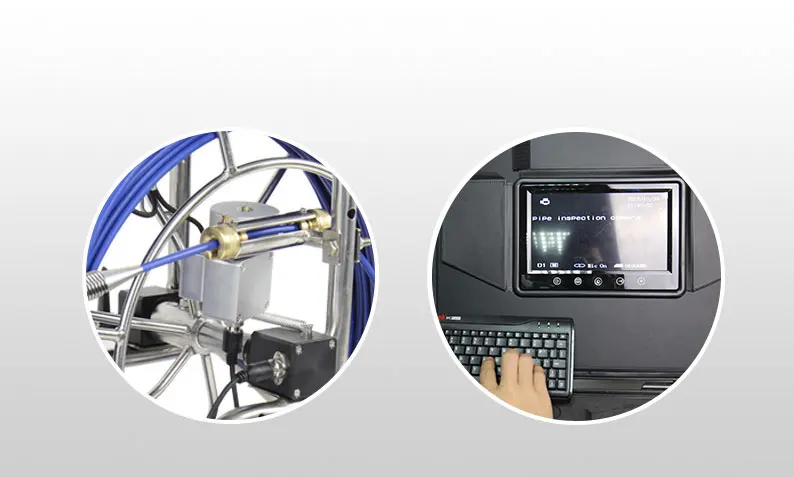

Cable M/FT counter and Text







Optional

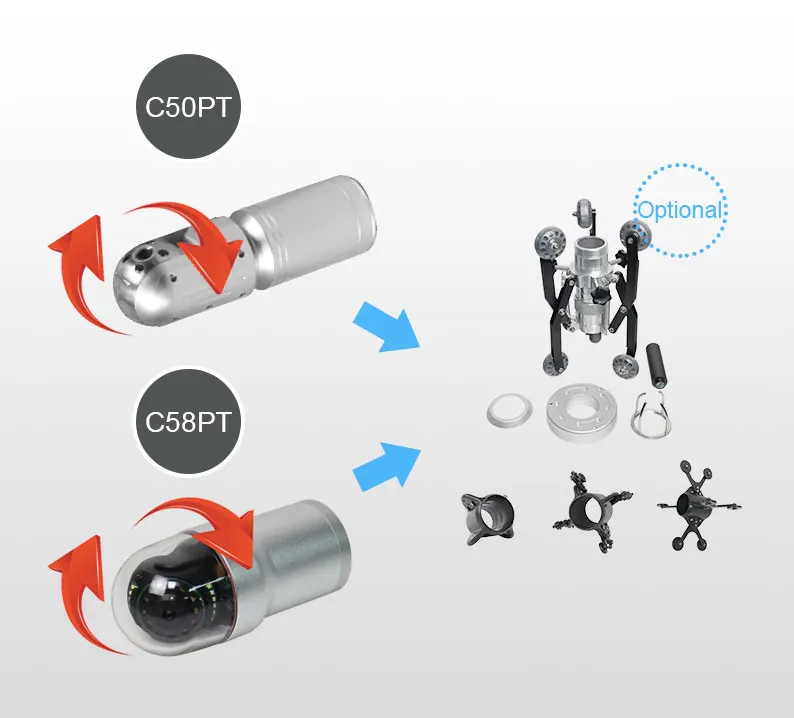

Camera heads (960TV line waterproof IP68)



Model	Size	LEDs	View angle	Suitable pipe diameter	Rotation
C50PT	Ø50*160mm	4pcs	90°	60-600mm	360°Panning 180°Tilting
C58PT	Ø58*123mm	12pcs	60°	70-250mm	360°Panning 180°Tilting

512R Receiver & transmitter

512R	512T1	512T
Size: 512l*110w*118hmm Range: 4.5m	Size: ø16*45lmm Range:4.5m	Size: ø22.5*48lmm Range: 5m

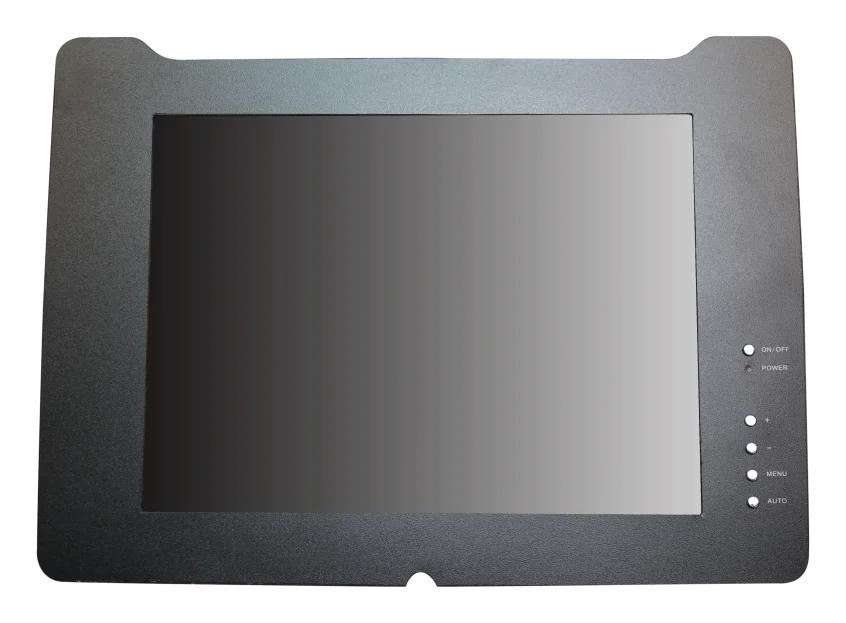

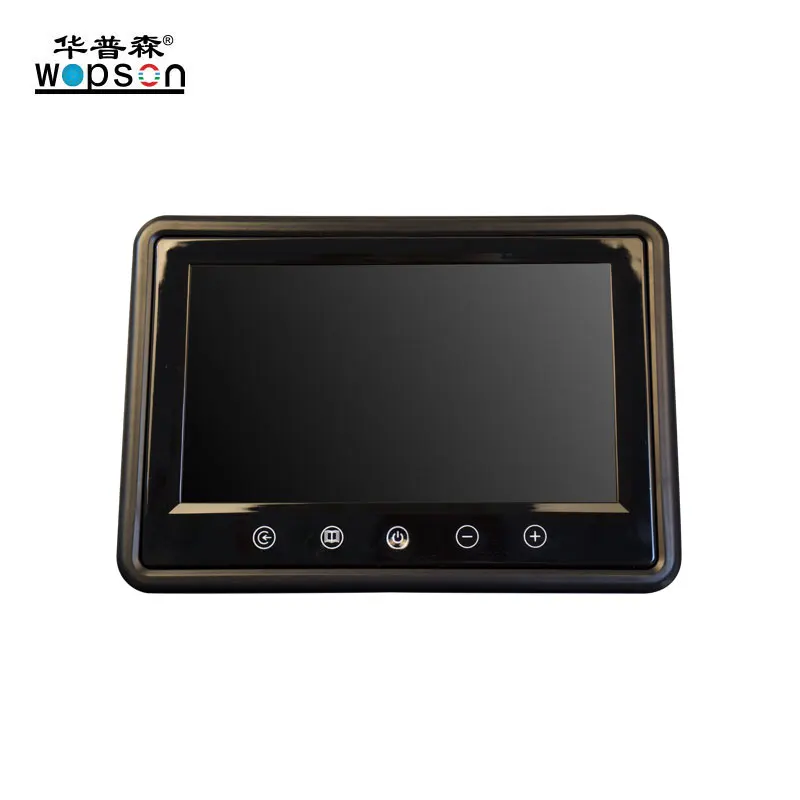

15 inch TFT color screen



Application field



Introduction



FAQ

1.Q:If i order today, how long it takes for the shipment?

A: Our delivery time is about 3-5 days after got your payment and the shipping time is about 4-10 days upon your choose the shipment.

2.Q:What’s the payment terms?

A:We accept T/T, paypal,western union,Welcome to use the Alibaba Trade Assurance .

3.Q:Could you offer wholesale price?

A: Yes, of course. If you order in large quantity, we can give you the wholesale price and more discount

4.Q:Can you give me best shipping cost?

A: Sure, we give our customer best shipping cost and fast shipping time. Usually we use DHL, UPS, Fedex, TNT to keep the good quality.

5.Q:Are the quality of your product guaranteed?

A: We provide one year limited mfg. warranty, We have QC to control the quality one by one. So do not worry about the quality. If you got a defective item, we can refund your money or send you new item as compensation.

6.Q:I'm shopping at your company at the first time, how can I trust you?

A: We totally understand if you have some doubt about us at our first cooperation. You are welcome to visit our company or shop anytime you like.

7.Q:I'm a potential customer, can I get some free samples first?

A: We can provide a sample to you for test before give us a big order.but so sorry to tell you that there are no free samples in our company.

8.OEM&ODM service.

OEM/ODM service is welcome,we will provide all the details to you during the mass production.

Customize your mould according to your need.

your requirement and complaints are highly respected.

necessary test and certification can be obtained as you request.



Related products

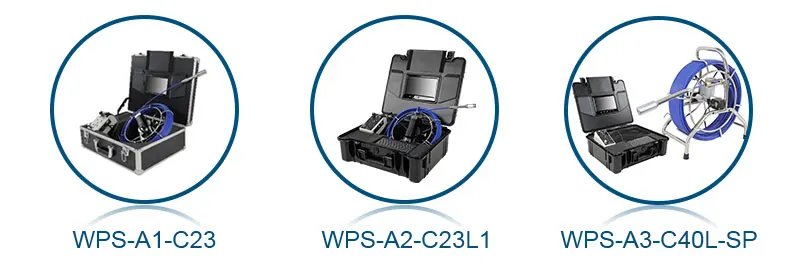

A-----Simplified series
