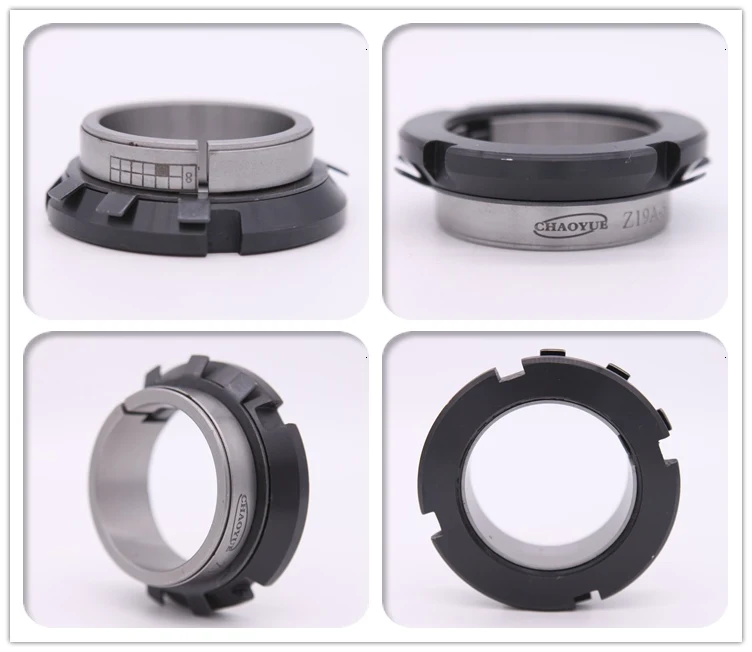

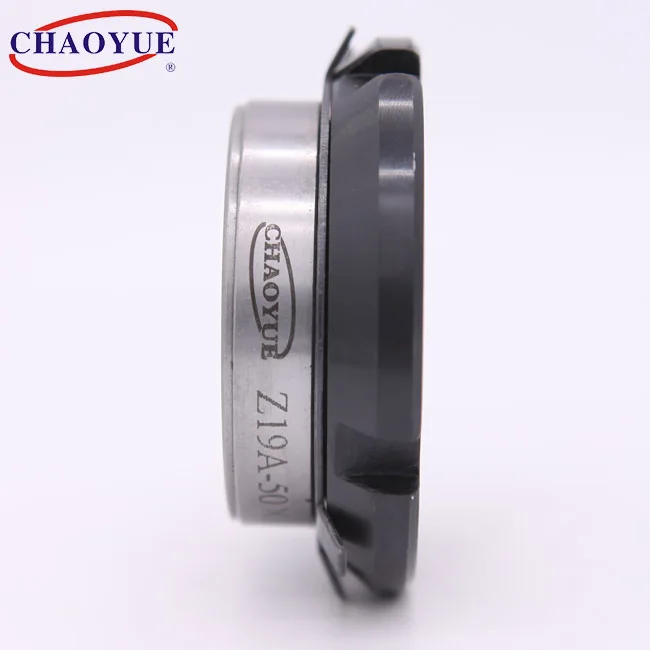

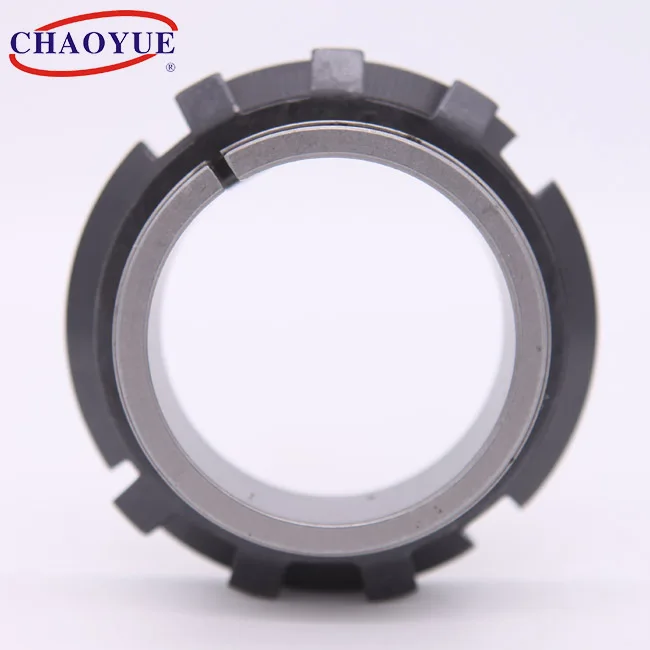

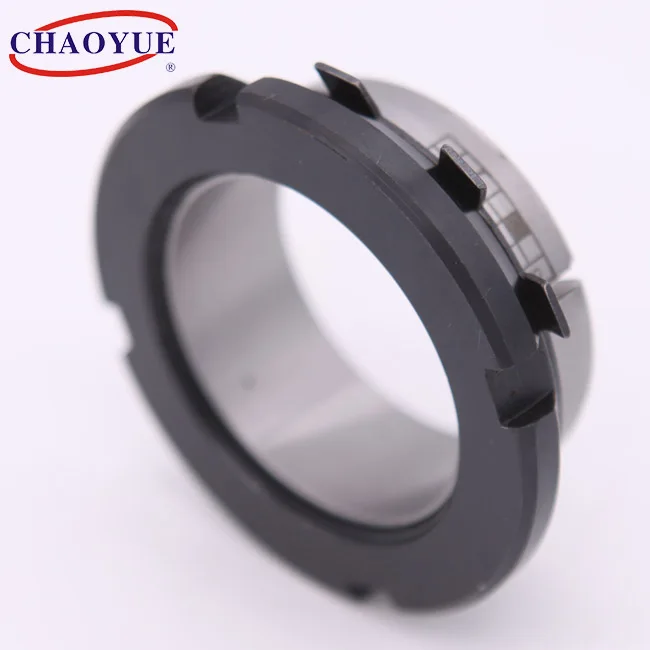

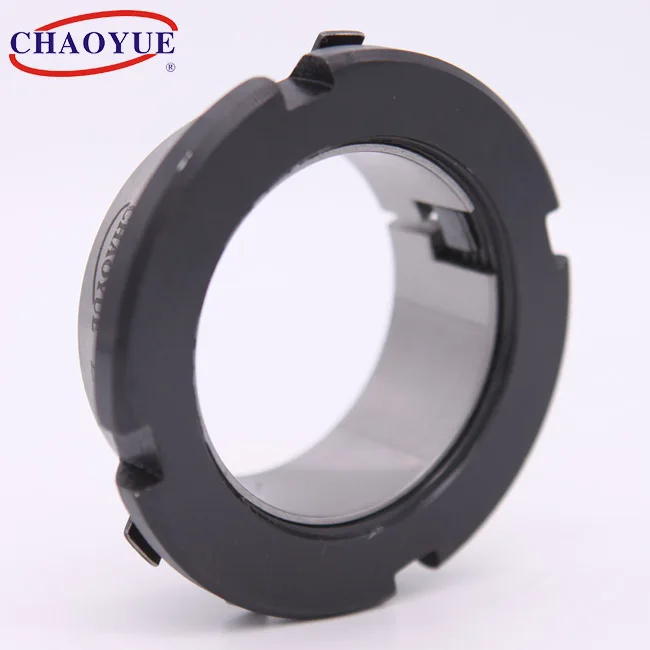

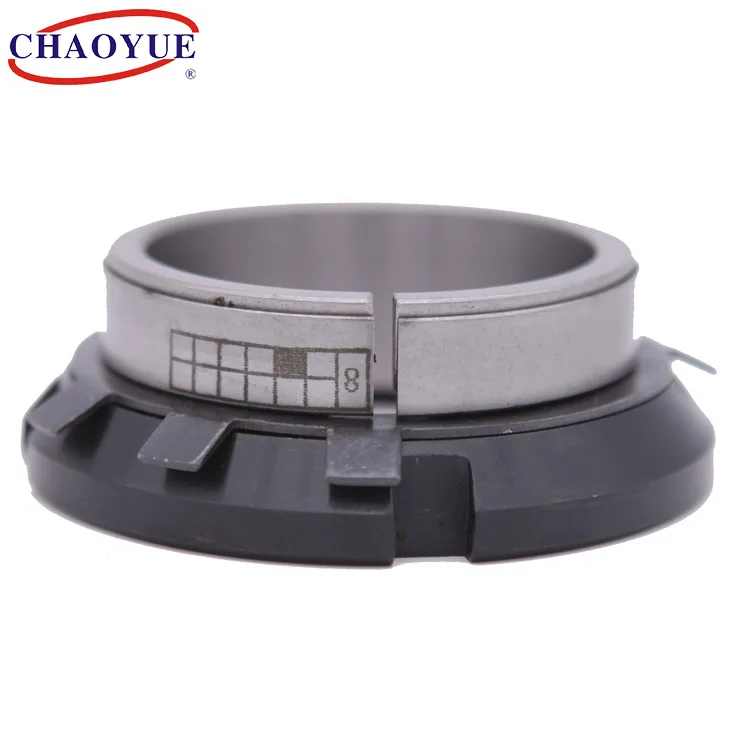

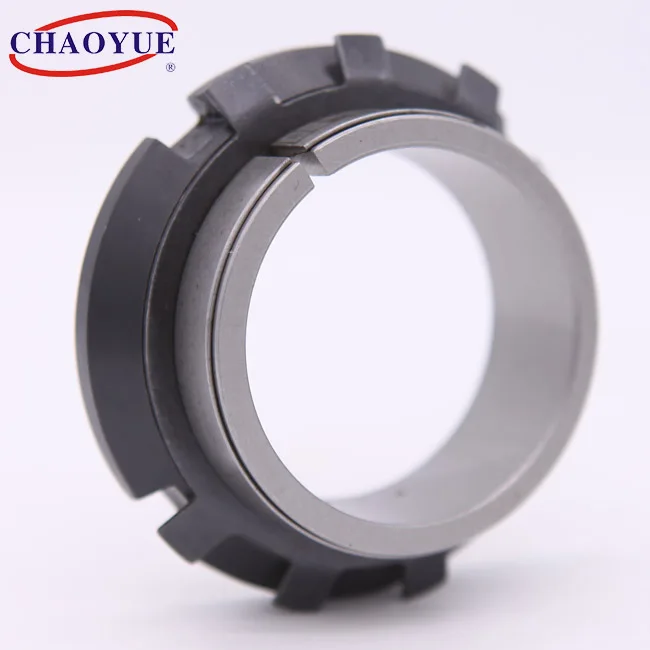

Z19A Heavy power lock transmission mechanical locking device
Product Description
Description:
Type Z19A is a keyless shaft power lock. It can replace single keyway and spline ,in order to realize the connection between machinery parts (such as gear wheel,flywheel) and shafts,so the loading can be transmitted.Through the function of high strength of bolt when locking device is working,enormous strengh of tight holding power between hub, inner loop and shaft are produced.When bearing the weight and loading depend on connection power between locking device and machinery and additional frictional torce to transmission torsion or power on shaft.
Parameter of High Power Transmission Mechanical Locking Device

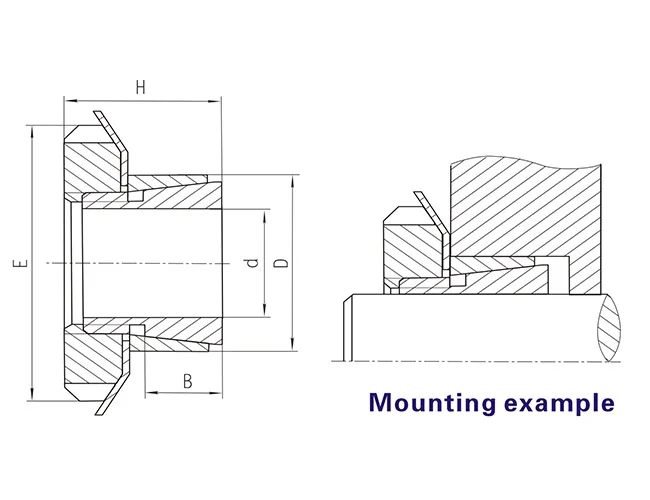

DIMENSION
Bolt
Rated Load
Pressure
on shaft
Pf
N/mm2
Pressure
on hub
Pf'
N/mm2
Torque of
tighten
locking-bolt
MA
N·m
Weight
[Kg]
d
D
E
H
B
d1
Axial Force Ft [kN]
Torque Mt [kN·m]
14 15 16 17 18
25 25 25 26 26
32 32 32 32 32
16.5 16.5 16.5 16.5 16.5
6.5 6.5 6.5 6.5 6.5
M20x1 M20x1 M20x1 M20x1 M22x1
5.1 5.5 5.45 5.5 5.4
38 41 43 47 49
200 185 174 164 155
110 110 110 107 107
95 95 95 95 95
0.05 0.04 0.04 0.04 0.04
18 19 20 22 24
30 30 30 32 35
38 38 38 38 45
16.5 18 18 18 18
6.5 6.5 6.5 6.5 6.5
M25x1.5 M25x1.5 M25x1.5 M25x1.5 M30x1.5
6.6 6.6 6.6 6.6 8.75
58 62 66 73 105
185 176 167 152 185
112 112 111 105 127
160 160 160 160 220
0.06 0.06 0.06 0.06 0.08
25 28 28 30 32
35 36 40 40 42
45 45 52 52 52
18 18 18 19.5 19.5
6.5 6.5 6.5 7 7
M30x1.5 M32x1.5 M35x1.5 M35x1.5 M36x1.5
8.8 8.55 10.6 10.6 10.6
110 120 149 160 170
178 159 188 164 154
127 124 141 123 117
220 220 340 340 340
0.07 0.06 0.09 0.09 0.09
35 36 38 38 40
45 45 48 50 50
58 58 58 58 65
21.5 21.5 21.5 21.5 24.5
8 8 8 8 10
M40x1.5 M40x1.5 M42x1.5 M42x1.5 M45x1.5
13.1 13.3 13.1 13.1 15.5
230 240 250 250 310
153 149 141 141 124
120 120 112 112 93
480 480 480 480 680
0.11 0.1 0.12 0.14 0.14
40 42 45 45 48
52 55 55 57 60
65 65 72 72 75
24.5 25.5 25.5 25.5 25.5
10 10 10 10 10
M45x1.5 M48x1.5 M50x1.5 M50x1.5 M55x2
15.5 15.2 17.7 17.7 20.8
310 320 400 400 500
120 114 122 122 135
93 87 96 96 105
680 680 870 870 970
0.17 0.2 0.16 0.2 0.21
50 50 55 55 56
60 62 65 68 68
75 75 80 80 80
25.5 25.5 27.5 27.5 27.5
10 10 12 12 12
M55x2 M55x2 M60x2 M60x2 M60x2
20.8 20.8 22 22 22
520 520 610 610 620
130 130 103 103 101
105 105 84 84 82
970 970 1100 1100 1100
0.18 0.22 0.21 0.28 0.26
60 60 63 65 70
70 73 79 79 84
85 85 92 92 98
30 30.5 30.5 30.5 31.5
12 12 14 14 14
M65x2 M65x2 M70x2 M70x2 M75x2
26.6 26.6 31.1 31 35.4
800 800 980 1010 1240
113 113 107 104 110
93 93 86 86 92
1300 1300 1600 1600 2000
0.24 0.33 0.43 0.38 0.42
