High Temperature Magnet for Lifting Billet and Ingot
- Category: >>>
- Supplier: Yueyang Dalishen Electromagnetic Machinery Co. Ltd.
Share on (60760481391):
Product Overview
Description

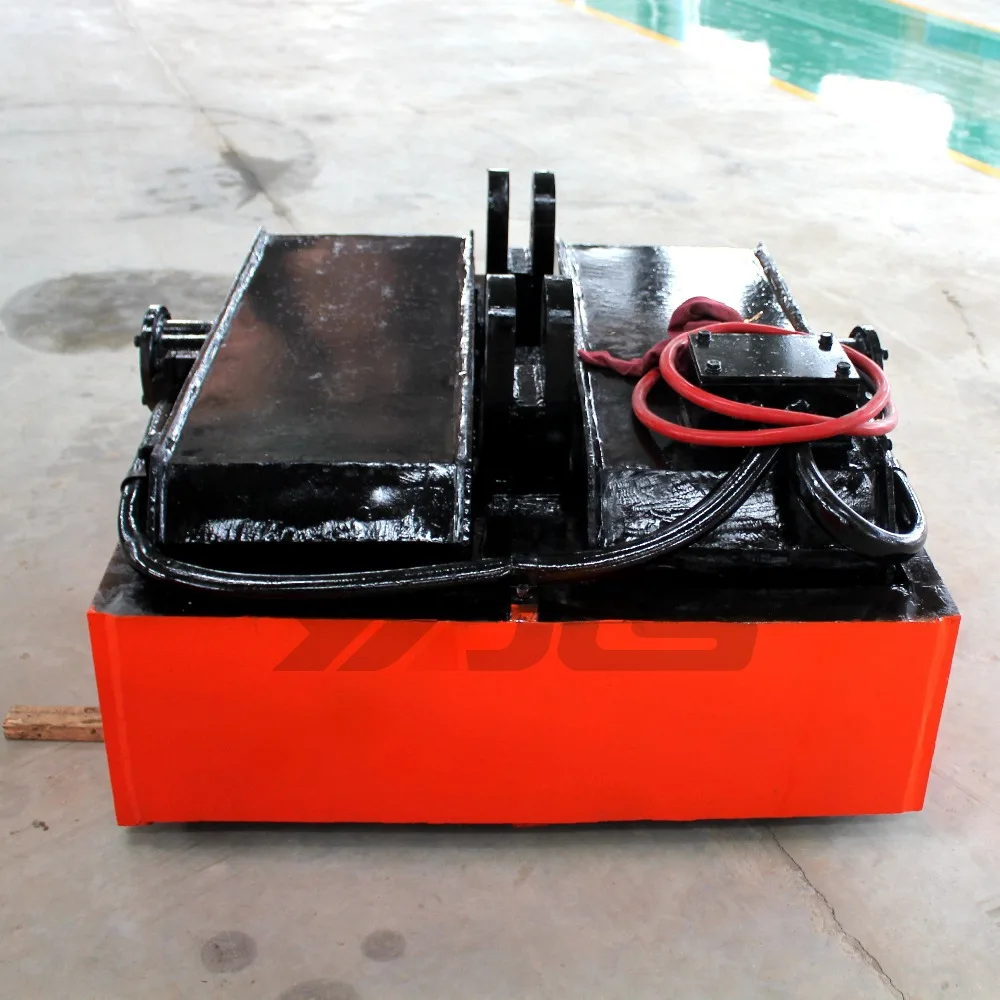

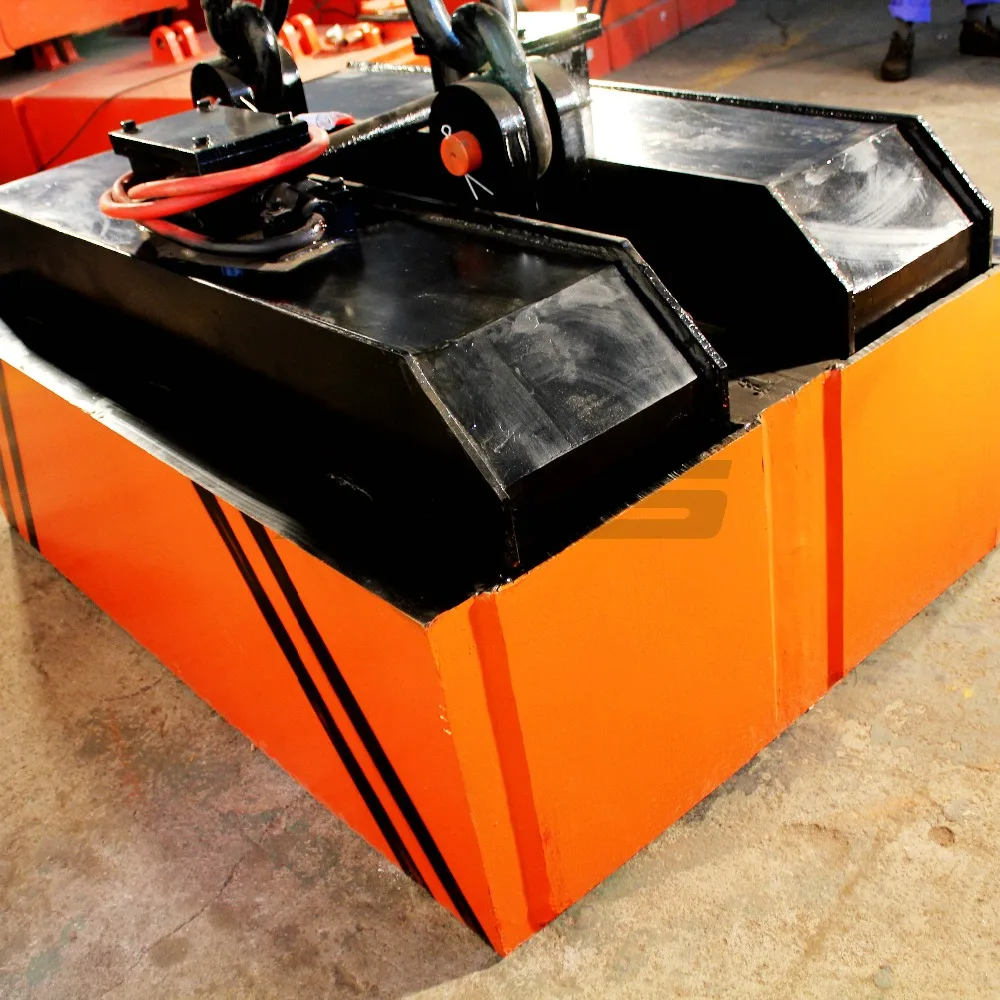

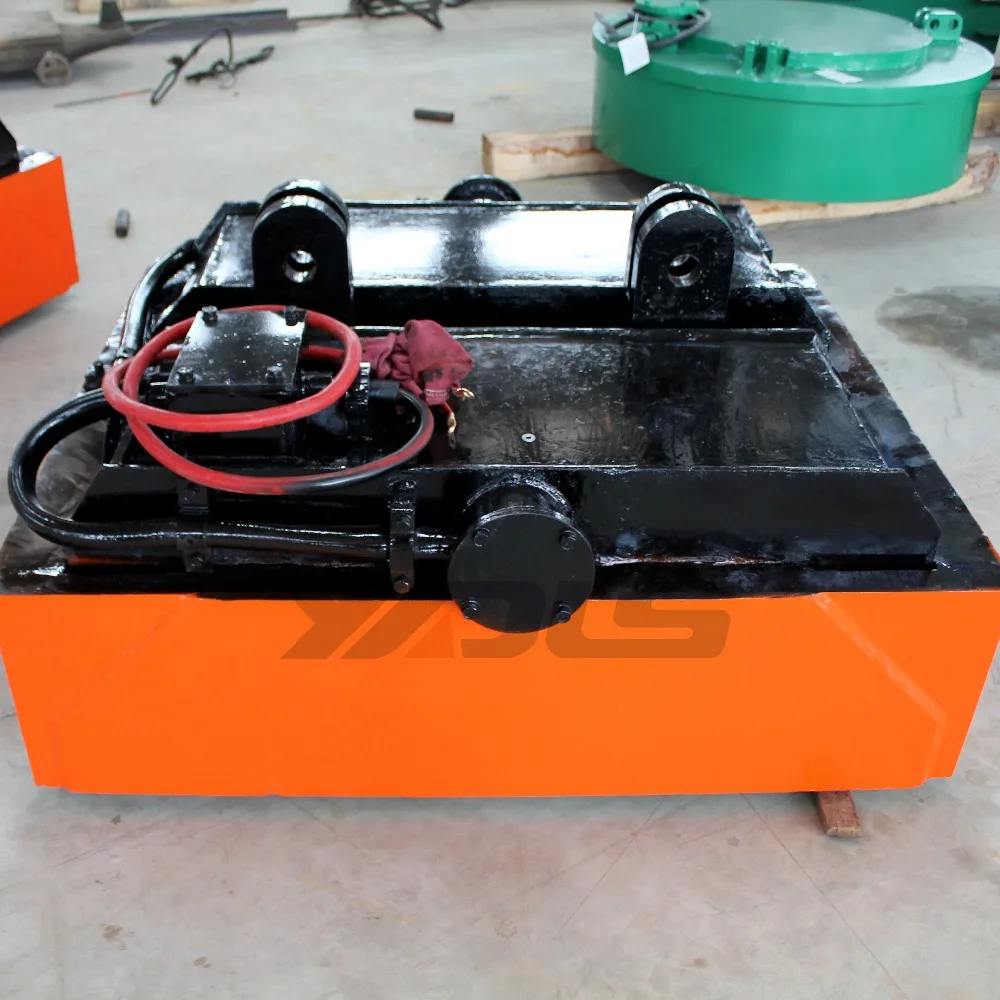

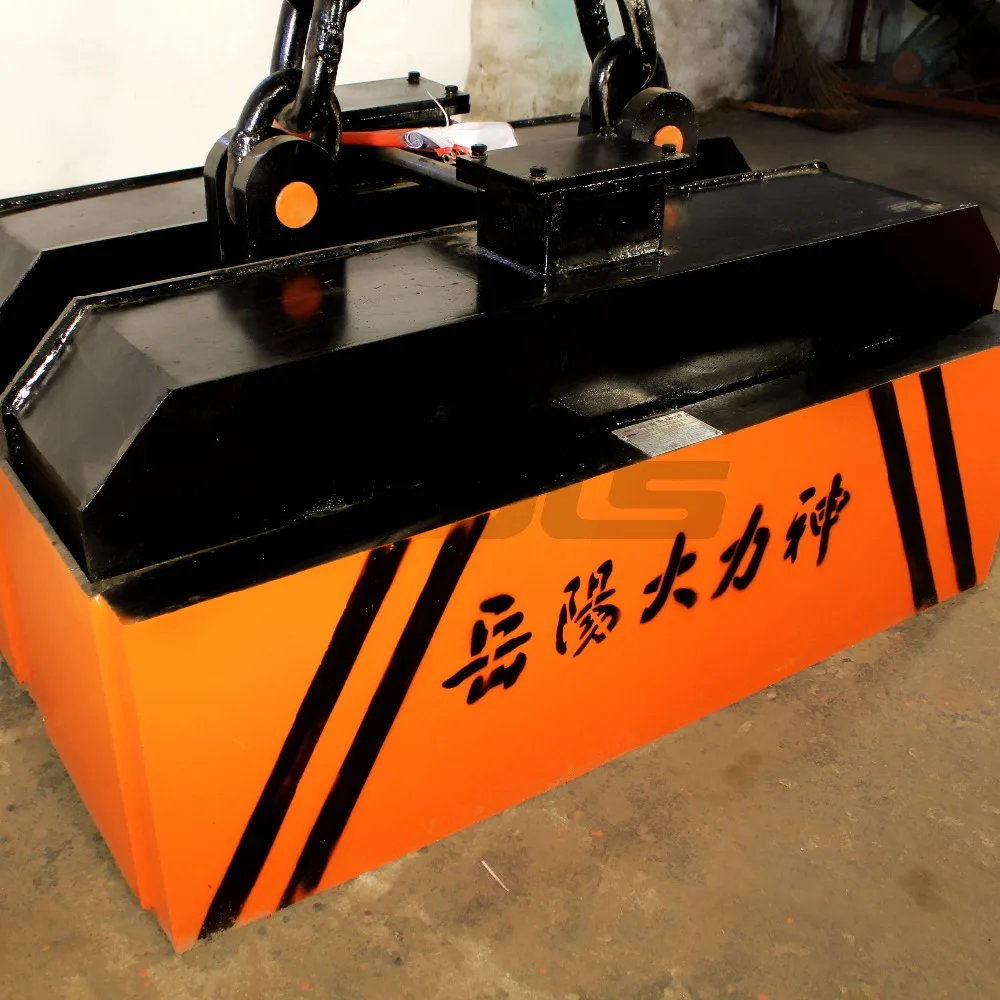

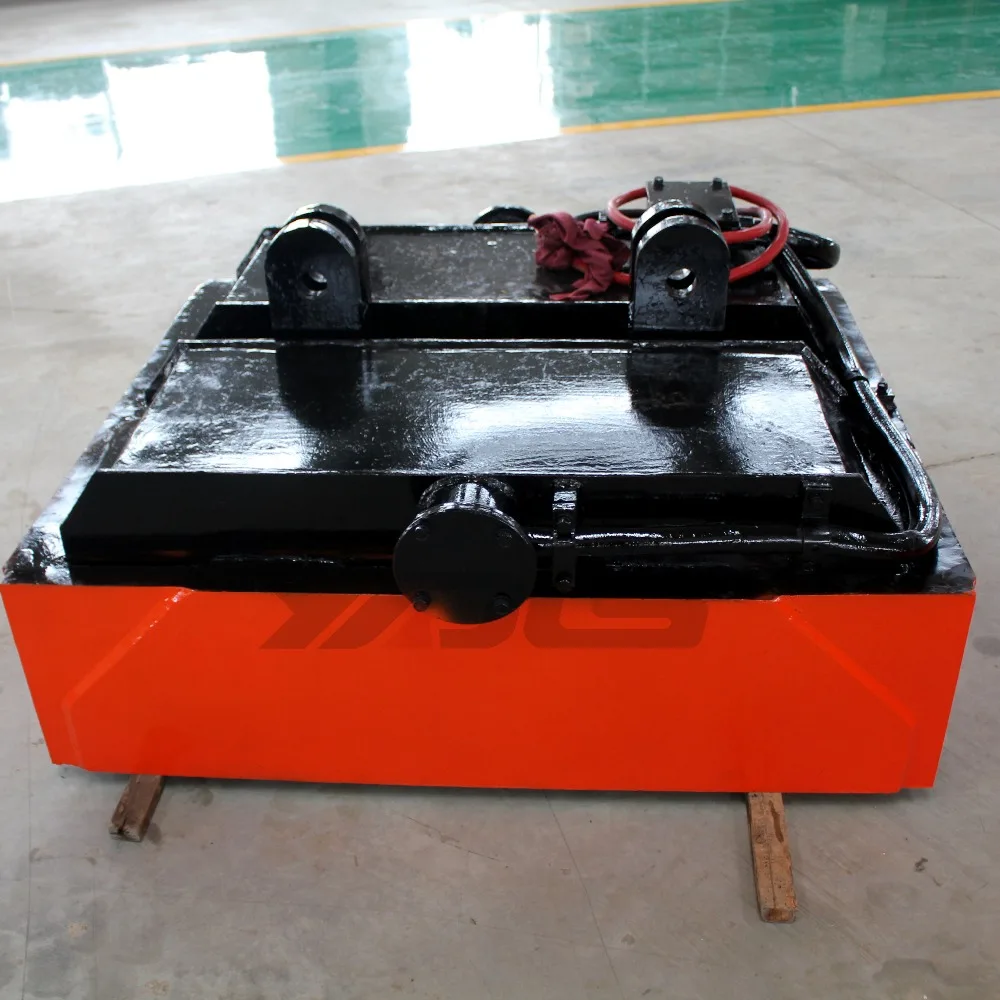

High Temperature Magnet for Lifting Billet and Ingot
Lifting Magnet MW82 Series is suitable for handing square billet,square billet,plate billet and large steel ingots at 700°C. The electromagnet can dive into the water and quickly cool down.
Main technical data:
Model | MW82-90100T/CG | MW82-110100T/CG | MW82-130100T/CG | MW82-150100T/CG | MW82-160100T/CG | MW82-170100T/CG | |

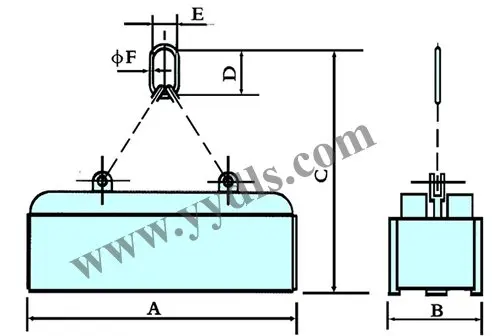

Overall dimension (mm) | A | 900 | 1100 | 1250 | 1450 | 1550 | 1700 |
B | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |
C | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | |
D | 250 | 250 | 250 | 250 | 250 | 250 | |
E | 150 | 150 | 150 | 150 | 150 | 150 | |
F | 60 | 60 | 60 | 60 | 60 | 60 | |
Mass (kg) | 2200 | 2550 | 2900 | 3400 | 3650 | 3900 | |
Current (A) | 35 | 40 | 45 | 48 | 52 | 56 | |
Power (kw) | 7.7 | 8.8 | 9.9 | 10.56 | 11.44 | 12.3 | |
Example for lifting capacity (combination of two units) | 150 ×150 ×12000 5 Pieces | 150 ×150 ×12000 6 Pieces | 150 ×150 ×12000 7 Pieces | 150 ×150 ×12000 8 Pieces | 150 ×150 ×12000 9 Pieces | 150 ×150 ×12000 10 Pieces | |
Equipment completeness | Power-cut magnetism sustaining unit | GTBM-100 | GTBM-150 | ||||
Cable reel | JTA100-20-2 | JTA135-20-2 | |||||
Cable adapter | DL-102 | DL-202 | |||||
