CPT compression copper plumbing pipe fittings

Product Overview

Description

CPT compression copper fittings

Maximum working pressure:                   5.0MPa

Negative pressure performance:               −100kPa

Working temperature range  (Nylon sleeve):-40°C~ +80°C



Applicabletube :

Polyurethane tube ,Nylon tube, Flexible fluorocarbon resin bilayer tube, Polybutene tube, Flame-resistant tube, Antistatic tube, Polyolefine resin tube, Fluorocarbon resin tube, Polyurethane processed tube

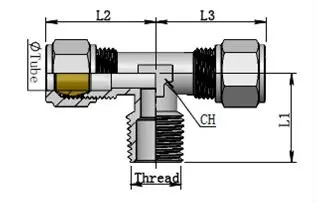

Model			L1	L2	L3	CH
Info	Tube	Thread
CP T	4	R1/8	16	21	21	9
	5	R1/8	17	23	23	9
	6	R1/8	16	23	23	9
	6	R1/4	20	24	24	11
	8	R1/8	17	24	24	11
	8	R1/4	20	24	24	11
	10	R1/4	23.5	32	32	13
	10	R3/8	24	32	32	13
	12	R3/8	25.5	34.5	34.5	15
	12	R1/2	28.5	34.5	34.5	15
	16	R1/2	30	38	39	17
