Product Overview

Description


Product Description

AAL / ALC panel

AAC/ALC panel is short for Autoclaved Lightweight Concrete panel,mainly made of silica sand/fly ash,cement,lime with double layer & direction steel mesh in it,it is a cellular concrete molding panel,and it can not only be used as wall panel,but also roof panel,floor panel or exterior wall modeling.AAC/ALC panel is a mature construction material with obvious advantages and can be installed easily .

\t
Length(mm)
\t
1800—6000
\t
Breadth(mm)
\t
600
\t
Thickness(mm)
\t
75, 100, 125, 150, 175, 200, 250, 300,120, 180, 240
ALC/AAC Panel Advantage:

1.Lightweight and high strength .
2.thermal and sound insulation .
3.fire and frost resistance.
4.seepage prevention .
5.anti-seismic and no radiation.
6.durability and high softening coefficient.
7. good creativity ,science installing method , convenient and quick construction

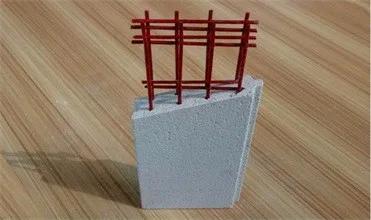

8.reinforced by antirust double-layer and two-way steel mesh.
9.good load-bearing capacity .
10. Hanging weight for a single point:120KG


AAC panel Technical Index

1) Save more than 90% labor cost: no need cutting, welding, even no equipments
2) Stronger: all panel have built-in hot galvanized steel structure to support
3) Faster: finish all the panels shape in factory according the house design
4) A1 level fireproof, can last more than 2 hours in 1200C fire

\t
performance index
\t
ALC test value
\t
standard value
\t
dry volume density
\t
512kg/m3
\t
±50
\t
cubic crushing strength(average value)
\t
≥4.0Mpa
\t
≥2.5Mpa
\t
drying shrinkage
\t
≤0.3mm/m
\t
≤0.8mm/m
\t
thermal coefficient(5%moisture content)
\t
0.11W/m.k
\t
0.15W/m.k
\t
reezing resistance
\t
quality loss
\t
1.00%
\t
≤5.0%
\t
intensity after frozen
\t
≥3.8Mpa
\t
≥2.0Mpa
\t
shock resistance
\t
≥7.0 times
\t
3 times
\t
Single-point Hanging Force
\t
1200N(100mm),1500N(125mm)
\t
≥800N
\t
Bonding Strength Between Rebar and ALC Panel
\t
avg3.5Mpa min 2.8Mpa
\t
≥0.8Mpa,≥0.5Mpa
\t
Fire Endurance of ALC Panel
\t
3.62hours(100mm), ≥4hours(125mm)
\t
\t
Fire Endurance of 50mm Thick ALC Panel Protected Steel Column
\t
≥4 hours
\t
4 hours
\t
Fire Endurance of 50mm Thick ALC Panel Protected Girder
\t
≥3 hours
\t
3 hours
\t
R /R Water Softening Coefficient
\t
0.88%
\t
\t
Average Sound Reduction Index (100mm thick ALC panel+ both putty painted sides)
\t
40.8db
\t
Detailed Images

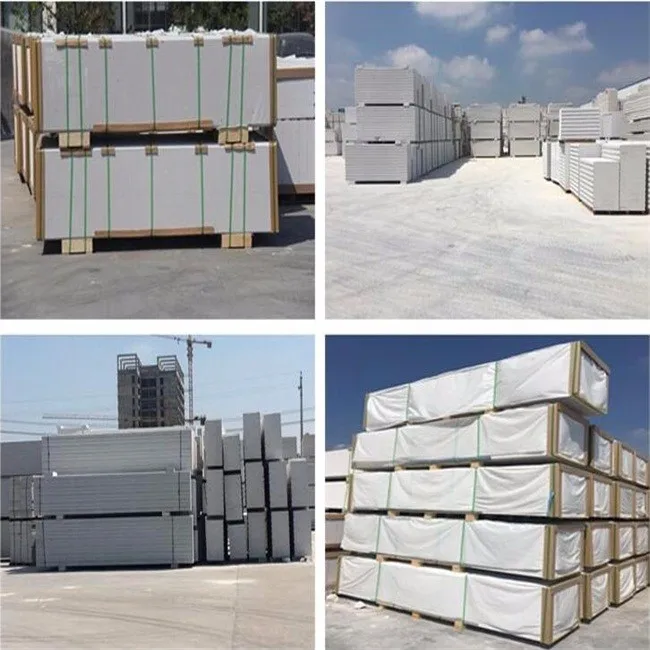

Packing & Delivery

PACKING & SHIPPING

Wooden pallet with plastic steel strips and corner protectors on all sides , outside with polybag for AAC panel.
Delivery time : 10-15 working days after receive your deposit .
