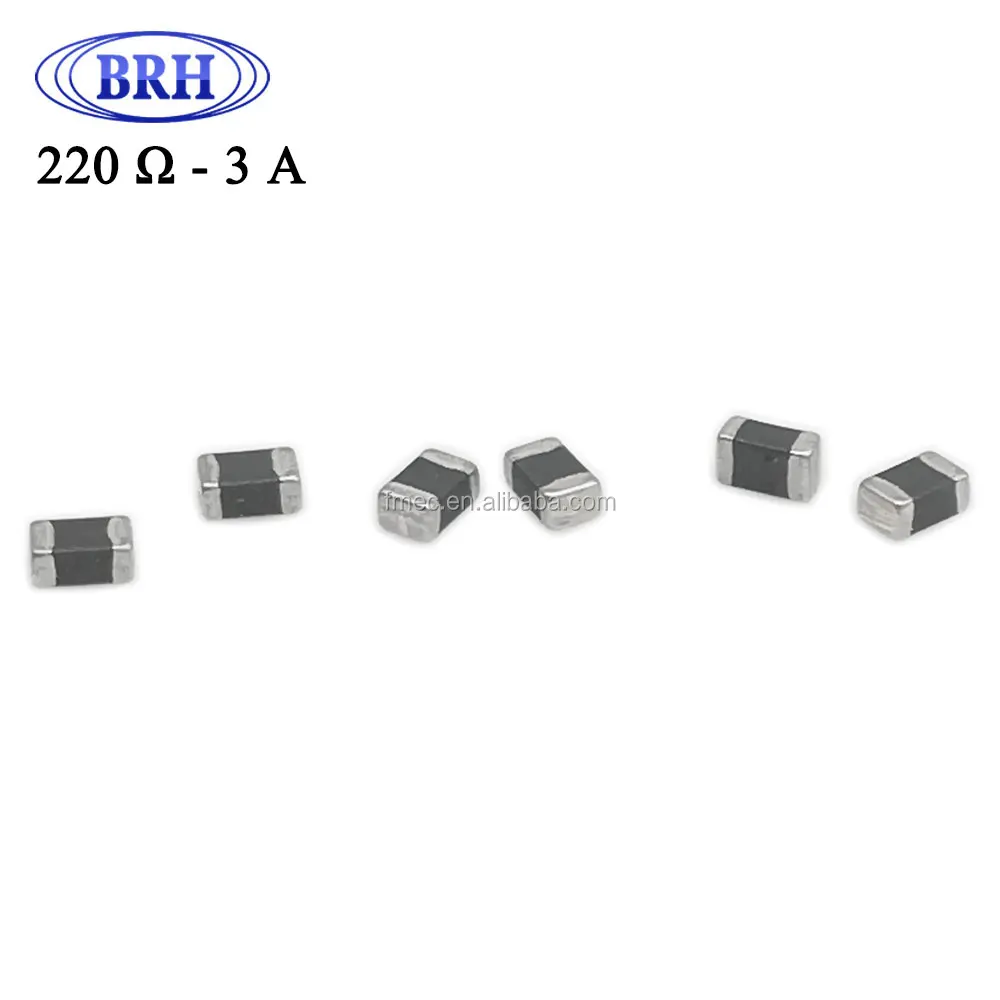

0805 SMD chip multilayer bead
0805 SMD chip multilayer bead
0805 SMD chip multilayer bead
0805 SMD chip multilayer bead
0805 SMD chip multilayer bead
0805 SMD chip multilayer bead
0805 SMD chip multilayer bead

0805 SMD chip multilayer bead

Share on (60760521484):


Price:

Quantity:


Product Overview

Description









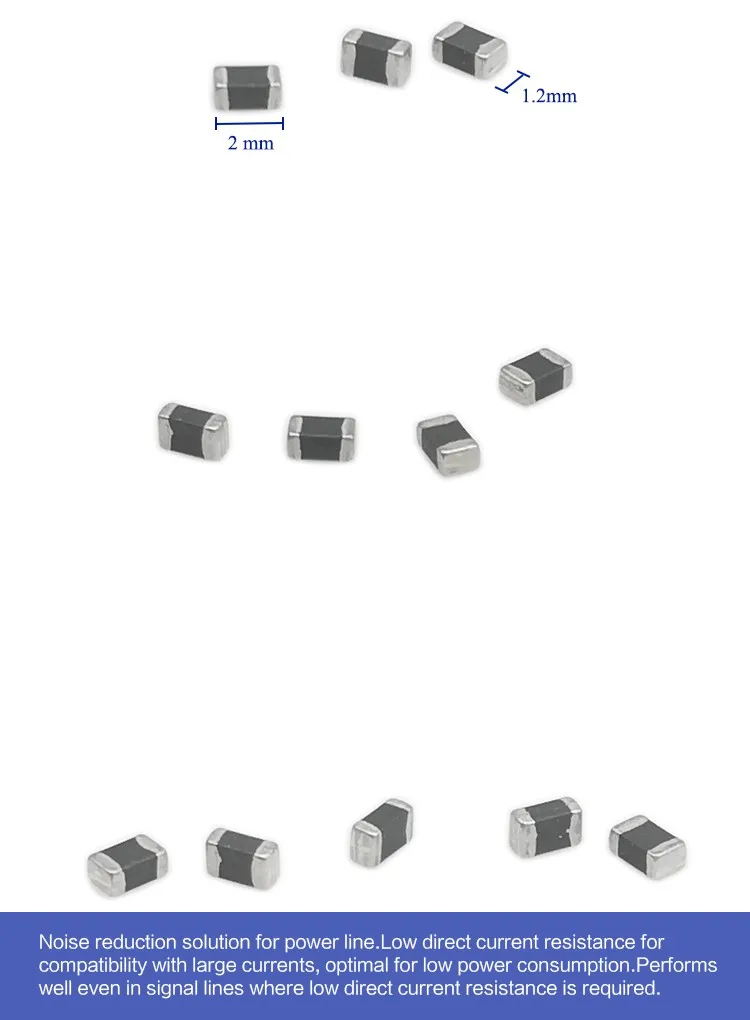

Products Description




Description





MODEL

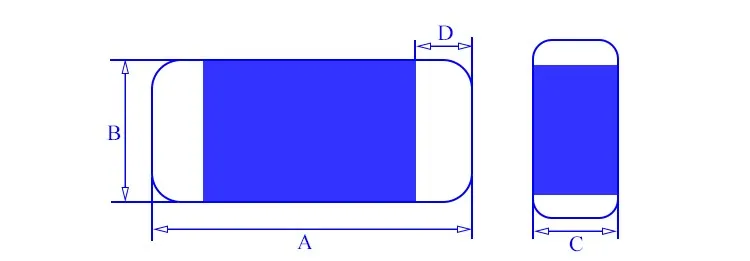

PRODUCT DIMENSIONS
A
B
C
D
0402
1.0±0.1
0.5±0.1
0.5±0.1
0.25±0.1
0603
1.6±0.2
0.8±0.2
0.8±0.2
0.3±0.2
0805
2.0±0.2
1.2±0.2
0.9±0.2
0.5±0.3





SIZE CODE
（inch)
RECOMMENDED PATTERN
(mm)
A
B
C
0402
0.4
1.2-1.4
0.6-0.8
0603
0.7-0.8
1.8-2.0
0.6-0.8
0805
1.0-1.2
2.6-4.0
1.0-1.2

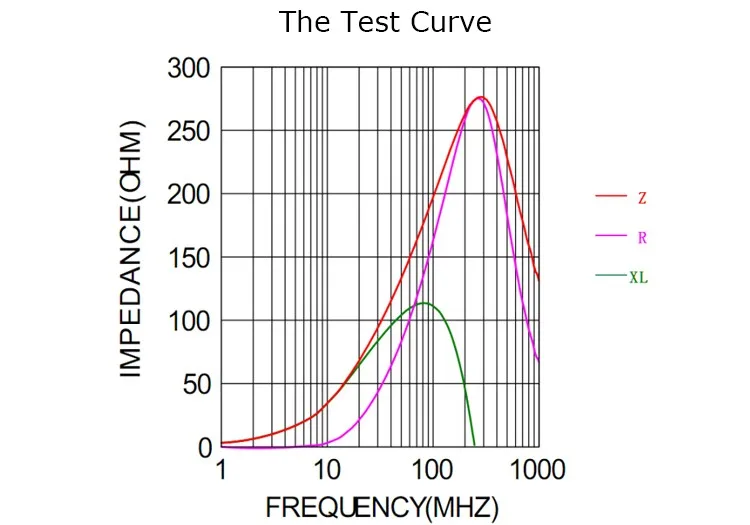

Parameter


Test Data For Pre Production Samples
MEAS. Item
Z (Ω)
RDC (Ω)
A m/m
B m/m
C m/m
D m/m
Suggest
220±25%
0.04+0
2.0±0.2
1.20±0.2
0.9±0.2
0.5±0.3
1
224.13
0.034
2.00
1.24
0.81
0.52
2
222.05
0.033
1.98
1.22
0.82
0.51
3
230.75
0.034
1.98
1.23
0.80
0.54
4
243.53
0.033
1.92
1.25
0.84
0.52
5
225.15
0.033
2.02
1.26
0.84
0.52
6
223.75
0.033
2.02
1.26
0.82
0.46
7
224.38
0.033
1.95
1.26
0.84
0.48
8
222.52
0.033
1.92
1.24
0.86
0.50
9
227.15
0.034
2.01
1.22
0.82
0.52
10
228.56
0.034
2.02
1.21
0.80
0.52







X-bar
227.20
0.033
1.98
1.24
0.83
0.51
R
21.48
0.001
0.10
0.05
0.06
0.08
The above test data for reference，Actual results may differ due to different production batches
