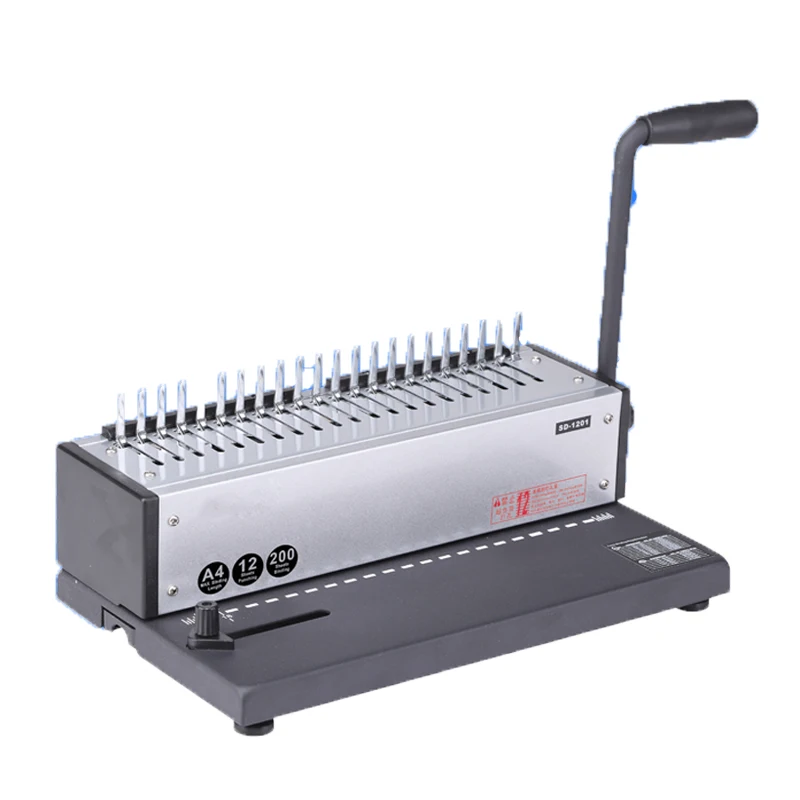

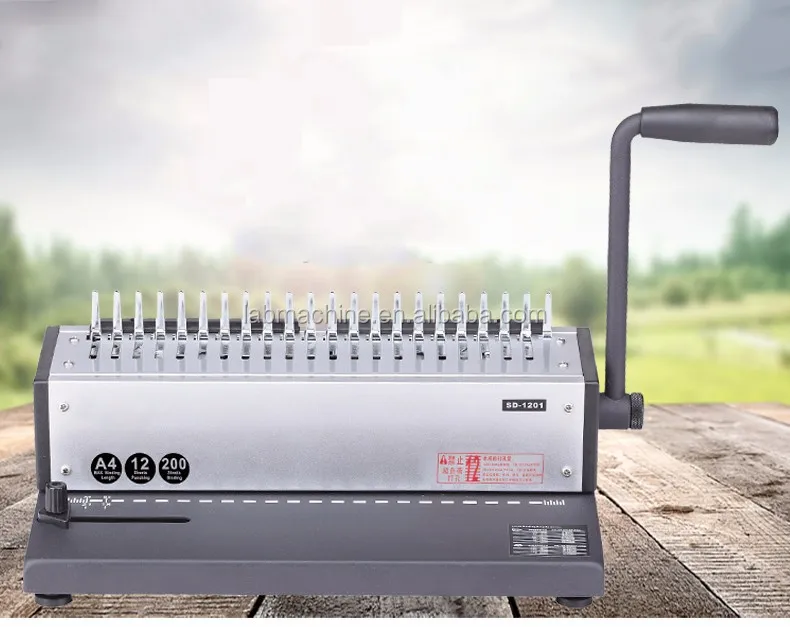

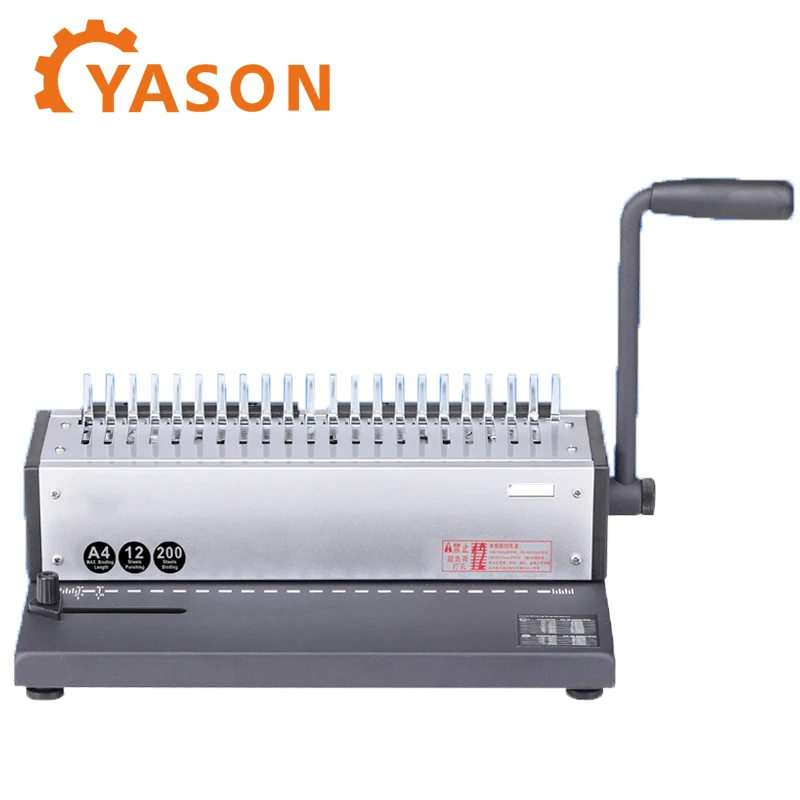

21-hole Manual Binding Machine SD-1201

21-hole rubber ring clamp dual-use manual binding machine
All-steel structure, aprons
Punches up to 12 sheets of 80G paper at a time
200 sheets of bookbinding thickness




All steel structure. strong and sturdy
All-steel machine structure, solid and reliable,
Rugged and beautiful


Solid round steel handle design
Solid bar labor-saving handle, punching pressure ring
One operation


Strong punch. Full amount of binding
The machine can print 12 sheets of 80 grams paper at a time.
Bind 200 A4 paper files




Twist lock setter
Use the locator to fix the paper position so that
Out of the hole symmetrical, beautiful binding


Margin adjustment torque converter
Machine rear margin adjustment knob, twist
Knob can adjust the size of margins, margins
3 to 6MM adjustment


Pull-out confetti box people
Left-pull type scrap box for easy cleaning
More humane





Rubber anti-slip mat
The base is equipped with 4 rubber feet
Non-slip, stable


Rubber ring gauges
The base of the machine has its own specification data sheet
Convenient material selection, fast binding

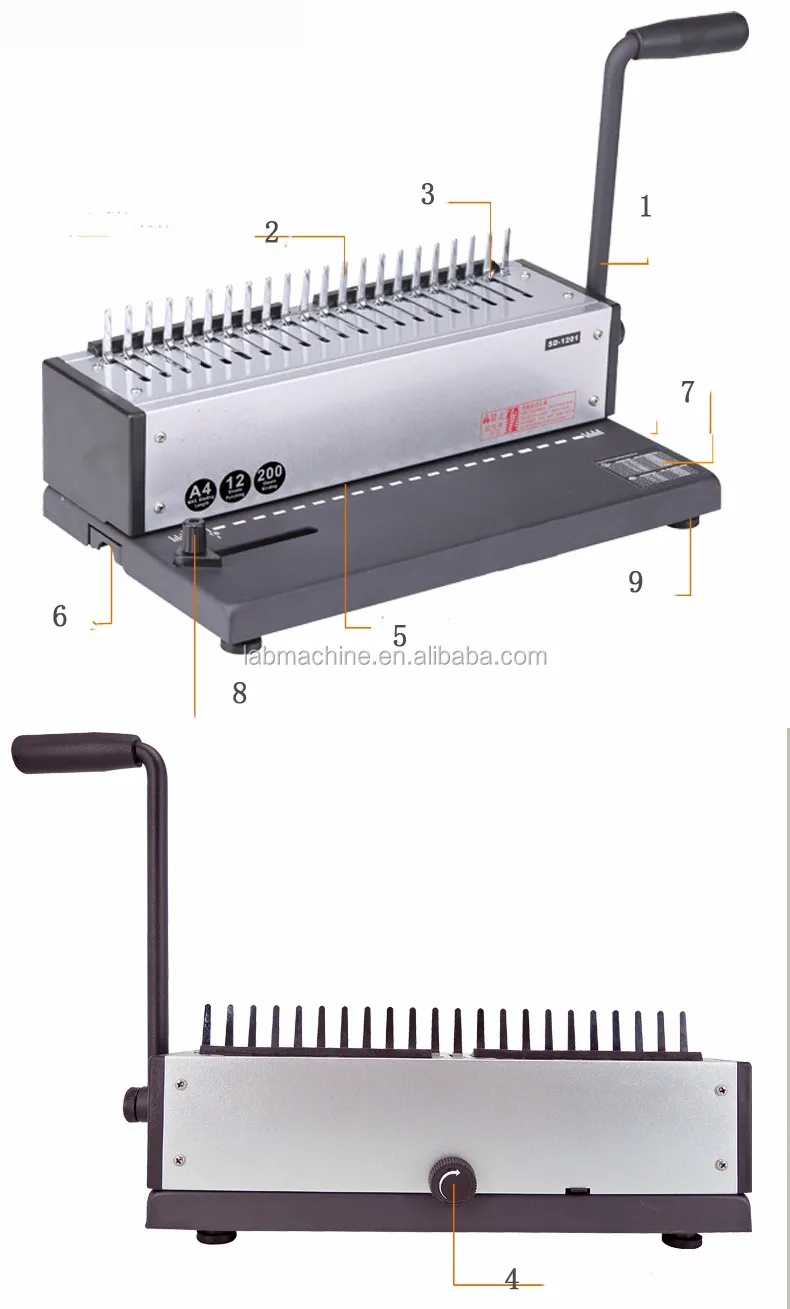

Specifications




1
handle
6
Confetti box
2
Comb
7
Rubber ring specifications
3
Hook plate
8
Adjuster
4
Margin adjustment knob
9
Anti-slip mat
5
Paper inlet




Machine Name
21-hole manual binding machine

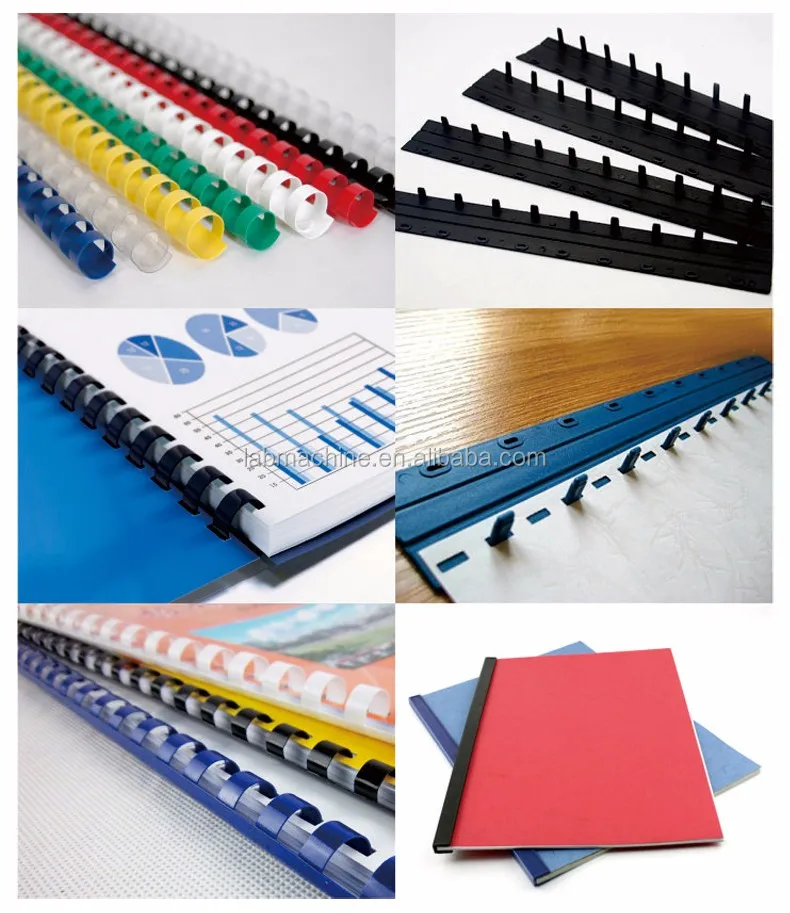

Applicable Consumables
Aprons, clips
Handle Type
solid round steel handle
Applicable Paper
A4
Punching Capacity
12 sheets 80 grams
Binding Capacity
200 sheets (222MM)
Punching Size
3*8mm
Number Of Holes
21 holes
Number Of Knife extraction
none
Margin
3-6mm
Pressure Ring Size Range
aprons 6-22mm clip bar 3 a 35mm
Machine Size
400*210*280mm
Packing Size
415*185*275mm
Net Weight Of Machine
5.6KG
Gross Weight Of The Machine
6.1KG




Detailed Images


1. Place the machine's work bench on a reliable work bench

2. Set the margin adjuster and adjuster, put the proper paper into the paper inlet, press the handle to punch



3. Place the apron on the comb teeth, press the handle backwards, open the apron, put the file of the hole into the circle, reset the handle forward, and finish the binding.

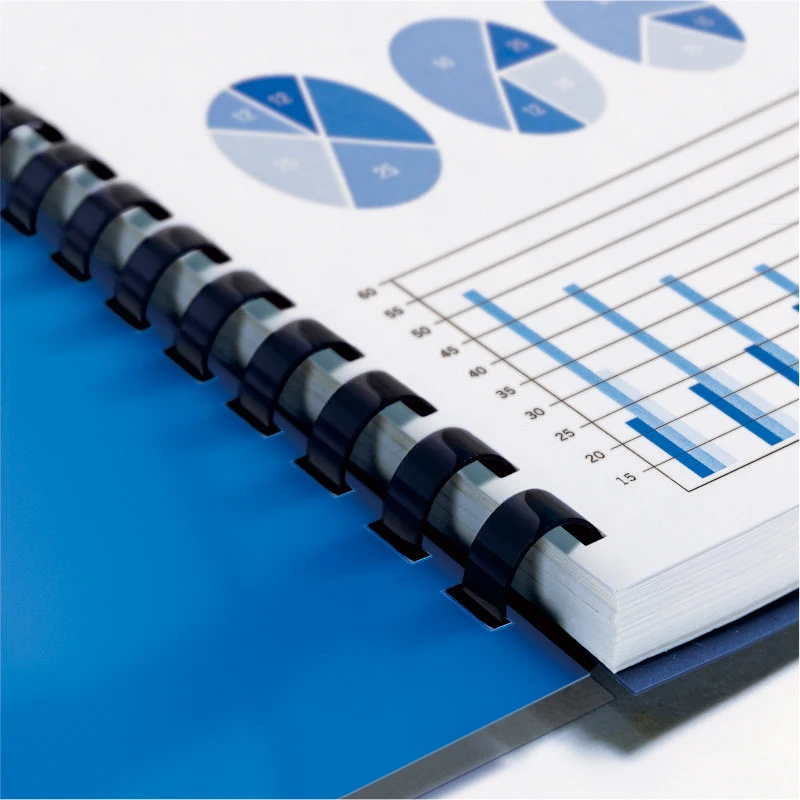

4. Aprons binding effect is simple and beautiful

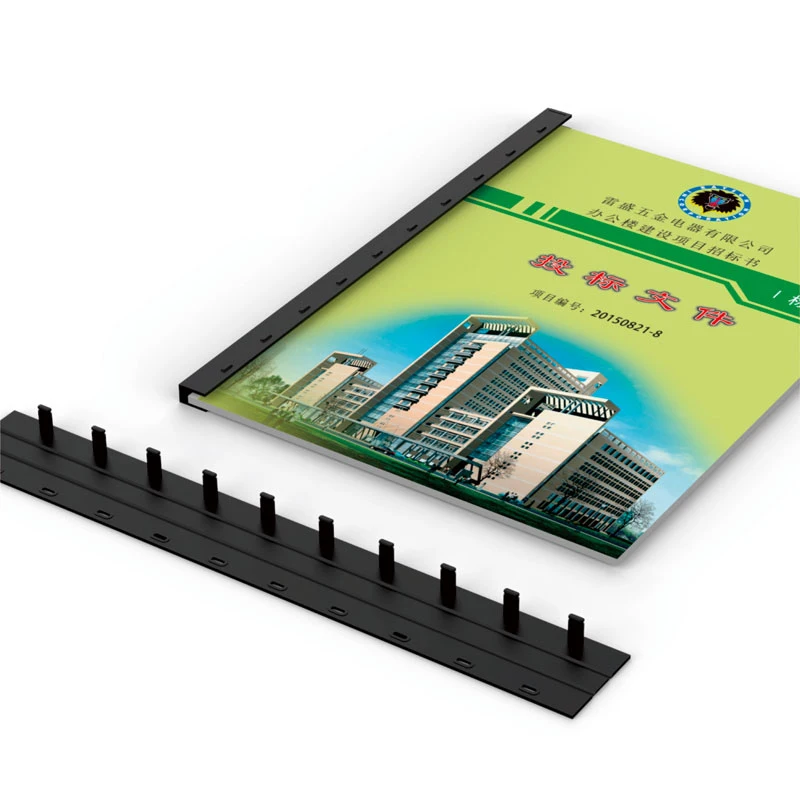

5. Insert the well-drilled file into the clip, fold the clip in half, and finish the binding.


6. Clip binding effect







Features:
The folder bar dual-purpose binding machine is to insert the pages to be bound into a pre-made plastic ring after turning the pages to be bound. The biggest advantage of the binding machine is that the text can be read freely, the text can be flipped 360 degrees, and can be easily increased or decreased. Pages, easy to disassemble, can be used repeatedly for binding, easy to purchase consumables, easy to operate, neat and beautifully bound, and widely used in binding of graphic and paper shops, schools, offices, printing and publishing houses or conference documents.
