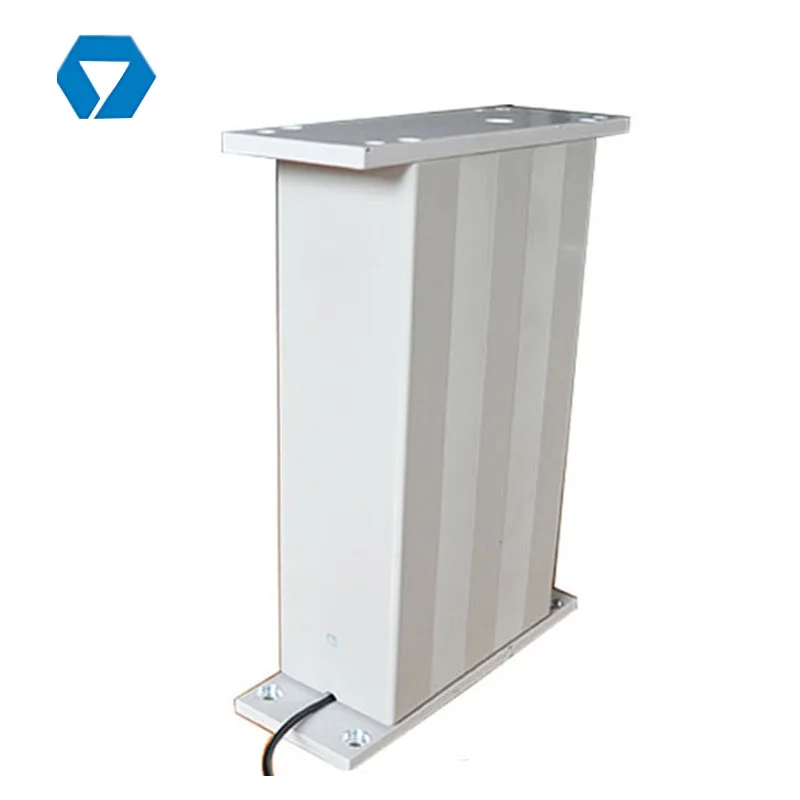

Up Down Sit To Stand Electric Adjustable 2 Legs lifting column 500mm stroke

Product Overview

Description

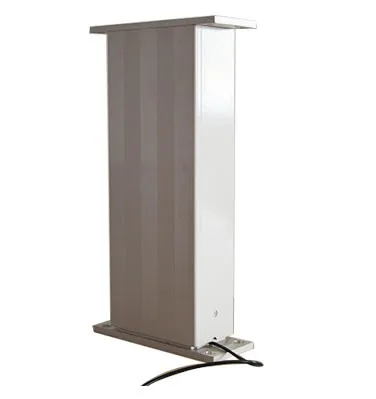

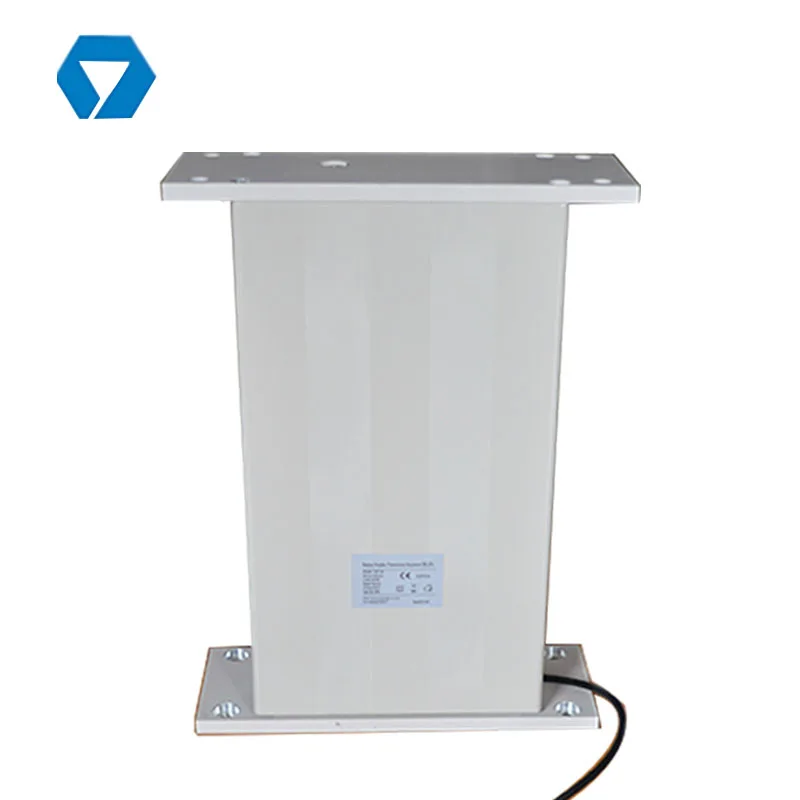

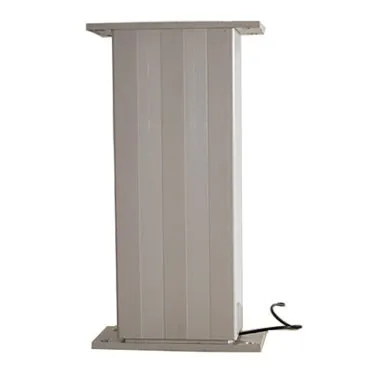

 YNT-06 lifting column, putter-type electric lift column is to achieve a variety of intelligent furniture platform for the development of a product, the product has a large range of stretching, smooth operation, good looks, easy to install, easy to operate, etc. , With the controller, you can achieve remote control electric lift column, push-type electric lift column in the lifting position of any height adjustment to meet the needs of the product height adjustment free adjustment.





Electric lift column YNT-06 TECHNICAL PARAMETER
Model	YNT-06 Electric lift column	Input voltage	12V/24VDC
Load capacity	Max4000N(push)/4000N(pull)	Stroke	Customized Stroke Available
Maximum load	4000N (4mm/s)	Operation temperature	-26℃~+65℃
Free load speed	1000N (16mm/s)	Protection class	IP54
Duty cycle	20%	Limit switch	Built-in
Output Power	60w	Noise level	<=50dB
Pot	Shanghai/Ningbo	Control mode	wired or wireless
Certificate	CE,ROHS	Minimum installation distance	stroke+175mm



Product Applications

Electric medical bed, electric sofa, electric stand lift, industrial electric lift system, camera frame, video machine, wedding

System, office, conference room, command center, dispatch room, central control room, product demonstration hall, multimedia lecture hall and other high-end places to use.

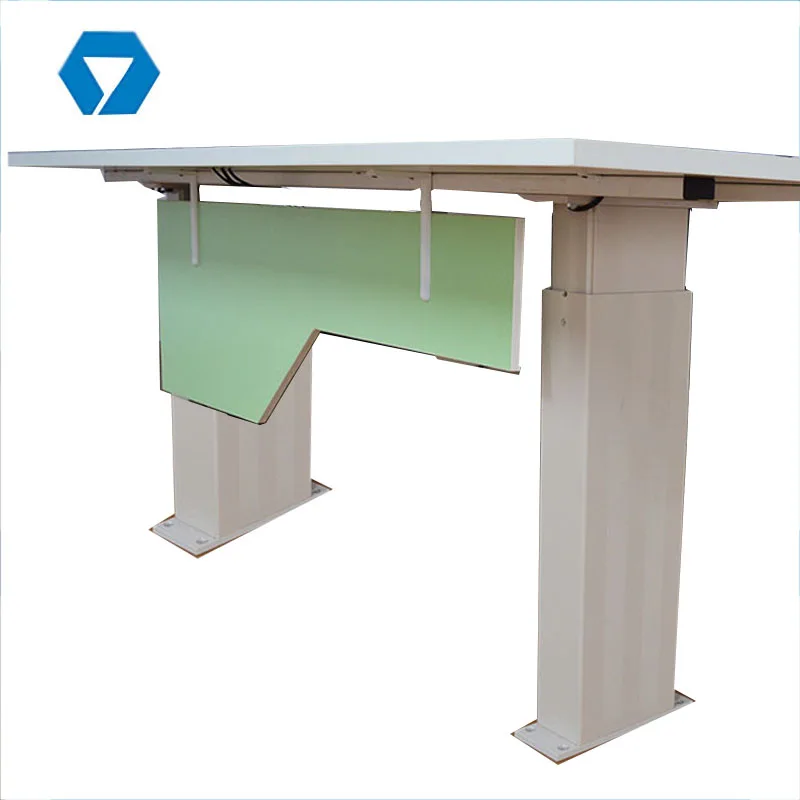

Such as the teacher's desk, the traditional is a fixed table, can not adjust the height, the teachers are tired to stand up and walk. If you useYNT-06 lift column, we can achieve the station (sitting) alternate office, and convenient to adjust the cervical spine can be appropriate.

	Noise and load Low noise design, noise less than 50 dB, YNT-06 is a compact lift unit of the guidance and actuator function integration, the maximum load can reach 4000N, about 400KG Lifting speed of 5mm / s, load 4000N Lifting speed of 10mm / s,load2000N Lifting speed of 30mm / s, load 500N

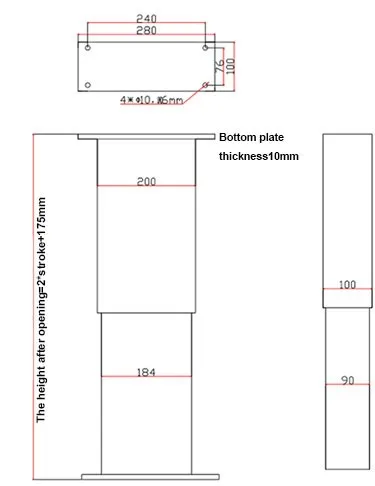

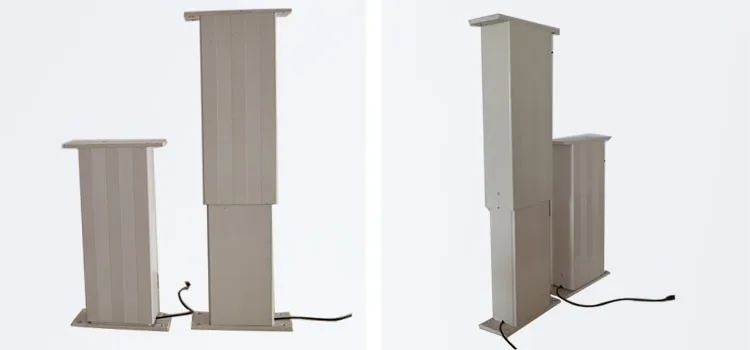

	Flat size Length and width of the size can not change, variable height Minimum height = stroke+ 175mm If the stroke is 200mm, the minimum height is 375mm Up to the maximum height is 575mm, and so on, so the height determined by the stroke. Special production, if you do 200mm stroke, the minimum height can do more than 375mm size, not less than 375mm
	Product Introduction 1, voltage: 12 / 24VDC 2, the maximum operating current: 3A 3, push/pull force: 500-4000N 4, stroke: 50-600mm (support custom) 5, running speed: 5-30mm / s 6, the use of the environment: -26 ℃ -65 ℃ 7, the shell protection class: IP54 8, power 60W

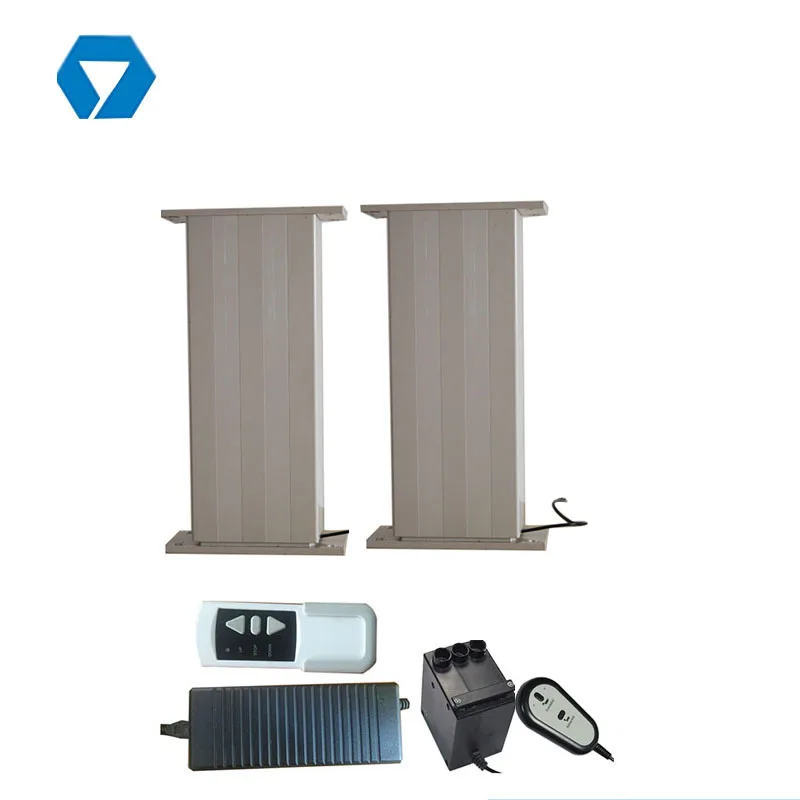

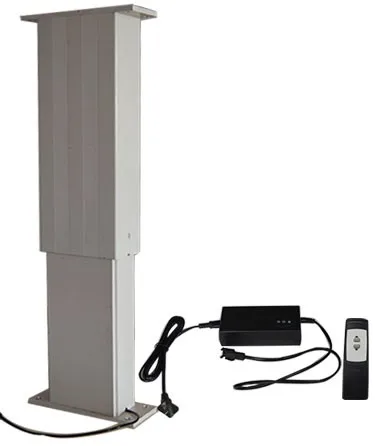

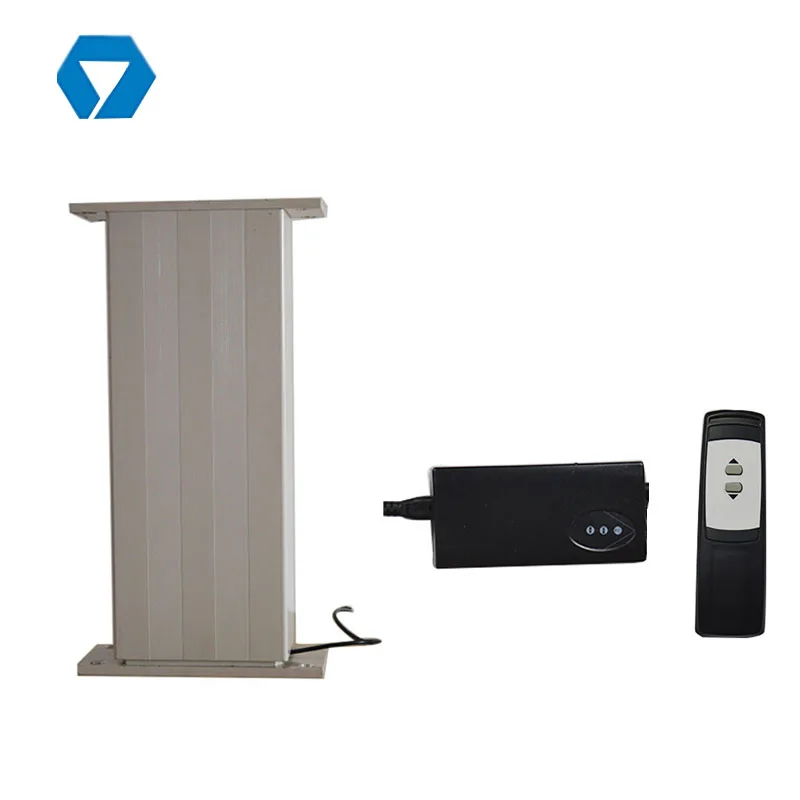

	Product Attributes Brand:YONGNUO Model:YNT-06 Electric lift column Customization: Yes Product Type: Brush DC Motor Controller input voltage: 110-230VAC The output voltage:12/24VDC   Rated speed: 4000 (rpm) You can configure a wired or remote control

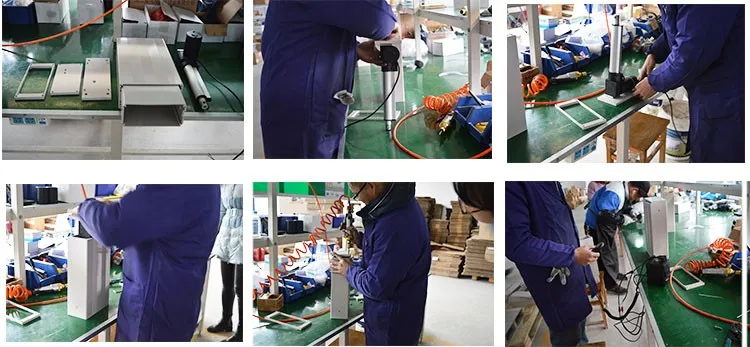

Installation process





YNT-06 Electric lift column— Quality Certification:ROHS and CE





Welcome to YONGNUO!

  We specialize in manufacturing linear actuator, control box and handset. Our products are widely used in sofa, bed lifting, TV lifting, hospitable bed, window opener, door opener, industrial equipment, agricultural machinery, Sanitation Sweeper, Special vehicles and solar tracking. We are dedicated to producing products with high quality and reasonable price, meanwhile, our staff are always available to meet your requirements and ensure full customer satisfaction. In one word, we are your ideal cooperator. Choose us, you will choose success!

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How much is the packaging size?

A: Packing size is in accordance with your order, your product specifications to determine the package size.

Q: How much does shipping cost and what shipping methods do you support?

A: Shipping cost  is calculated based on the weight of the order and the distance it is travelling;

Transport of large trucks to the seaport and international transport cooperation

Q: How long is your delivery time?

A: Generally it is 3-7 days if the goods are in stock. or it is 7-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide customized Functions ?

A: Yes, we can design and program as your requirements.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us
