Product Overview

Description

QDY YZ 300 120 60 250 100 400 500 150 50 ton heavy duty casting crane lifting machine price with hoist winch trolley



Product Introduction



Application

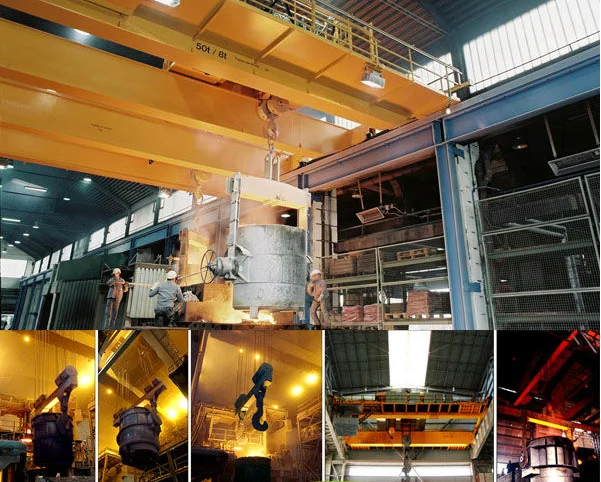

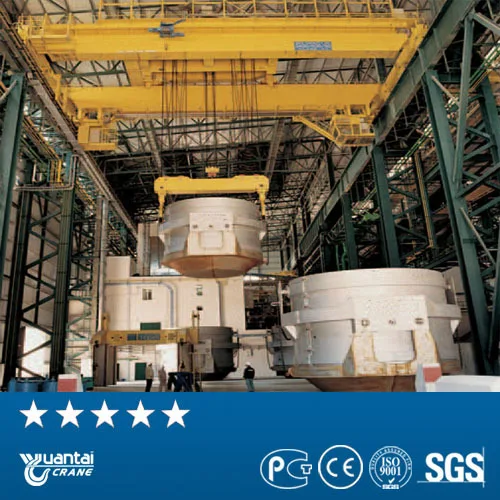

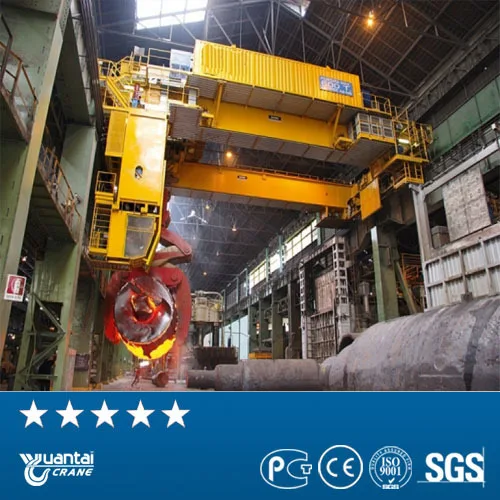

Overhead casting crane also called foundry crane , ladle crane, is one of the main equipments in the continuous casting technology of steelmaking. It mainly used to lift molten metal at steel plant and other place, and pour melted iron from additive bay of converter to converter; lift molten steel from refining bay to refining furnace or lift molten steel from molten steel bay to ladle turret of continuous casting machine.

The working class of the whole machine is A7, and thermal-protective coating is added at the bottom of the main girder. Some places where molten nonmetal material and red-hot solid metal is lifted also can refer to this document.



Types

Depending on two different lifting capacity ranges, casting crane has two types: QDY series bridge foundry crane and YZ series ladle overhead crane.

QDY series bridge foundry crane rated lifting capacity is from 5 ton to 74 ton, YZ type overhead casting crane rated lifting capaicty is from 74 ton to 500 ton.

The overall structure of foundry crane has the following forms: double-girder and double-rail, four-girder and four-rail, four-girder and six-rail, etc. The form of double-girder and double-rail, and four-girder and four rail are mainly used for middle and large tonnage casting crane; the form of four-girder and six-rail and two trolley is mainly used for extra large-tonnage casting crane.



Main Parameters

Mechanism item		Unit	Result
Lifting cpacity		ton	5-550 ton
Lifting height		m	7.5-31.5m
Span		m	7.5-31.5 m
Working environment temperture		°C	-10℃~+60℃
Speed	Main hook	m/min	1.8-15.5
	Auxiliary hook	m/min	4.7-14.5
	Trolley travellling	m/min	26-43.8
	Crane travelling	m/min	38-116.8
Working system			A5,A6,A7
Power source			three-Phase AC 50HZ 380V

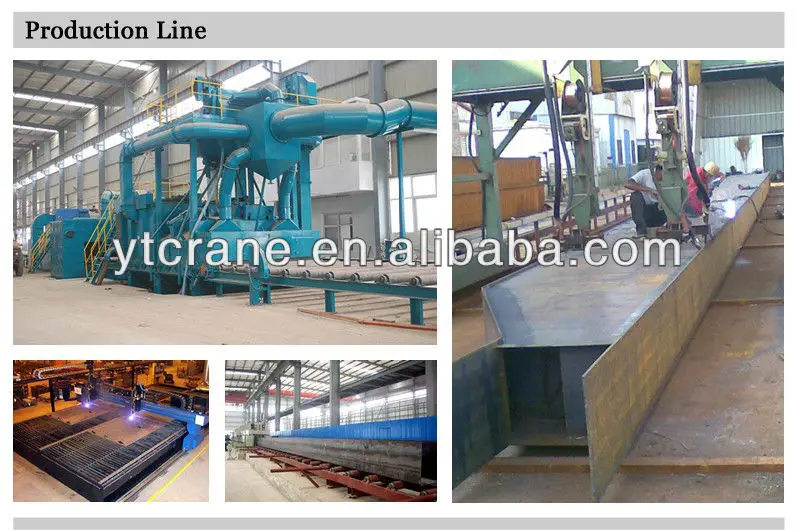

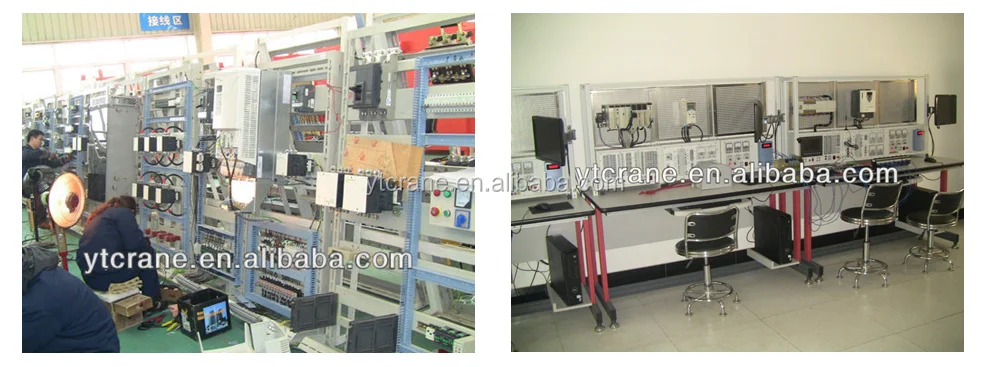

Production technology

1. Professional spare parts workshops

2. Strict manufacturing and testing standards

3. Even supply components to other crane and hoist manufacturers

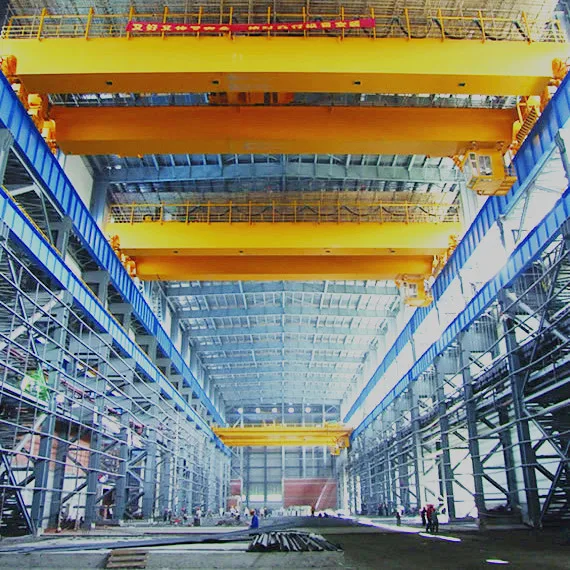

Projects









Functions

1. The mechanisms can be speed governing 1:10 or larger;

2. The lifting appliances are rotable;

3. The spacing of portal hook is variable;

4. Limit and warning for overloaad;

5: Weighing and display of load, PLC control and failure detection, display, record and printing system;

6. Prevent collision between cranes of same span.

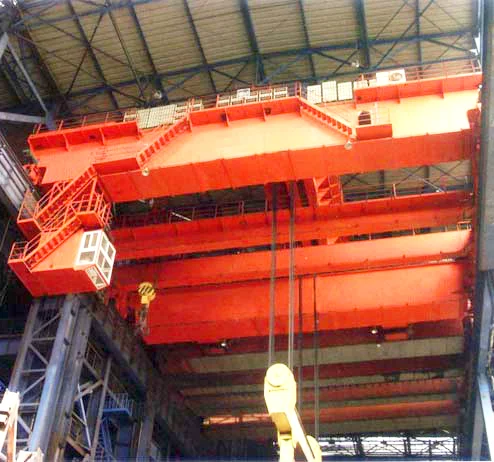

Crane Installation

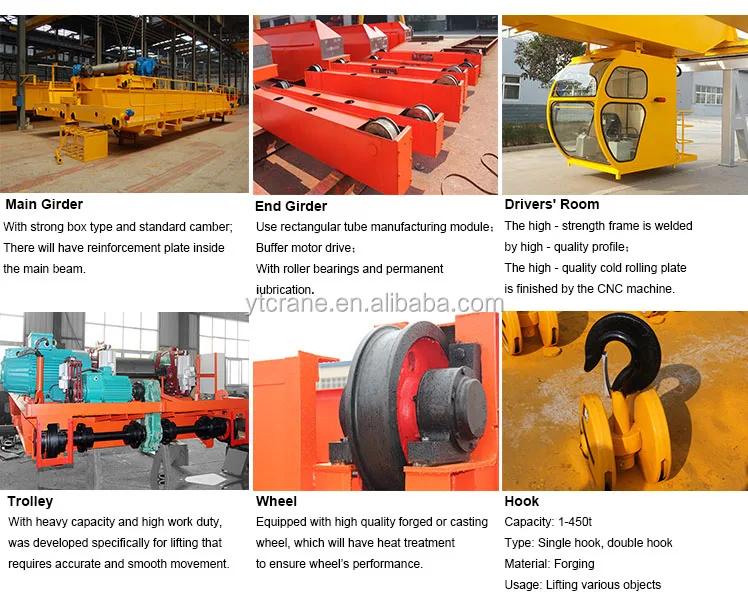

Crane details

Overhead casting crane mainly consists of main girder, end truck, winch trolley, hook groups, cabin, crane traveling mechanism and electrical system, etc.



Packing & delivery



1. Electrical parts are packed by strong plywood box, to prevent the rain soaked.
2. Main portal frame and others are packed in plastic woven cloth, to prevent corrosion in seawater.





Certificates



Exhibition & Visit



Company information

Yuantai Crane Machinery is professional logistics handling products exporter, with long history trading time having rich technical experience. We are located in Changyuan--- the crane's hometown, have passed the ISO9001 quality system certification, ISO14001 environmental management system certification and OHSAS18001 occupational health and safety management system certification of enterprise, and CE certification. our products are recommend by WTO. Yuantai always adhere to customers first,holding positive attitude to satisfy the customers' the demand.



FAQ



1.Is your products cuztomized?

Thanks for your question, yes.because the working condition is different, all our products are cuztomized, depending on the detail require, so if you give us more information, the accurate solution we can prepare for you.



2.What the information should i provide when i am inquiry?

Thanks for your question, the more information you provide, the accurate solution prepare for you! The information such as lifting height, lifting capacity, span, power source or other specials you provide will be much apprciated.



3.How many operation methods for my selction?

Thanks for question. The standard operation methods we provide is pendent controller with push buttons, meanwhile,we also can provide remote control with push buttons or the cabin.



4.The space of my workshop is limited, can the crane ok for me?

Thanks for your question. For low headroom workshop, we have special products. The details demension our engineer will be design for you.



5.Do your side can provide lifting tools?

Thanks for your question. Yes, we can provide any kind of lifting tools such as hook, electricmagnetic, grab...

NOTICE:

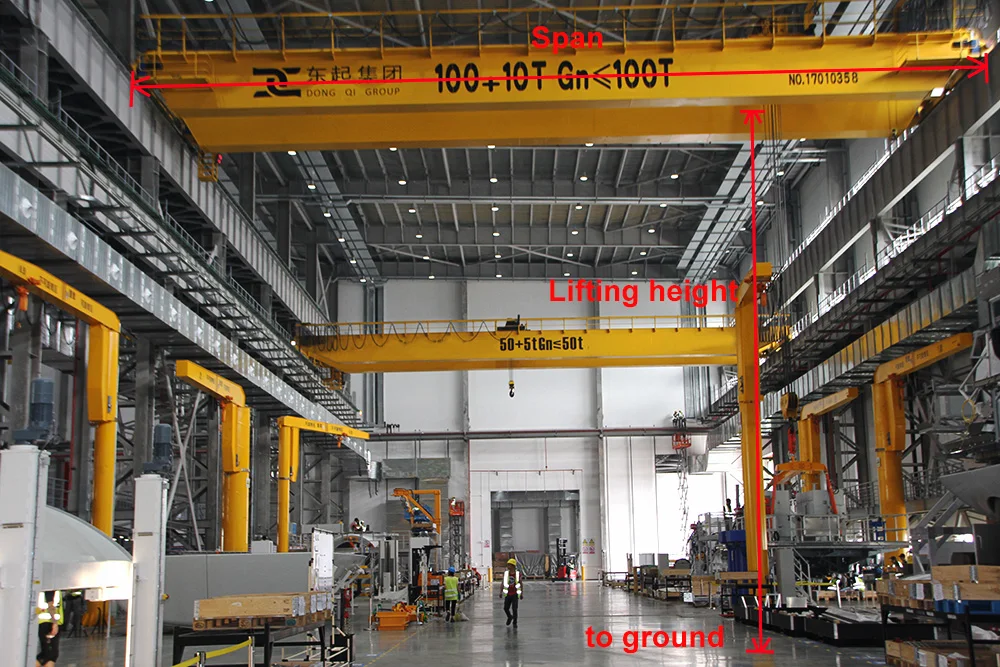

As this kind of crane is customized, in order to offer you most suitable design and best solution, please confirm following information when you send inquiry.

1. Lifting capacity.

2. Span length.(rail center to rail center)

3. Lifting height.(hook center to ground)

4. Have you installed the rails? Do you need us supply the rails? How long is it?

5. Power supply: Voltage.

6. Working condition: which material to lift? temprature?

7. Would be better if you have drawings of your plant.
