I вал бесшумный механизм движения с высоким крутящим моментом
- Category: Clock Parts & Accessories >>>
- Supplier: Dongguan Jiahao Clock Manufacturing Co. Ltd.
Share on (60760577466):
Product Overview
Description
I Shaft Continuous Sweep High Torque Movement mechanism
Using: wall clock, table clock, decortive clock,wonden wall clock,home clock, 3D clock,DIY clock
LOGO: Customize logo is available
Warranty: 2 years
Defective rate: no more than 0.3%
Choose the suitable model:
For example: clock dial 5mm JHS001HTSA-17mm is suitable for your clock
| Type | Shaft Length(mm) | Centre Screw Height(mm) | |
| Minute | Hour | ||
| S001HTSD - 9mm | 9.0 | 6.0 | * |
| S001HTSA - 11mm | 11.0 | 7.5 | 3.2 |
| S001HTSA - 12mm | 12.0 | 8.5 | 4.8 |
| S001HTSA - 13mm | 13.0 | 9.5 | 5.2 |
| S001HTSA - 14.5mm | 14.5 | 11.0 | 6.7 |
| S001HTSA - 17mm | 17.0 | 13.5 | 9.0 |
| S001HTSA - 20mm | 20.0 | 16.5 | 11.7 |
| S001HTSA - 22.5mm | 22.5 | 18.8 | 15.0 |

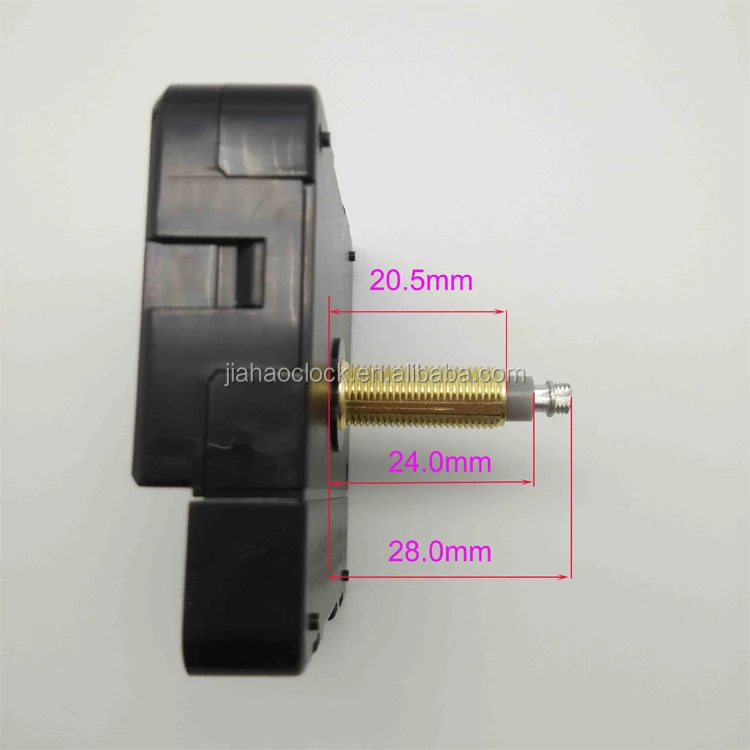

| S001HTSA - 28mm | 28.0 | 24.0 | 20.5 |
| S001HTSA - 31mm | 32.0 | 28.5 | 25.0 |

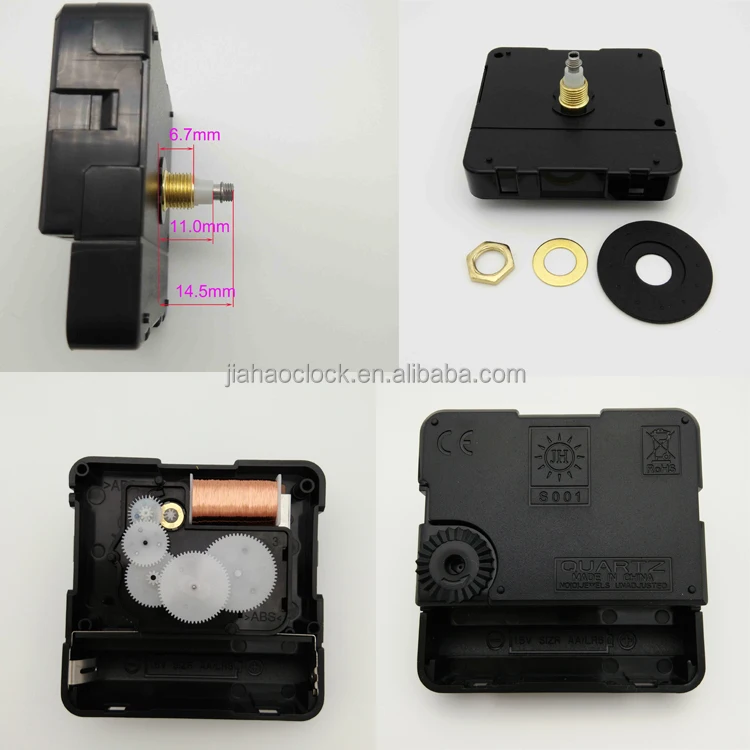

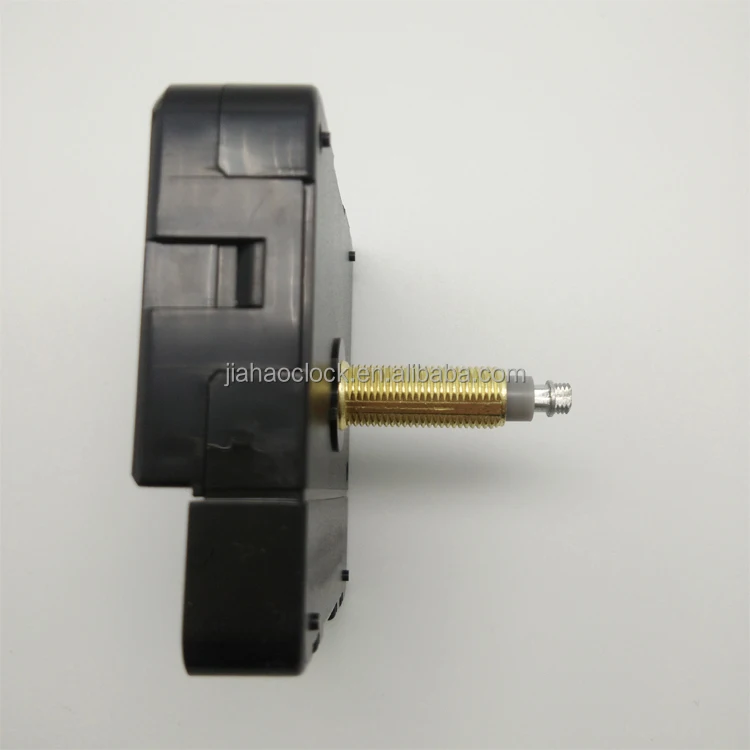

Pictures for your reference
Technical Parameter
| Crystal Oscillator | : 32.768KHz | Dutput Torque | : 0.8gf-cm /1.50v | ||||
| Accuracy at 25°±3° | : ±30 sec/month at 1.5V | Battery Size | : AA size(R6) | ||||
| Operating Voltage | : 1.30V to 1.7v | Battery Life | About 1 year | ||||
| Operating Temperature | : -10℃ to 50℃ | Allowed Hand Length Weight | |||||
| Motor Type | : Two-pole stepping motor | Minute | : Less than 160mm,6g | ||||
| Average Consumption Current | Second | : Less than 130mm,6g | |||||
| Normal | : Less than 180uA at 1.5V | Pendulum Length | : 200mm | ||||
| Pendulum Weight | : 40g | ||||||
Package and shipping
inside the foam to protect the clock movement. 500pcs/ctn
1>Minute shaft :9mm to 17mm carton: 40cm*36*38.5cm 0.059CBM/CTN
1Gross weight :14.5kg Net weight: 13.5kg
2> Minute shaft : 20 to 23mm Carton size: 47*41*42CM
Gross weight :17kg Net weight: 15kg
3>Minute shaft: 28mm to 31mm Carton size: 60*40*41CM
Delivery time: 7-20 days
Payment terms: T/T ,WESTERN UNION AND TRANDE ASSURANCE ORDER
