Plastic thermoforming machines price egg tray plc machine for sale cup lid
- Category: Plastic Vacuum Forming Machines >>>
- Supplier: Shenzhen Longgang Huaxiang Machine Factory
Share on (60760634649):
Product Overview
Description
Process
Forming Process
Material feed→Heating→Forming→Sheet Clamping→Robot hand rise→Pull out→Sheet fall and stacking
Cutting Process
Take the sheet from Vacuum forming machine→cutting
Description

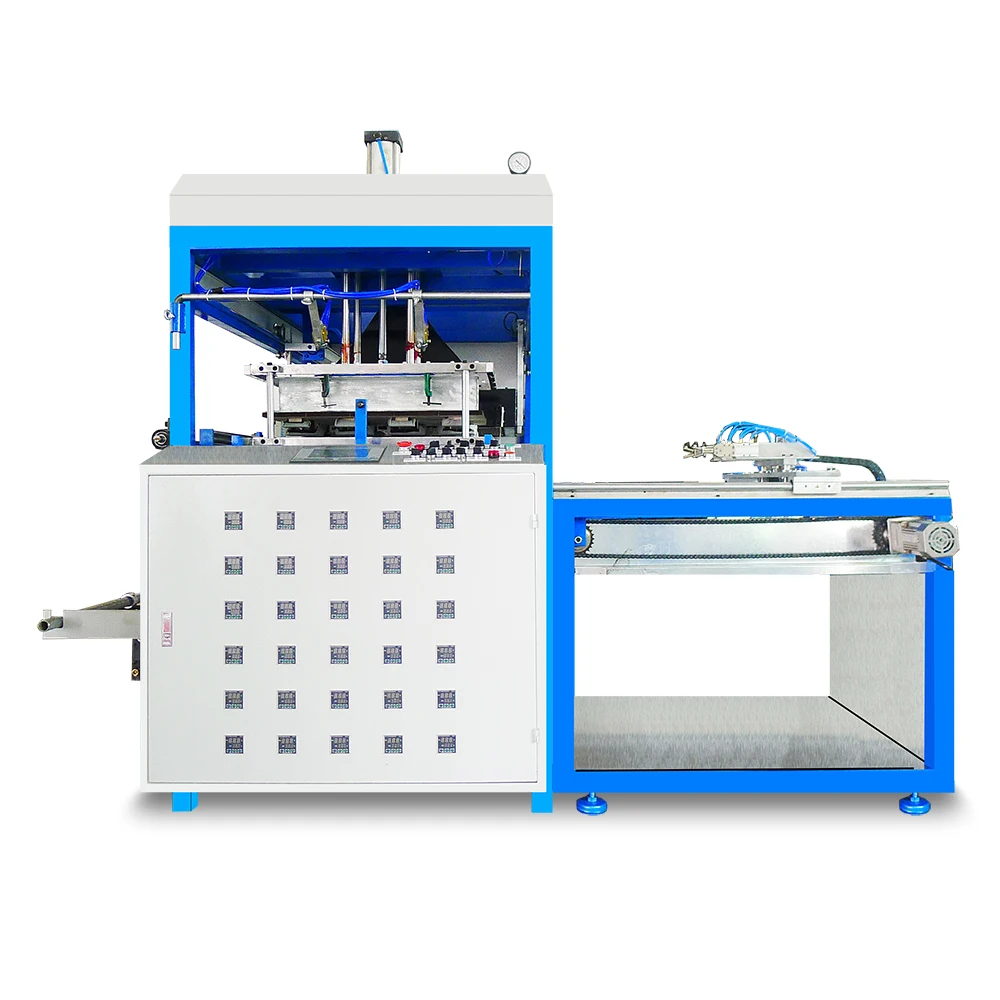

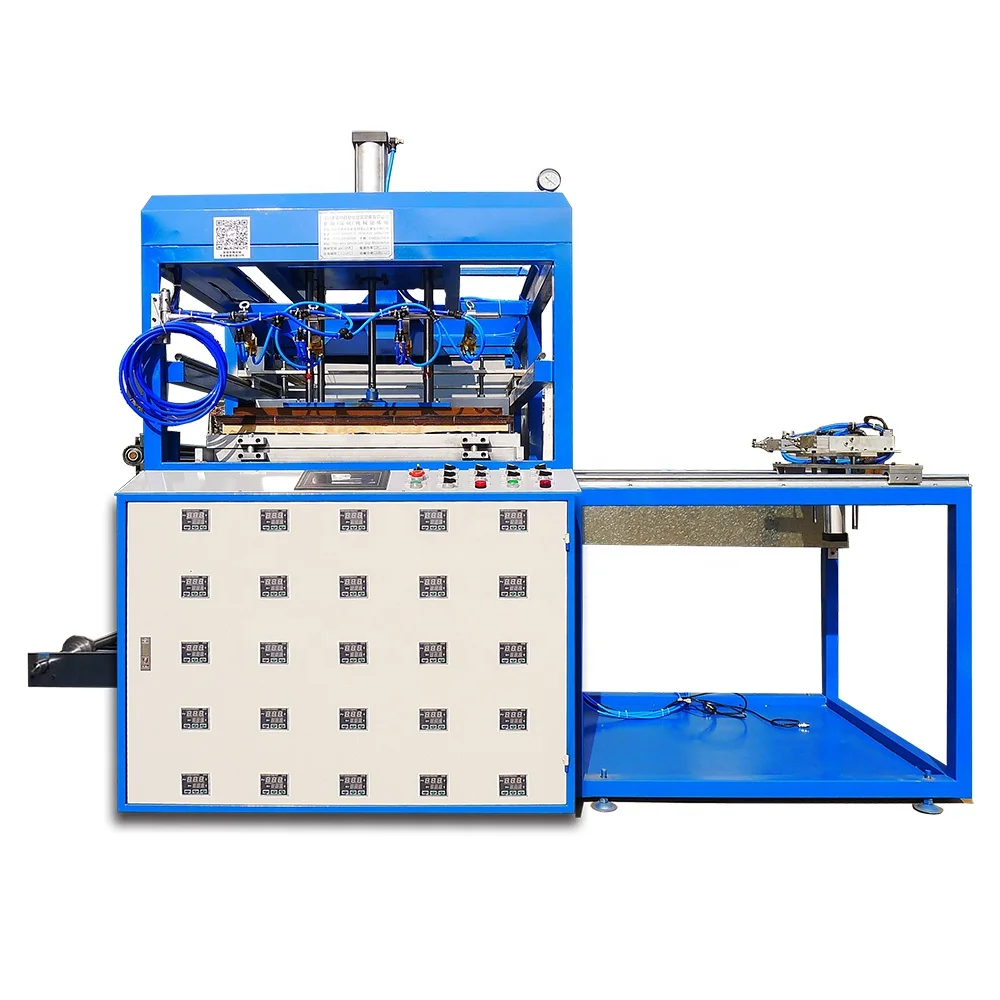

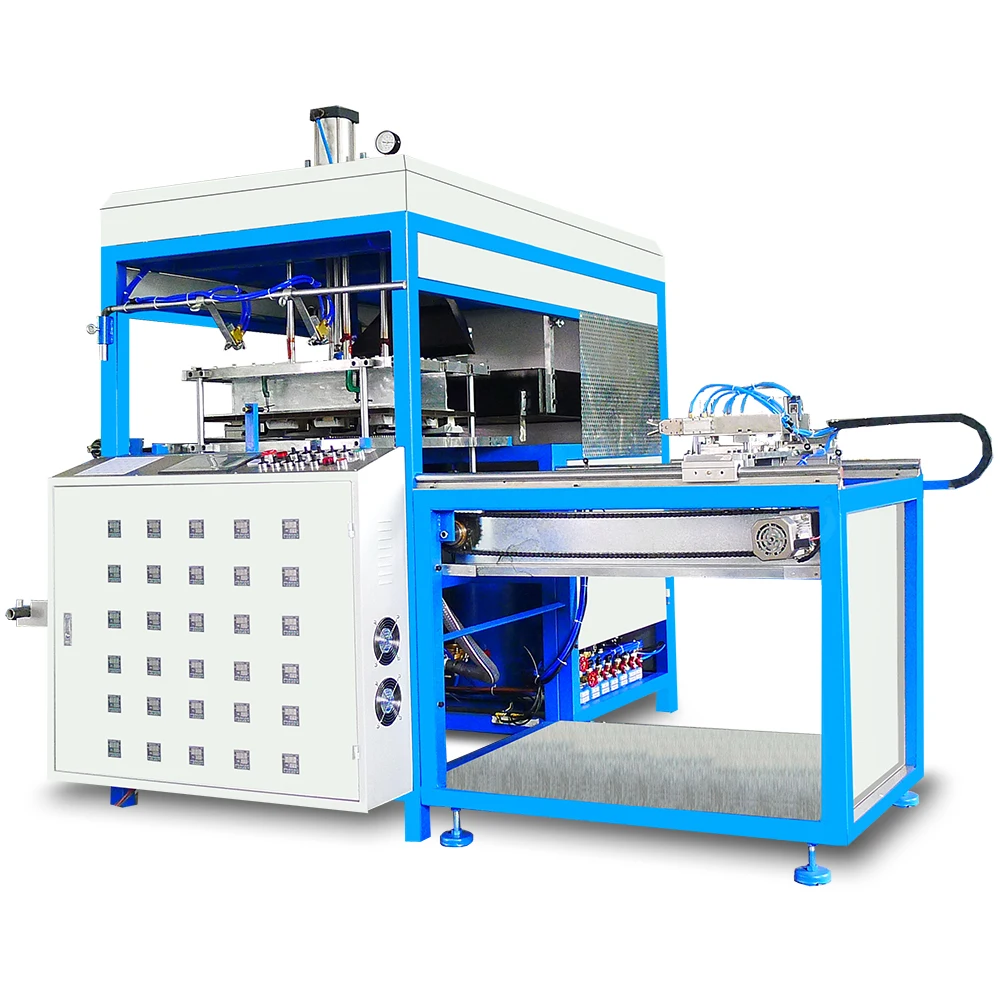

HX-600 Series Vacuum Forming Machine - compact type 2
INFO
HX-600 series is user friendly machine with the power and capability to form demanding shapes and materials, Price-performance ratio for automatic production class machines. Efficient heat management, ease of use, compact and accessible price are instrumental to the internationally successful by many companies.
Application
Thermoforming differs from injection molding, blow molding, rotational molding and other forms of processing plastics. Thin-gauge thermoforming is primarily the manufacture of disposable cups, containers, lids, trays, blisters, clamshells, and other products for the food, medical, and general retail industries.
Types of thermoforming molds
Wood Patterns ;
Cast aluminum Molds;
Machined aluminum Molds;
Composite Molds;
Bigger forming size,adjust mold table,more powerfully vacuum pump
Hot sales machine,Suitable various packing blister, etc production.
Economic model for power cost saving.
Model | HX-600A | HX-600B | HX-600C | ||
Forming Length (mm) | Max.720 | Max.610 | Max.610 | ||
Forming Width (mm) | 410-560 (Adjustable) | 560 | 560 | ||
Roll Material width | 460-610 (Adjustable) | 610 | 610 | ||
Heater(pcs) | 30 | 25 | 25 | ||
Power (Kw) | 19.5Kw | 16.2Kw | 15Kw | ||
Vacuum Pump(M³) | 100 | 63 | 40 | ||
Cooling Fan | ● | ● | ● | ||
Upper Mold | ● | ● | N/A | ||
Digital Temperature Control | ● | ● | N/A | ||
PLC Control | ● | ● | N/A | ||
Robot hand rise/fall | ● | ● | N/A | ||
Mold table with cooling | ● | N/A | N/A | ||
Mold table with width Adjustable | ● | N/A | N/A | ||
Spray Gun(pcs) | 4 | 2 | N/A | ||
Material | PET,PVC,PP,PS,ACRYLIC,ABS | ||||
Material type | Roll or Sheet, thickness:0.1-2.0(mm) | ||||
Machine Size (meters) | L2.7×W2.1×H2.1 | L2*W1.5*H2.1 | L2*W1.5*H2.1 | ||
Machine Weight(Kg) | 800 | 650 | 500 | ||
Main Features
1. Rapid, energy efficient ceramic heaters with variable standby, 25/30 independently controllable zones provides accurate heat control for consistent, high definition results;
2. pneumatic table and clamping provides effortless operation, whilst the vacuum tank system fitted as standard facilitates ultra-fast response for demanding applications and fast cycle times;
4. High output fans provide rapid cooling to speed up cycle times;
5. In the digital temperature controller, temperature setting is convenient, high precision of temperature control;
6. Automatic forming the roll sheet, also able to use board sheet to loading pieces by pieces;
7. Twice vacuum
Machine function: Extra function for HX-600A/B:
1.Ceramic Heaters with Variable Standby
2.Pneumatic Heater Drive
3.Pneumatically Powered Clamping Frame
4.Big Cooling Fans
5.Reel Feeder
6.Automatic finished unloader
7.30/25 Independently Controllable Heating Zone
8.Vacuum Receiver Tank
9.Vacuum Flow Regulator
10.Vacuum and Pressure Gauges
11.Safety Lighting
12. Spray Gun (Spray Mist)
13. Upward air blown gas
1.PLC Control
2.Programme Memory
3.Digital Temperature Control
4. Robot Hand rise/fall
5.Electronic mold table with Width adjust(Optional)
6.Mold table with Cooling(Optional)
Detailed Parts
Robot hand and sheet clamp
Good use for the taller products, make sure the blister tray not locked by frame;
sheet clamp x3 , sheet catch stable;
PLC Control
Includes two kinds of control mode such as PLC mode and press-button control;
Electricity box
The switch, electricity meter of the meter box are set in separate area;
The floor box provides a plurality of facilities, such as vacuum and electricity;
Japanese and Germany accessories;
Industrial cooling fan
Compared with other types of engine's cooling fan-driving system, our cooling system is more reasonable;
Ceramic heating oven
25/30 pcs Ceramic Heaters;
Power:16kw or 19Kw (every 0.65kw)
Heater size:12cm*12cm;
Save 10% power compare with competitors;
Digital temperature or micro controller
In the digital temperature controller, temperature setting is convenient, high precision of temperature control;
25/30 Independently Controllable Heating Zones;
Vacuum pump
Brand: Rietschie Thomas or Chinese Brand(Optional);
Original: Germany or Chinese (Optional);
100m³,63m³,40m³,20m³ (Optional);

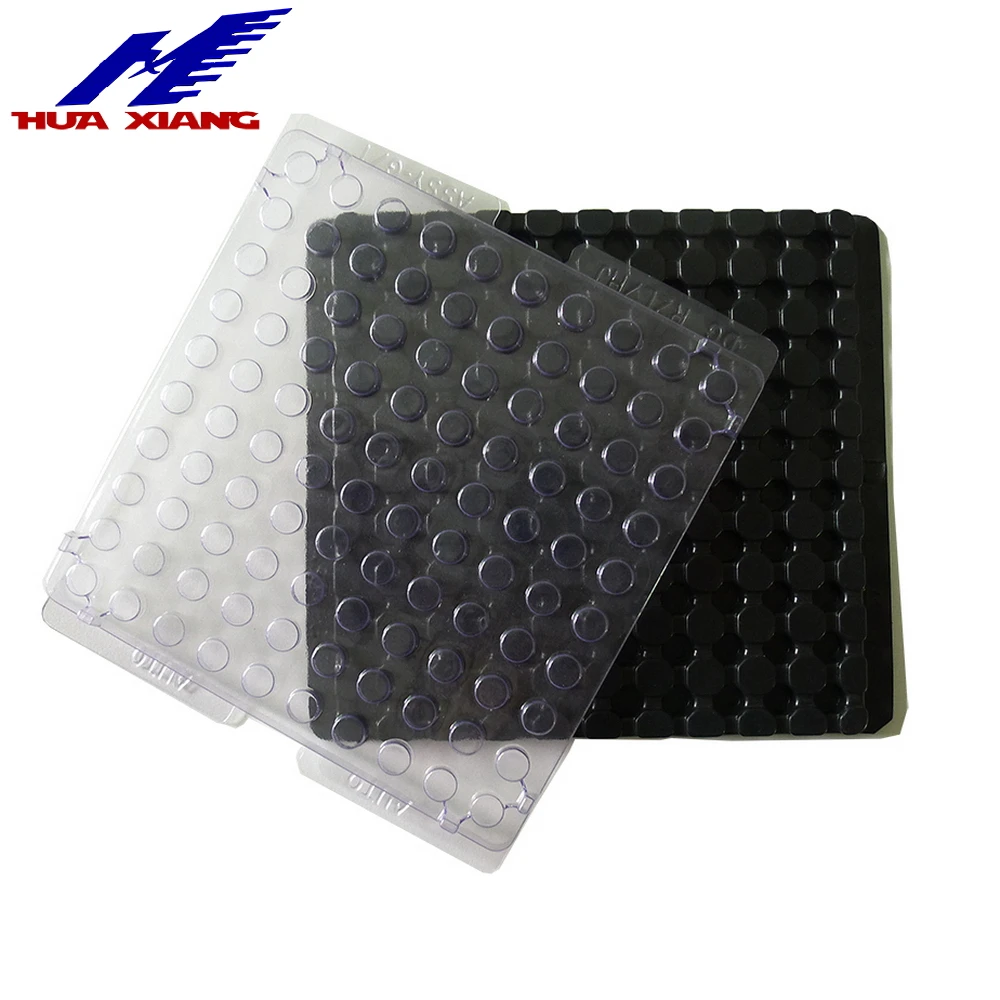

Sample
PVC Tray Thickness: 0.3mm, forming time: 6s;

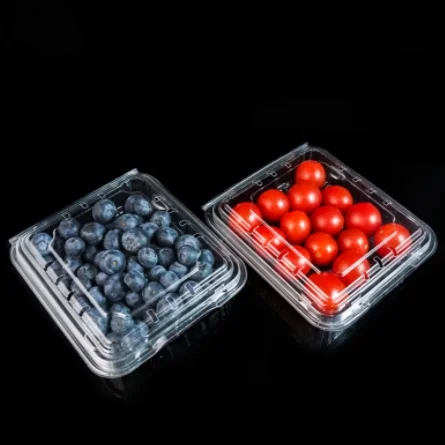

PET Fruit box,thickness:0.38mm;
PE FOAM, Thickness:0.8mm, Forming time:6s;
PS Tray,Thickness: 0.7mm Forming time: 10s;
Packing & Delivering
Factory Info
Shenzhen HUAXIANG Factory Co. , Ltd is a diversified export-oriented enterprise integrated with technology, industry and trade. established in 2005, is the largest enterprise specializing in the production of Forming Machine. Our machine are used a lot in plastic forming,plastic packaging.
In order to help you choose the best suitable machine, please try to reply my questions below, thanks for your cooperation.
Q1: What about your material ?
Q2: The size of your sample; length Width and thickness?
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

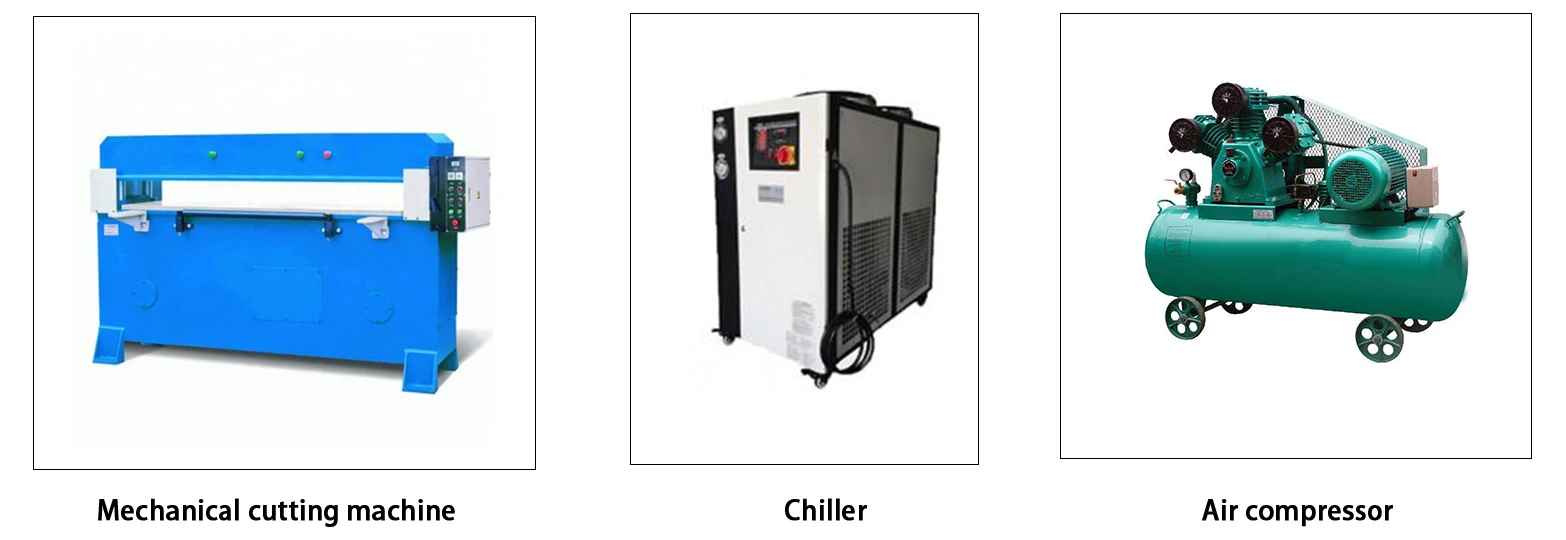

Auxiliary equipment
Because plastic thermoforming machine is used for forming blister, you will need a cutting machine for cutting process. What's
more, you will need a chiller for cooling. Air compressor is also requisite.
