Product Overview

Description


Product Description

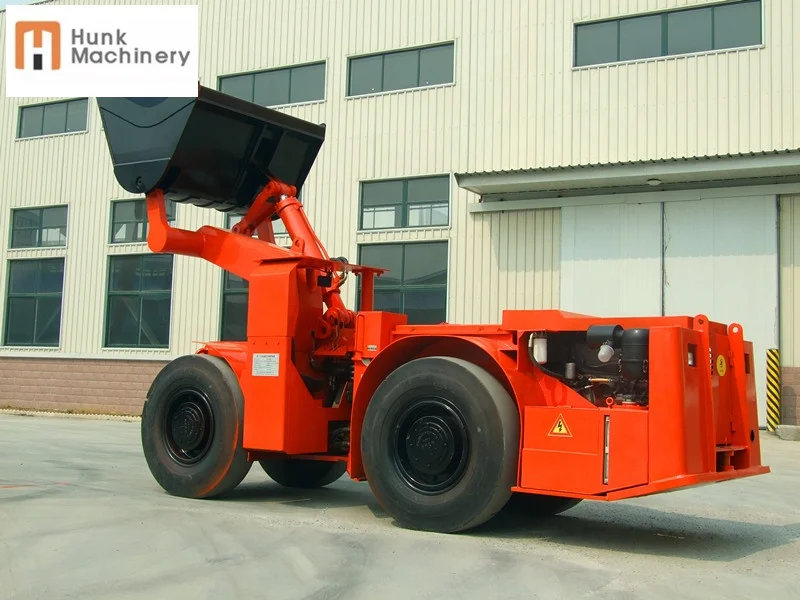

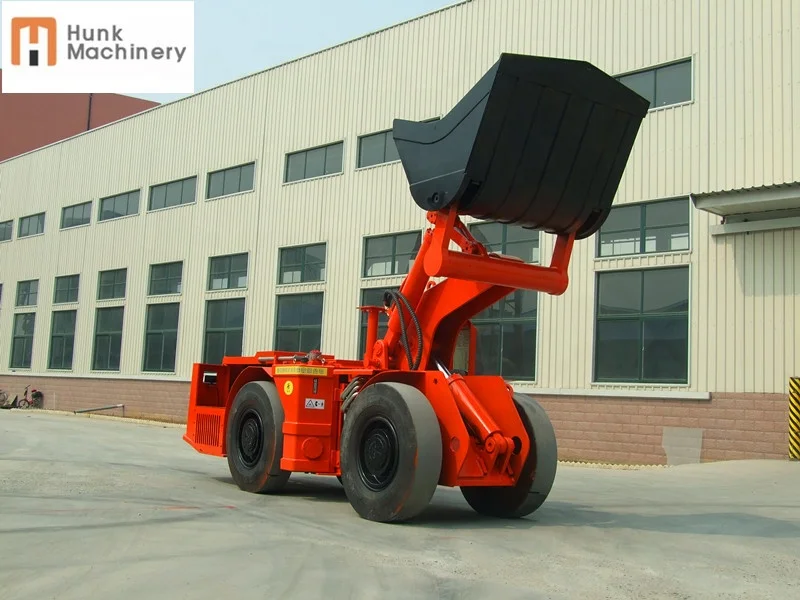

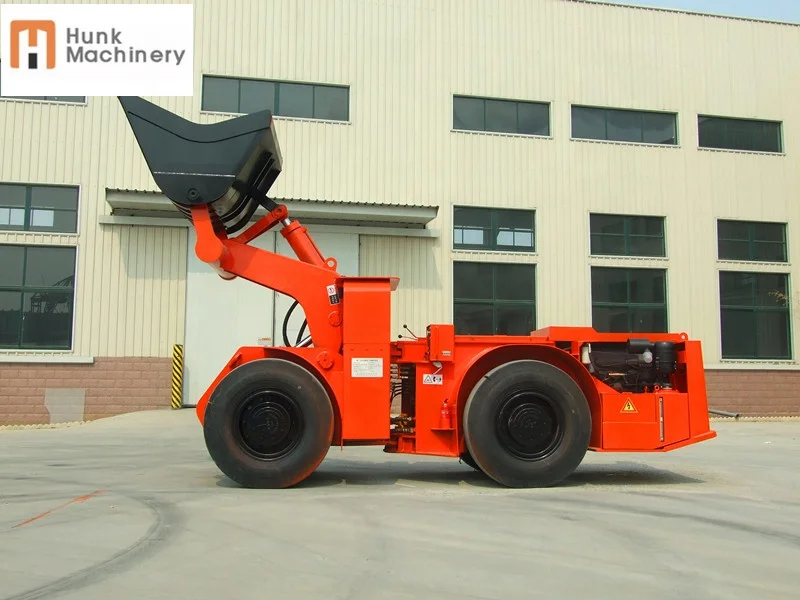

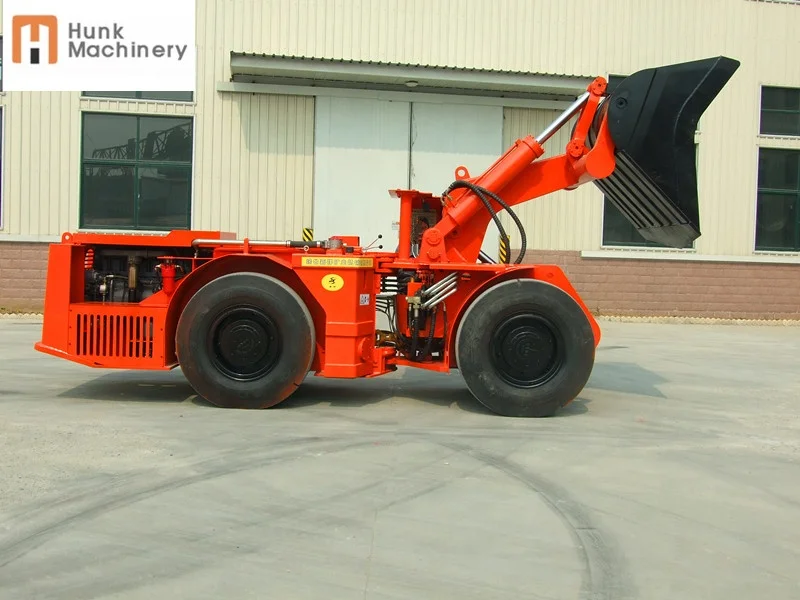

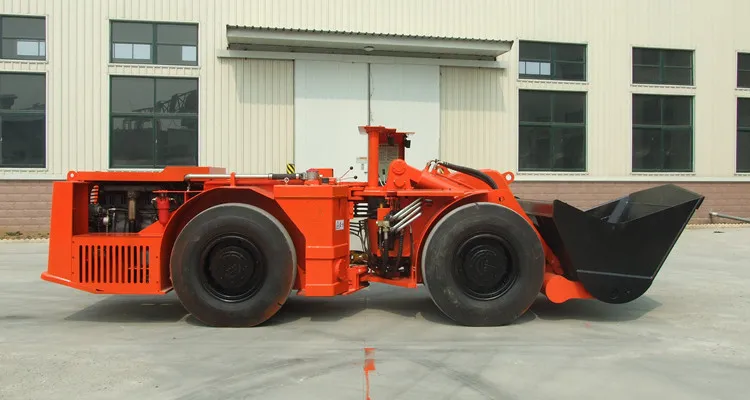

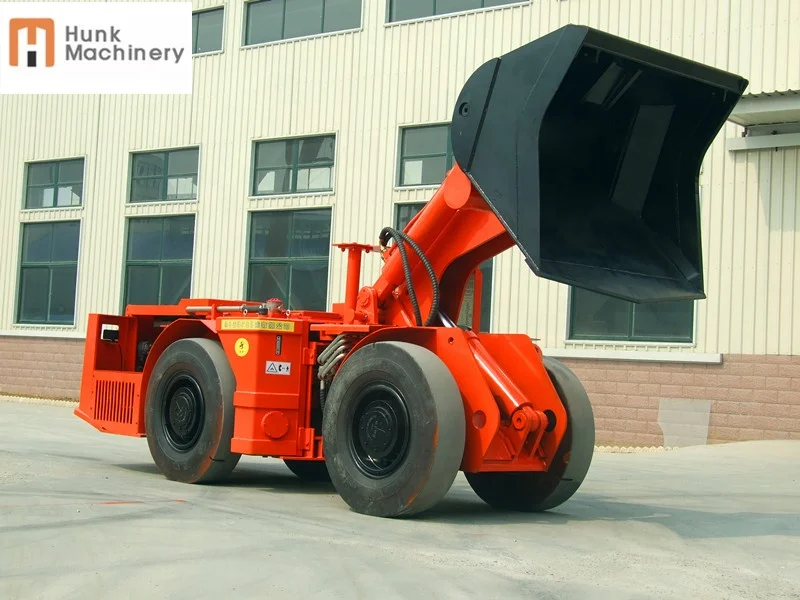

Product name: Underground Diesel Loader 2 m3 made in Yantai

=============================================

Engine
DEUTZ F6L912W or BF4M1013EC engine.
Transmission and converter
DANA TR20000 or R32000 transmission and C 272 series torque converter.
Axles
Service brake is fully enclosed multiple wet discs brake, spring applied and hydraulic released.
NO-SPIN differential in front axle.
Others
Central articulated, hydraulic power steering.



Main Technical Parameter:

EngineDEUTZ F6L912W, 63 kw or BF4M1013EC, 102 kw
Bucket Volume2 m3Arm Raising Time≤7 s
Tramming Capacity4000 kgBucket Dumping Time≤5 s
Max.Breakout Force102 kNMin.Clearance280 mm
Max.Traction104 kNMax. Discharge Angle40°
Max.Discharge Height1743 mmMax.Turning Angle±42°
Max.Raising Height4218 mmRear Axle Oscillation±7°
Max.Gradeability (First)20°Leaving Angle16°
Min. Discharge Distance Wheelbase2540 mm
Speed (loaded)First gearSecond gearThird gear
Forward and reverse0-3.8 km/h0-8.4 km/h0-22.8 km/h
Min.Turning Radius4768 mm(outer)  2461 mm(inner)Tyre specification

12.00-24



Detailed Image

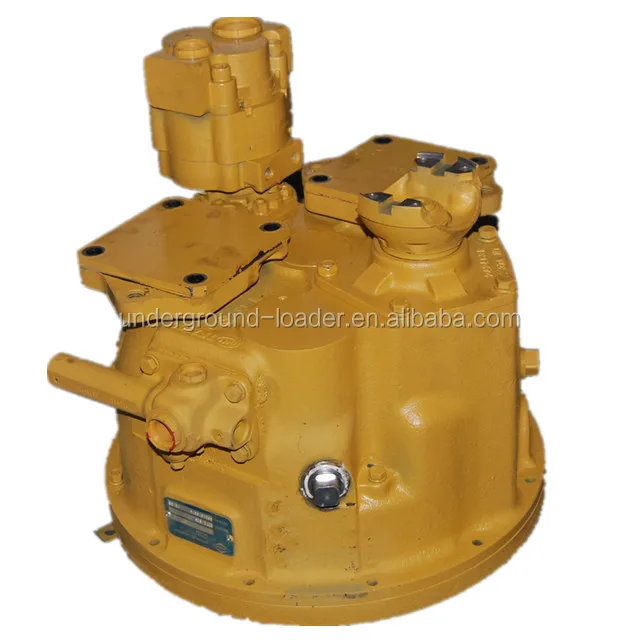

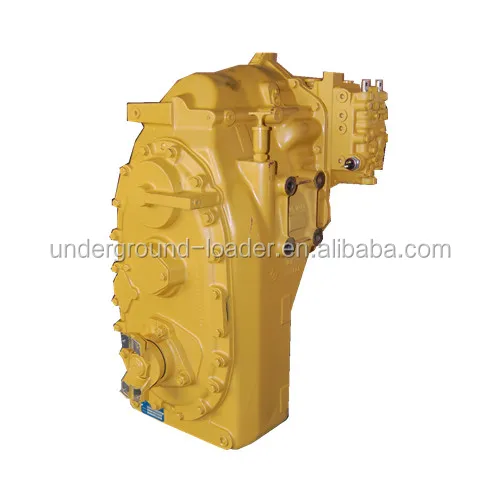

DANA Transmission

The Spicer 32000 transmission provides optimal performance for heavy-hauling and mining applications. Available in numerous configurations, and options offer highly adaptable solutions to meet almost any vehicle requirement.

DANA Converter

The Spicer® C270 torque converter is  designed for vehicle applications in construction, mining, material-handling and other industrial applications. The highly reliable C270 offers flexible options to match most engine requirements, maximizing machine performance & efficiency.









Factory
Our Service

Pre-Sales Service                                                   After-Sales Service

* Inquiry and consulting support.                        * Training how to install & use the machine.

* Sample testing support.                                   * Engineers available to service machinery                                                                                    overseas.

* Factory visiting.
