KPY2 C 50mm Linear Side Actuated Ball bearing gauge head position sensor Position converter
- Category: >>>
- Supplier: Shenzhen Minor Electronics Co. Ltd.
Share on (60760659999):
Product Overview
Description
Products Description
KPY2 Series Spring self-reset displacement sensor
◇ Displacement stroke 0-200mm
◇ High resolution and no interference from external signals
◇ Displacement speed 10m/s
◇ Output:①voltage divider ②RS485 ③RS232
④ Voltage signal :DC24V output 0-5V/0-10V
⑤ Current signal: DC24V output 4-20mA
◇ Derive the connector

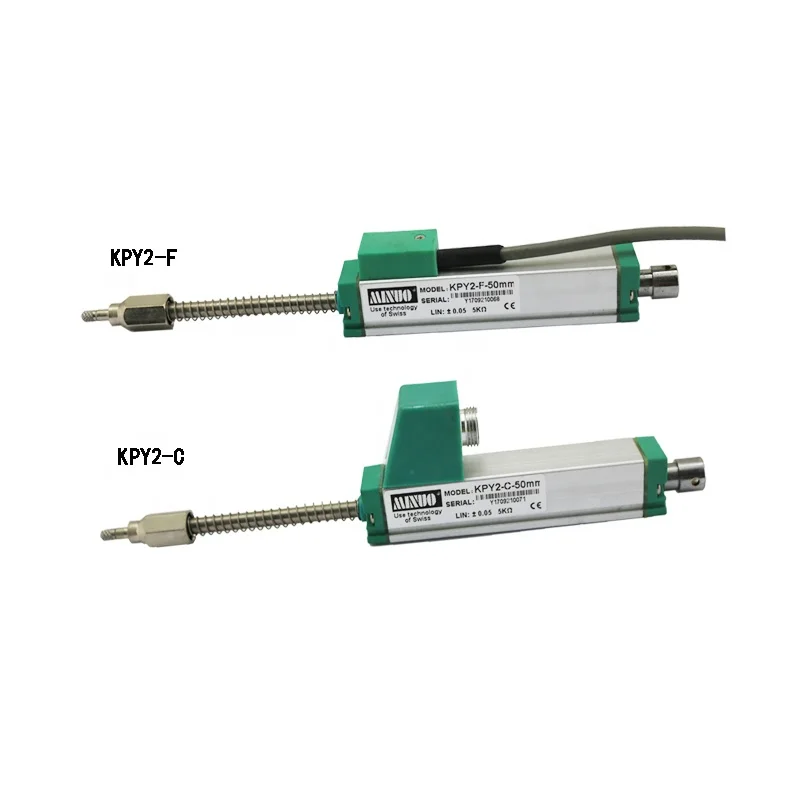

KPY2-F cable output
KPY2-C connector output
◇ Service life is greater than 100*106 times under different conditions
◇ High resolution and no interference from external signals
◇ Displacement speed 10m/s
◇ Output:①voltage divider ②RS485 ③RS232
④ Voltage signal :DC24V output 0-5V/0-10V
⑤ Current signal: DC24V output 4-20mA
◇ Derive the connector
KPY2-F cable output
KPY2-C connector output
◇ Service life is greater than 100*106 times under different conditions
Electrical parameters | |
range（mm） | 0----200 |
resolution | Infinite |
Resistance tolerance | ±20% |
Normal working current of brush | <1uA |
Maximum current | ≤10mA |
Maximum operating voltage | 42V |
Drift per ℃ | <1.5ppm/℃ |
insulation resistance | >100MOhm at 500v |
Dielectric strength | ≤100uA (500VDC,50HZ) |
Environmental parameters | |
Working temperature | -30...+120℃ |
Storage temperature | -50...+120℃ |
Maximum speed of movement | ≤10m/s |
movement | ≤4N |
Anti-vibration standard | 50g 11ms |
Shock resistance standard | 5~2000HZ Amax=0.75mm amax=20g |
dimension drawing

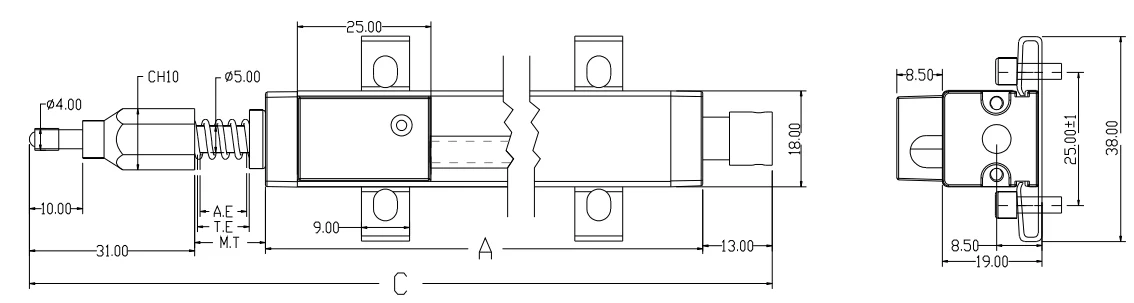

KPY2-F

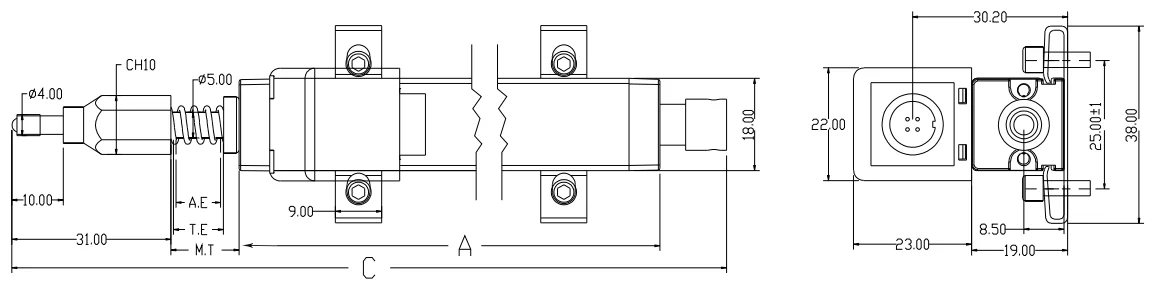

KPY2-C

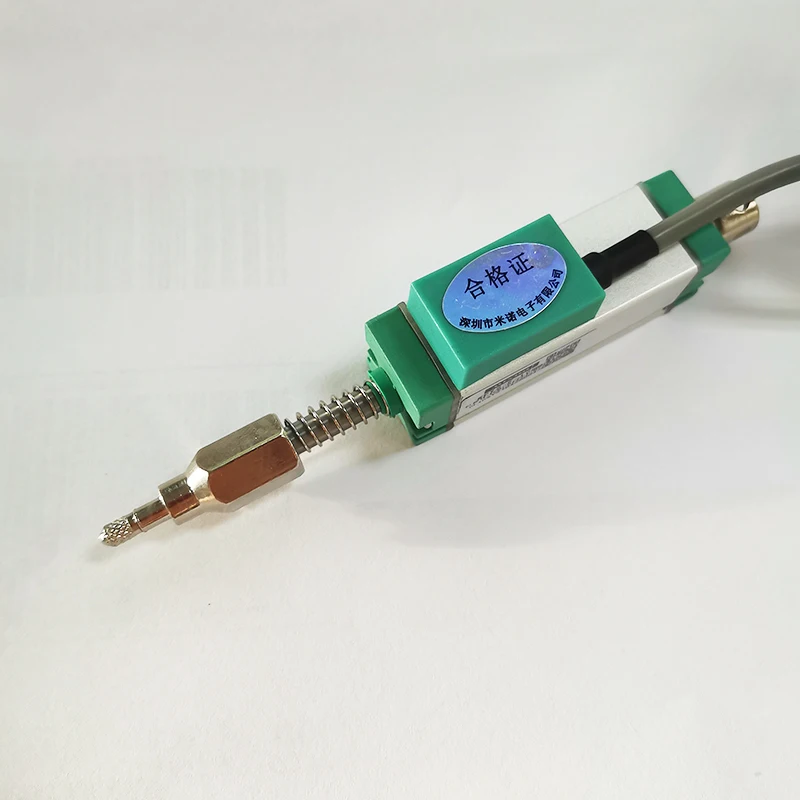

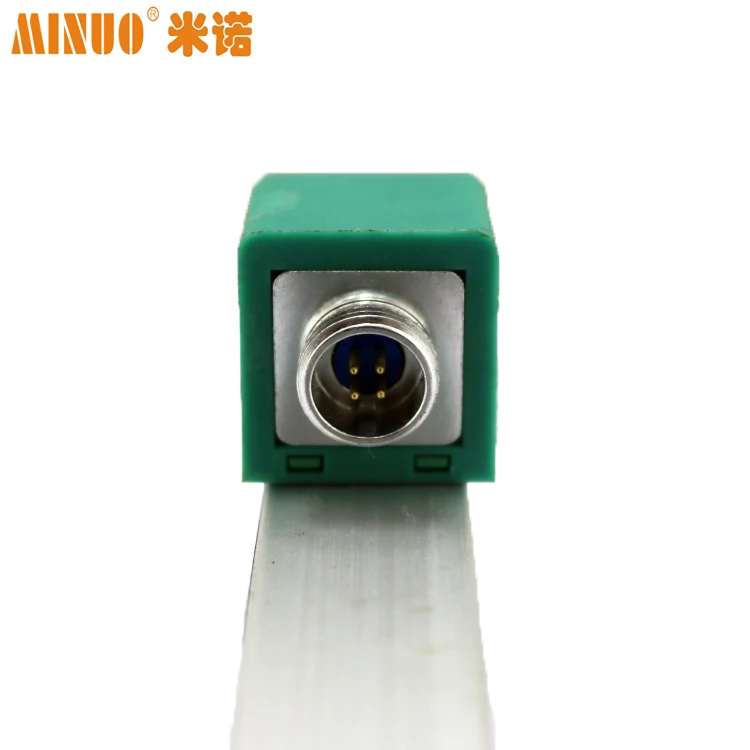

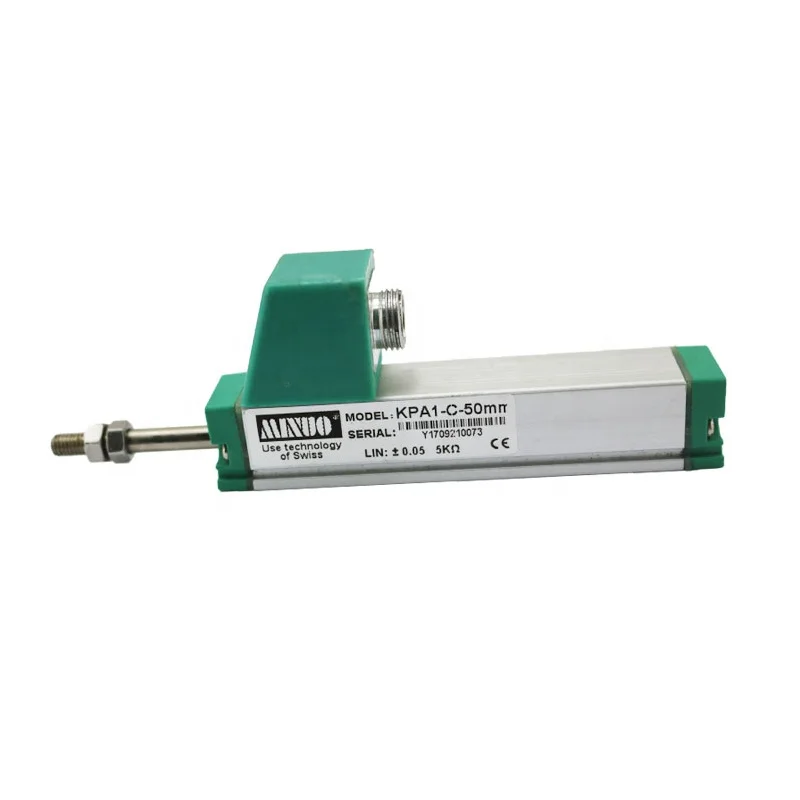

Details Images
Free installation accessories
Free installation accessories
Company Profile
Shenzhen minor electronic co., LTD., founded in 2004,minor main production and sales of conductive plastic displacement sensor(electronic ruler), Angle displacement sensor (including auto direction power sensor, gas sensor, throttle sensor, car seats,gearbox sensor, etc.), Pull rope (line) displacement sensor ，transmitter, magnetostrictive displacement sensor, intelligentdigital display table, grating feet, range from 5 mm to 30 m, product accuracy is 0.1%, 0.05%, 5um, 1um variety, completespecifications and models, range range service life and accuracy in the leading position in the industry.
Certifications
FAQ
Q: Are you trading company or manutacturer ?
A: We are factory.
Q: How long is your delivery time?
A:We are a factory. We usually have stock in stock
Q: What is your terms of payment ?
A: We accept T/T, Paypal, Western union or money gramm.
Q: What's your warranty ?
A: 12 months. If the items you purchased from our company are not with perfect quality or can't work normally, you can ship back
for replacement or refund.
Q: What's your shipment method?
A: We ship by Express FEDEX, UPS, DHL, EMS, ARAMEX. All express freight is charged in your end.
A: We are factory.
Q: How long is your delivery time?
A:We are a factory. We usually have stock in stock
Q: What is your terms of payment ?
A: We accept T/T, Paypal, Western union or money gramm.
Q: What's your warranty ?
A: 12 months. If the items you purchased from our company are not with perfect quality or can't work normally, you can ship back
for replacement or refund.
Q: What's your shipment method?
A: We ship by Express FEDEX, UPS, DHL, EMS, ARAMEX. All express freight is charged in your end.
