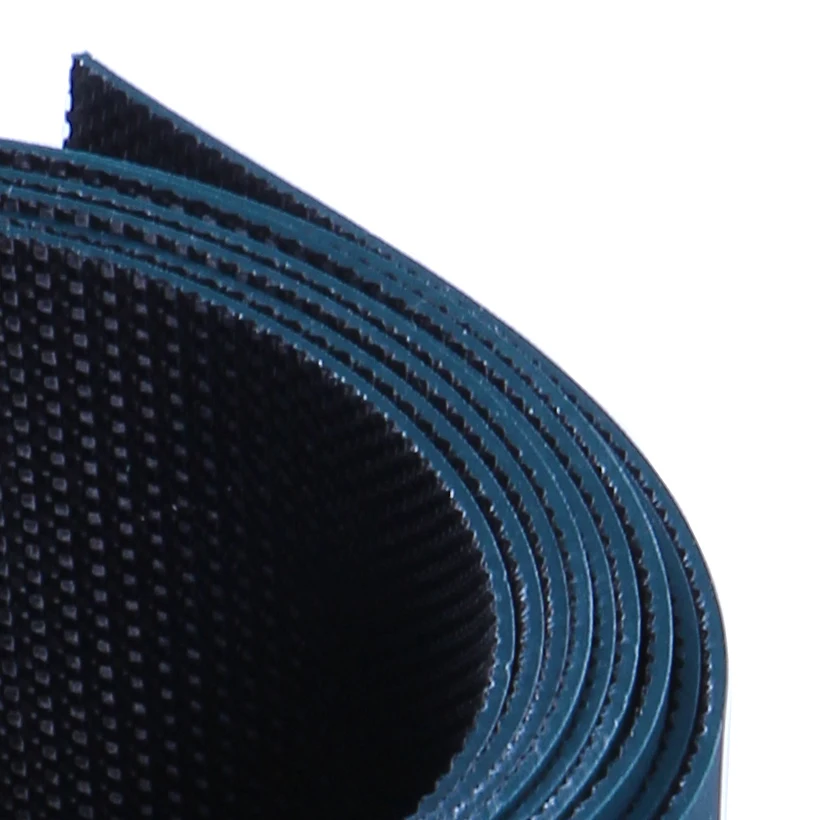

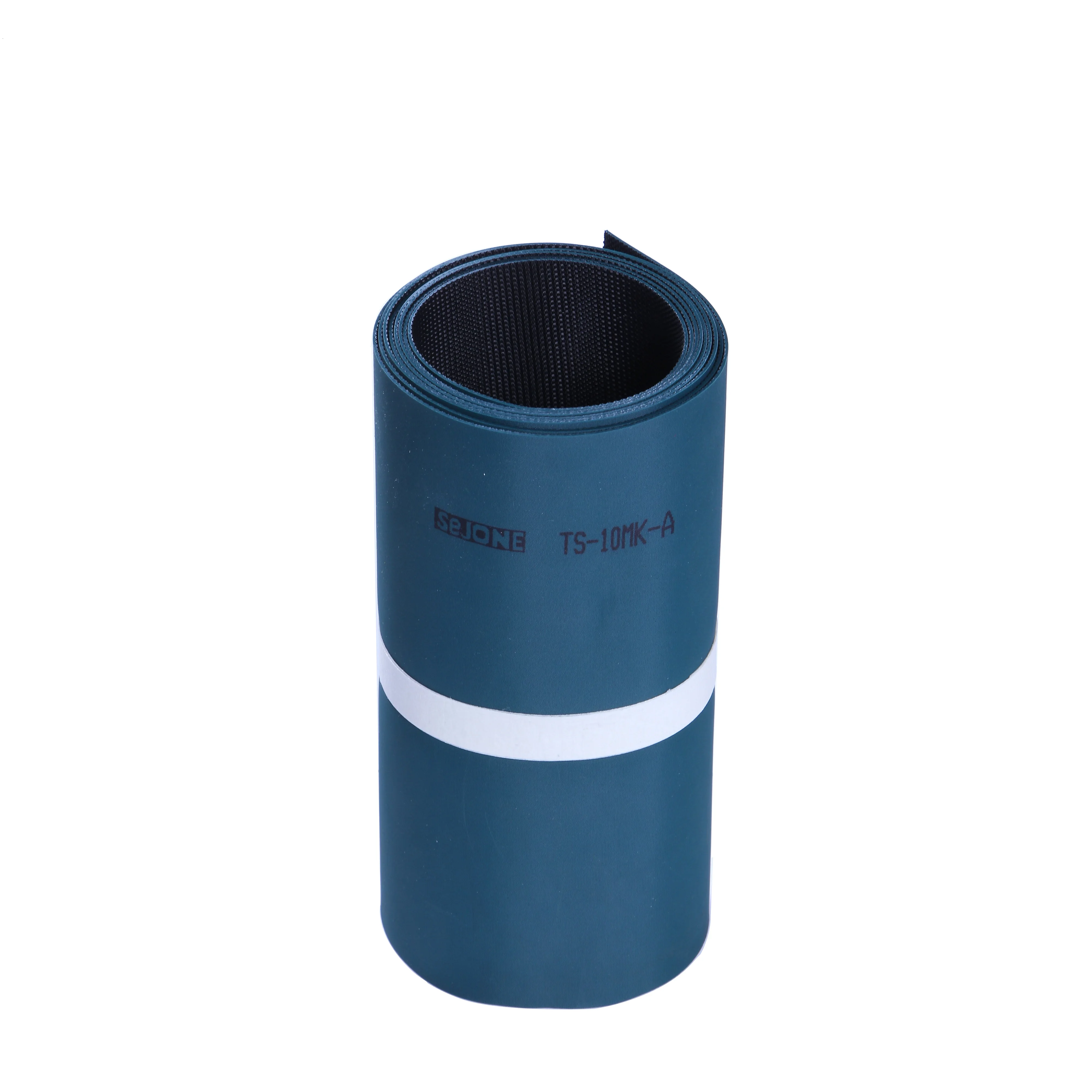

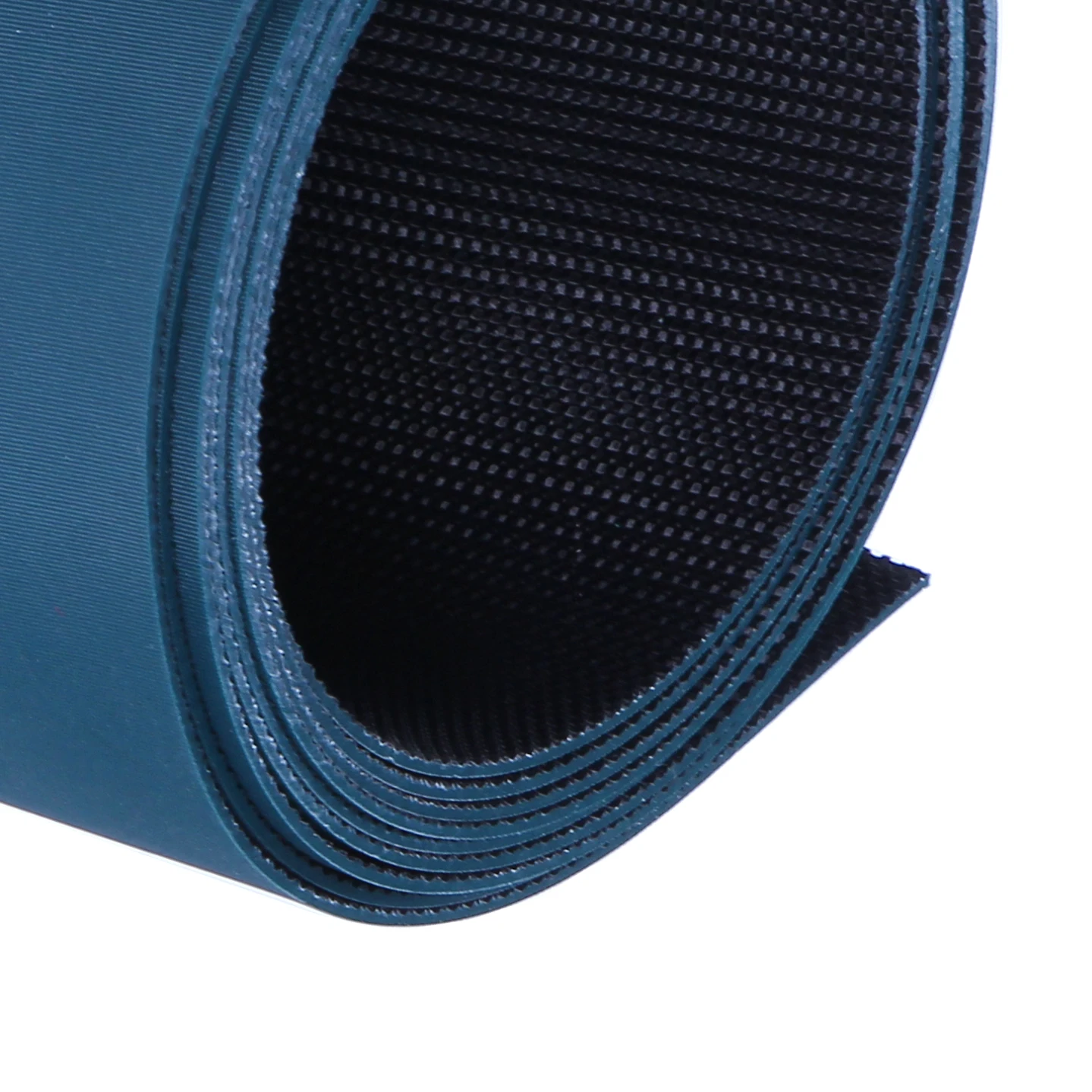

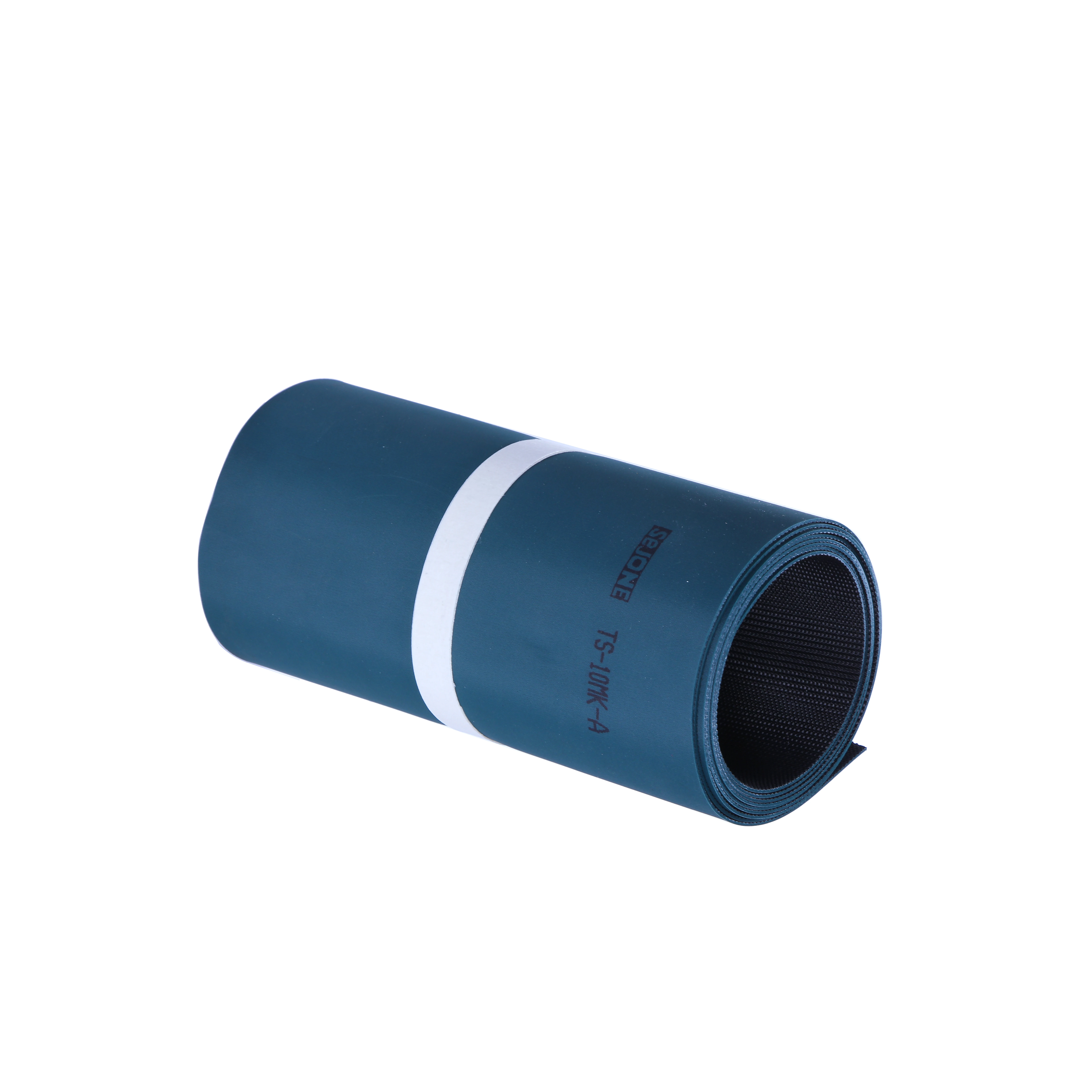

1.0mm blackish green and black flexible transmission machine belt
- Category: >>>
- Supplier: Jiangyin Siqiang Tape Co. Ltd.
Share on (60760661373):
Product Overview
Description
Product Description
| Item No. | TS-10MK-A |
| Total thickness | 1.0mm |
| Top side color/material | DARKISH GREEN/PUR |
| Bottom side color/material | BLACK/TPU |
| Weight | 1.15kg/m2 |
| top finish | Fine textured |
| Friction finish | Fabric textured |
| Axial load under stable condition | 2% elongation: 0.7N/mm width |
| Minimum pulley diameter | 15mm |
| Antistatic | YES |
| Standard maximum width | 500mm |
| Slitting | Any width slitting for small machine belts offered |
| Joint | Finger joint |
| Temperature range for continuous use | -20~50℃ |
| Major applications | Yarn processing, Paper manufacturing and processing |
| Power transmission in industrial machinery (fans, pumps, etc.) | |
| Sawmill machines (chippers, etc.) | |
| Paper working machines (coaters, etc.) | |
| Other power transmissions | |
| Cut-proof conveyors (thin-plate conveyors, etc.) | |
| Packing details | PE film wrapped |
| Air-cusion film/bubble film wrapped | |
| woven bag | |
| plywood pallet or crate (optional) | |
| customized packing available |
BELTS RECOMMEND
| ITEM NO. | THICK | TRAC | CONCERYING | CONCERYING | FRICTION | FRICTION | JOINING | ANTI | TEMPERA | MAX |
| NESS | TION | SIDE | SIDE | COVER | COVER | METHOD | STATIC | TURE | WIDTH | |
| (MM) | LAYER | COLOR | MATERIAL | COLOR | MATERIAL | (OC) | (MM) | |||
| TS-10MK-A | 1.0 | PA | Blackish Green | TPU | Black | PUR | Finger joint | Y | -20~50 | 500 |
| TS-10DK-A | 1.0 | PA | Dark Green | TPU | Black | PUR | Finger joint | Y | -20~50 | 500 |
| TS-10SDK-A | 1.0 | PA | Dark Green | TPU | Black | PUR | Finger joint | Y | -20~50 | 500 |
| TS-10GK-A | 1.0 | PA | Green | TPU | Black | PUR | Finger joint | Y | -20~50 | 500 |
Applications

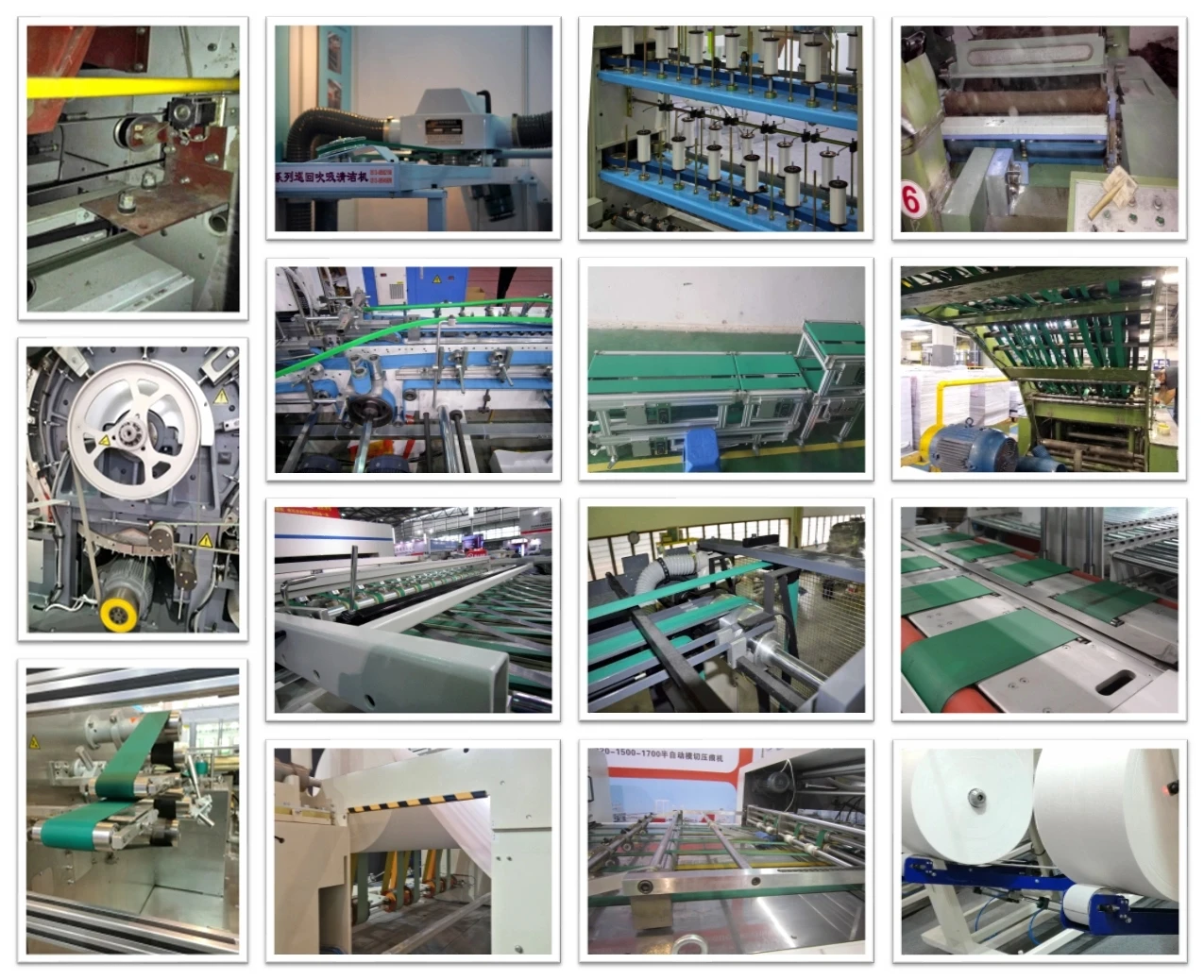

*** MAJOR APPLICATIONS ***
Our belts are widely used in textile industry, packing, printing and paper industry, electronic industry, heavy wood working industry, special industries, etc.
Show room&test cente
Company&Showroom&Test Center&Workshop&Warehouse:
-clients could visit directly;
-clients could select directly;
-clients could DIY test and evaluate on-site;
Packaging & Shipping
| *** PACKING FOR FINISHED BELTS *** |
| *** PACKING FOR ROLL BELTS *** |
| *** MODE OF TRANSPORTATION *** |
Exhibition
| *** COMPANY EXHIBITIONS *** |
FAQ
1Q: Manufacturer or Trading company?
A: Manufacturer. Presently have 5 production lines, with own test center.
2Q: Location&Visit?
A: East China. 2 hour‘s drive away from Shanghai downtown; or 1 hour's bullet train. Call us, if need us pick up.
3Q: About R&D?
A: More than 0.1 million US dollars on R&D, with independent lab. Schedule of new products annually.
4Q: Material? Supplier?
A: Imported polyamide, polyester, NBR and XNBR, etc. Most suppliers authorized for 5 years more.
5Q: Customized, OEM?
A: Sure. Not only color, design, texture, but also labeling&marks.
6Q: Samples?
A: Sure. Normally 3 working days.
7Q: Quality Control?
A: Strict production flow and data to evaluate all steps; sheets track back each step.
