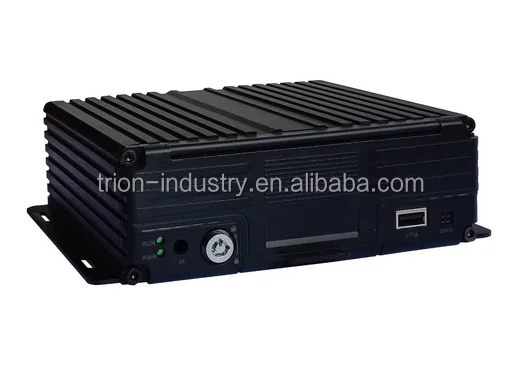

4G/GPS/WIFI 8 channel 720p dvr cctv system

Share on (60760709170):


Price:$180.00 - $330.00

Quantity:


Product Overview

Description





Funtionality:

Embedded HiSilicon GPU, H.264 encoding, high compression ratio, clear image
Support 8 AHD Million HD/Analog SD video/audio inputs, 1 video/audio simultaneous output, 1 VGA output
Support 8 1080N HD real-time local recording
Support 8 720P HD real-time local recording
Support 8 960H HD real-time local recording


Power:

Professional on-board power deign, 8-32V DC wide voltage input desigh
Various circuit protection on undervoltage, short circuit, reverse connection and so on, can be adapted on different vehicles.
Support intelligent power management: automatical power-off under low voltage, low consumption when cut-off


Data storage:

Special file management mechnism, to realize data encryption and effective data protection
Specific hard disk bad sectors inspection technology, which guarantees the continuity of recording and at the same time extend the disk lifetime
Embedded super capacitor, to avoid data loss and SD card damage in case of abnormal outages
Support 2.5 inch hard disk storage, up to 2TB
Support SD card storage, up to 256G
Support hard disk automatic heating


Transmission Interface:

Support GPS/BD positioning, high sensitivity, quick localisation
Support WIFI wireless downloading, support 802.11b/g/n, 2.4G frequency
Embedded 3G/4G module, support LTE/HSUPA/HSDPA/WCDMA/EVDO






















































































































































  AHD High-definition on-board DVR (8 inputs 1080N hard disk)
SystemProcessorHi3520DV300
Operating systemLinux
LanguageChinese/English
Audio/VideoCompression formatePAL/NTSC
Video compressionH.264
Resolution1080N/720P /960H/D1/CIF
Decoding1 1080P, real time
 Recorded video rate4096Mbps full frame, 6 selectable video quality
Recorded audio rate8KB/s
StorageHard-disk + SD card

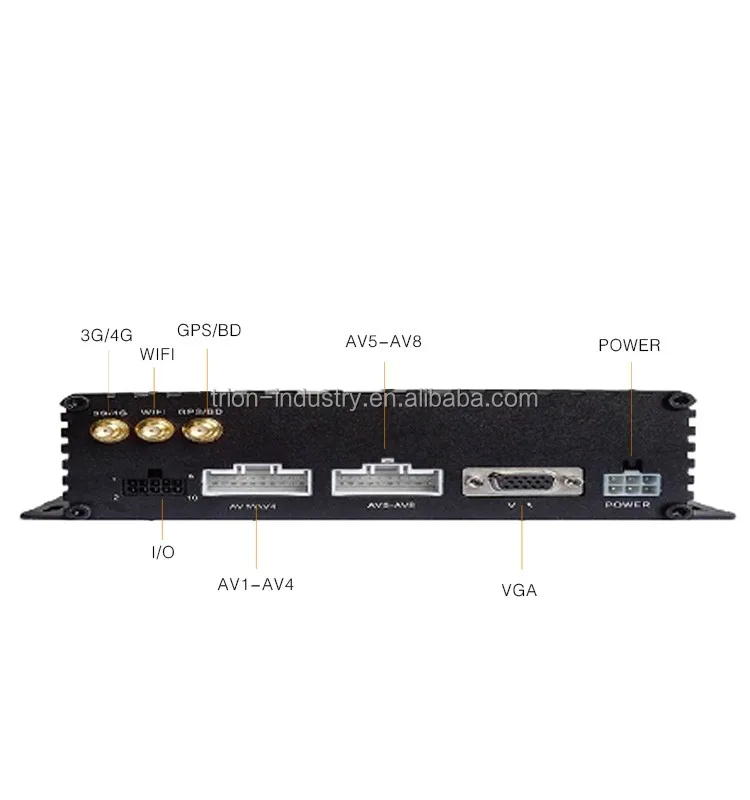

I/OAudio/Video input8 logical input (aviation connector)
Audio/Video output1 VGA video output, 1 logical audio/video output (aviation connector)
Alarm input4 digital input
Hard-disk interface1x2.5 inch HDD(max 2TB, hot-swapping)
SD card1 SDXC (Max 256G)

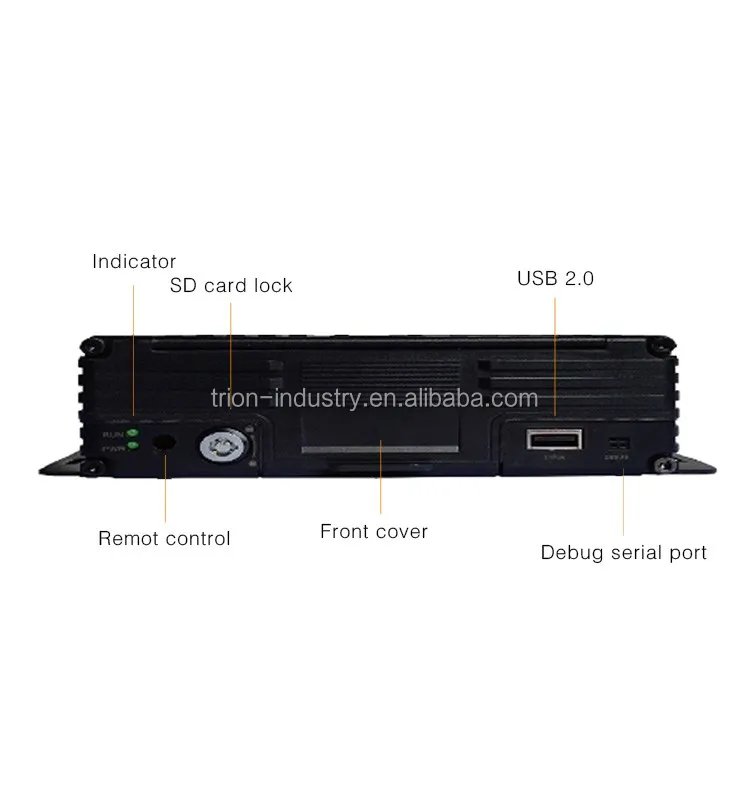

USB1 USB 2.0
Ignition1 ACC
Serial port1 LVTTL
LED indicatorPWR/RUN
Hard-disk lock1
Debug serial port1
ExtensionGPS/BDSupport antenna plug in/out/short circuit self-check
3G/4GSupport CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE
WIFI802.11b/g/n (2.4GHz)
OthersInput voltageDC:8V~32V
Output voltage5V 300mA
Power consumptionStandby: 3mA
Max 18W  @12V 1.5A @24V 0.75A
Storage capacity1080N   1.2G/h/channel
720P    1G/h/channel
960H    750M/h/channel
Dimension162mm*180mm*50.5mm
