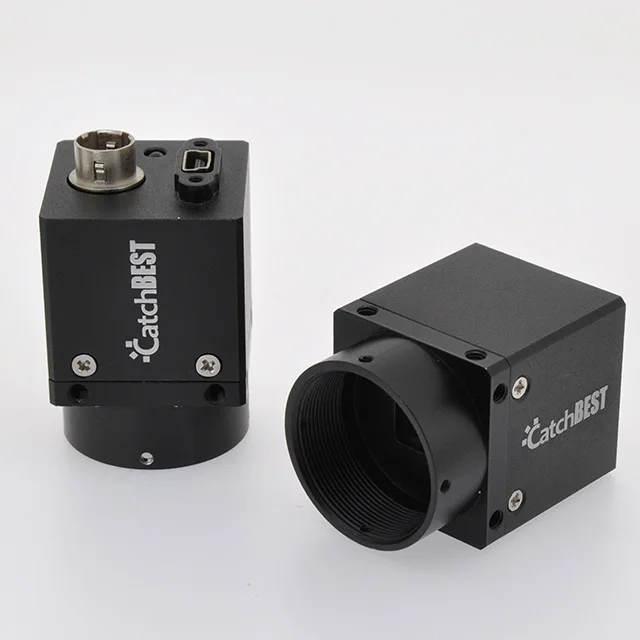

CatchBEST Jelly2 MUC36M/C(MGYYO), монохромная и цветная промышленная камера USB2.0 с функцией машинного видения
- Category: >>>
- Supplier: Beijing Bestscope Technology Co. Ltd.
Share on (60760743930):
Product Overview
Description
Products Description
Introduction

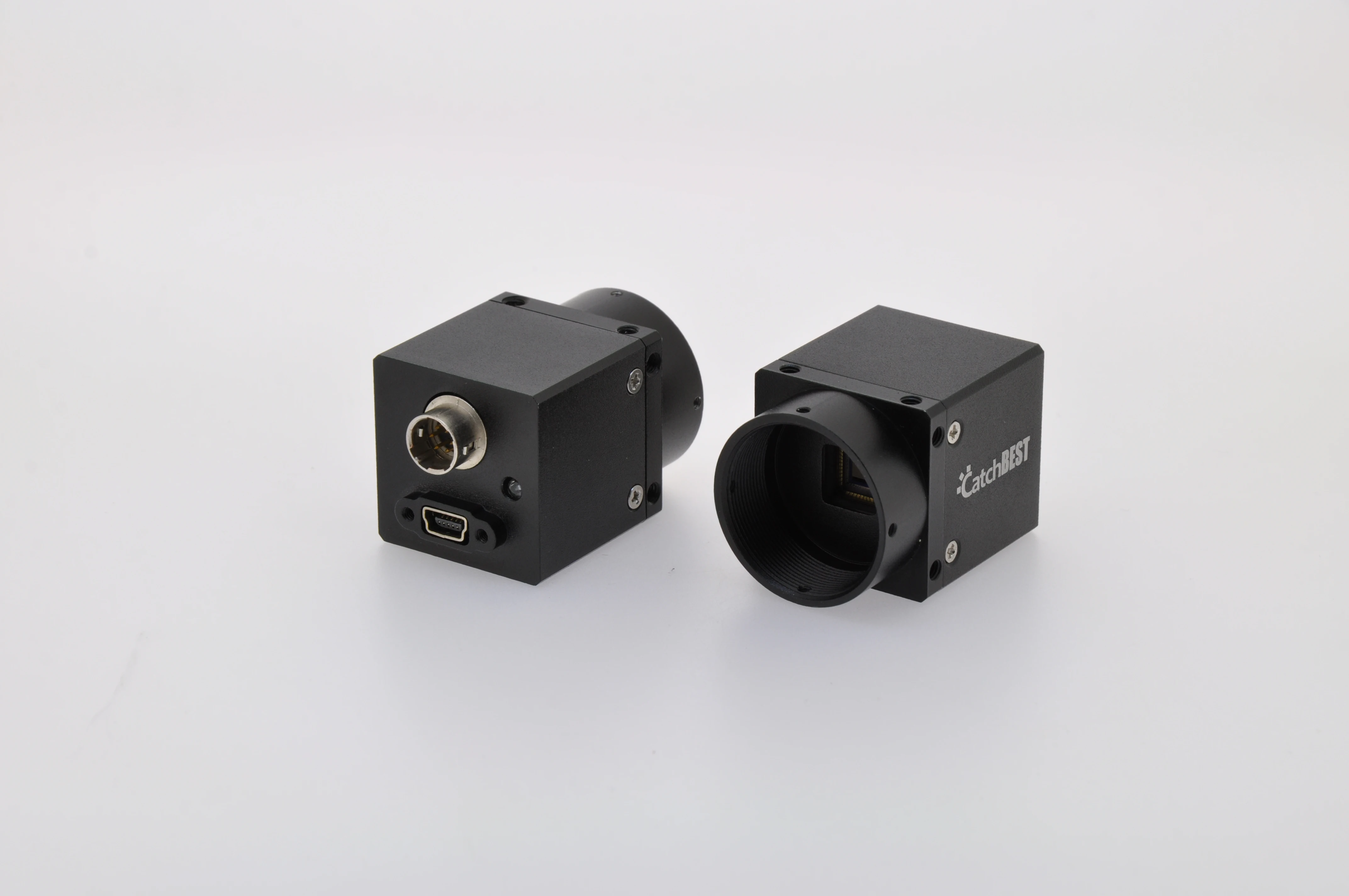

Jelly2-MUC36M/C(With Aptina MT9V034 Sensor) smart industrial cameras are mainly designed for machine vision and various image acquisition areas. The cameras are very compact, occupy a very small space, can be used on machines or solutions which have limit space. Resolution from 0.36MP to 5.0MP, speed upto 110fps, support global shutter and rolling shutter, support opto-couplers isolation GPIO, support multi-cameras work together, compact and light.
Features
1.0.36MP, 5.0MP resolution, total 6 models mono/color industrial digital camera;
2.USB2.0 interface, up to 480Mb/s, Plug and play, no need external power supply;
3.Provide completed API for users’ secondary development, provide Demo Source Code, Support VC, VB, DELPHI, LABVIEW and other development language;
4.Support firmware upgrade on-line;
5.Support Windows XP / Vista / 7 / 8/10 32&64 bit Operation System, can customize for Linux-Ubuntu, Android Operation System;
6.CNC processed precision aluminum alloy shell, size is 29mm×29mm×30mm, net weight: 35g;
7.Board camera is available.
Application
Jelly2 series industrial cameras are mainly designed for machine vision and various image acquisition areas. They are mainly used for following areas:
Medical and life sciences Area
Microscope Imaging
Medical diagnosis
Gel Imaging
Live Cell Imaging
Ophthalmology and iris imaging
Industrial Area
Electronics and semiconductor inspection
Visual positioning(SMT/AOI/Glue dispenser)
Surface defect detection
3D scanning machine
Printing quality inspection
Food and medicine bottles inspection
Robot welding
Tag OCR/OCV identification
Robot arm visual positioning
Industrial production line monitoring
Vehicle wheel alignment machine
Industrial Microscope
Road toll and traffic monitoring
High speed vehicle plate image capture
Public security and investigation
Biometrics
Fingerprint, palm print image capture
Facial recognition
License image capture
Documents and notes image capture and identification
Spectroscopy testing equipment
Jelly2-MUC36M/C(With Aptina MT9V034 Sensor) smart industrial cameras are mainly designed for machine vision and various image acquisition areas. The cameras are very compact, occupy a very small space, can be used on machines or solutions which have limit space. Resolution from 0.36MP to 5.0MP, speed upto 110fps, support global shutter and rolling shutter, support opto-couplers isolation GPIO, support multi-cameras work together, compact and light.
Features
1.0.36MP, 5.0MP resolution, total 6 models mono/color industrial digital camera;
2.USB2.0 interface, up to 480Mb/s, Plug and play, no need external power supply;
3.Provide completed API for users’ secondary development, provide Demo Source Code, Support VC, VB, DELPHI, LABVIEW and other development language;
4.Support firmware upgrade on-line;
5.Support Windows XP / Vista / 7 / 8/10 32&64 bit Operation System, can customize for Linux-Ubuntu, Android Operation System;
6.CNC processed precision aluminum alloy shell, size is 29mm×29mm×30mm, net weight: 35g;
7.Board camera is available.
Application
Jelly2 series industrial cameras are mainly designed for machine vision and various image acquisition areas. They are mainly used for following areas:
Medical and life sciences Area
Microscope Imaging
Medical diagnosis
Gel Imaging
Live Cell Imaging
Ophthalmology and iris imaging
Industrial Area
Electronics and semiconductor inspection
Visual positioning(SMT/AOI/Glue dispenser)
Surface defect detection
3D scanning machine
Printing quality inspection
Food and medicine bottles inspection
Robot welding
Tag OCR/OCV identification
Robot arm visual positioning
Industrial production line monitoring
Vehicle wheel alignment machine
Industrial Microscope
Road toll and traffic monitoring
High speed vehicle plate image capture
Public security and investigation
Biometrics
Fingerprint, palm print image capture
Facial recognition
License image capture
Documents and notes image capture and identification
Spectroscopy testing equipment
Specification
Model | MUC36M/C(MGYYO) | MUC36M/C(MRYYO)-H | MUC500M/C(MRYYO) | ||
Sensor Model | Aptina MT9V034 | Aptina MT9V034 | Aptina MT9P031/006 | ||
Color | Mono/Color | Mono/Color | Mono/Color | ||
Image Sensor | NIR Enhancing CMOS | NIR Enhancing CMOS | CMOS | ||
Sensor Size | 1/3” | 1/3” | 1/2.5” | ||
Effective Pixels | 0.36MP | 0.36MP | 5.0MP | ||
Pixel Size | 6.0μm×6.0μm | 6.0μm×6.0μm | 2.2μm×2.2μm | ||
Sensitivity | 4.8V/lux-sec | 4.8V/lux-sec | 1.4V/lux-sec | ||
Max. Resolution | 752 × 480 | 752 × 480 | 2592 × 1944 | ||
Frame Rate | 60fps | 110fps | 9fps | ||
Exposure Mode | Global Shutter | Global Shutter | Rolling Shutter | ||
Dot Frequency | 27MHz | 27MHz | 48MHz | ||
Dynamic Range | 55dB~100dB | 55dB~100dB | 70.1dB | ||
Signal Noise Rate | >45dB | >45dB | 38.1dB | ||
Frame Buffer | 32MB Frame buffer | ||||
Scan Mode | Progressive Scan | ||||
Spectral Response | 400nm～1000nm | ||||
Input & Output | Optocoupler isolation GPIO, 1 of external trigger input, 1 of flash light output, 1 of 5V input/output | ||||
White Balance | Auto / Manual | ||||
Exposure Control | Auto / Manual | ||||
Main Function | Image preview, image capture(bmp, jpg, tiff), Video record(compressor is optional) | ||||
Programmable Control | Preview FOV ROI, Capture FOV ROI, SKIP/Binning mode, Contrast, Brightness, Saturation, Gamma value, RGB color gain, exposure, dead pixels remove, focus evaluation, custom serial number (0 to 255) | ||||
Data Output | Mini USB2.0, 480Mb/s | ||||
Power Supply | USB2.0 Power Supply, 200-300mA@5V | ||||
Compatible Interface | ActiveX, Twain, DirectShow, VFW | ||||
Image Format | Support 8bit, 24bit, 32bit image preview and capture, save as Jpeg, Bmp, Tiff format | ||||
Operation System | Windows XP/VISTA/7/8/10 32&64 bit OS (can customize for Linux-Ubuntu, Android OS) | ||||
SDK | Support VC, VB, C#, DELPHI developing Language; OPENCV, LABVIEW, MIL thirty-parties’ machine vision software | ||||
Lens Interface | Standard C-Mount ( CS and M12 mount are optional) | ||||
Work Temperature | 0°C~60°C | ||||
Storage Temperature | -30°C~70°C | ||||
Camera Dimension | 29mm×29mm×30mm((C-mount is not included)) | ||||
Module Dimension | 27mm×27mm×22mm | ||||
Camera Weight | 35g | ||||
Accessories | Equipped with standard infrared filter(not available in mono camera), 2m USB cable with fix screws, 6-pin Hirose GPIO connector, 1 CD with software and SDK. | ||||
Box Dimension | 118mm×108mm×96mm (length × width × height) | ||||
