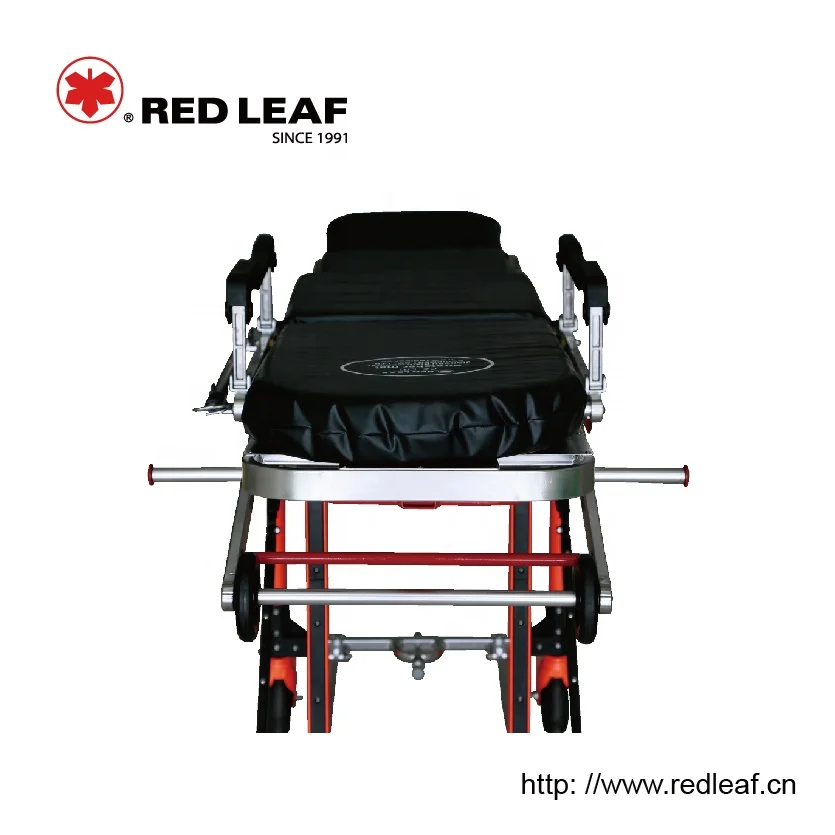

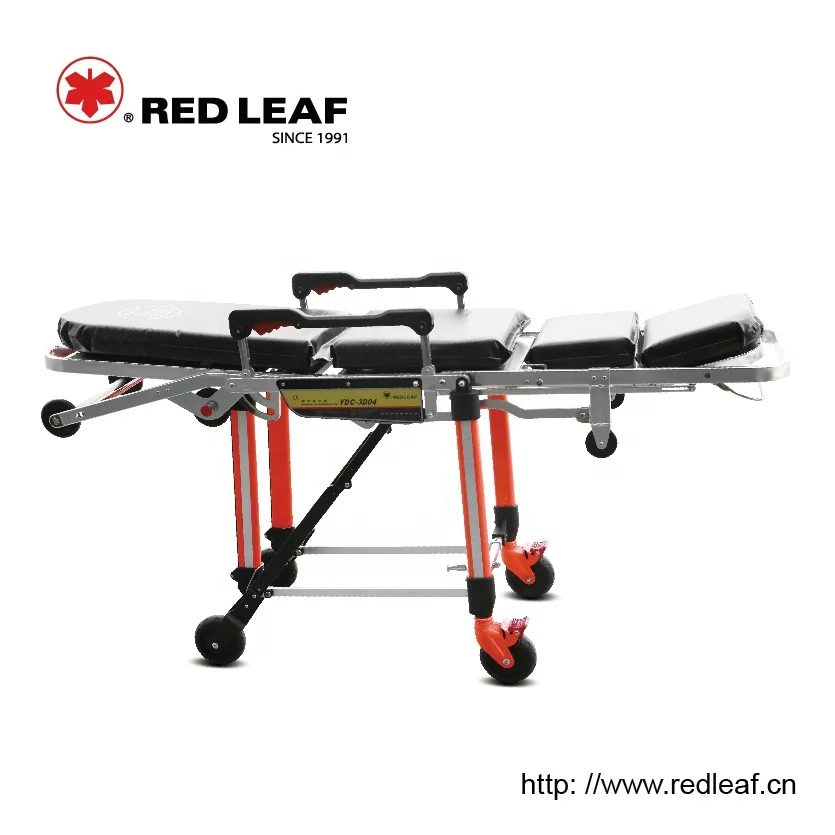

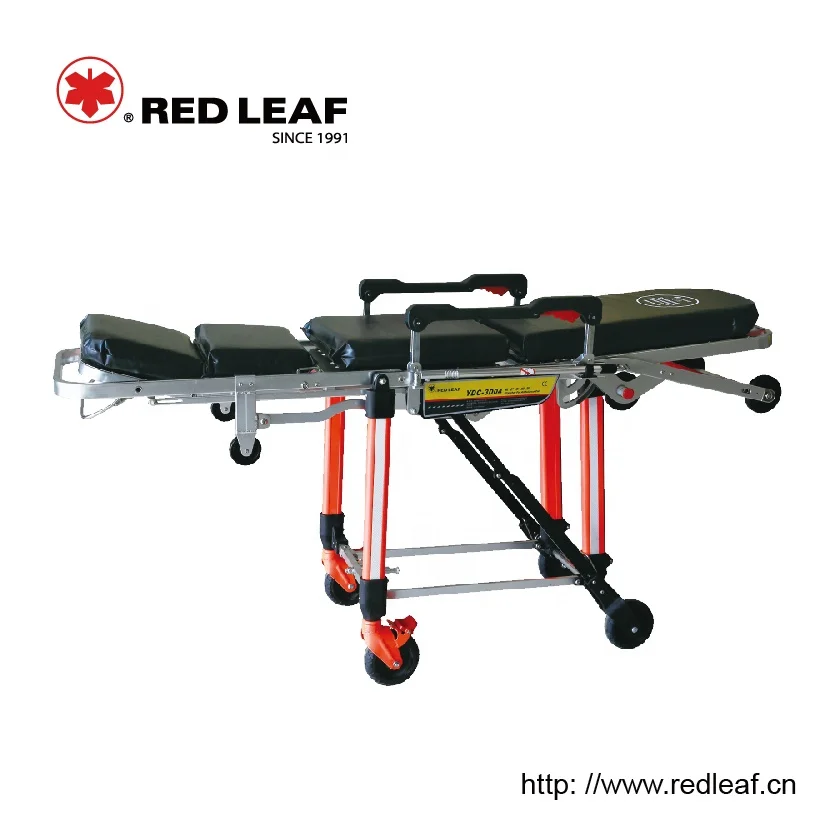

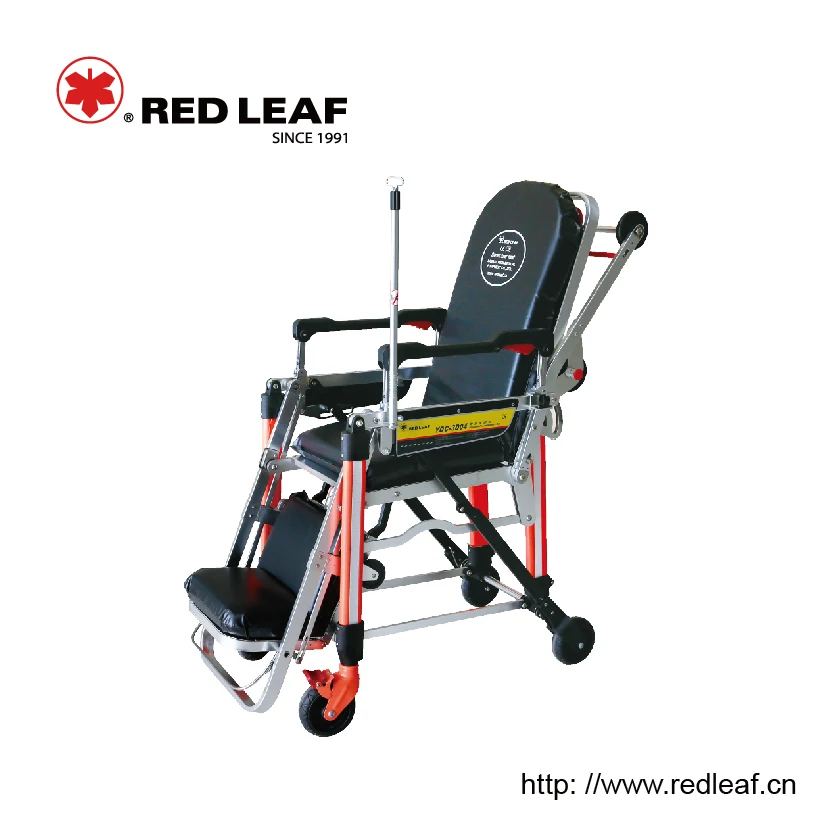

YDC-3D04 Hospital ambulance chair stretcher folding stretcher sizes
Technical features:
1)Hospital ambulance chair stretcher is high-strength aluminum alloy which is hardened and surface treated.
2)The folding mechanism of the leg part can be controlled by the handles on both sides. Only one medical staff is needed to push the stretcher into the ambulance car.
3)Hospital ambulance chair stretcher is equipped with aluminum alloy adjustable guardrails and two safety belts for the convenience and safety of patient transport.
4)The ambulance stretcher dimensions mattress is seamless welded with sealed high density polyethylene coated nylon material, it’s waterproof, thickness 65mm.
5)Hospital ambulance chair stretcher is equipped with adjustable two-stage I.V. Stand, The maximum adjustable length is 75cm;
6)Hospital ambulance chair stretcher loading height can be adjusted in three positions: the highest position: 68m, second position: 63cm, the lowest position: 58cm.
Wheel size: Ø125mm
| Model |
High position
| Low position | Maximum Angle of the Back | Maximum Angle of the Knee |
Self-Weight
| Load Bearing | Packing | |
| Quantity | Size(LXWXH) | |||||||
| YDC-3D04 | 190X58X84cm | 190x58x27cm | 40° | 60° | 39kg | 320kg | 1 | 201x64x27cm |





Jiangsu Rixin Medical Equipment co.,Ltd. founded in 1991,is specialized in inventing and manufacturing emergeny stretcher, first aid products and prehospital overall solution.with design and development.manufacturing ,product testing .sales manufacturing enterprises.

Company have be certified by TUV,CE,EN:1865 certificate and quality certification on ISO:13485.

we have more than 100 varieties of foldable stretchers ambulance stretchers and pre-hospital first aid products such as defibrillators and suction machines .the annual production capacity of stretchers and first aid products is over 100,000PCS.

For many years we have supporting cooperation with hospital rehabilitation therapy,120 emergency airports,military hospital and project bid,and we got a favorable reception from clients.our products have strong market and sold over 40 countries.
