Rolwal MIG/MAG/MMA Co2 Gas Shielded 200Amp IGBT Inverter DC Welding Machine CE/EMC/RoHS

Product Overview

Description

MAIN FEATURES:



1.With led digital display,precise digital process setted,digital control unified adjustment,easy to operate.



2.Adopt with advanced IGBT inverter technology,light weight,according with EMC standard.



3.50/60Hz power inverter platform,self-adjusting performance of ARC.



4.Precise control of current wave,excellent performance of Co2 arc welding.



5.Compact,portable,highly efficiency,low consumption,energy saving.



6.With strong compensation capability,resistant to voltage fluctuation,stable welding current.



7.Brief front panel design,easy operate.Various plug for your choosing.



8.Can be used for MIG/MAG/MMA,flux/Co2 gas/gasless welding.



9.Supplied with MIG/MAG/MMA torch,earth clamp,brush/hammer,manual.



TECHNICAL SPECIFICATIONS:

Model Number	MIG-160	MIG-180
Input Power (V):	AC220V±15%	AC220V±15%
Input Power Frequency (Hz):	50/60	50/60
No-load Voltage (V):	65	65
Rated Input Current(A):	25	28
Welding Amperage Range (A):	10~140(180A)	10-170
Duty Cycle (%):	MMA60%@140A; MIG60%@180A	MMA60%@170A; MIG60%@200A
Efficiency (%):	85	85
Insulation Grade:	F	F
Protection Grade:	IP21	IP21
Net Weight (kg):	2.2	3
Dimensions (mm):	550*340*420	550*340*420

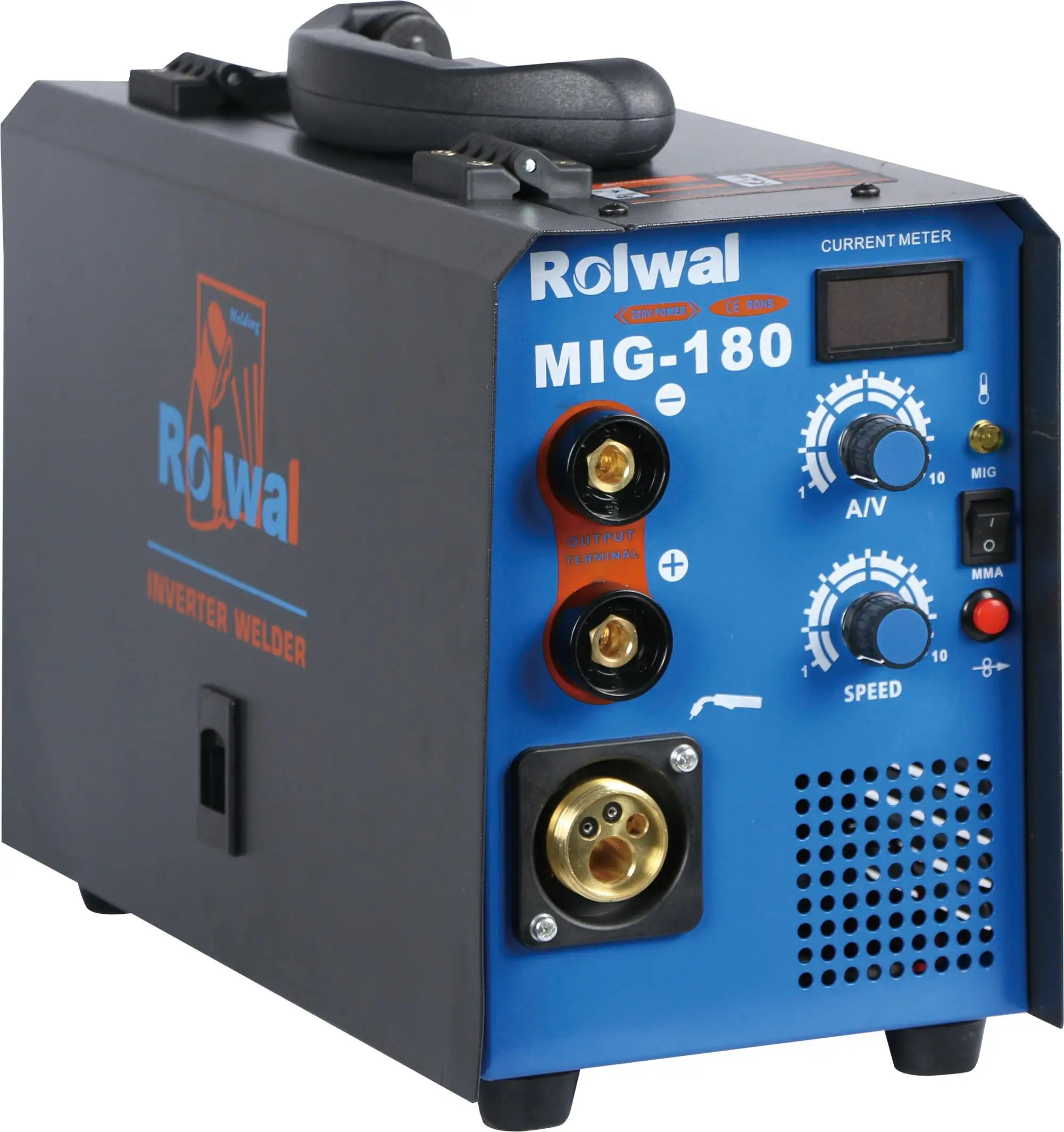

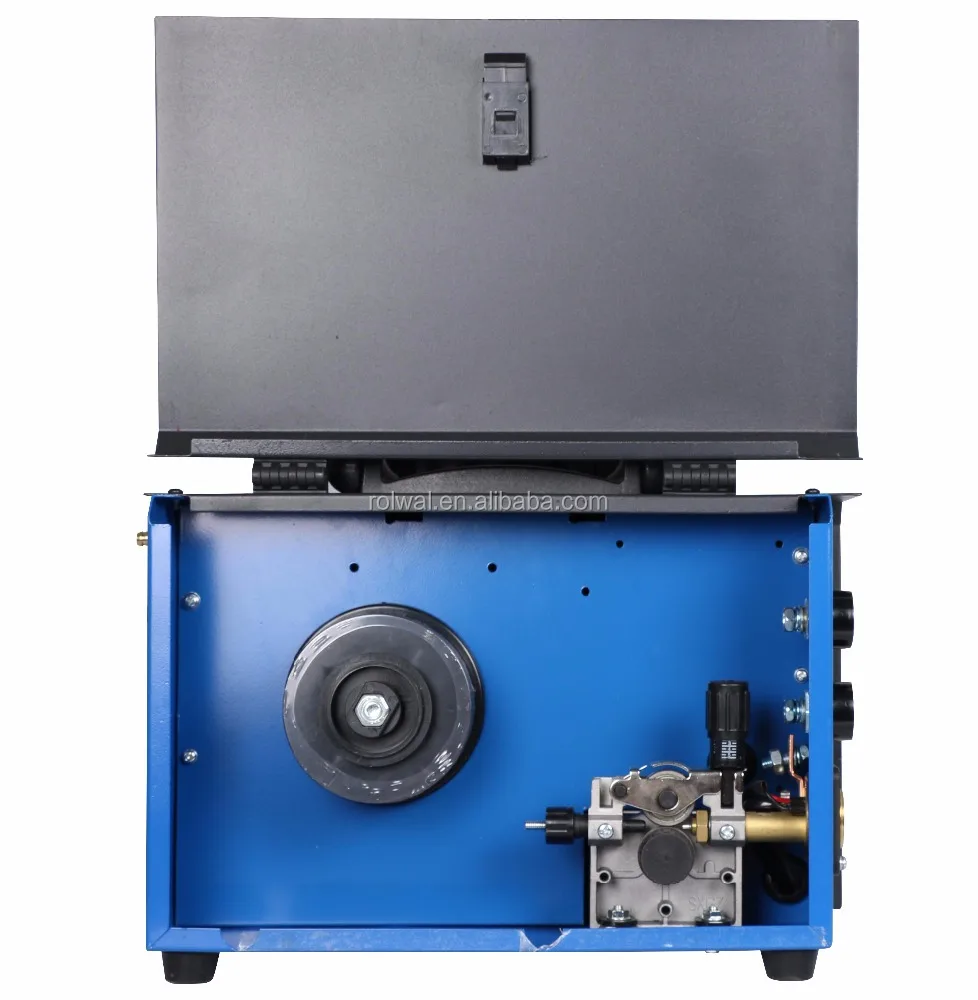

PICTURE:
