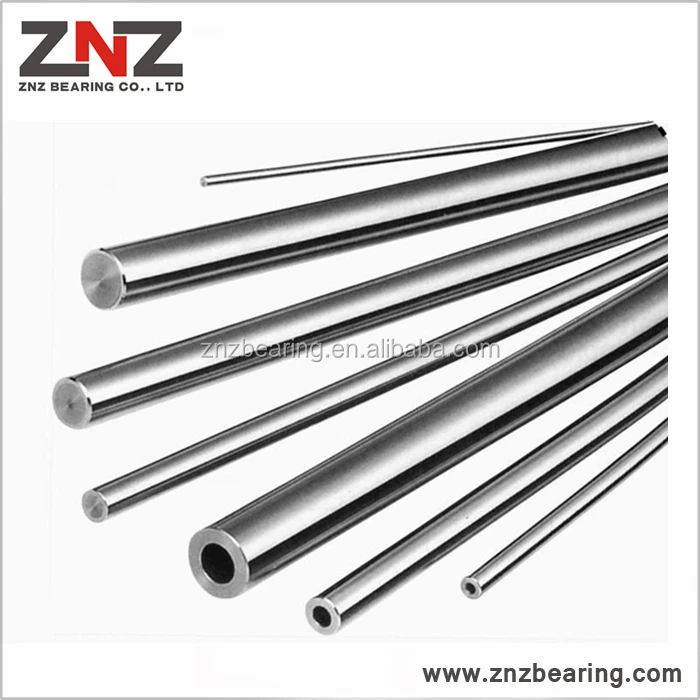

CNC Machine Steel Hollow Shaft

Product Overview

Description

ZNZ Metric Linear Shaft



Solid shafts, Chrome plated shafts, Hollow shafts



Dimensions:3mm,4mm,5mm,6mm,8mm,12mm,15mm,16mm,19mm,20mm,25mm,30mm,40mm,35mm,50mm,60mm,80mm

Also can produce other dimensions as you need.

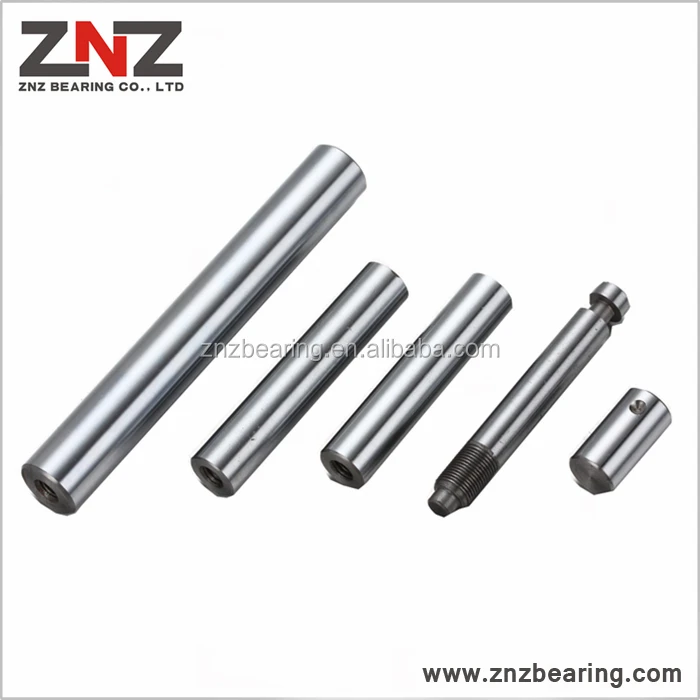

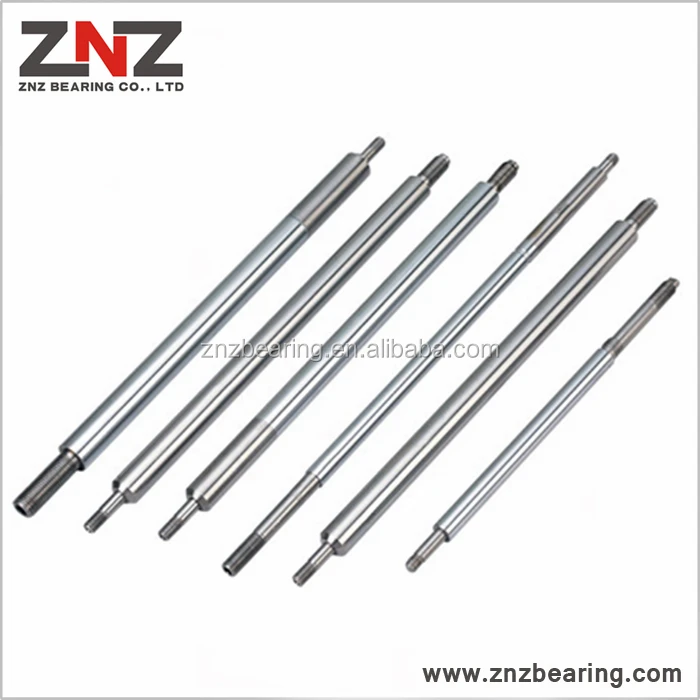

Customized shafts according to drawing

Further dimensions, materials and tolerances upon request

Max: 6000mm



ZNZ Inch Size Linear Shaft

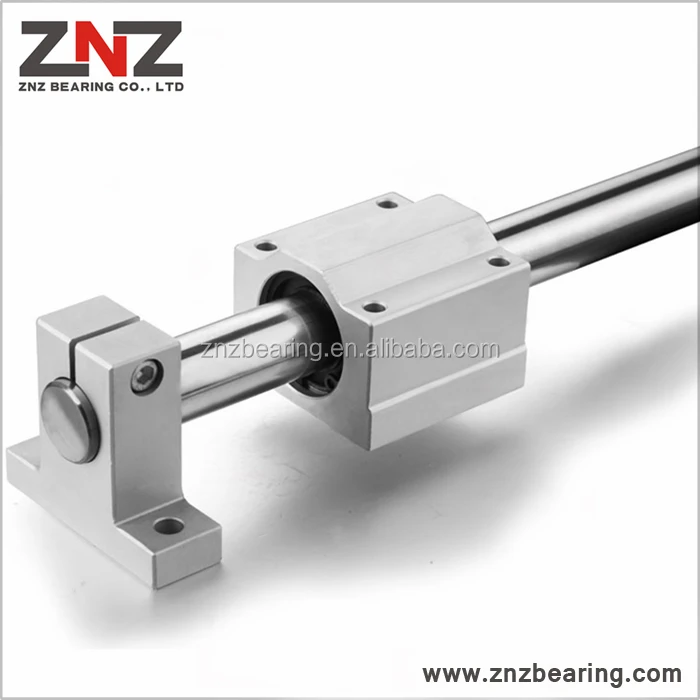

Used with ZNZ LMB series linear bearing

Also can machining as you need

Dimensions: 6.35mm.9.525mm.12.7mm,15.875mm,19.05mm,25.4mm,31.75mm,38.1mm,50.8mm

Pupular used in US OR UK market.

High precision

Chrome plated(Prevent of rust)

And Hardness: HRC58-62

Original: Ningbo China

MODEL NO.	INSCRIBED CIRCLE DIAMETER	OUTER DIAMETER	DIAMETER TOLERANCE		DEPTH OF EFFECTIVE HARDENED LAYER	WEIGHT(kg/m)
			g6	h6
SP13	6	13	-0.006 -0.017	0 -0.011	>1.0	0.82
SP16	8	16			>1.5	1.18
SP20	10	20	-0.007 -0.020	0 -0.013		1.85
SP25	15	25			>1.8	2.46
SP30	16	30	-0.009 -0.025	0 -0.016		3.97
SP35	19	35				5.32
SP40	20	40			>2.2	7.39
SP50	26	50				11.3

1.Why choose us?

A. Large variety inventory: Meet your urgent requirement, 5-10days delivery.
B. Rich experience of export: good reputation and service to help you to solve problem.
C. Designs customized: Pattern,Company Logo or other special requirement we can make

as your request.

D. High quality: All products according to the International quality standard. Specialized quality inspection team to control each production process.

Goods quality has CE certificate and ISO9001 certificate.



2. Can you provide free samples?

Yes, some normal products we can provide the free samples, but usually our customers need to bear the express charge

ustomized products sample need to pay the sample charge, when you placed the order, sample charge will be returned.



3. Can you customize products, including material, size, style etc.?

Yes,we can customize your own products. We can make a sample for your confirmation according to your requirement before order confirmation.



4. What is MOQ?

For inventory items, no minimum order quantity

For other items, would you please check our specific details for each item to get the MOQ. Any special requirement, please tell us.



5. How about payment?

We can accept T/T, Western Union, Paypal etc.



6. Is there any after-sale service?

Customer services will watch for your order once your order placed to our company,  we will keep in touch and ensure the quality is no problem until the goods arrived at your end.
Once you get the goods, please check the goods, if find out any problems to our goods, notify us, we will immediately get out the solutions for these.
