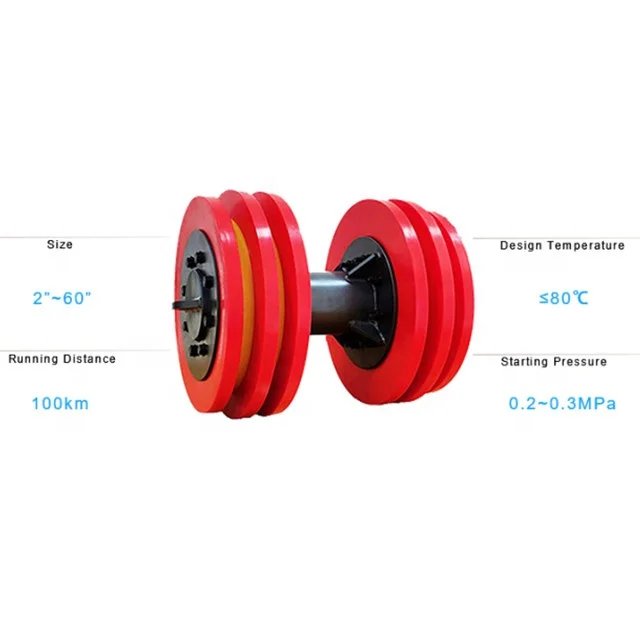

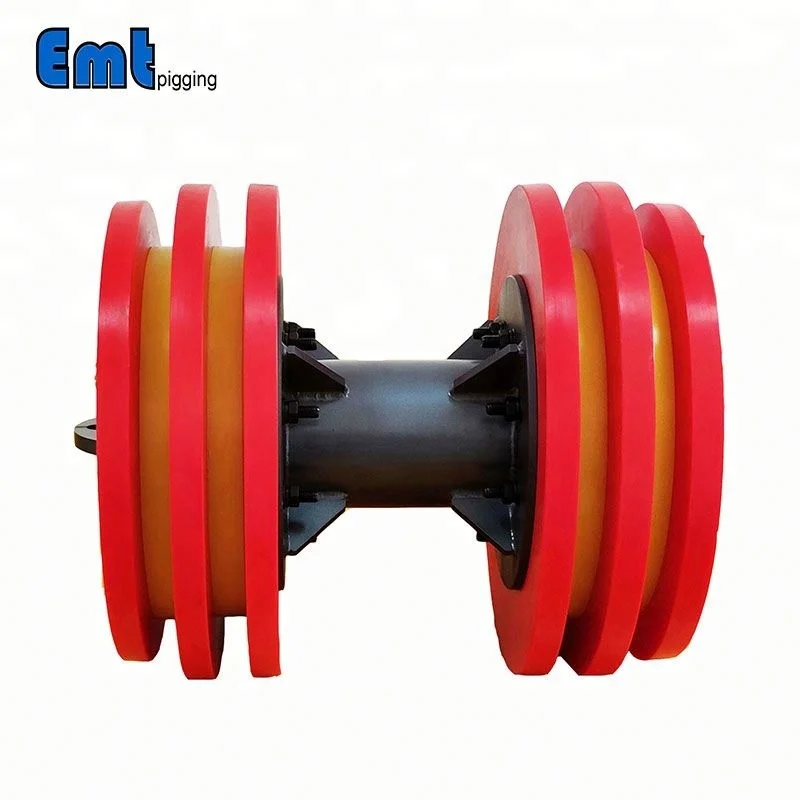

Customized Polyurethane 6 Disks Pig For Pigging System For Pipe Cleaning
- Category: >>>
- Supplier: Shenyang Emt Piping Technology Co. ltd.
Share on (60760902380):
Product Overview
Description
Product Description
* DISK bidirectional pipeline cleaning pig is steel framework with 2 support chips, 4-6 sealing disks, can carrying electronic locating transmitter.
* Valid operation distance is within 150kms.
* Best operation speed
l-2m/s (pressure source is liquid)
l-3m/s (pressure source is air)
* Can operate bidirectional.
* Used for pipeline’s cleaning, water discharge, water blocking, dielectric isolation and in the river.
* After meet with blocking, increasing the pressure in the opposite direction can back to the original place.

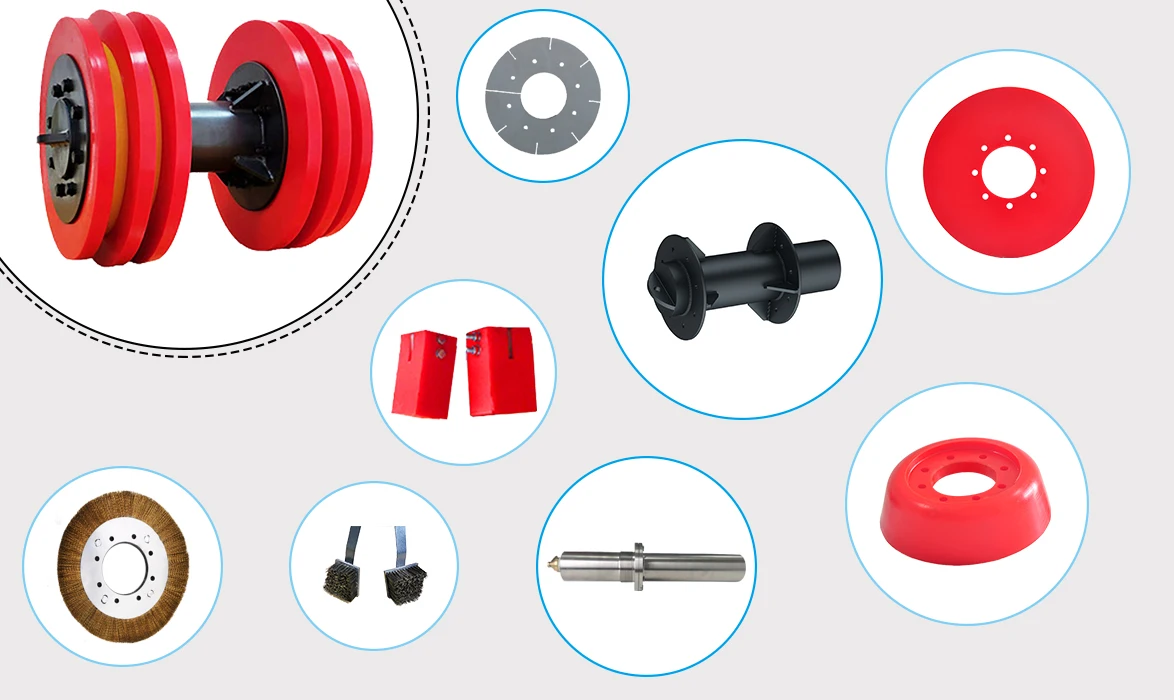

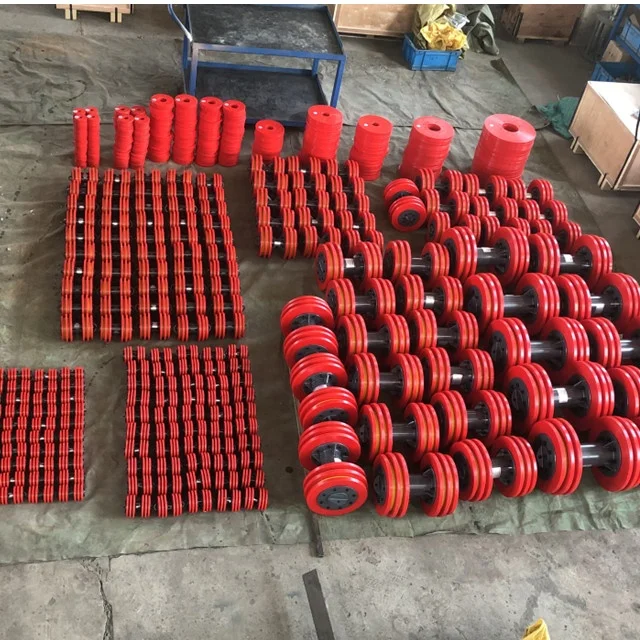

Product Show
| NO. | Customized Polyurethane 6 Disks Pig For Pigging System For Pipe Cleaning | Cup/DISC |
| 1 | 20℃Hardness(SHORE A) | 85±2 |
| 2 | Tensile strength (MPa) | 51.7 |
| 3 | 100%stress at definite elongation (MPa) | 4.8 |
| 4 | 300%stress at definite elongation (MPa) | 9.2 |
| 5 | Tensile set (%) | 780 |
| 6 | Tear strength (KN/m) | 73.0 |
| 7 | Impact resilience (%) | 32 |
| 8 | DIN abrasion (mm²) | 35 |
Why Choose Us?
EMT Pigging has own factory and reliable raw material supplier, so you can enjoy no MOQ and prompt delivery!
Packaging&Delivery
We use PLYWOOD CASE as packaging,it has the following advantages:
1.Light weight,clear lines,insulation,high strangth,not easy to deformation;
2.No fumigation required.
We cooperate with many express companies.That could ensure the fastest delivery time and lowest shipping cost.
