electric scent machine

Product Overview

Description

A. Product Details

E200	Size	200*80*210mm	Bottle capacity	120ml
	Upply voltage	DC 12V/1A	Atomization amount	0.05-0.48g/h
	Power	5W	Weight	3g
	Coverage	100-300m³
	Characteristic	Touch button control

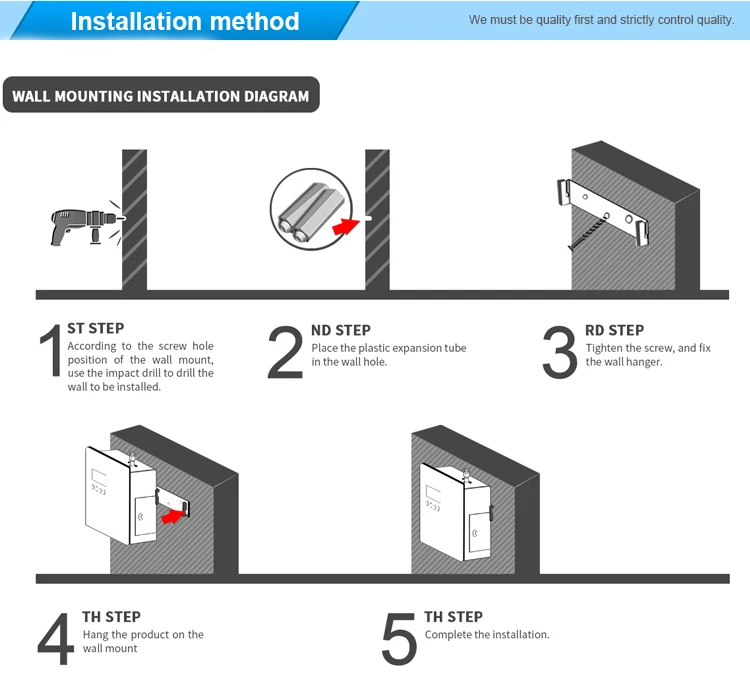

	Installation	connect to HVAC system/fan-coil unit; stand-alone; wall-mount



B. Oils consumption

Level	Atomization quantity	Time(sec)	Level	Atomization quantity	Time
1	0.05	10-200	11	0.52	110-100
2	0.1	20-190	12	0.57	120-90
3	0.14	30-180	13	0.62	130-80
4	0.19	40-170	14	0.67	140-70
5	0.24	50-160	15	0.71	150-60
6	0.89	60-150	16	0.76	160-50
7	0.33	70-140	17	0.81	170-40
8	0.38	80-130	18	0.86	180-30
9	0.43	90-120	19	0.9	190-20
10	0.48	100-110	20	0.95	200-10

C. Oils consumption

CLEANING STEPS:

1. Turn the device off.

2. Unscrew the bottle and replace the essential oil with 1/3 rubbing alcohol(95%).

3. Screw the bottle into the device and let it run for 5-10 minutes.

4. After 5-10 min,replace rubbing alcohol(95%) with your essential oil.



D. HOW TO PROTECT THE DIFFUSER IN DAILY TIME



1. When you see some oils leak out on surface or inner wall, you should wet wipe with the cloth (put some alcohol into the cloth)

2. When use up 1 bottle oils, need rubbing alcohol(95%) for cleaning about 5-10 minutes

3. Checking the diffuser “pad”, need to place well when twist oil bottle into the diffuser

4.When you did not want to use the diffuser for several month or more, must clean the machine well. And remember not to put any liquid in machine.



Q: Is it possible to print a customized logo?

A: YES, (With MOQ request)



Q: Is it possible to get a sample to test?

A: Sure, the sample in stock can be available.



Q: Are you a trading company or manufacturer?

A: We are both, located in Guangzhou.



Q: How long is your delivery time?

A: Generally, it is 2-3 working days after payment if the goods are in stock. or it is 7 - 10 working days after payment if the goods are not in stock, it depends on the quantity and your special requirements.



Q: Is OEM available?

A: Sure, OEM is available.



Q: Can we be your agency?

A: Warmly welcome.
