Widely used in industrial sectors such as biomass energy, pharmacy, food, chemical engineering, scientific research, feed, organic fertilizer and breeding.
A hammermill is a mill whose purpose is to shred or crush aggregate material into smaller pieces by the repeated blows of little hammers. These machines have many sorts of applications in many industries, including:
The screenless hammer mill uses air flow to separate small particles from larger ones. It is designed to be more reliable, and is also claimed to be much cheaper and more energy efficient than regular hammermills. The design & structure of the hammermill is always determined by the end use.

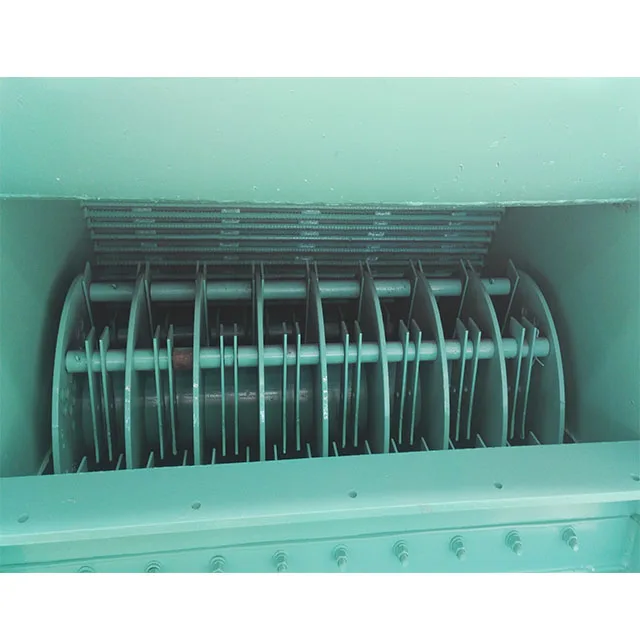

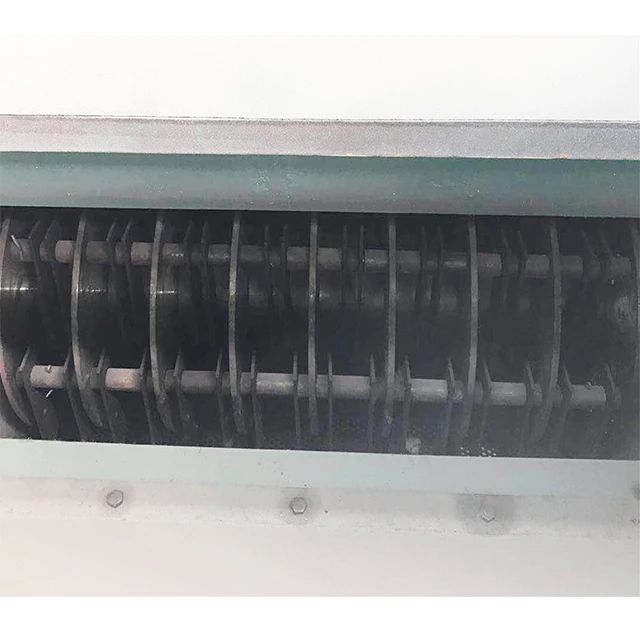

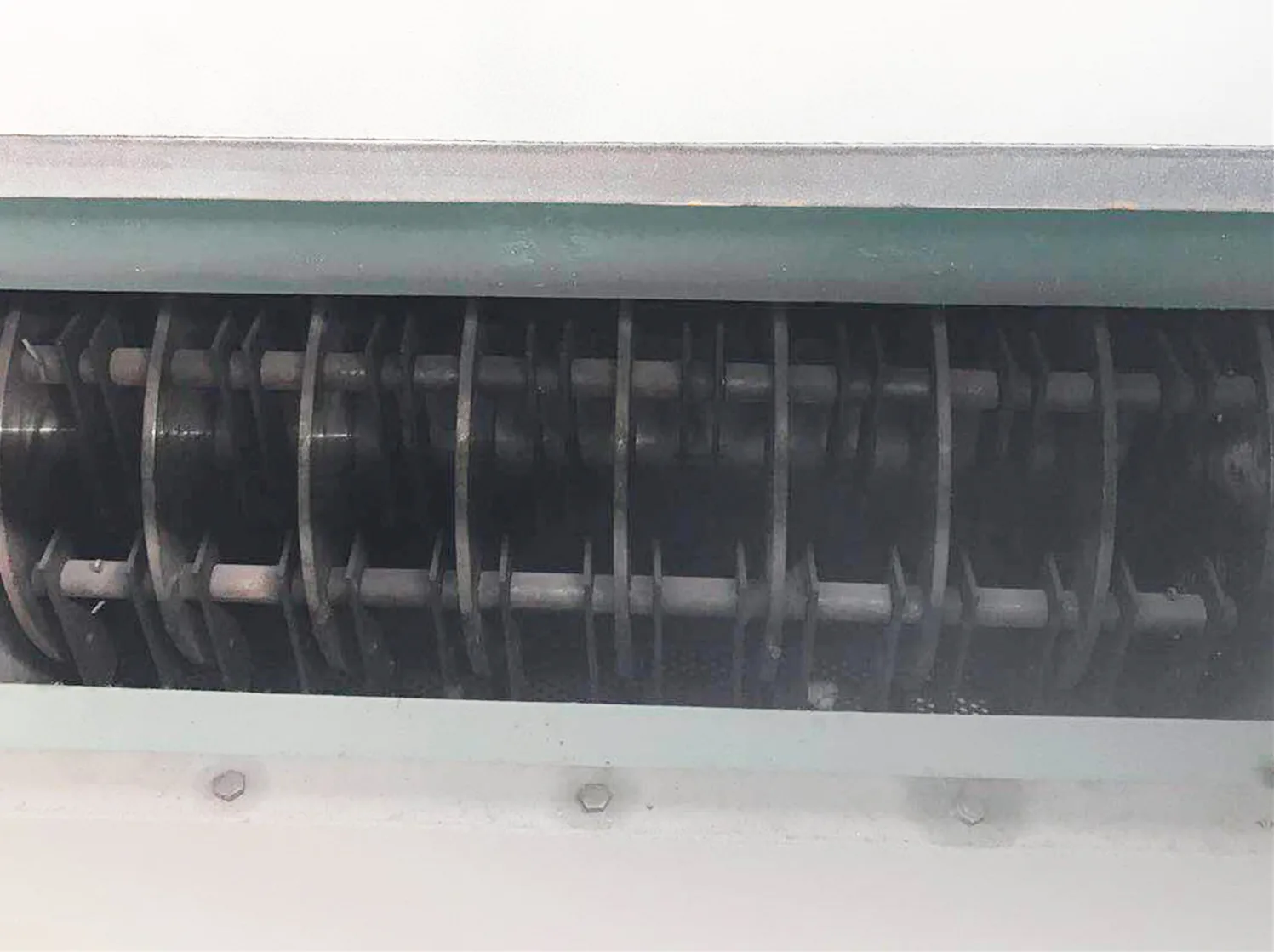

Hammer Crusher /Hammer mill Working Principle: The motor drives the rotor rotate of the hammer crusher at a high speed through the belt, and on the rotor there are series hammers, when the material get into the working areas of hammers, they are crushed by the rotating hammers of the hammer crusher with high rotation speed, the products which a re crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher for being recrushed until they reached the required size.
Raw Materials
Plant stalk, rice straw, saw dust, woods, branches and other agricultural wastes.
Specification
Model
Power(kw)
Capacity(t/h)
GXPS65x130
132
3.5-4.5
Product Advantage
Multifunction This machine has two series which are single- shift type and double-shift type. The machine's capacity is big and the efficiency is high. It could be operated and maintained easily.
Good-quality End Products The machine is used for crushing dry and oil-free feeds and the end products are very fine.

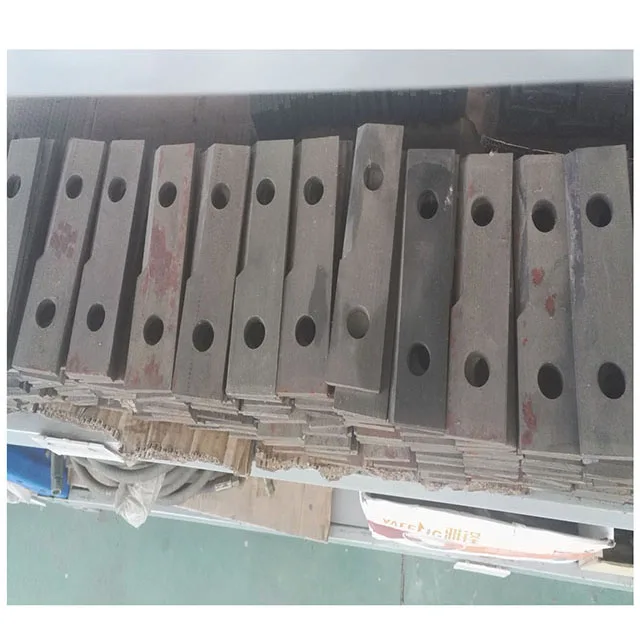

Durable in Use The corners of the hammer are bead welded with high hardness material like carbon tungsten alloy. The welding layer thickness is 1-3mm. The lifetime is 7- 8 times by normal 65Mn overall quenching hammer.
Pollution-free and High Efficiency The inner cooling structure of the crusher could avoid the high-temperature damage which comes from the rubbing, and increase the life of the machine. The machine is equipped with dust collector which avoids the powdery pollution. All in all, this machine is low temp
Our Services
24 Hours Online Service.
All-the-way tracking service offered from placing order to delivery.
Free training for operation, debugging and daily maintenance.
We can provide professional guide installation.
One year warranty and all-round after-sales service.
Customized design and flow chart are available for our clients.
Independent R&D team and strict & scientific management system.
Company Information
Shandong Kingoro Machinery Co.,Ltd,located in Mingshui economic and technological development zone,Jinan City,Shandong Province,is specialized in manufacturing biomass energy pelletizing equipment,fertilizer equipment and feed equipment.We supply complete sets of equipment of biotic crusher,dryer,shaper,cooler and packer.According to different requirements of our customers,we also offer industrial risk evaluation and supply suitable solution according to different workshop.
We have ISO9001 Certificate,CE Certificate,SGS Test Report etc.
Our core value is "Customer-First,Quality-Supreme,Achievement-Sharing and Promisk-Keeping".We regard offering high quality equipment and perfect service as our own duty.Based on that,we would like to establish long-term and close cooperative relationship with companies from home and abroad to build a bright future.
FAQ
1. Q: Do you send engineer to clients' place to install the equipment?
A: Yes, we have professional after-sales department.
2. Q: What is the suitable moisture of material that to be granulated?
A: The moisture should be controlled under 15%.
3. Q: How long is your guarantee?
A: One year guarantee. We shall supply free exchange for spare parts. And we also support engineer go to your factory solve problem in person.
4. Q: How long is the delivery time?
A: For standard machines, it would be 20-25 days; for non-standard machines and customized machines according to clients specific requirements, it would be 50 days.
