Chinese special wavelength manufacturer offer T 1 3mm through hole 830nm InGaAs infrared diode lamp

Product Overview

Description

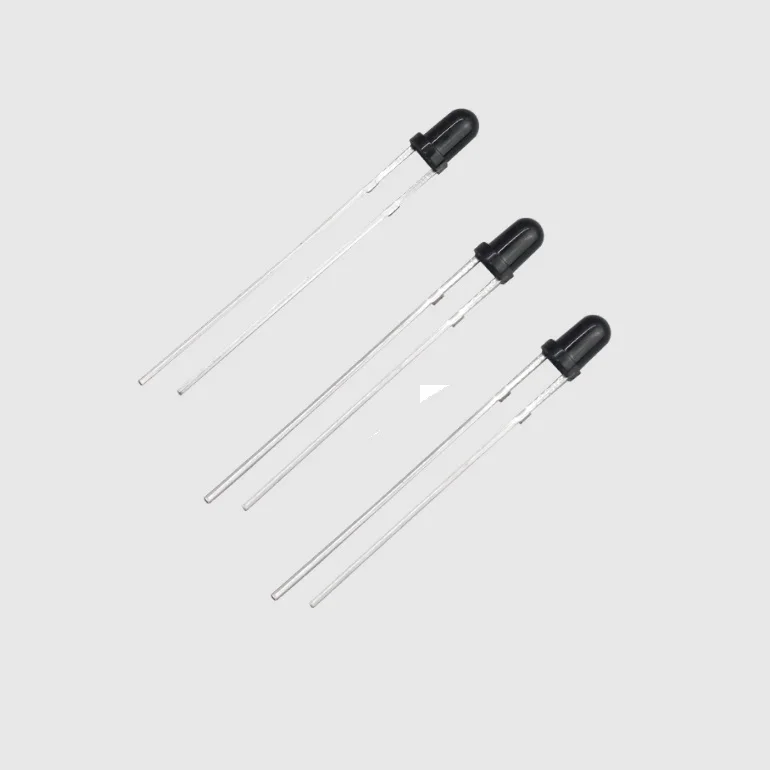

Chinese special wavelength  manufacturer offer   T-1 3mm through  hole   830nm InGaAs infrared diode lamp



Starsealand  offers LED (light-emitting diode) products with the peak wavelength from 255nm to 4600 nm, through-hole and surface mount packages in different performance classes and brightness levels. LED die, Bi-color, tri-color, Si and InGaAs photodidoe ,custom LED packages are also available.  Please contact us for pricing.





Applications:

1.Visual system Light Source

2.Pushbutton backlighting

3.Front panel indicator

4.Symbol indicator

5.Medical testing equipment

6.biological testing equipment

7.Smoke detector

8.Infrared remote control units with high power requirement







Package size:





Initial Electrical/Optical Characteristics   Tamb = 25°C, unless otherwise specified

Parameter	Test conditions	Symbol	Min	Typ	Max	Unit
Forward voltage	IF = 20 mA	VF		1.45	1.6	v
Forward voltage*	IF = 100 mA	VF		1.5	1.7	v
Reverse voltage	IR = 100 μA	VR		5		v
Radiant power	IF = 20 mA	Φe	3.3	4		mW
Radiant power*	IF = 100 mA	Φe		30		mW

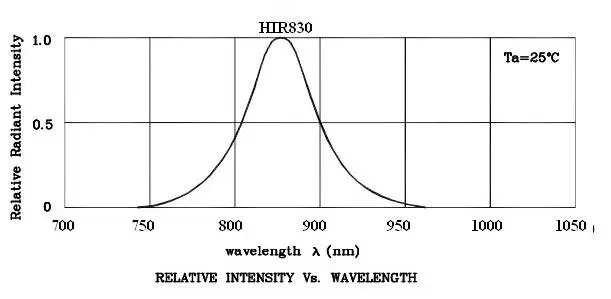

Peak wavelength	IF = 20 mA	λp	830		840	nm
Spectral bandwidth at 50%	IF = 20 mA	Δλ0.5		35		nm
Viewing angle	IF = 20 mA	A		30		deg.
Switching time	IF = 20 mA	tr, tf		40		ns

*Plus with Max 10ms,duty ratio max1/10











Why Choose Us?



1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 15 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials: ASM machine, good chips and epoxy resin.



Our company :

SHENZHEN STARSEALAND OPTO ELECTRONICS  CO.,LTD is a High-tech professional supplier of special wavelength  LEDs . We could better offer you full range electronics components with competitive price and professional service.





Our more products :















Main Material







Certifications:









Packaging & Shipping

All items will be shipped by DHL , UPS , EMS , airmail with tracking number in order to speed up the delivery !



FAQ:

Q:How can I get your pricelist?
A:Please Email us your country name, your detailed contact telephone, fax number, part# you need and how many pieces will
you buy.
Q:If I place an order, how long will it take to delivery it?
A:It usually takes about only 2-3 days on receipt of payment, depends on the quantity ordered and the stock status.
Q:How do you deliver parts to us?
A:Normally sent to you by TNT, DHL, UPS etc Worldwide Express or by shipment. Delivery charge is ofen $35.00,but it will be decided by how many you order and where will you need us to send or you may offer us your account
Q:How is the payment made?
A:There are different payment options. You may choose any of following at your convenience.
by western union: you can find your local service from www.westernunion.com.
by T/T (wire transfer) you can pay to our company account for large quanatity order.
Q:Guarantee?
A:Product guarantee 30days covers form, fit, and function and is limited to prorated refund or replacement
Q:If you want to get more information about our company,pls contact us immediately.
