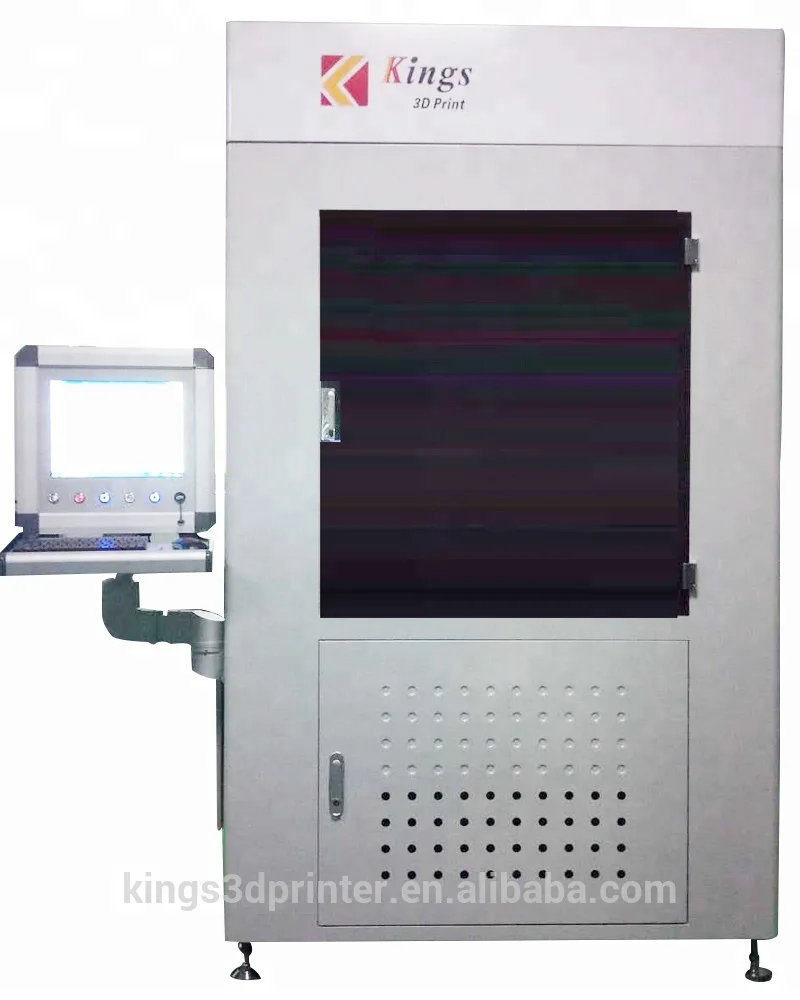

Factory Price 850mm*850mm*550mm Large Size Kings SLA 3D Printer Machine for Manufacture Plant Prototyping

Product Overview

Description

Product Description

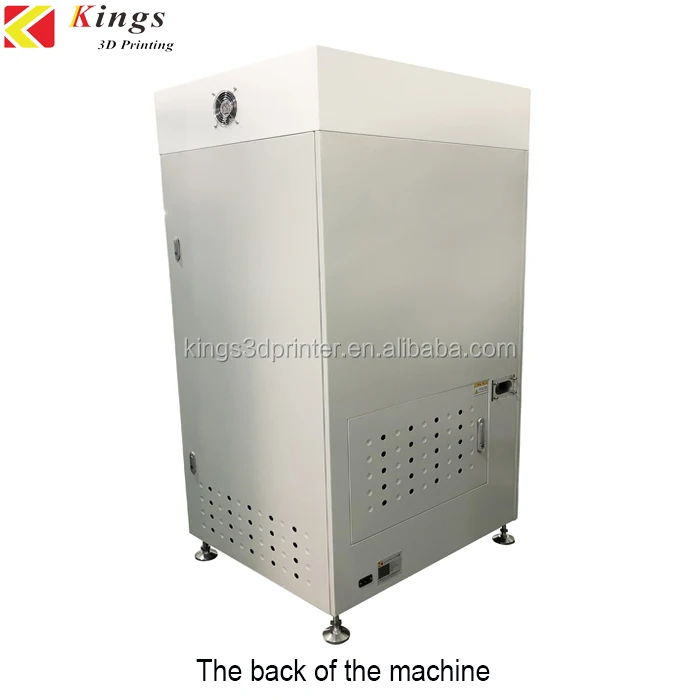

KINGS SLA(Stereolithography) 3D PRINTER is an additive manufacturing machine that works by focusing ultraviolet laser onto a vat of photopolymer resin. With the help of CAM or CAD software, UV laser is used to draw a pre-programmed design or shape on surface of the photopolymer vat. Photo -polymers are sensitive to ultraviolet light, so the resin is photochemically solidified and forms a single layer of desired 3D object. This process is repeated for each layer of the design until completed.



Principle of SLA

SLA process is the most studied, the most

advanced and the most widely used method

o frapid prototyping in the world(also the rapid

prototyping method adopted by our company).

SLA technology is the principle of computer

controlled laser beam scanning on the sur -face of the photosensitive resin material  poi -nt by point. the thin resin layer(about a few tenths of a milimeter) in the scanned area produces photopolymerization reaction, whi -ch solidifies to form a thin layer of the part, the table down a layer of thickness so that the surface of solidified resin is coated with a new layer of liquid resin. the next layer is scanned and repeated until the whole prot -otype is finished since the photopolymerizati -on is based on light rather than heat, only lower power of laser source are needed at work.



Product Advantages:

1. High efficient automatic molding with low cost.

2. Ultra-high precision and 360℃ print, which can reach ±0.1mm.

3. Delicate smooth surface treatment.

4. Complicated structure mould also can be molded.

5. It can replace plastic mould, which have multi-attribute materials, and can make mould more practical.

6. Low decibel operation without noise, environmental materials.

7. Operating easily, and do not rely on professional master.

8. Powerful software: we detrusion "one key to convert watertight file" plug-in, which save a lot pre-working time and labor cost.

9. Huge printing size, and high printing stability guaranteed by advanced photoelectric devices, achieving large printing model and volume production.

10. Variable light spot technology to improve printing efficiency, small light spot for outline and big light spot for filling.





Features

1. Imported ball screw and linear guide rail guarantee high printing accuracy 0.01m;

 2. Many photopolymer resin choices, like rigidity, detail, color, clarity and temperature tolerance;

3. Imported quality device: German galvanometer scanner & US laser device;

4. Variable light spot: bigger lighting area, higher printing speed;

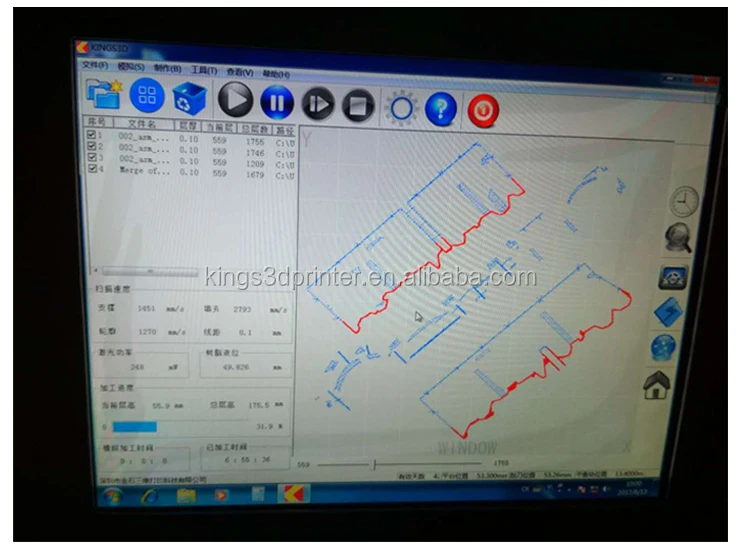

5. KINGS owned control software for simple & visual operation.











Main configurations

LASER SYSTEM
Laser Type	Nd: YV04 Solid Laser
Wave Length	355nm
Power	Minimum Power to Liquid Level≥300mW
COATING SYSTEM
Coating Mode	Intelligent Position Vacuum Recoating
Normal Layered Thickness	0.1mm
Rapid Build Layered Thickness	0.15mm
Precise Build Layered Thickness	0.05mm
Special Build Layered Thickness	0.05mm~0.20mm
OPTICAL & SCANNING SYSTEM
Light Spot(diameter @1/e2)	0.10-0.15mm
Scanning Mode	Germanic Galvanometer Scanner
Parts  Scanning Speed	Maximum 10.0m/s
ELEVATOR SYSTEM
Vertical Resolution Ratio	0.0005mm
Repeat Positioning Accuracy	±0.01mm
RESIN TANK
First Tank Weight	about 550kg
Forming Material	Photopolymer Resin
Resin Heating Method	Bottom Heating with Silicone Rubber
CONTROL SOFTWARE
Machine Control Software	KING3D Control Software
Device Software Interface	3D Design Software, STL File Format
SOFTWARE SYSTEM
Master Controller Operation System	Windows 7
Network Type and Protocol	Ethernet,TCP/IP
INSTALLATION CONDITION
Current Source	200-240VAC 50/60Hz, Single Phase,10A
Ambient Temperature	20-26ºC
Relative Humidity	<40%,Frost Free Knot



Our other models



Item	Model	Building size	Feature
1	KINGS600	600*600*400mm	Single laser and galvanometer
2	KINGS1700	1700*800*600mm	Dual laser and dual galvanometer
3	KINGS6035	350*600*350mm	Single laser and galvanometer
4	KINGS7255	720*550*400mm	Dual laser and dual galvanometer
5	KINGS800	800*800*500mm	Single laser and galvanometer
6	KINGS450	450*450*350mm	Single laser and galvanometer
7	KINGS3035	300*350*350mm	Single laser and galvanometer

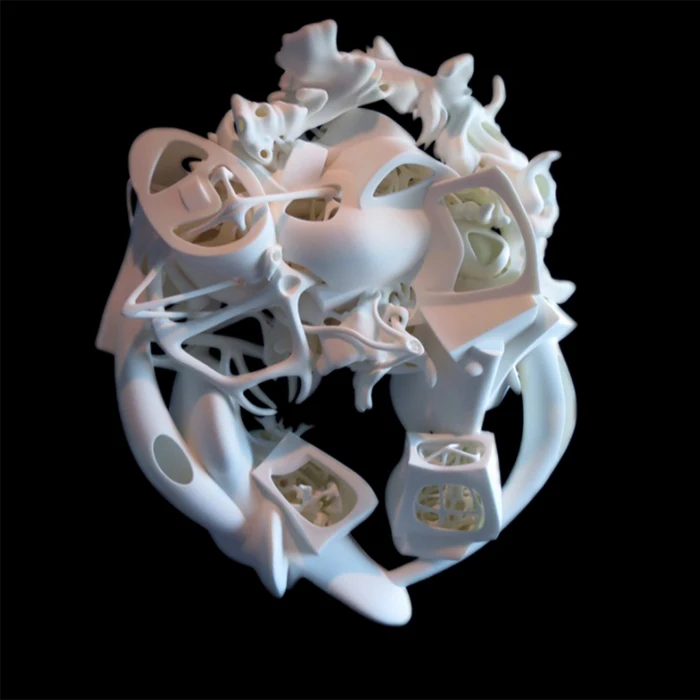

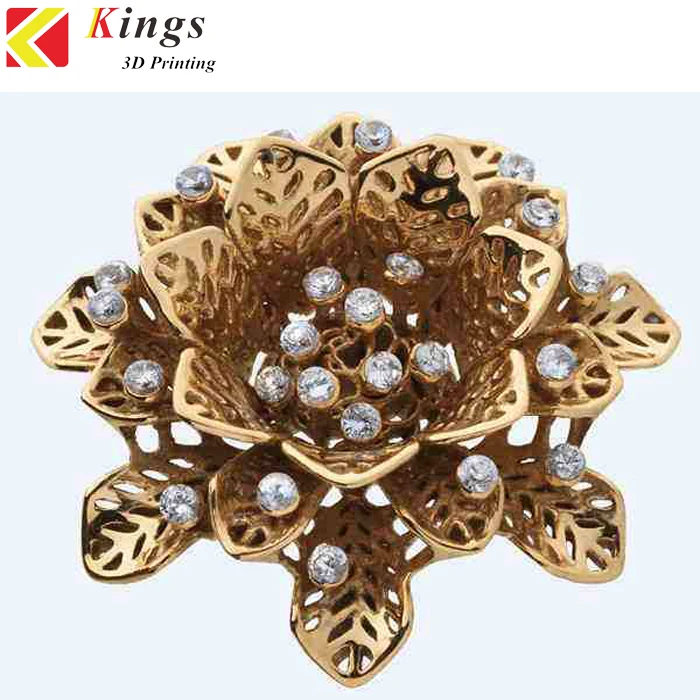

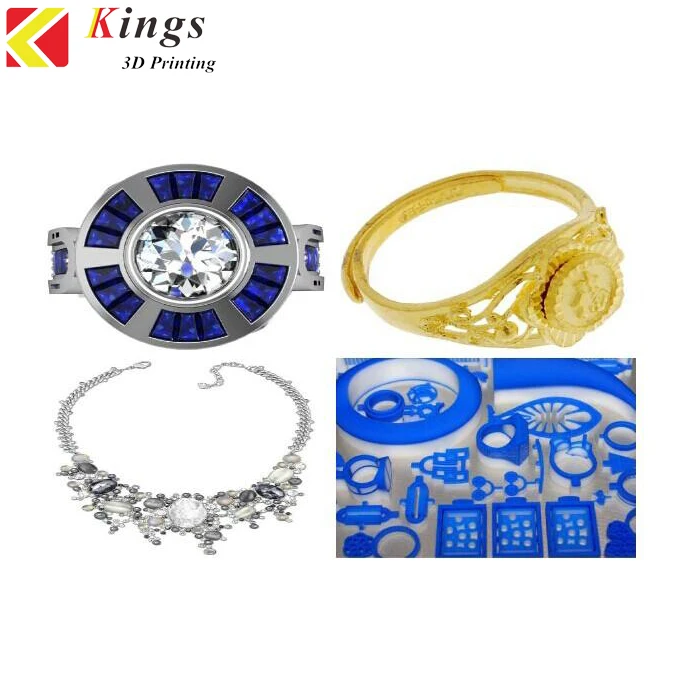

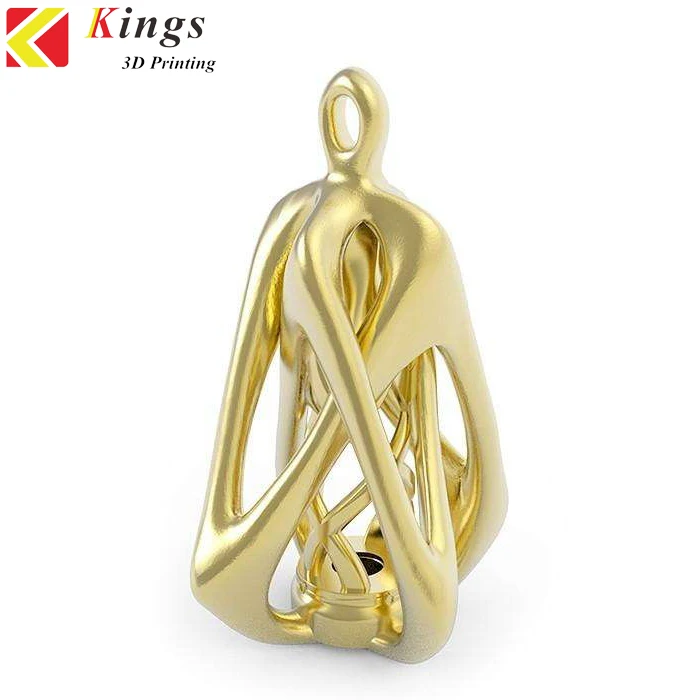

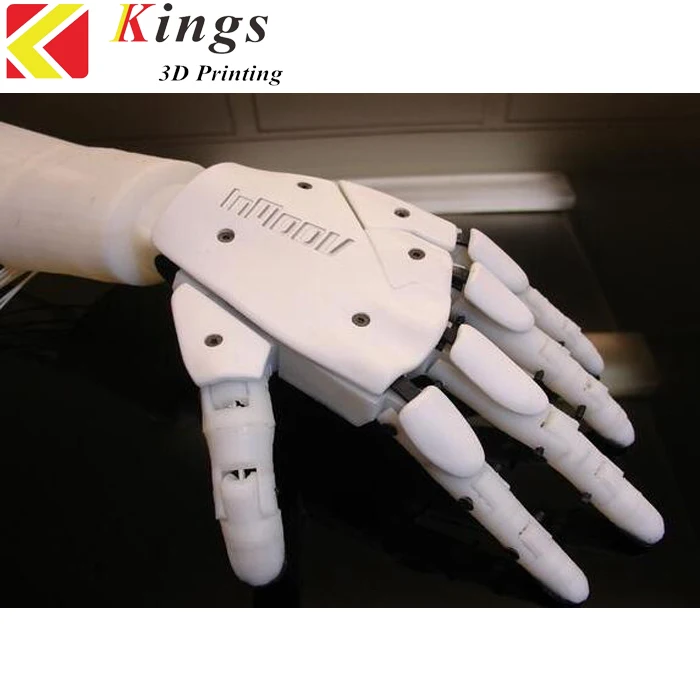

Product Applications

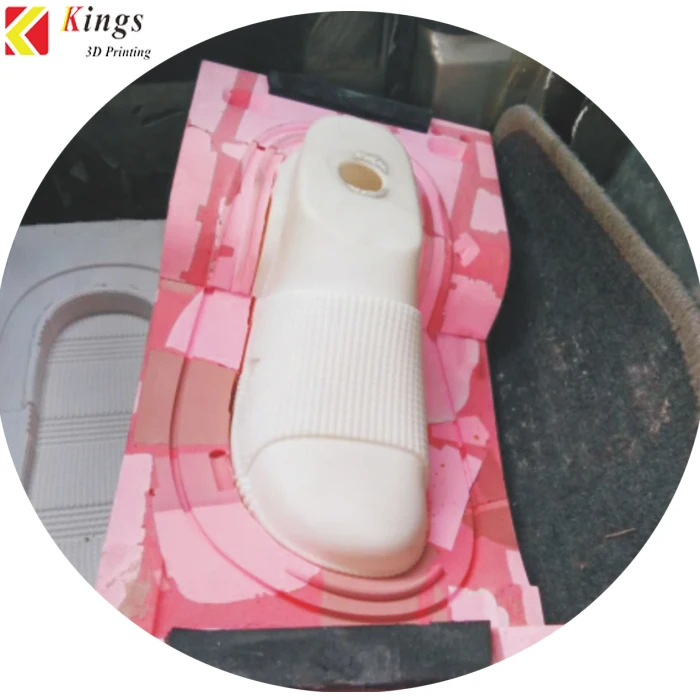

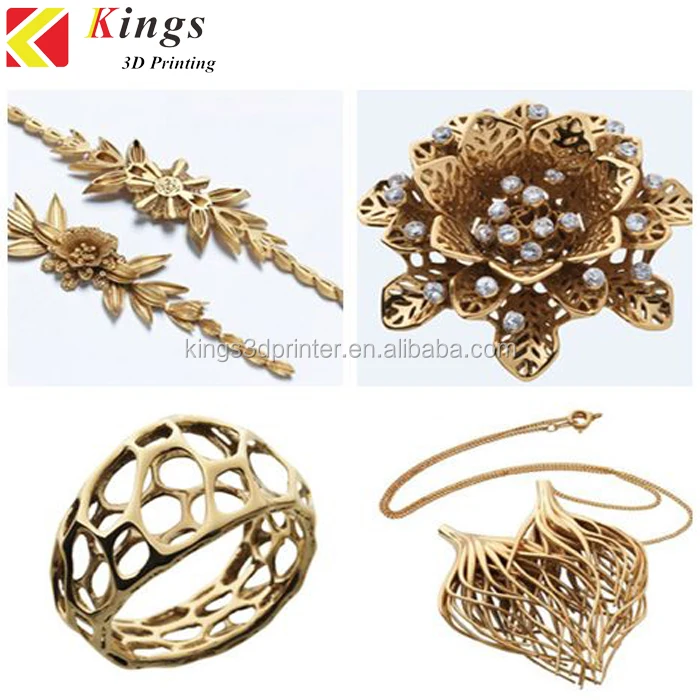

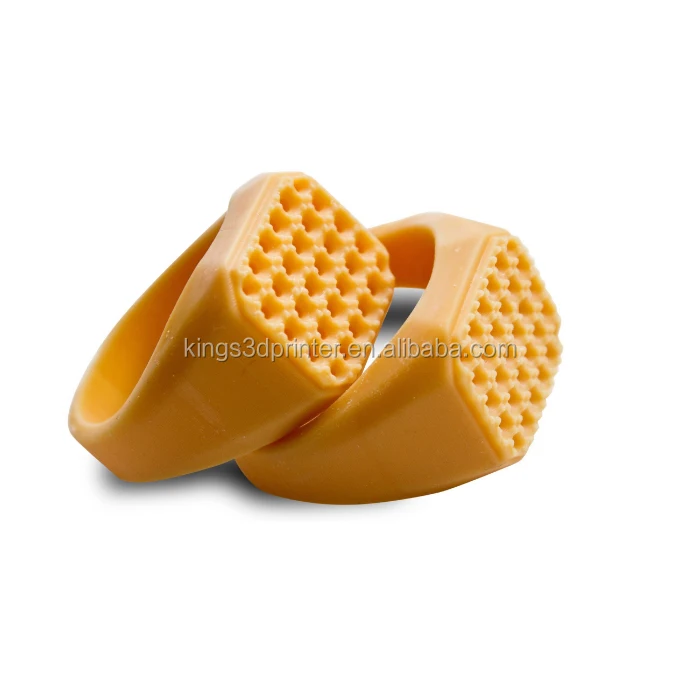

KINGS SLA 3D printers are widely applied by shoe manufacturer, mould factory, automobile manufact -urer, college / research institute, construction company, etc., who come from various industries, like Shoe / Mould / Prototype / Toys / Cartoon / Architecture / Arts & Crafts / Jewelry / Dental / Appliance / Workshop / Education / CNC / Automotive / Furniture / Design / Bicycle, etc.





Packing&shipping

Shipping list

Name	Quantity(pcs)	Name	Quantity(pcs)
3D printing machine	1	Laser	1
Scraper	1	Loading part container	1
UPS power supply	1	Tool case	1
Allen wrench	1	Gloves	1
Caliper	1	Brush	1
Themometer	1	Clip	1
UV curing oven	Optional	Dehumidifier	Optional

1. Packed by wooden case.

2. Delevery time:7-35 days, 7 days for stock, 35 days for production.





Our services

1. 2 years warranty;

2. On-site installation and maintenance;

3. Professional machine operation training and software operation training.



Company infomation

Shenzhen KINGS 3D Printing Technology Co., Ltd is a high tech enterprise, which focuses on m -arketized application of 3D printing technology. It’s devoted to R&D, manufacturing, sales and servic es of industrial SLA 3D printers and photopolymer resin for more than 10 years. We have more than 200 staff, including 30 experienced mechanical engineers, structural engineers, software engineers a -nd electrical engineers.





FAQ

1.Q : Are you a factory or a trading company?
A : We are professional SLA 3D printer manufacturer.
2.Q : What is your max size for CNC prototype and 3D printing?
A : For CNC machine,there is no max size but bigger
3D printing max size : 850mm*850mm*550mm.
3.Q : Can you do OEM customization?
A : Yes,we can customize the machine base on the requirements of our customers.
4.Q : How long will be your delivery time?
A : It’s usually 30-45days, also we have some in stock, Sometimes, it can be discussed and make an agreement between us.
5.Q : What information should I give for detailed quotation?
A : If you have drawings or samples,please feel free to send us,and tell us your special requirements such as material,processing technology and the amount etc.
6.Q : Do you only provide rapid prototyping service?
A : No,we can not only make prototype but also open moulds,that means your order quantities can change from 1pcs to a large quantity.
7.Q : How does your facility handle quality control?
A : quality is the most important
(1) all the raw materials we use are environmentally friendly;
(2) skilled workers care about every detail in the production and packaging process;
(3) quality control department is responsible for quality inspection.
8. Q: How can I get 3D printable designs?
A: To 3D print something, first you need a 3D model-the mathematical representation of any 3D surface of an object. 3D models are created using computer-aided design(CAD) tools,various specialized software tools that simplify the design process on computers, tablets or even smartphones. From here, you have 3 options: create a design yourself, have someone else design your idea for you, or browse thousands of existing designs on 3D printing content platforms.
9. Q: Can you design the mold for us when we offer effect photo?
A: Yes, you just offer us 3D drawing. We can make modification to your 3D file.
10.Q: What files do I need to offer?
A: You can upload STL or STP, IGS files, the standard files used in the 3D printing industry.
11. Q: Can I just print 1 or 2 pcs samples for testing?
A: Yes, you can just send us your drawing, we would print sample for you at any time.
