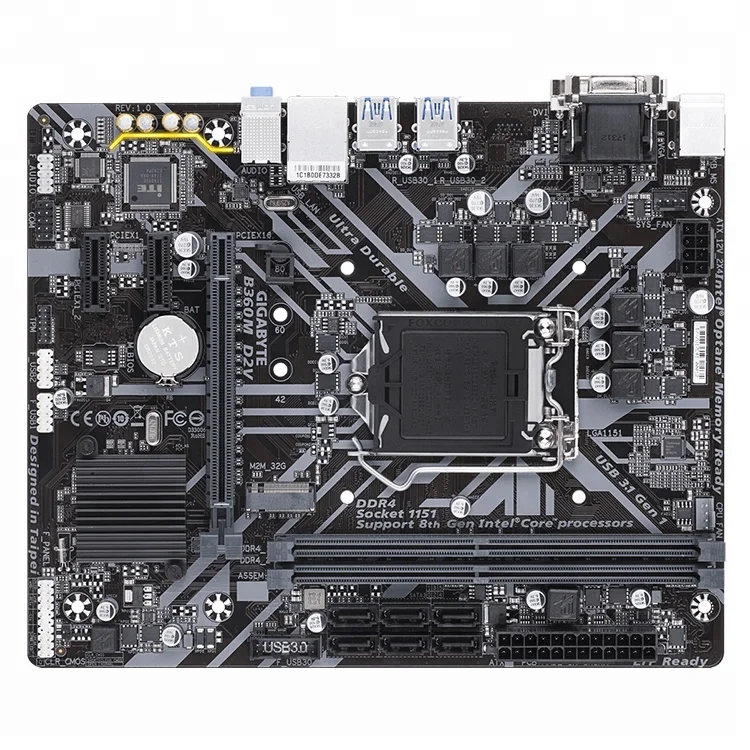

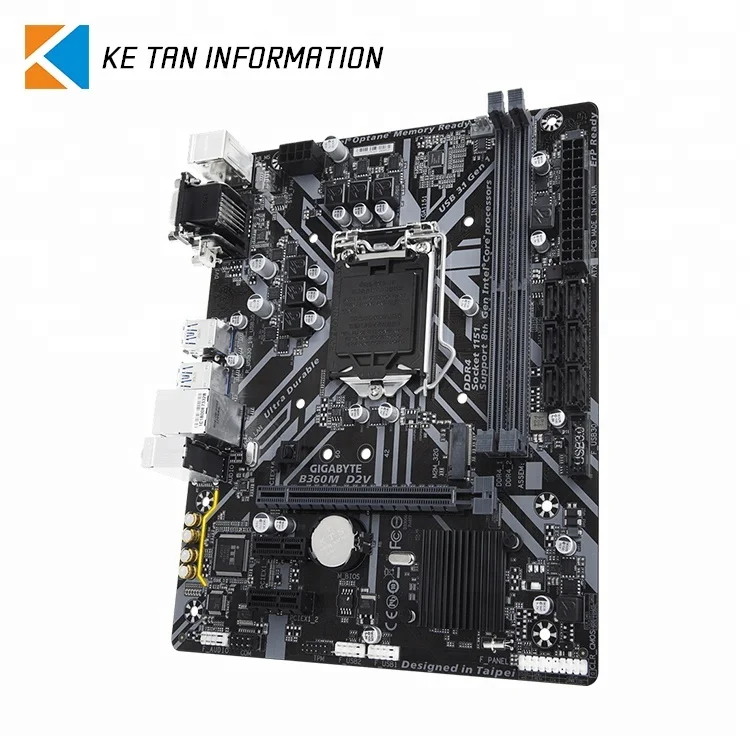

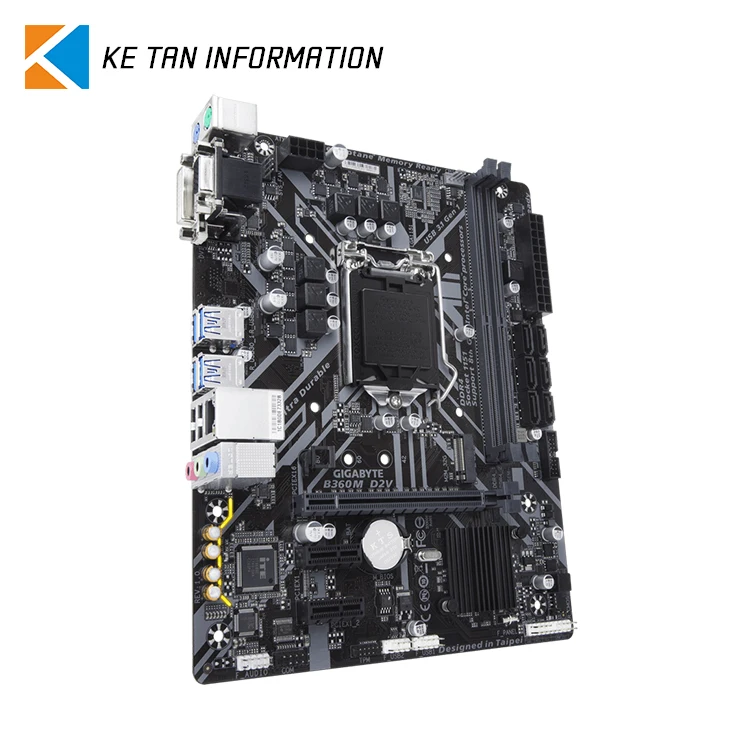

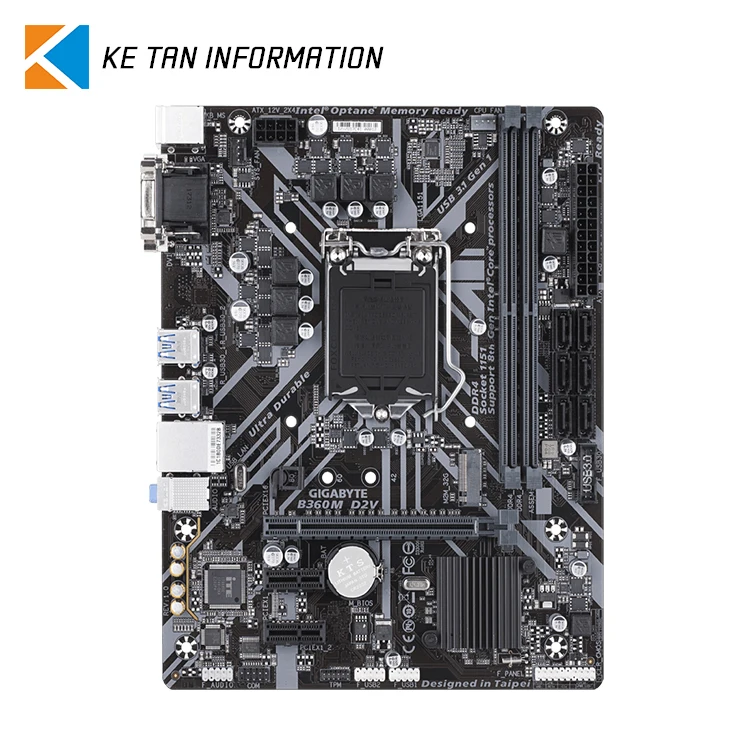

GIGABYTE B360M D2V 32GB DDR4 LGA1151 ATX Gaming Motherboard in used

Product Overview

Description

Intel B360 Ultra Durable motherboard with GIGABYTE 8118 Gaming LAN, PCIe Gen3 x4 M.2, Smart Fan 5, Anti-Sulfur Resistors, DualBIOS™, CEC 2019 ready



Supports 8th Gen Intel® Core™ Processors

Dual Channel Non-ECC Unbuffered DDR4

New Hybrid Digital PWM Design

High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting

Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface

GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

CEC 2019 Ready, Save the Power as Easy as One Click

Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

Anti-Sulfur Resistors Design

Ultra Durable™ 15KV Surge LAN Protection

Intel® Optane™ Memory Ready



Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

6 x SATA 6Gb/s connectors

1 x M.2 Socket 3 connector

1 x front panel header

1 x front panel audio header

1 x USB 3.1 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x serial port header

1 x Clear CMOS jumper



Memory

2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

Dual channel memory architecture

Support for DDR4 2666/2400/2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.

(Please refer "Memory Support List" for more information.)



Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

Maximum shared memory of 1 GB
