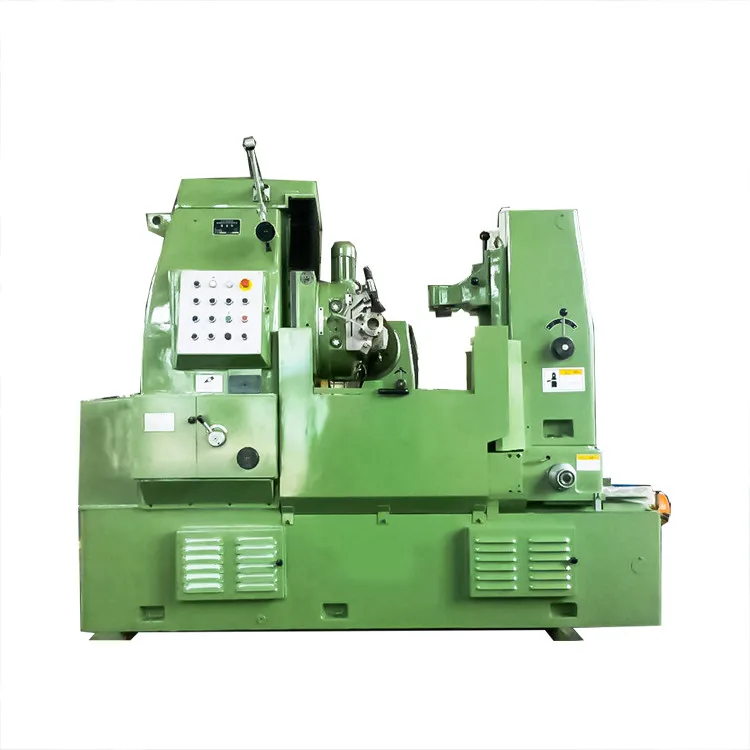

Hoston Semi-automatic Gear Hobbing Machine Y3150/3180
US $5600-$6000
Зубчатая машина с высокоскоростным зубчатым редуктором Y3180
- Category: Gear Cutting Machines >>>
- Supplier: Henan Wadley CNC Machinery Co. Ltd.
Share on (60761253864):
Product Overview
Description

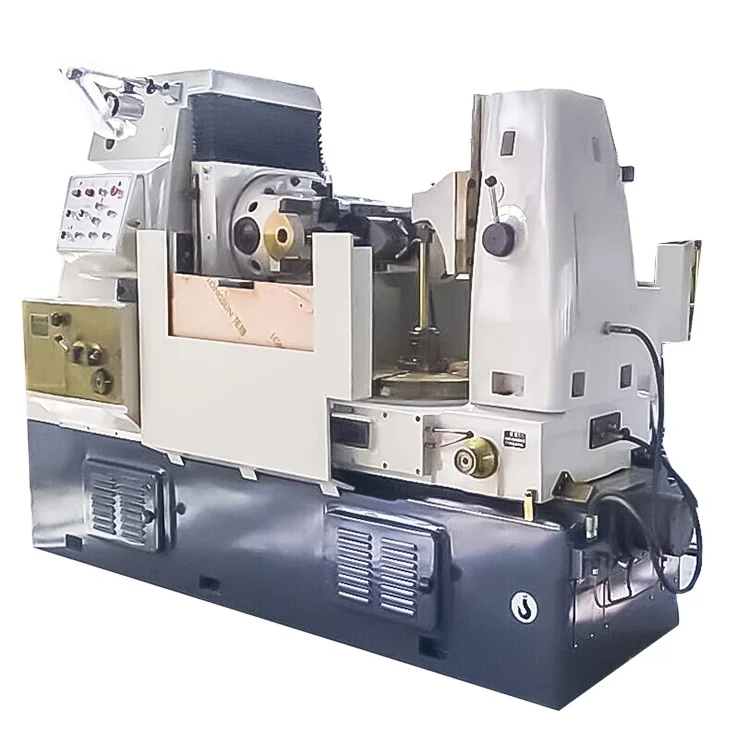

Gear Making Machine with High Speed gear hobbing machine Y3180
Product Description
Technical Specification | Unit | Y3180 | |
Max.dia.of workpiece (without back column/with back column) | mm | 800/20 | |
Max.modulus(casting iron/steel workpiece) | mm | 10/8 | |
Max. helix angle in turning bevel gear | ° | ±45° | |
Max. dimension of cutter (Dia. x Length) | mm | 180x180 | |
Cutter tool spindle taper hole | MS | No.5 | |
Worktable diameter | mm | 650 | |
Worktable hole diameter | mm | 80 | |
Worktable mandrel tapper | Ms | No.5 | |
Distance between axis of cutter and worktable face | mm | 235-585 | |
Distance from hob center to workable center | mm | 50-550 | |
The distance between under end surface of the support bearing hole and the worktable | mm | 235-1100 | |
Rapid moving speed of worktable | mm | 50 | |
Max. Axial movement of cutter | mm | 50(manual) | |
Spindle speed steps |
| 8 | |
Spindle speed range | rpm | 40-200 | |
Axial feeds range | mm/rev | 12 steps 0.4~4 | |
The Max speed of worktable | R/min | 5.3r/min(3.5r/min) | |
Power of main motor and synchro-speed | Kw/rpm | 5.5/1500 | |
Power of rapid axial motor synchro-speed | kw/rpm | 1.1/1500 | |
Power of rapid worktable motor synchro-speed | kw/rpm | 0.55/1500 | |
Power of hydraulic pump motor and synchro-speed | kw/rpm | 1.1/1000 | |
Power of cooling pump | Kw |
| |
The weight | kg | 5500kg | |
Overall size | mm | 2750x1490x1870 |
|
Applacation
Packaging & Shipping
The normal package is wooden box. If export to European countries, the wooden box will be fumigated. If container is too tight, we will use PE film for packing or pack it according to customers’ special request. Size selected according to the size of the machine. And we can make delivery within 7-15 working days after the payment received.
Our Services
1.Best price and the best quality!
And we have a very professional sales team which can offer you the most professional service.
2.High quality is our promise.
We have more than 20 years experience producing machines in China.
3.On time delivery.
As direct manufacturer supplier, we can delivery in on time to make sure to save you much time and energy.
4.Excellent after sales service.
We have our own after sales service team in office, so that we can solve all the problem you met in time.
5.20 years exporting experience.
We had exported to Pakistan, Russia, America, Australia, Uzbekistan, about 30 countries.
6. Efficient work
Your inquiry and question will be dealt with in 24 hours.
