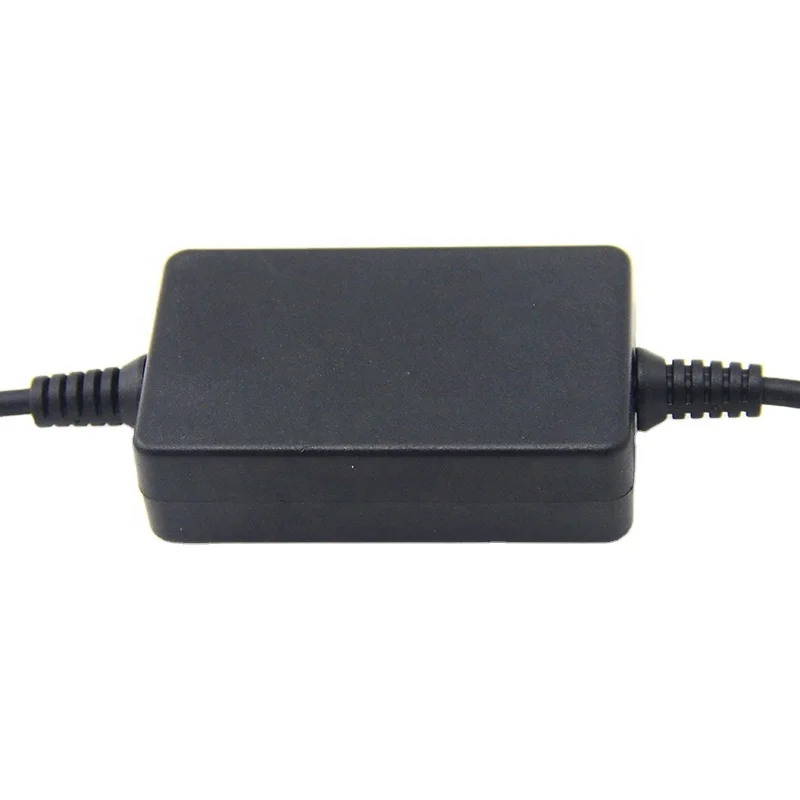

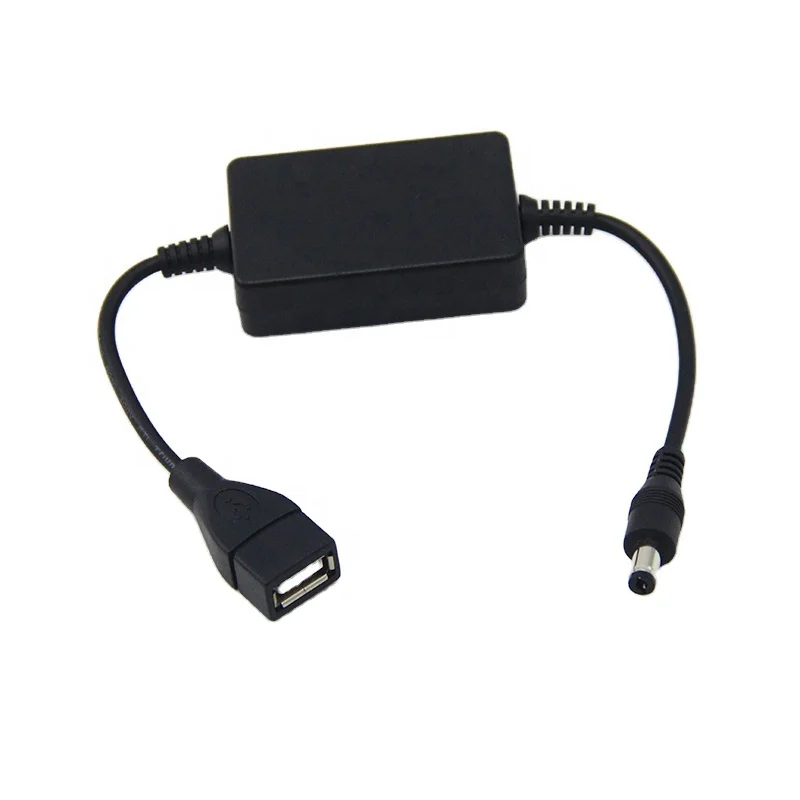

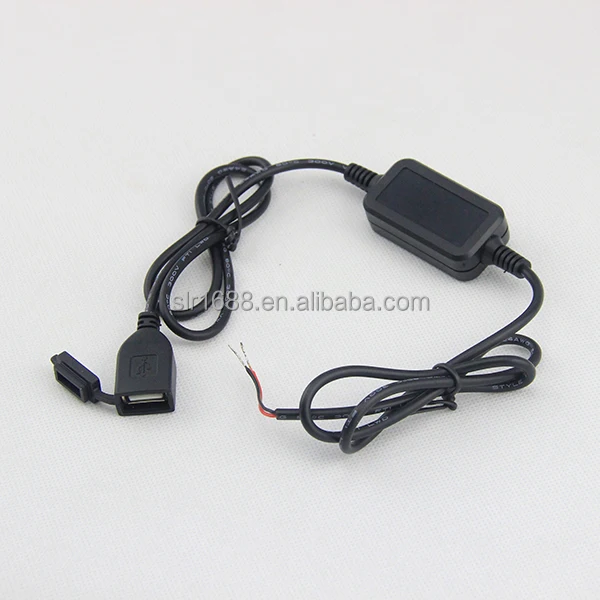

12v to 5v Step Down Dc dc Module Buck 12v 24v 36v to USB 5v 9v 12v 1a 2a 3a Step Down Voltage DC Convertor cable

    1. The convertor is divided into two kinds of boost and buck.  We can produce input voltage 5-40V and output 3.3-25V. We can adjust special voltage for you. The length and the connector can be customized according to your requirements.

    2. If you need certification about the product,we can help you make it after you pay the payment. The products are low power,so they are only used for small devices.

    3. Each one has been tested before leaving our factory and confirmed they all work well.

    4. The specification:

DC series

DC Boost Section:                                DC Buck Section:

    0~5V To 5V                                                                               36V To 24V

    5V To 8V/11V                                                                            36V To 12V

    5V To 9V/12V                                                                            36V To 5V

    5V To 8V                                                                                    24V To 12V

    5V To 9V                                                                                    24V To 5V

    5V To 11V                                                                                  12V To 5V

    5V To 12V                                                                                  12V To 3.3V

    5V To 19.5V                                                                               12V To 3V

    5V To 20V                                                                                   5V To 3.3V

    5V To 24V                                                                                   5V To 3V

    12V To 24V

    12V To 36V

    24V To 36V                                                     and other unconventional voltages

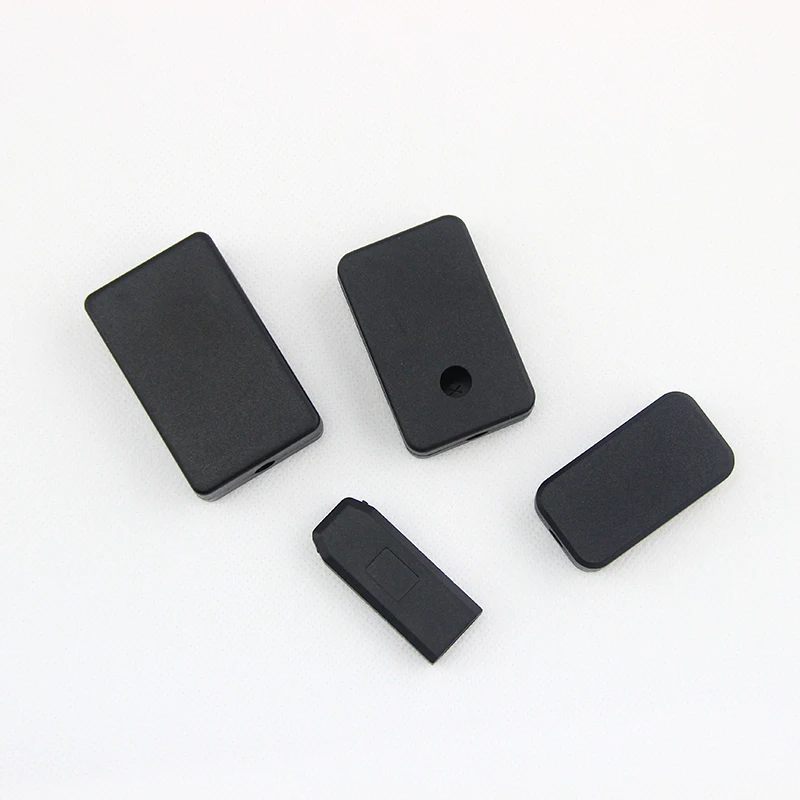

DC Shell Size:

                         60*37*17mm

                         55*35*15mm

                         48*26*15mm
                         40*18*10mm(USB shell)

Note:

We provide other different connector and cable. Including:

1. Powered USB series: 5V, 12V, 24V, 2*4P, 1*8P

2. D-SUB series: DB9, DB15, DB25, DB26, DB37, DB44, DB62

3. RJ crystal head series: RJ9, RJ11, RJ12, RJ45, RJ50 male/female

4. Din series: Mini Din, Big Din, Power Din injection molding/assembly

5. DC cable series: 3.5*1.35, 5.5*2.1/5.5*2.5, 6.5*3.0 straight male/female etc.

6. Audio series: 2.5mm, 3.5mm, 6.35mm male and female straight elbow, RCA male and female

7. USB series: USB A male/female,Mini USB male/female,Micro USB male/female,Type C male/female straight and angle

8. DC convertor series: buck-boost 0-48V, input and output can be selected arbitrarily, such as: output 3.3V, 5V, 8V, 9V, 12V,24V

9. Serial port series: FTDI original chip, RS232 serial cable, customized communication cable with board, 10m 15m USB extension cable, industrial
equipment upgrade serial cable

10. Injection molded terminals: Molex 3.0 2*1, 2*3, 2*4, 2*6, 2*7, etc.;

                                                      Molex 4.2 2*3 2*4; ODB II and other terminals

11. Crimp terminal series: Molex, JST, Dupont, Amphenol, Ket, etc.; internal jumper wiring harness, drone wiring harness, computer wiring harness,
household appliance wiring harness, electronic wiring harness, etc.

12. With board (PCBA) molding, injection molding and copying, aviation head, aeromodelling power cord molding, various Y-shaped cables, special
combination customized cables

    ODM and OEM are available.

    We will try our best to support and meet you and your design.Do not hesitate to contact me and you will find extra pleasantly surprised.

We have a professional team.

We can accept PCB produce, PCBA assemble,PCBA copy.

We can make terminal injection molding.

We can do PCBA injection molding.

                                                          Welcome to your inquiry!
