Ointment making machine 150L lift type vacuum emulsifying mixer

Product Overview

Description

Ointment making machine 150L lift type vacuum emulsifying mixer :

Pls feel free to contact us for customized solution.

- Brief description of Ointment making machine 150L lift type vacuum emulsifying mixer:

1	This emulsifying mixer is used for heating , mixing , emulsifying and vacuum degassing of ointment and liquid-liquid , liquid-powder products.
2	This machine consisits of emulsifying mixer , oil tank , water tank , heating system , mixing system , vacuum system , hydraulic liftying system, electrical control cabinet.
3	2 kinds of mixing way , high speed homogenizing and low speed mix with scraper, mixing speed could be adjustable.





-  Main specifications of Butter making machine 150L lift type vacuum emulsifying mixer:



Model No.		ZJR-150	ZJR-250
Main pot	Design capacity	200  L	250 L
	Working capacity	150  L	200  L
	Mixing power	2.2 kw	2.2 kw
	Mixing speed	0-120 r.p.m	0-120 r.p.m
	Homo power	3 kw	4  kw
	Homo speed	2800 r.p.m	2800 r.p.m
	Heating power	8 kw	10  kw
	Vacuum pump power	0.37 kw	0.37 kw
	Vacuum degree	-0.9 Mpa	-0.9 Mpa
Water pot	Design volume	120 L	200 L
	Working volume	100 L	150 L
	Heating power	6 kw	6 kw
	agitating power	0.75 kw	0.75 kw
	agitating speed	1400 r.p.m	1400 r.p.m
	agitating way	by disc	by disc
Oil pot	Design volume	80 L	120 L
	Working volume	60 L	100 L
	Heating power	4 kw	4 kw
	Agitating power	0.75 kw	0.75 kw
	Agitating speed	1400 r.p.m	1400 r.p.m
	Agitating way	by disc	by disc

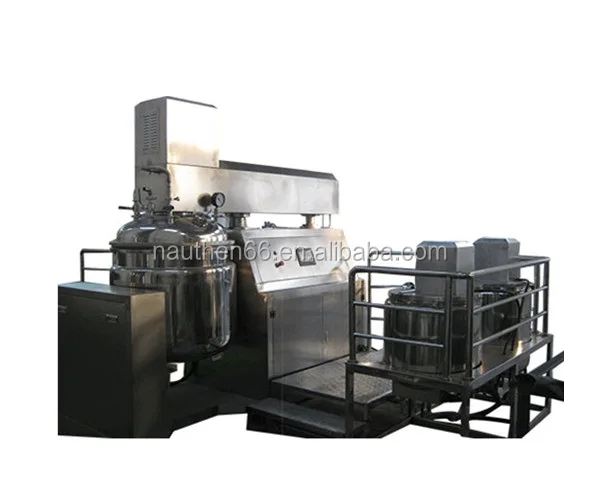

- Reference pictures of ointment making machine 150L lift type vacuum emulsifying mixer:
