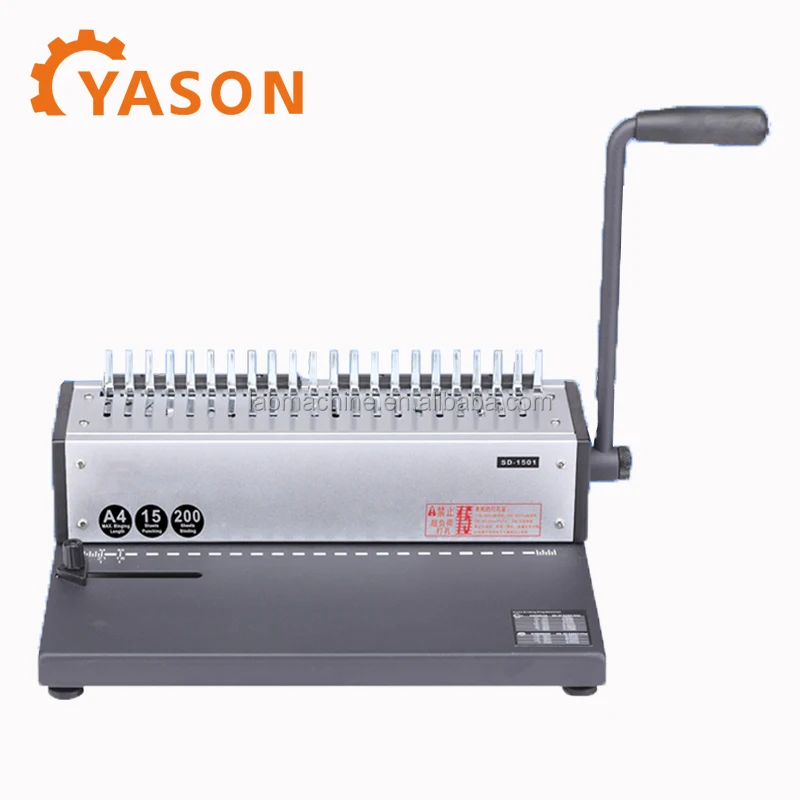

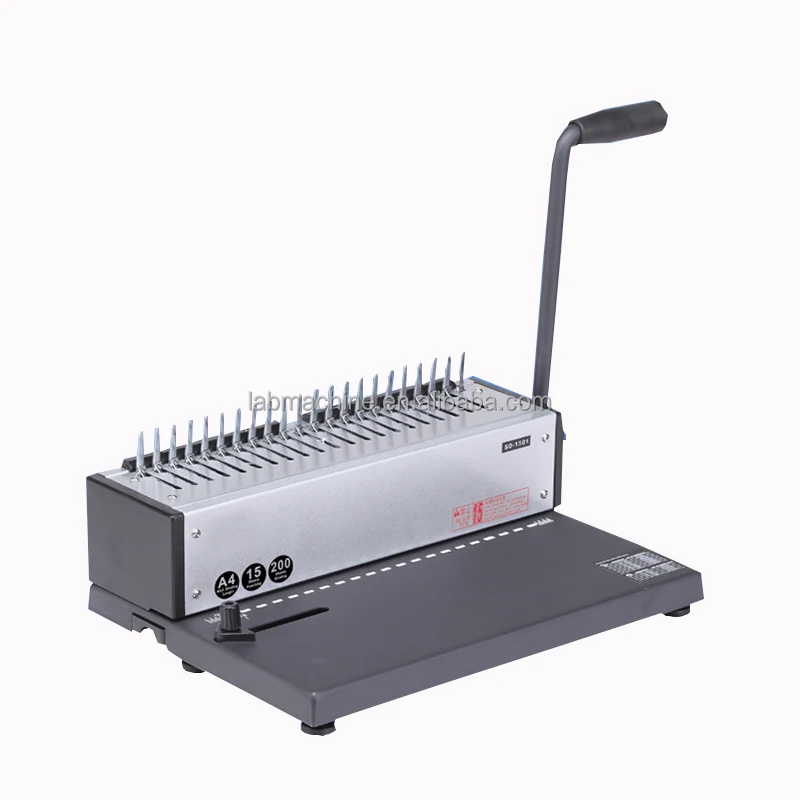

21-hole Manual Binding Machine SD-1501

21-hole rubber ring clamp dual-use manual binding machine
All-steel structure, aprons
Punches up to 15 sheets of 80g paper at a time, and 200 sheets of bookbinding thickness


All-steel structure. Durable
Machine steel structure, solid and reliable, durable, beautiful,

Solid round steel handle design
Solid bar labor-saving handle,
Punch pressure ring operation

Strong punch, full amount of binding
The machine can print 12 sheets of 80 grams paper at a time.
Bind 200 A4 paper files

Knob Locking Positioner
Use the locator to fix the paper position so that
Out of the hole symmetrical, beautiful binding

Margin adjustment torque converter
Machine rear margin adjustment knob, twist
Knob can adjust the size of margins, margins
3 to 6MM adjustment

Pull-out confetti box
Left-pull type scrap box for easy cleaning
More humane operation

Rubber anti-slip mat
The base is equipped with 6 rubber feet.
Non-slip, stable

Rubber ring specifications
The base of the machine has its own specification data sheet
Convenient material selection, fast binding

Specifications
1
handle
6
Rubber ring specifications
2
Comb
7
Anti-slip mat
3
Hook plate
8
Base
4
Paper inlet
9
Adjuster
5
Confetti box
10
Margin adjustment knob
Brand Model
SD 1501
Machine Name
21-hole manual binding machine
Applicable Consumables
Aprons, clips
Handle Type
solid round steel handle
Applicable Paper
A4
Punching Capacity
15 pieces 80g
Binding Capacity
200 sheets (22MM)
Punching Size
3*8mm
Number Of Holes
21 holes
Number Of Knife Extraction
none
Margin
3-6mm
Pressure Ring Size Range
rubber ring 6-22mm clip bar 3-35MM
Machine Size
400*260*330mm
Packing Size
415*190*310mm
Net Weight Of Machine
6.1KG
Gross Weight
6.7KG
Detailed Images

1. Place the machine's work bench on a reliable work bench

2. Set the margin adjuster and adjuster, put a proper amount of paper into the paper inlet, and press the handle to punch

3. Place the apron on the comb teeth, press the handle backwards, open the apron, put the file of the hole into the circle, reset the handle forward, and finish the binding.

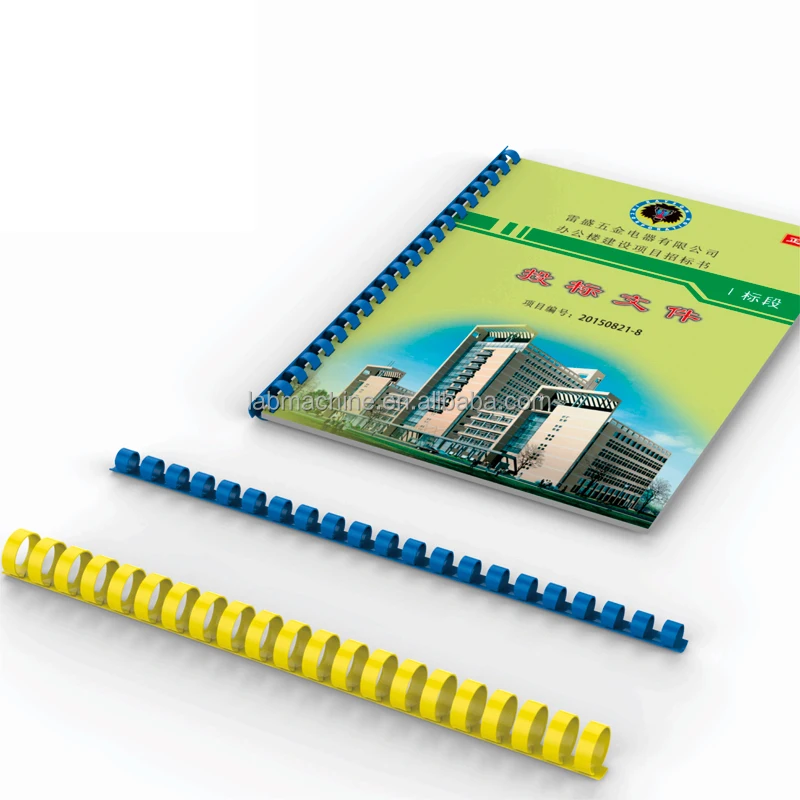

4. Apron binding effect is simple and beautiful

5. Insert the well-drilled file into the clip, fold the clip in half, and finish the binding.

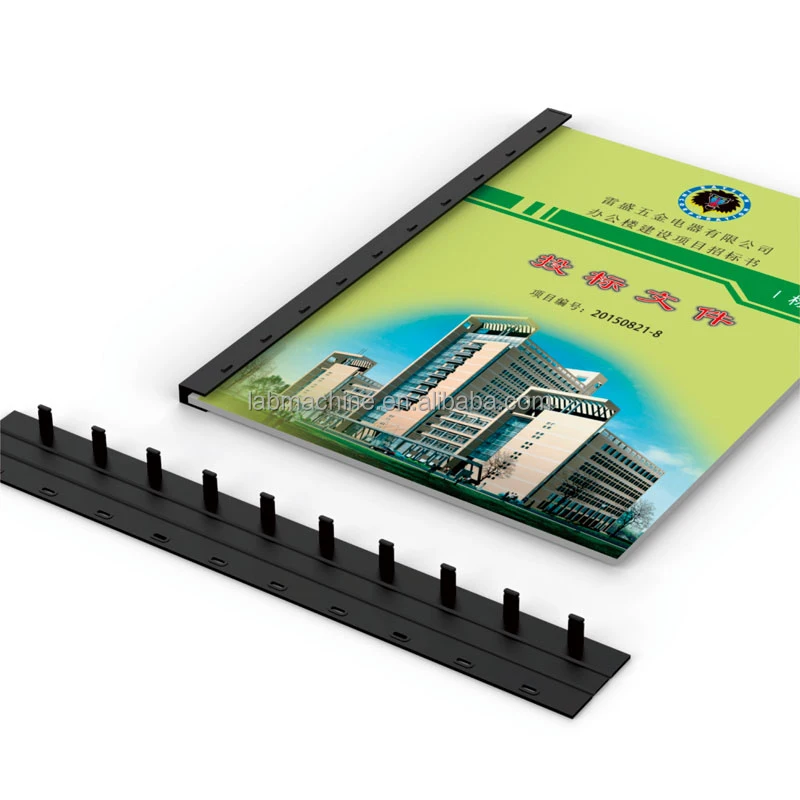

6. Clip binding effect

Packing & Delivery
Payment Methods

Paypal, Western Union, and T/T are the recommended methods of payment, let us know if you choose otherwise.

The transfer fee will be added accordingly for different payment method.


Trade Assurance is supported.

Our Service

Logistics
1. DHL, UPS, FedEx, EMS, TNT, ARAMEX and etc. We will choose the most economical one for you or designate a specific one by yourself.
2. Tracking number will be sent to you within 2 or 3 days after delivery.

Feedbacks
We value any comments, suggestions from you. If you got any problem, please contact us


Delivery Problems
If you find damage or shortage of goods, please take some meaningful photos for a witness and send it to us, we'll solve it within 24 hours.

Warranty
Typically every product got 1 year of warranty, we'll do whatever we can to assist you to solve the issue.
